Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-PAOX01 51405039-275
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Part Number	CC-PAOX01 51405039-275
Part Type	High-Level Analog Output Module
Dimensions	5.5 x 16 x 14.5 cm
Weight	0.4 kg
Output Type	4–20 mA
Output Channels	16
Output Ripple	<100 mV peak-to-peak (power line frequency, across 250 Ω load)
Output Temperature Drift	0.005% of full scale / °C
Output Readback Accuracy	±4% of full scale
Output Current Linearity	±0.05% of full scale (nominal)
Resolution	±0.05% of full scale
Calibrated Accuracy (25°C)	±0.35% of full scale (including linearity)
Directly Settable Output Current Range	0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load	800 Ω
Maximum Output Compliant Voltage	16 V (24 V supply: 22–28 VDC)
Maximum Open Circuit Voltage	22 V
Response Time (DAC to output)	≤80 ms to within 1% of final value
Switchover Gap (0 mA)	10 ms max (redundancy mode)

Description

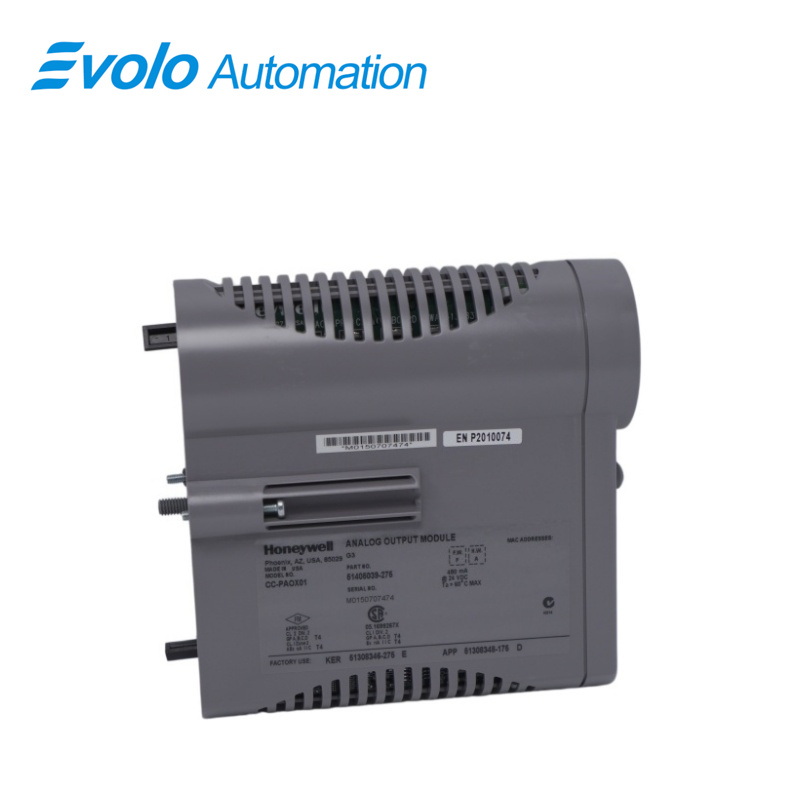

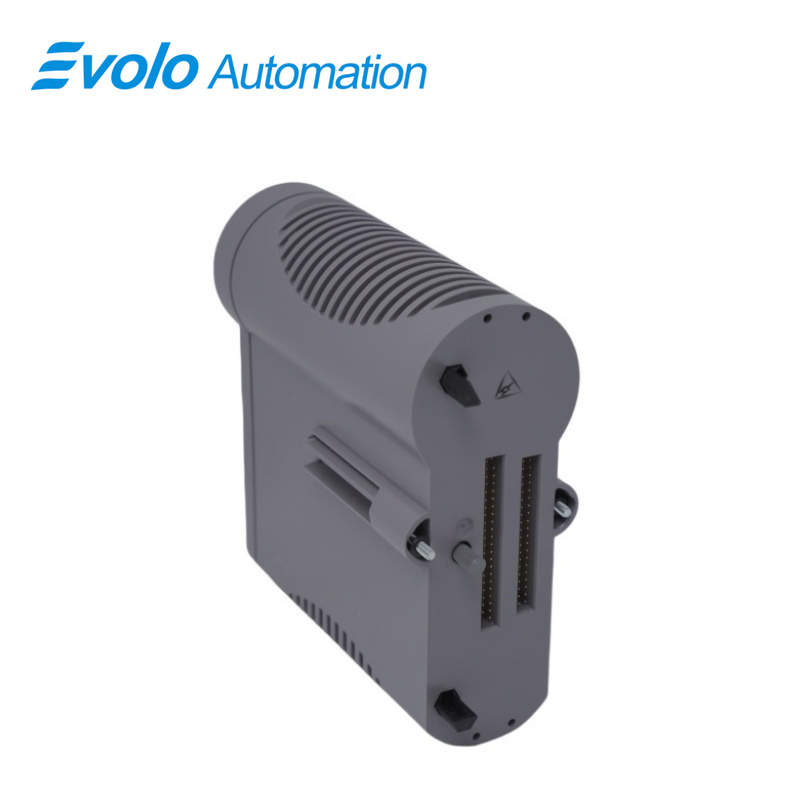

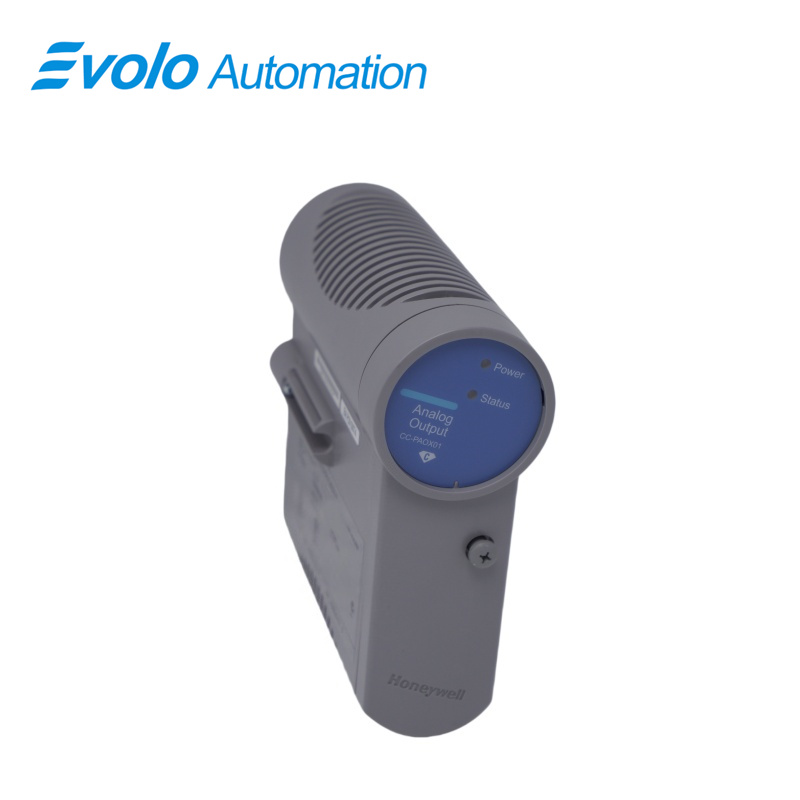

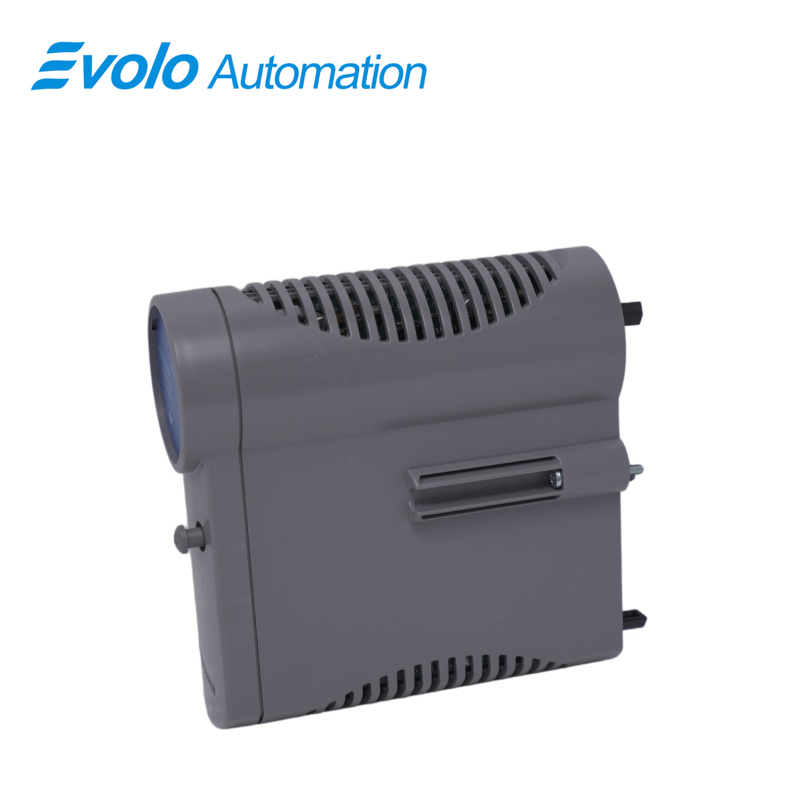

Honeywell CC-PAOX01 51405039-275 is a 16-channel analog output module. It provides a reliable and accurate output signal for use in process control applications. The module is compatible with the Honeywell C300 controller and can be used in a variety of industrial environments.

Applications

Oil and gasification plants: control inlet guide vanes of syngas compressors for precise flow regulation.

Non-ferrous metal smelting plants: drive electrolytic cell actuators under strong electromagnetic interference with stable output.

Thermal power plants: regulate desuperheating and pressure-reducing water valves for stable steam control.

Pulp and paper mills: control level valves in thickening and pulp systems for long-distance signal stability.

Cement production plants: output fuel proportioning control signals for rotary kilns in high-temperature environments.

Notable Features

Extensive self-diagnostics

Optional redundancy

Configurable safe-state (FAILOPT) per channel

Output read-back with mismatch alarm

Non-incendive output

Detection

FAILOPT

Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.

Open-wire Detection

This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.

FAQ

Q: What type of signal output is provided by the CC-PAOX01 51405039-275?
A: Provides 4–20 mA analog current output.

Q: What are the calibration accuracy and current adjustment range of the CC-PAOX01 51405039-275?
A: Calibration accuracy is ±0.35% full scale, with adjustable range from 0 mA to 2.9–21.1 mA.

Q: What are the maximum load capacity and open-circuit voltage of the CC-PAOX01 51405039-275?
A: Supports up to 800 Ω resistive load with a maximum open-circuit voltage of 22 V.

Q: What is the signal response speed of the CC-PAOX01 51405039-275?
A: DAC-to-output response time is ≤80 ms.

Q: What is the output interruption time during redundancy switching of the CC-PAOX01 51405039-275?
A: In redundant mode, current interruption during switchover is up to 10 ms.
