Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-35-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
3.5 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.4x119cm |
|
Weight: |
0.05kg |
Description

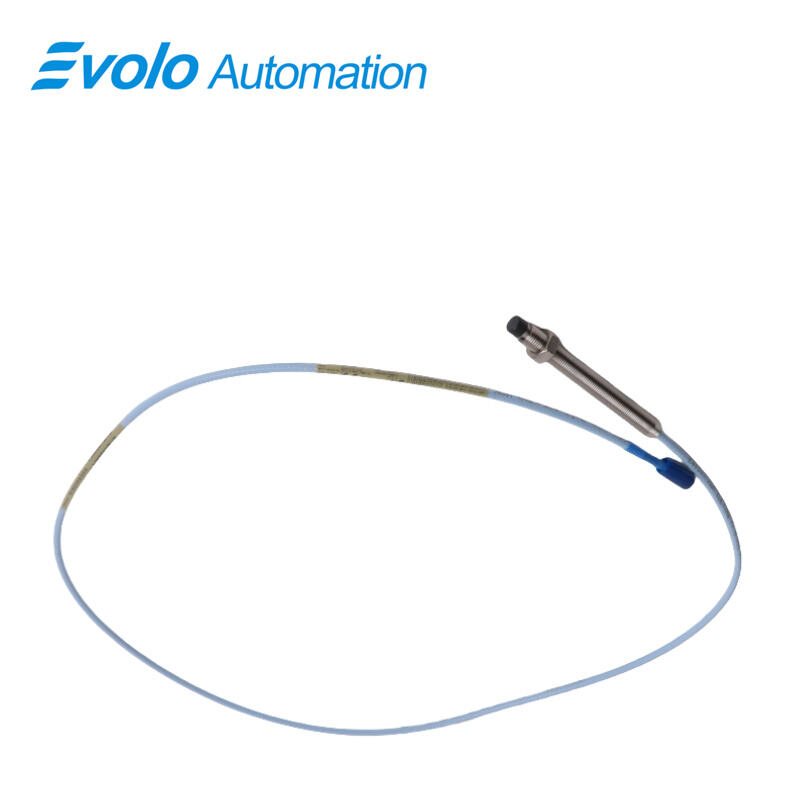

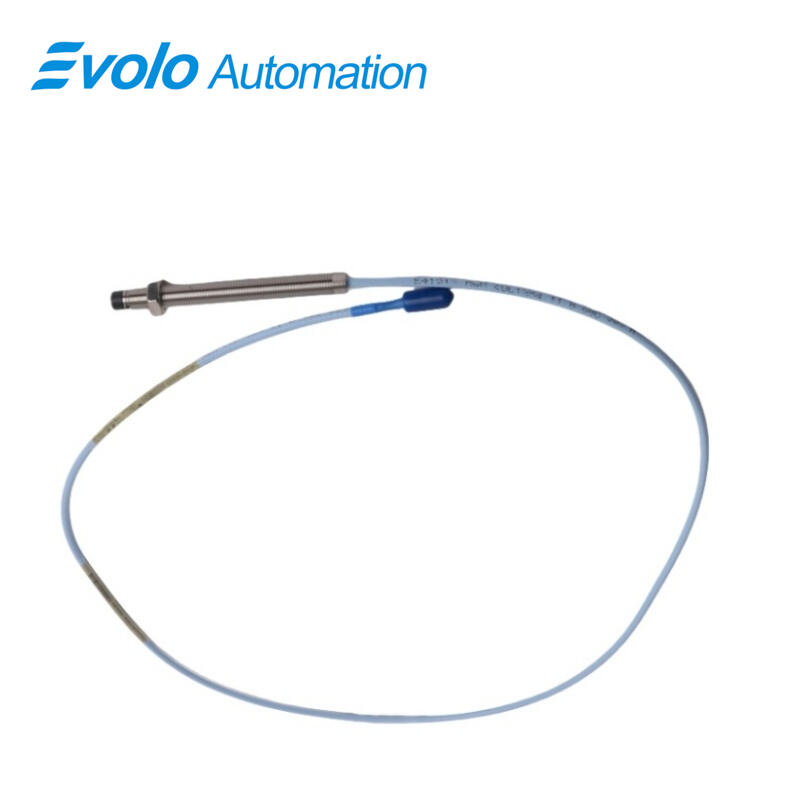

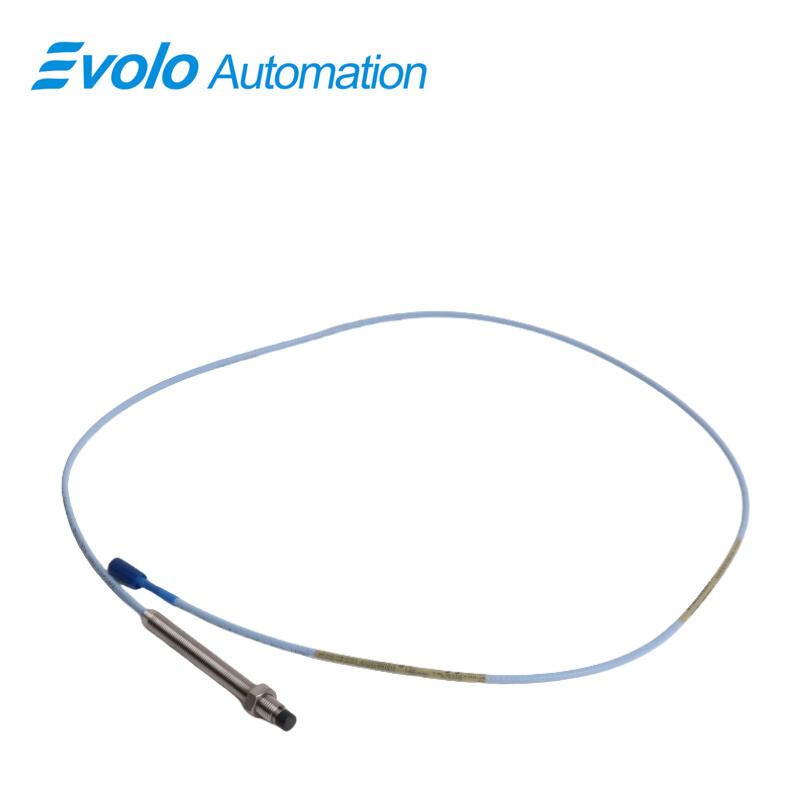

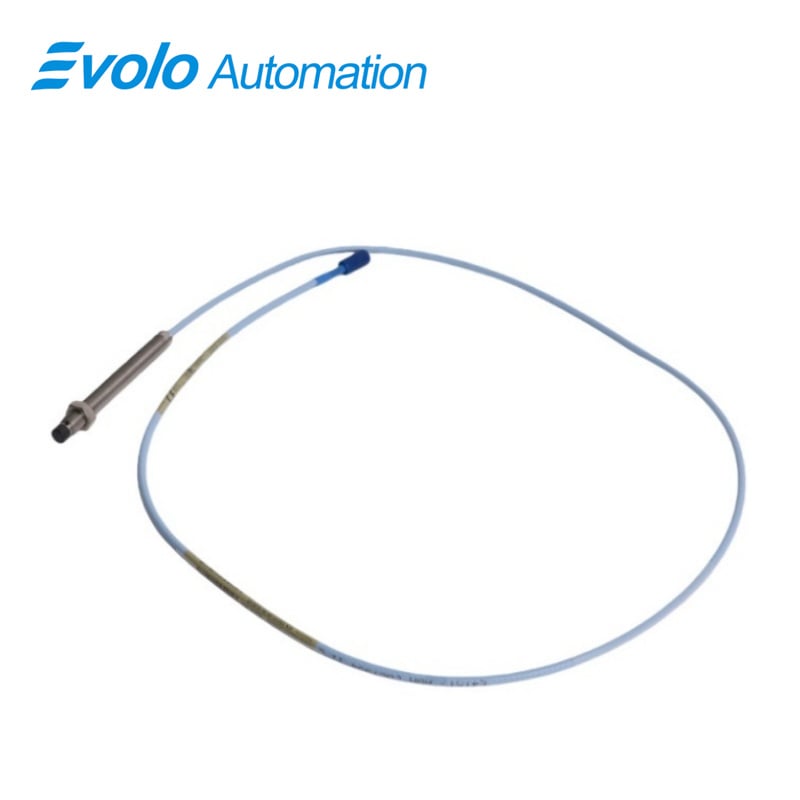

The 3300 XL 8 mm Proximity Transducer System (330101-00-35-10-02-00) delivers highly precise output voltage proportional to the distance between the probe tip and the monitored conductive surface, accurately measuring both static positions and dynamic vibrations in automated machinery. Designed for vibration and position monitoring on fluid-film bearing equipment, this advanced 8 mm XL system also provides reliable Keyphasor reference signals and speed measurements for industrial automation applications. Fully compliant with API 670 standards, the 5-meter 3300 XL 8 mm system ensures mechanical integrity, linear range, and thermal stability. All components, including probes, extension cables, and Proximitor sensors, are interchangeable, backward compatible, and require no individual bench calibration, supporting flexible deployment in diverse automated environments. Enhanced TipLoc molding strengthens the probe tip-to-body bond, while the CableLoc design secures the probe cable with 330 N (75 lbf) pull resistance. Optional FluidLoc cables prevent oil and fluid leakage, ensuring safe and reliable performance in industrial automation systems.
Applications
The 3300 XL 8 mm Proximity Probe is ideal for precision monitoring in automated industrial systems, especially where vibration and position data are critical. Its ability to measure both static positions and dynamic vibrations makes it suitable for fluid-film bearing machines, rotating equipment, and turbines in power generation and petrochemical plants. The probe supports Keyphasor reference and speed measurement applications, ensuring accurate synchronization and control in high-speed machinery. With a 2 mm linear range, miniature coaxial ClickLoc connector, and rugged operating temperature range from -52°C to +177°C, the 3300 XL 8 mm system is well-suited for harsh environments while maintaining reliable output for automation and predictive maintenance systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
The 3300 XL 8 mm Proximity Transducer System offers superior performance and flexibility compared to standard proximity probes. Its components are fully interchangeable and backward compatible with the 3300 series, reducing maintenance complexity and inventory costs. Patented TipLoc molding strengthens the probe tip-to-body connection, while CableLoc ensures robust cable attachment with 330 N pull strength. Optional FluidLoc cables prevent fluid leakage, enhancing system reliability in oil-lubricated machinery. Compliance with API 670 standards guarantees mechanical stability, accuracy, and temperature resilience, making the 3300 XL 8 mm probe a top choice for high-precision, automated monitoring and condition-based maintenance applications.
