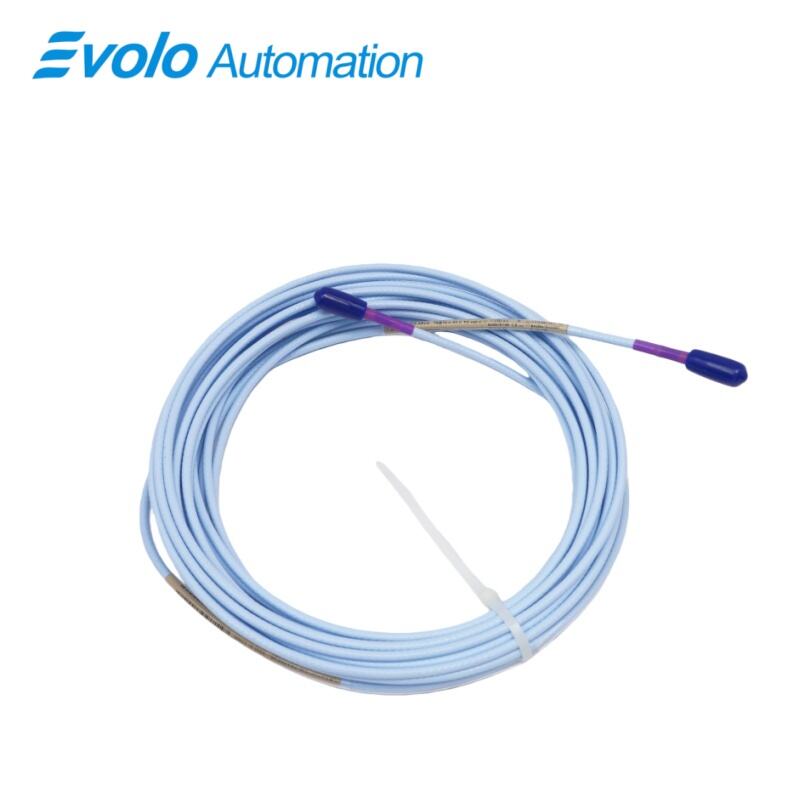

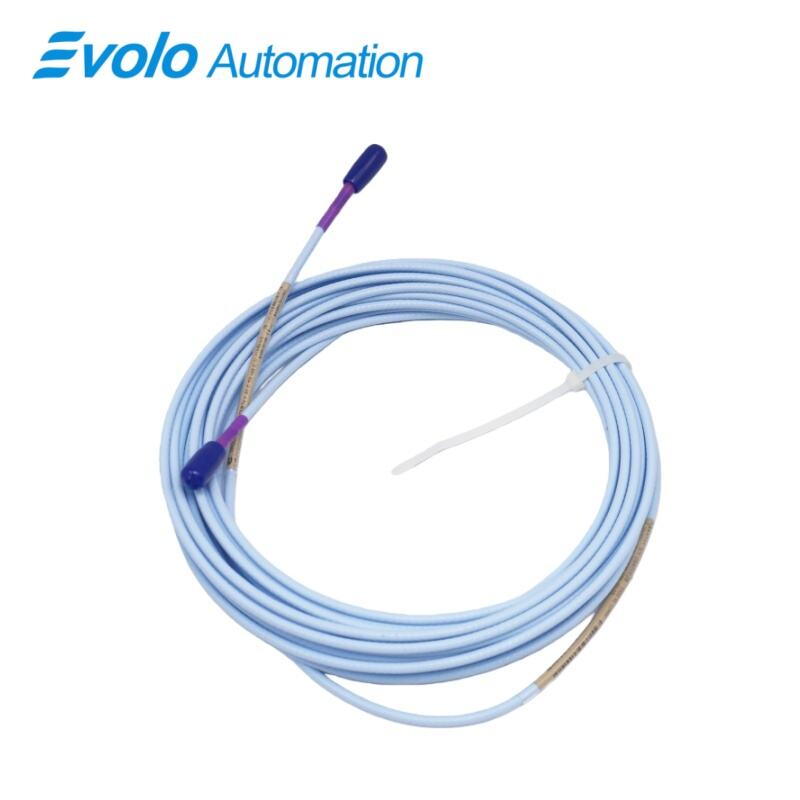

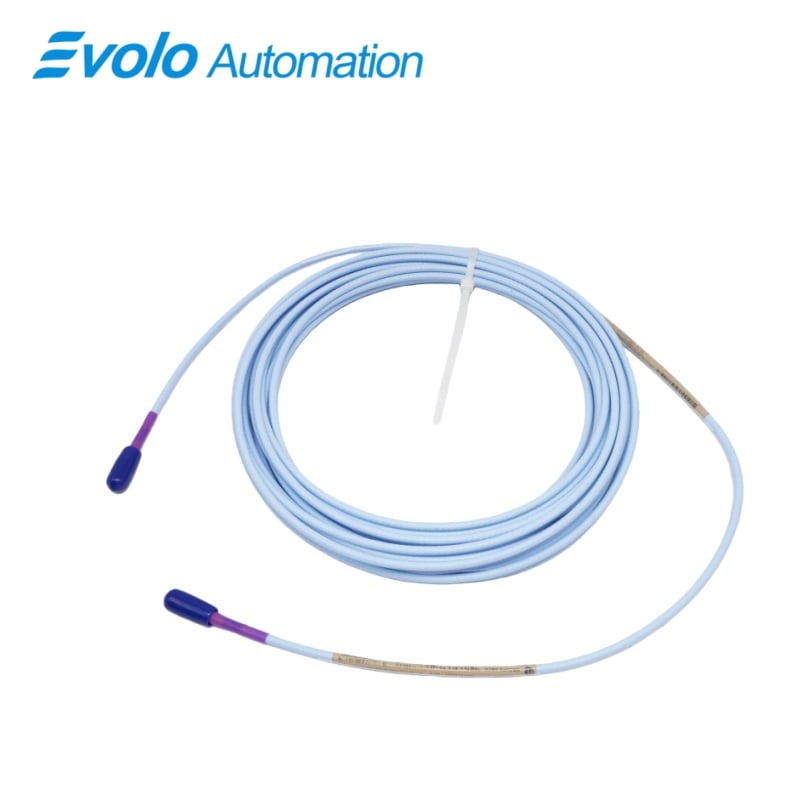

330730-080-00-05 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-080-00-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330730-080-00-05 3300 XL 11 mm Extension Cable is a precision-engineered signal transmission component designed specifically for use within advanced eddy current displacement measurement systems. As an essential element of the 3300 XL 11 mm Extension Cable series, this model ensures stable, low-noise signal continuity between proximity probes and signal conditioning electronics in critical rotating machinery protection applications.

The 330730-080-00-05 3300 XL 11 mm Extension Cable plays a decisive role in preserving the calibrated electrical characteristics of the complete 11 mm transducer loop. Its controlled capacitance and consistent output resistance are optimized to match the electrical requirements of 3300 XL 11 mm proximity probe systems, enabling accurate displacement, vibration, and axial position measurements over extended distances. With a cable length option of 8.0 meters, this 3300 XL 11 mm Extension Cable supports flexible routing through large machinery structures, control cabinets, and harsh industrial zones without compromising measurement accuracy.

Applications

The 330730-080-00-05 3300 XL 11 mm Extension Cable is primarily used to transmit displacement and vibration signals between 11 mm proximity probes and signal conditioning modules in large rotating machinery. Its controlled capacitance of approximately 68.5 pF/m ensures that the full transducer system remains within calibration limits, supporting accurate radial vibration and axial position monitoring in turbines, compressors, and generators.

In high-temperature industrial environments, the 3300 XL 11 mm Extension Cable enables safe and reliable signal routing through zones exposed to extreme heat or cold. With an operating temperature capability up to +175°C, it is well suited for installation near steam turbine housings, hot bearing pedestals, and process equipment where stable electrical performance is required despite harsh thermal conditions.

The 330730-080-00-05 3300 XL 11 mm Extension Cable is widely applied in integrated machinery protection systems where long-distance field wiring is necessary. Supporting conductor sizes from 0.2 to 1.5 mm², it ensures reliable connectivity to monitoring electronics while maintaining low noise sensitivity, making it suitable for continuous operation in critical asset monitoring systems.

Specifications

Competitive Advantage

1.Exceptional Thermal Stability for Harsh Environments

The 3300 XL 11 mm Extension Cable is designed to operate reliably from -56°C to +175°C, far exceeding the limits of conventional industrial cables. This extreme temperature tolerance ensures stable signal transmission in turbine enclosures, high-heat process areas, and outdoor installations with severe climate variation.

2.Optimized Electrical Characteristics for System Accuracy

With a defined output resistance of 45 Ω and tightly controlled capacitance per meter, the 330730-080-00-05 3300 XL 11 mm Extension Cable preserves the electrical balance of the complete transducer loop. Its low supply sensitivity minimizes signal distortion caused by power fluctuations, supporting consistent and repeatable measurement accuracy.

3.Durable Construction and Global Deployment Flexibility

The robust mechanical design, standard cable configuration, and multiple agency approval option allow the 3300 XL 11 mm Extension Cable to be deployed across a wide range of industrial projects worldwide. Its durability reduces replacement frequency, lowers maintenance costs, and enhances long-term reliability for critical machinery protection systems.
