330101-00-67-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-67-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

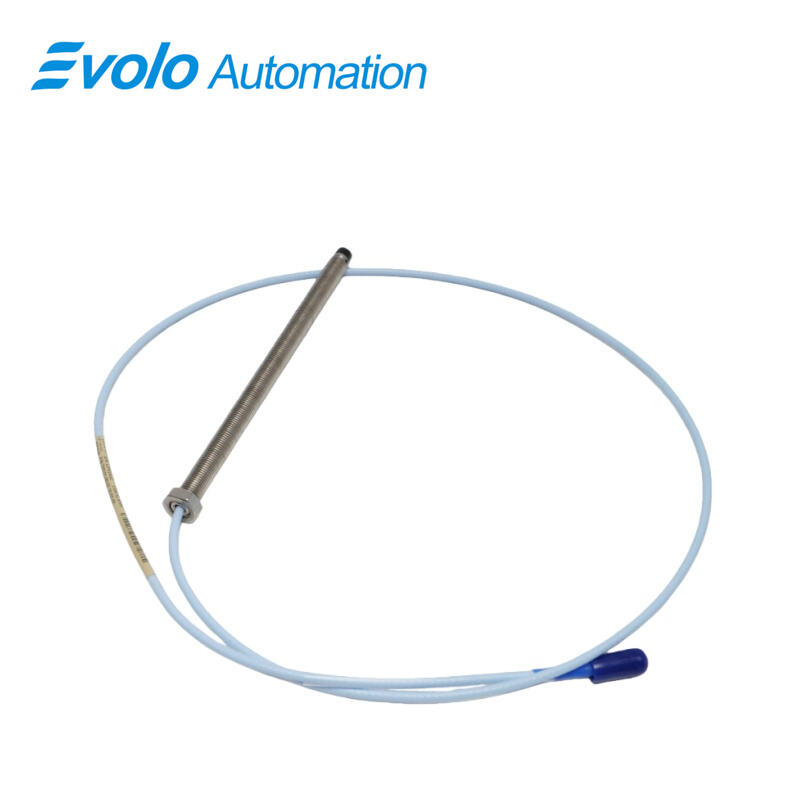

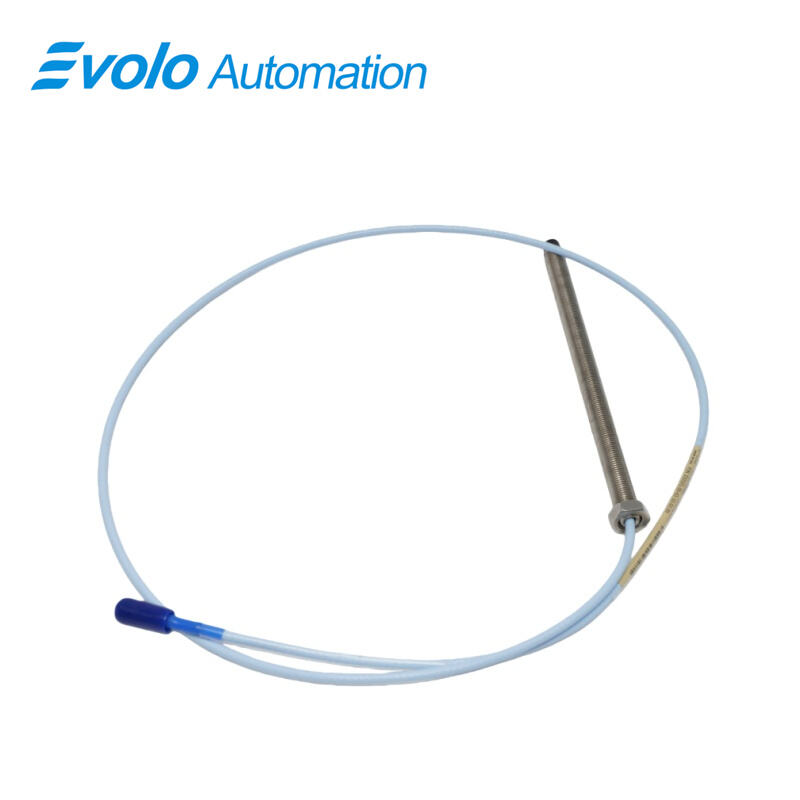

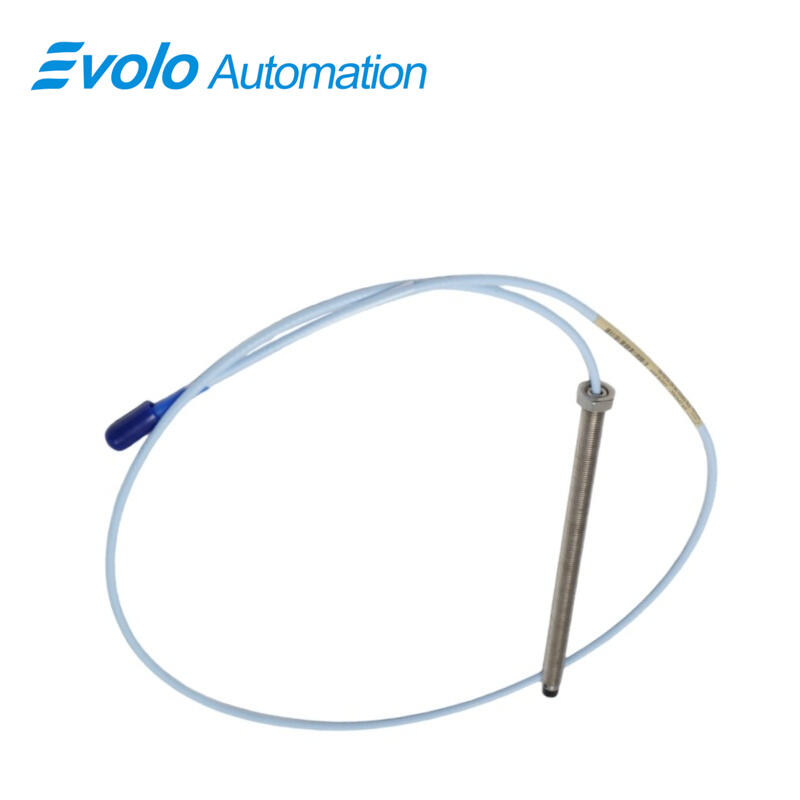

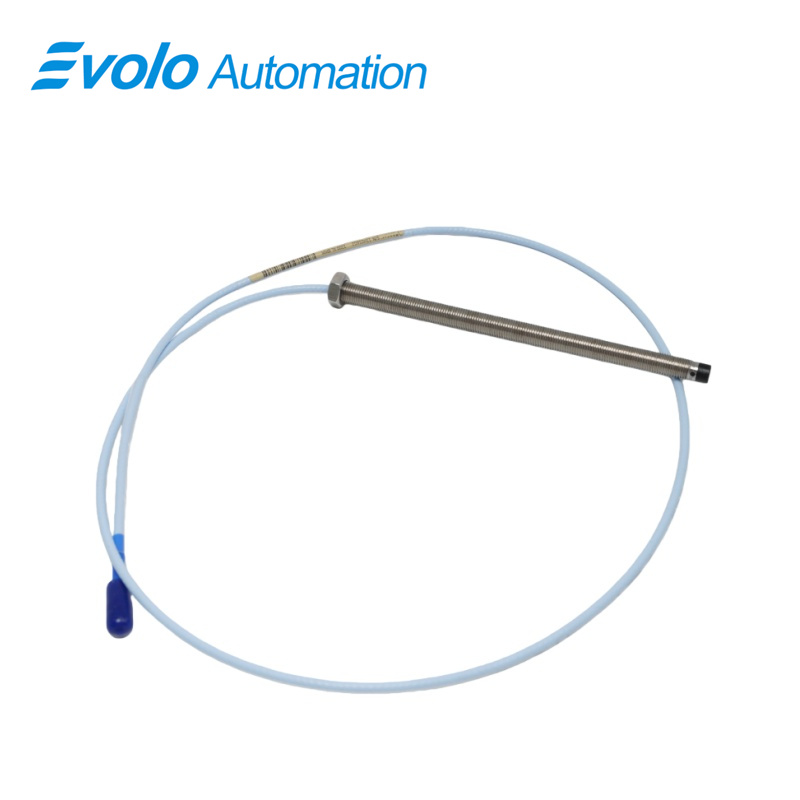

The 330101-00-67-20-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current proximity transducer designed for automated industrial monitoring of both static positions and dynamic vibrations. Engineered with a linear range of 2 mm (80 mils) and a 3/8-24 UNF probe thread, this probe delivers consistent, repeatable measurements for critical machinery such as turbines, compressors, and fluid-film bearing systems. The probe features a 6.7-inch overall case length with a 2.0-meter (6.6 ft) ClickLoc miniature coaxial cable, providing robust connectivity and excellent signal integrity in automated applications.

This 3300 XL probe incorporates TipLoc molding technology, creating a secure bond between the probe tip and body, along with CableLoc design offering 330 N (75 lbf) pull strength to resist detachment under high-vibration conditions. The optional FluidLoc cable protection prevents oil or other fluids from entering the machine through the cable interior, enhancing operational safety. Fully compliant with API 670 standards, the system ensures mechanical stability, linearity, and temperature resilience from -52°C to +177°C (-62°F to +350°F). All 3300 XL components are interchangeable with other probes, extension cables, and Proximitor sensors, simplifying maintenance and minimizing machine downtime in automated processes.

Applications

1. Turbine Vibration Analysis
Monitors high-speed turbine vibration patterns, enabling predictive maintenance and automated alerts for abnormal operating conditions.

2. Shaft Displacement Measurement
Measures shaft displacement in compressors and pumps, supporting automated alignment verification and reducing wear on rotating machinery.

3. Keyphasor Reference Signal Generation
Generates phase reference signals for speed synchronization and process control automation, critical for machinery health monitoring.

4. Extreme Temperature Monitoring
Operates reliably from -52°C to +177°C, making it suitable for high-temperature industrial processes in chemical and energy plants.

5. Automated Maintenance Optimization
Enables probe replacement or gap adjustment without disassembly, supporting automated systems and improving operational efficiency.

Specifications

Competitive Advantage

1. High Measurement Accuracy
Maintains linearity over 2 mm range with supply sensitivity under 2 mV per volt, ensuring reliable position and vibration readings.

2. Robust Mechanical Design
TipLoc and CableLoc technologies provide enhanced mechanical strength, preventing probe and cable detachment even under intense vibration or shock conditions.

3. Fluid Containment and Safety
Optional FluidLoc system prevents oil or other fluids from leaking, protecting sensitive machinery and automation systems.

4. Interchangeable Components
Compatible with all 3300 XL probes, extension cables, and Proximitor sensors, eliminating the need for component-specific calibration and simplifying automated maintenance workflows.

5. API 670 Compliance
Fully meets API 670 standards, ensuring the probe provides reliable performance, temperature stability, and mechanical integrity in industrial automation monitoring systems.
