Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9907-164 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9907-164 |
|
Product Type |
Digital Microprocessor Controller Module |
|
Dimensions |
35.8 × 28.2 × 10 cm |
|
Weight |
4.52 kg |
|
Display Type |
Two line x 24 characters |
|
Input Voltage |
+24 VDC at 1A |
|
Keypad/Display |
30 Multi-function Keypad |
|
Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity Standards |
20°C to 55°C at 95% RH for 48 Hours |
|
Communication Interfaces |
RS-232, RS-485, Ethernet, Fieldbus Protocols |
|
Protection Class |
IP56 (IEC 60529) |
|
Power |
LVDC (18–32 Vdc) |
|
Software Version |
505View or OpView |
|
Enclosure Type |
IEC 60529, IP 56 |
Description

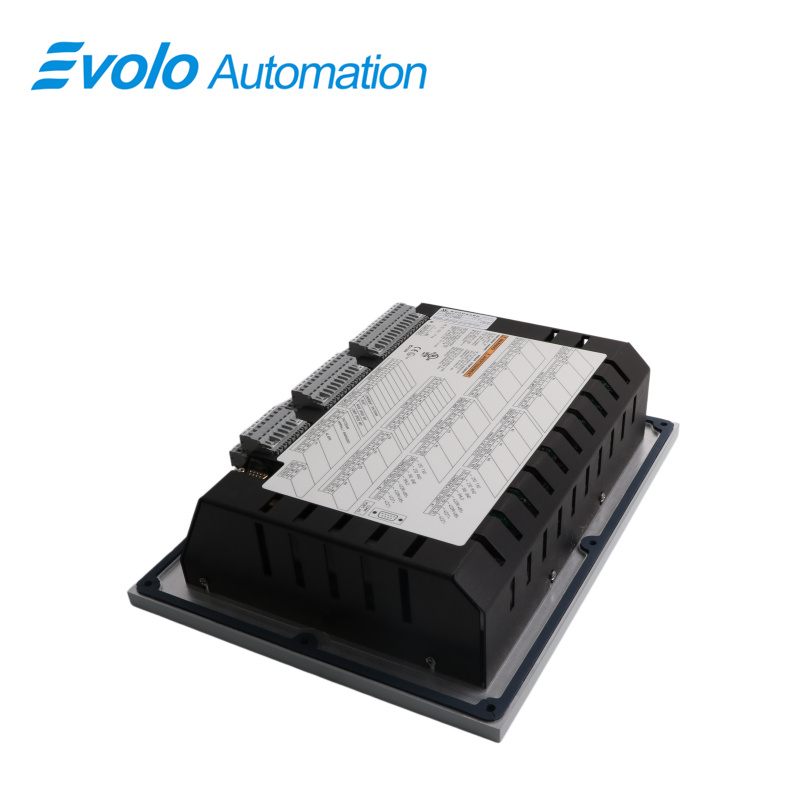

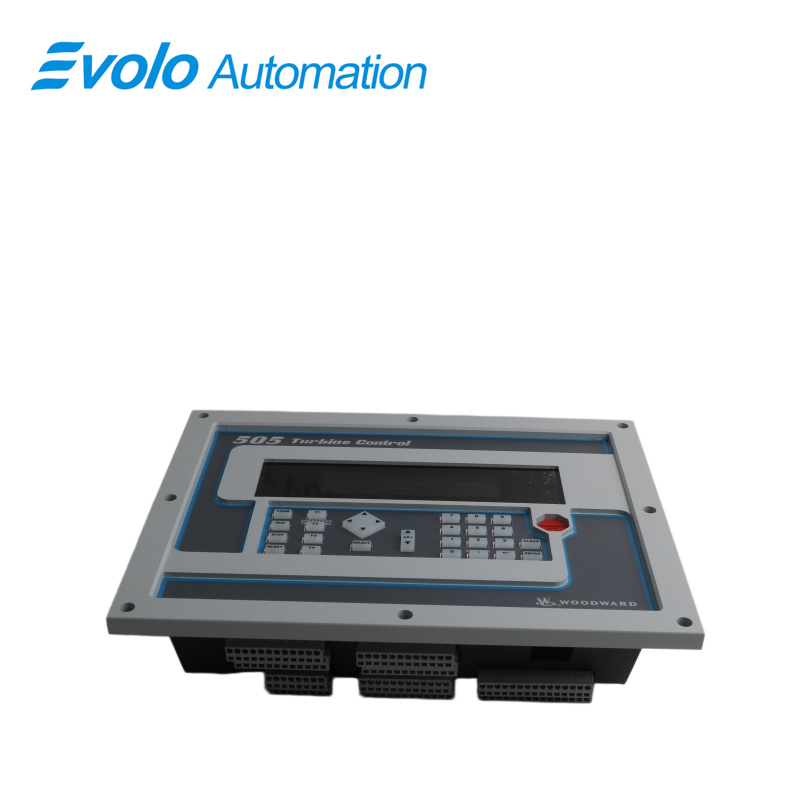

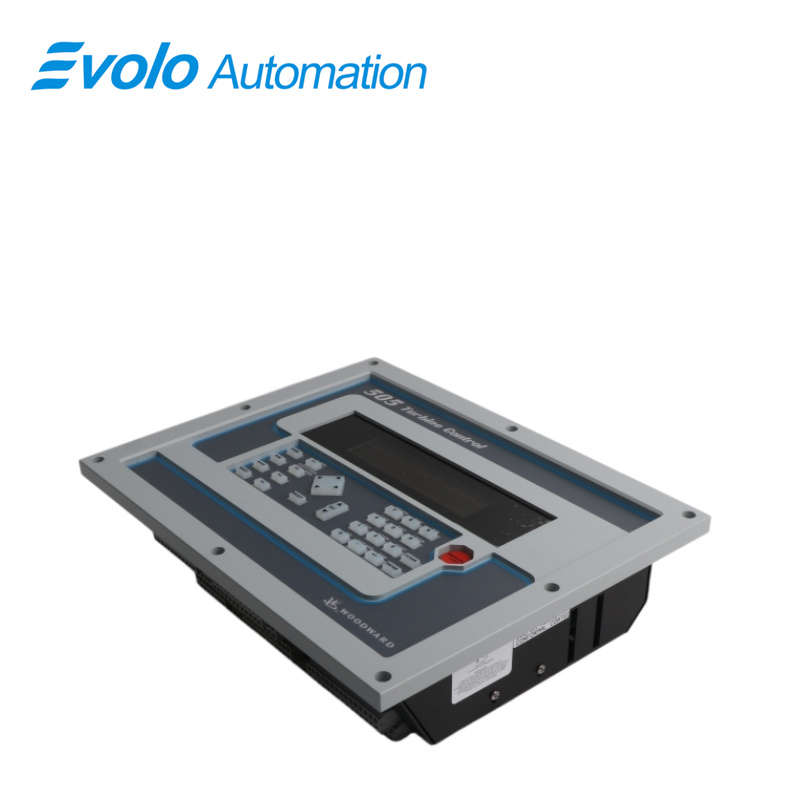

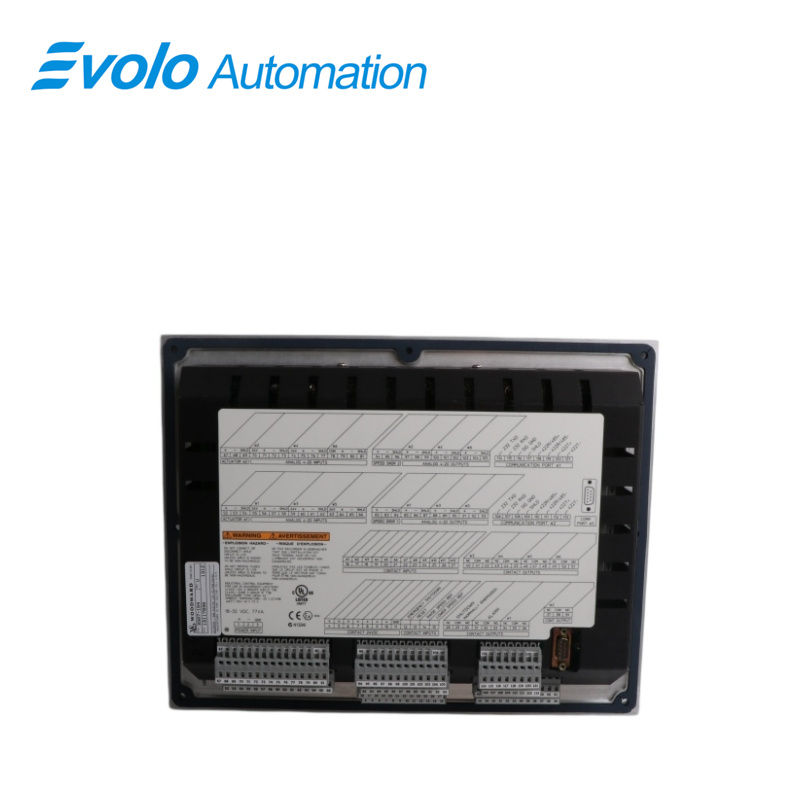

9907-164 is a Digital Microprocessor Controller Module manufactured and designed by Woodward. 505 Digital microprocessor-based Controllers for Steam Turbines with Sinale or Split-Range Actuators. It is an electronic device that receives inputs.processes them using an embedded microprocessor, and produces outputs to control a system or process. Digital controllers are widely used in industrial control systems, such as in manufacturing, chemical processing, and power generation.
Applications
Petrochemical Plants: Manages process data and communicates via Ethernet networks.
Thermal Power Plants: Controls turbine parameters with local keypad tuning.
Water Treatment Plants: Resists moisture in pump room environments.
Automotive Plants: Integrates with SCADA via fieldbus protocols.
Metallurgy Plants: Operates reliably in wide temperature electrical cabinets.
Feature
Microprocessor: Core control unit executes instructions and system calculations.
Inputs: Receives signals from sensors and external devices like temperature, pressure, and switches.
Outputs: Generates control signals for actuators, motors, valves, and system components.
Programming and Algorithms: Supports programmable logic and control strategies such as PID control.
FAQ
Q: What is the display specification of 9907-164?
A: The display type is 2 lines × 24 characters.
Q: How many keys does the keypad of 9907-164 have?
A: The device is equipped with a 30-key multifunction keypad.
Q: What is the operating temperature range of 9907-164?
A: The operating temperature range is -20°C to +60°C (-4°F to +140°F).
Q: Which communication interfaces are supported by 9907-164?
A: It supports RS-232, RS-485, Ethernet, and Fieldbus protocols.
Q: What is the enclosure protection rating of 9907-164?
A: It complies with IEC 60529 and has an IP56 rating.
