Overview

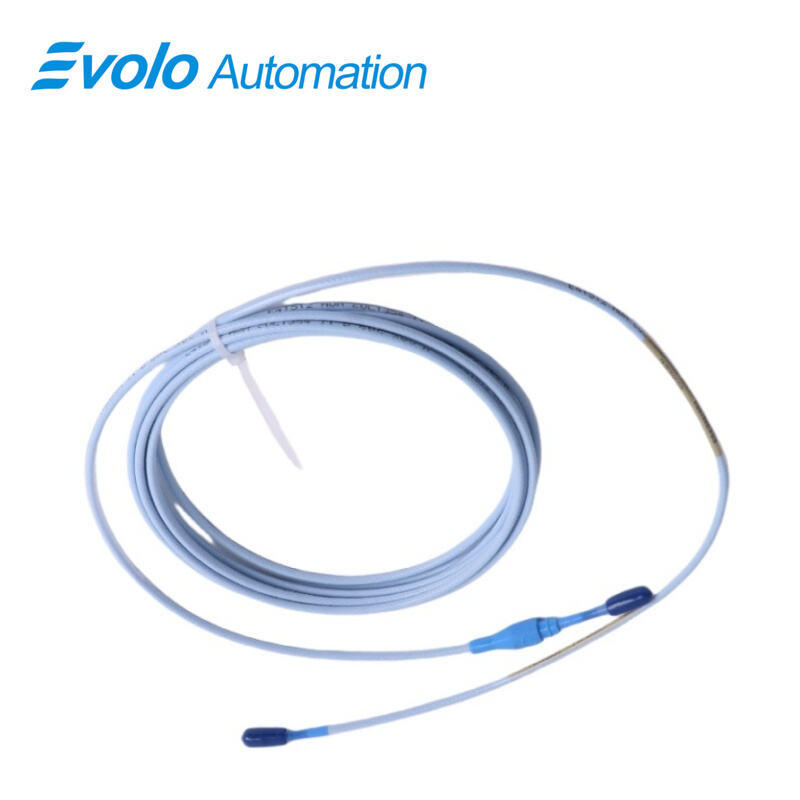

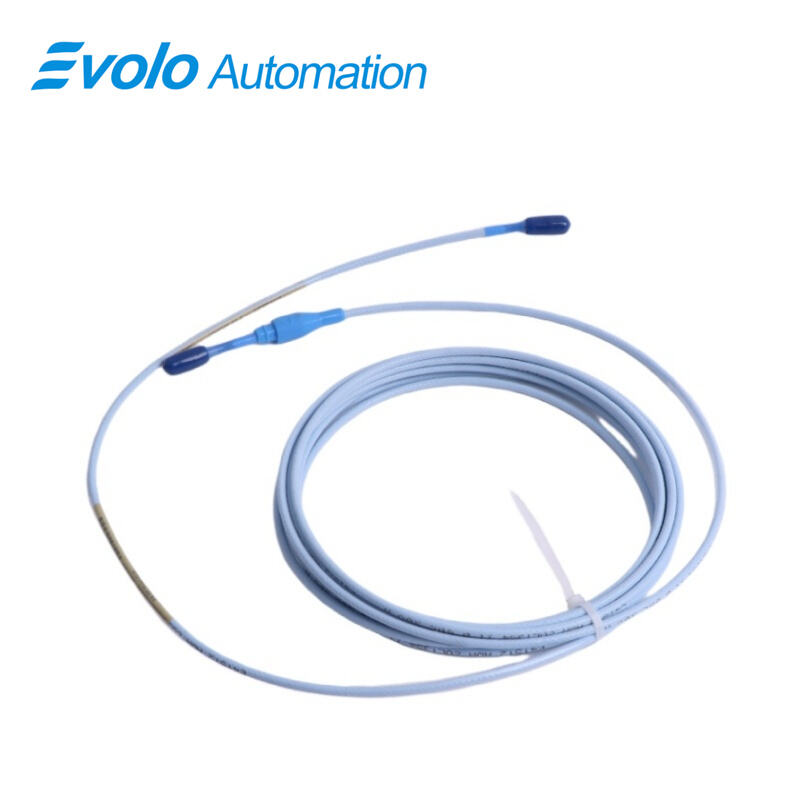

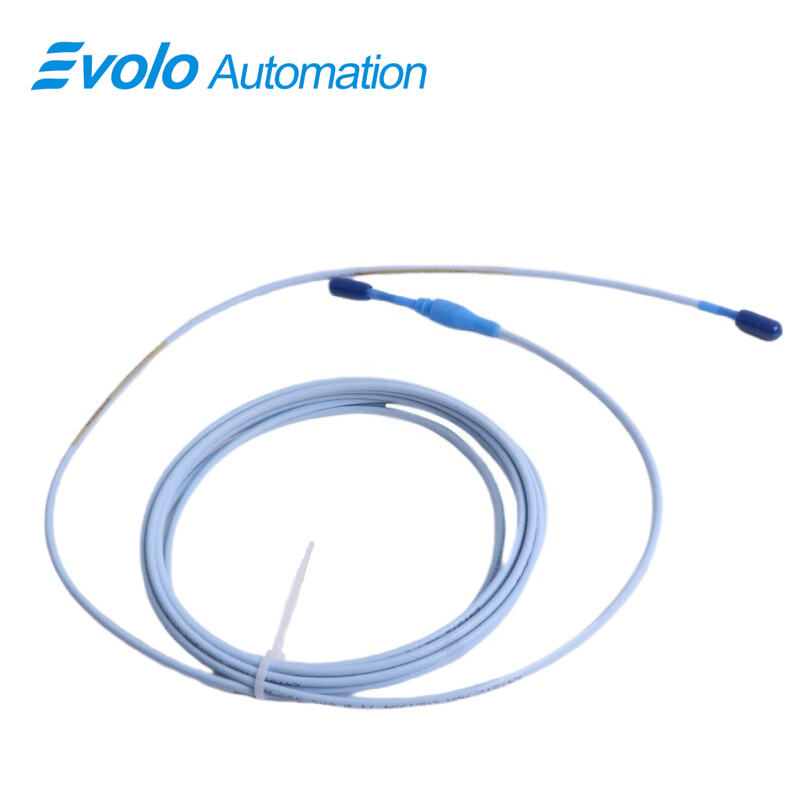

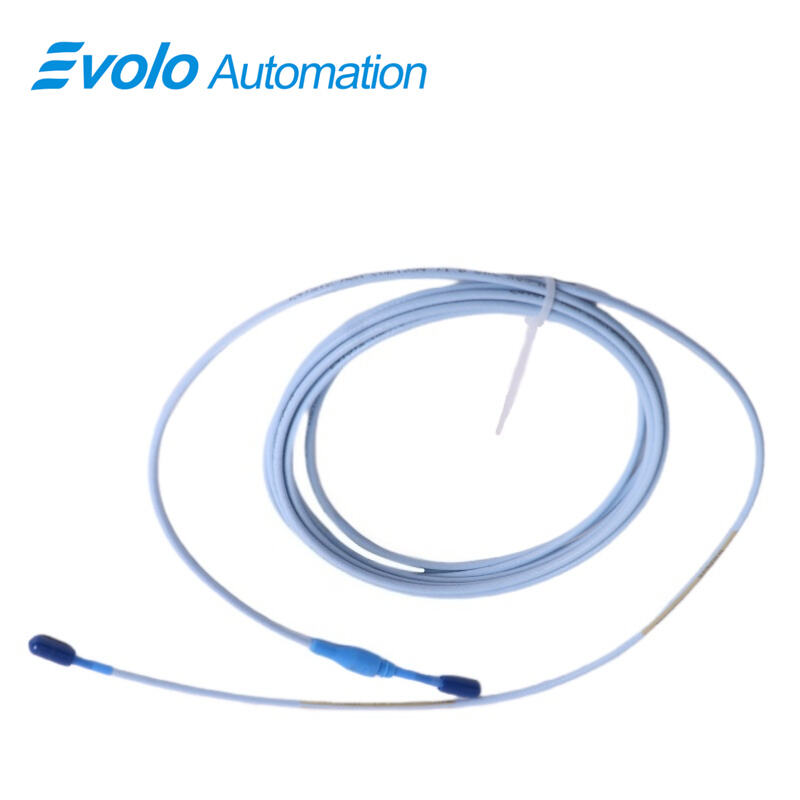

330130-045-11-05 3300 XL Standard Extension Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-045-11-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330130-045-11-05 3300 XL Standard Extension Cable is engineered to deliver reliable signal transmission for the 3300 XL 8 mm Proximity Transducer System in demanding industrial automation applications. This high-performance extension cable ensures secure and stable connections between the 3300 XL probe and Proximitor sensor, enabling precise measurement of both static position and dynamic vibration on fluid-film bearing machines. Designed with the patented CableLoc system, the 3300 XL extension cable can withstand a pull strength of 330 N (75 lbf), providing exceptional durability and reducing the risk of cable detachment in harsh operating environments. The cable also supports the optional FluidLoc configuration, preventing leakage of oil or other liquids from the machinery through the cable, maintaining system integrity in automated equipment. Fully compliant with API 670 standards, the 3300 XL Standard Extension Cable guarantees mechanical compatibility, linear range, accuracy, and temperature stability, while supporting seamless interchangeability with other 3300 XL and standard 3300 series probes and extension cables. Whether deployed for speed measurements, Keyphasor referencing, or vibration monitoring, the 330130-045-11-05 extension cable enhances system reliability, simplifies installation, and ensures long-term performance in industrial automation systems.
Key Functions
Applications
The 330130-045-11-05 3300 XL Standard Extension Cable is specifically designed for industrial automation systems requiring accurate vibration and position monitoring. It connects 3300 XL 8 mm Proximity Probes to Proximitor sensors, supporting static (position) and dynamic (vibration) measurements on fluid-film bearing machines, turbines, compressors, and other rotating equipment. The cable’s 4.5-meter length with armored FluidLoc insulation allows secure deployment in harsh environments, while its high-frequency response up to 10 kHz and minimal output voltage sensitivity ensure precise signal transmission over long distances. With compliance to CSA, ATEX, and IECEx approvals, this extension cable is suitable for use in hazardous and explosive atmospheres, making it ideal for petrochemical, power generation, and industrial automation applications where reliability and safety are critical.
Official Specifications
Quick Detail
|
Cable Length Option: |
045 4.5 meters (14.8 feet) |
|
Connector Protector and Cable Option: |
11 Armored FluidLoc cable |
|
Agency Approval Option: |
05 CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20x20x2cm |
|
Weight: |
0.18kg |
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Frequently Asked Questions
What is the model number?
The listed model number is 330130-045-11-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
The 330130-045-11-05 extension cable offers superior durability and performance compared to standard transducer cables. Its CableLoc design ensures a robust 330 N (75 lbf) pull strength, preventing detachment under mechanical stress, while the optional FluidLoc configuration prevents oil and fluid leakage through the cable, preserving system integrity. The cable is constructed from high-quality 75 Q triaxial FEP-insulated material, ensuring long-term resistance to chemicals, temperature variations, and mechanical wear. Backward compatibility with existing 3300 series probes and Proximitor sensors allows easy integration without the need for recalibration or component matching, simplifying installation and maintenance. Additionally, its linear range, low capacitance (69.9 pF/m), and broad frequency response support accurate monitoring in demanding industrial automation setups, enhancing overall system reliability and operational efficiency.
