330703-000-100-10-11-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-100-10-11-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

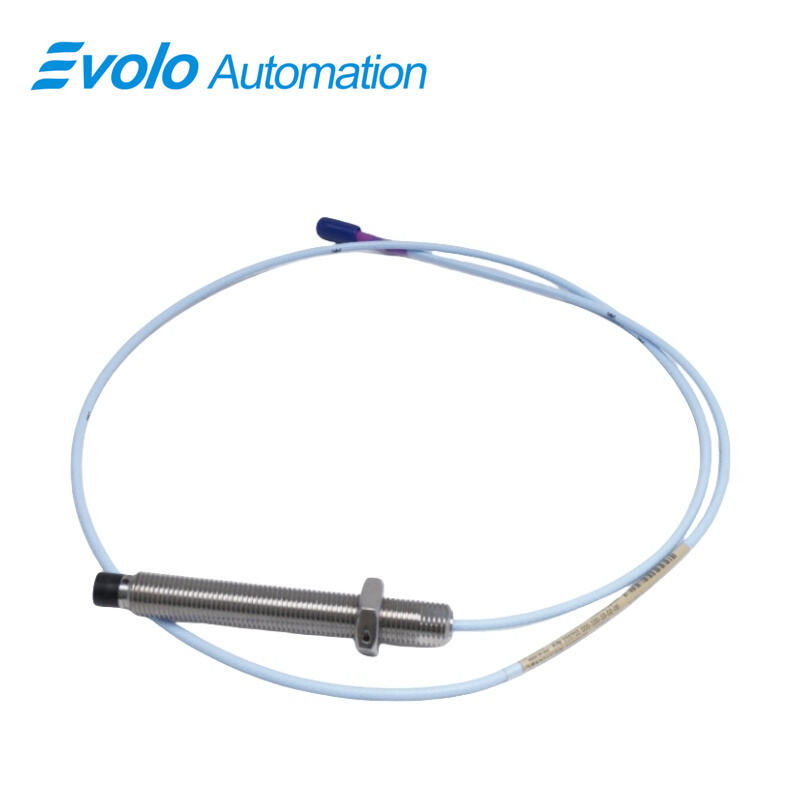

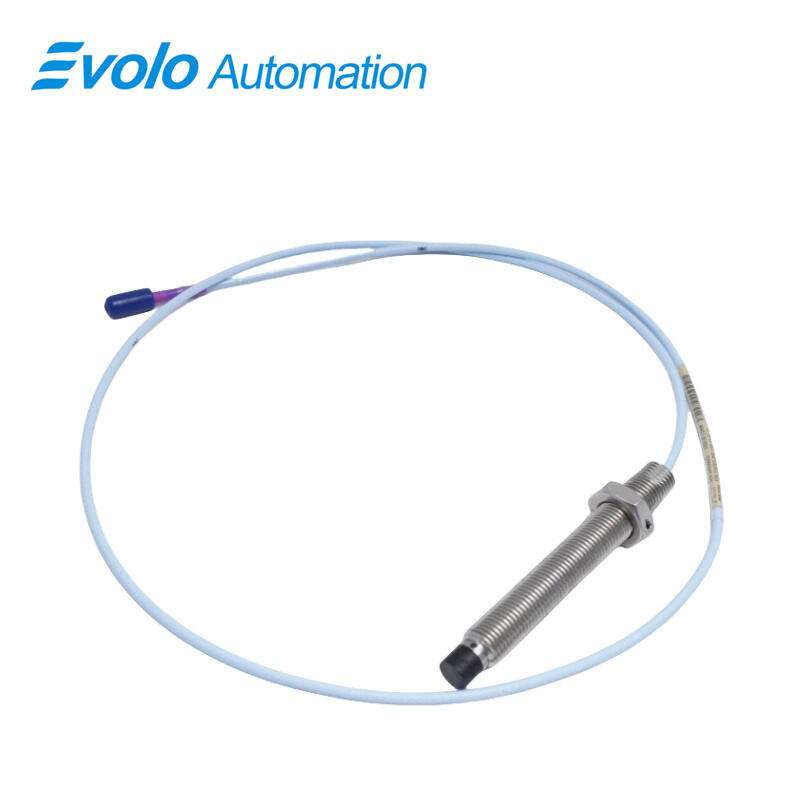

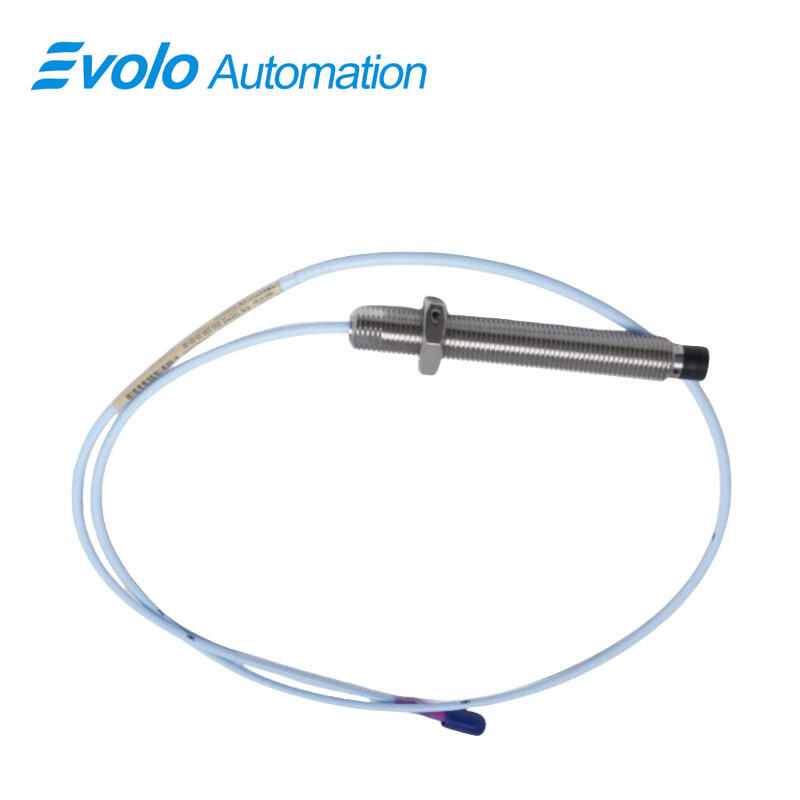

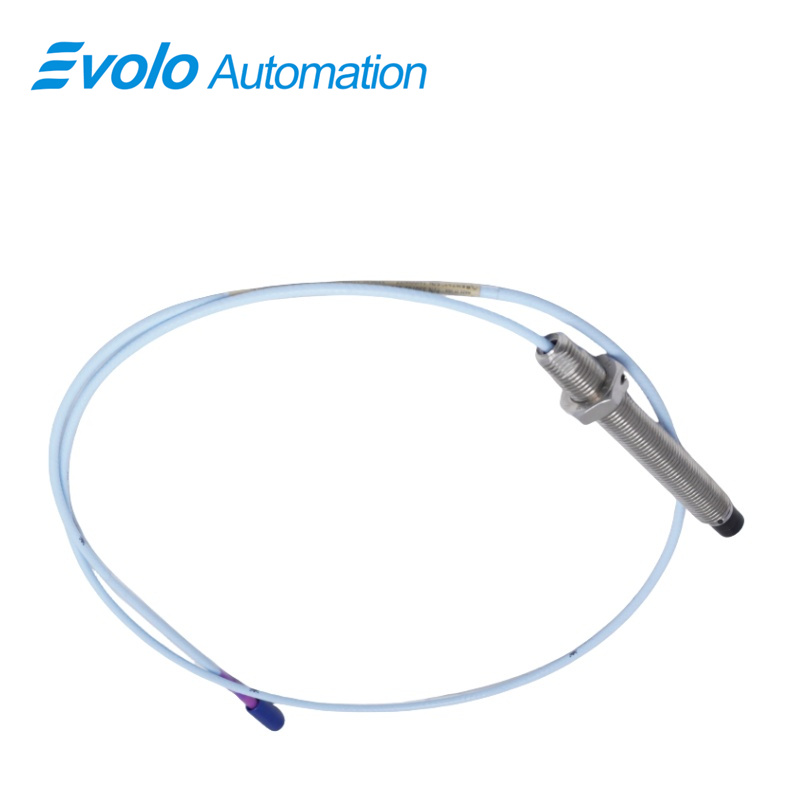

The 330703-000-100-10-11-00 3300 XL 11 mm Proximity Probe is a high-performance eddy-current transducer designed for precision vibration and displacement measurement in automated industrial machinery. With a robust 11 mm probe tip and a 100 mm overall case length, this probe provides a longer linear range than standard 3300 XL 8 mm probes, delivering 3.94 V/mm (100 mV/mil) output for non-contacting measurements. The M14 x 1.5 threaded case with up to 21 mm thread engagement ensures secure mounting, while the 1.0-meter (3.3 feet) miniature coaxial ClickLoc cable with FluidLoc option and connector protector guarantees reliable signal transmission in industrial automation environments. The probe features 99.9% braided copper shielding, IP67-rated dust and water resistance, and operates from -40°C to +85°C, ensuring consistent performance in harsh conditions. Patented TipLoc and CableLoc designs provide a durable probe tip connection and 330 N (75 lb) cable pull strength, while the locknut with pre-drilled safety wire holes further enhances operational security. This 3300 XL 11 mm Proximity Probe is ideal for upgrading legacy 7200-series systems and is fully compatible with 3300 XL 11 mm components and 3500 Monitoring Systems for reliable automation measurement and control.

Applications

Axial (Thrust) Position Measurement
Measures axial shaft displacement in turbines and compressors, enabling precise automated monitoring and vibration analysis with extended linear range.

Ramp Differential Expansion on Steam Turbines
Monitors thermal expansion differences in turbine rotors, providing critical data for automated control systems and preventing mechanical stress failures.

Rod Position or Rod Drop Measurement in Reciprocating Compressors
Tracks piston or rod displacement with high accuracy, supporting predictive maintenance and automation of reciprocating machinery.

Tachometer and Zero-Speed Detection
Provides reliable high-fidelity output for rotational speed monitoring and zero-speed detection, ensuring safe operation and automated system integration.

Phase Reference (Keyphasor) Signals
Delivers precise Keyphasor signals for phase reference in vibration analysis, enabling automated fault detection and real-time performance optimization.

Specifications

Competitive Advantage

Extended Linear Range for Large Shaft Monitoring
11 mm probe tip delivers longer linear range than 8 mm probes, ensuring accurate measurement in applications requiring larger measurement distances.

High Signal Integrity and Environmental Protection
99.9% braided copper shielding, IP67 dust and water resistance, and connector protector options ensure reliable signal transmission in harsh industrial automation environments.

Robust Mechanical and Electrical Design
M14 x 1.5 threaded probe case, TipLoc probe tip, and CableLoc cable attachment provide secure mechanical stability and 330 N (75 lb) pull strength under vibration.

Fluid Containment with FluidLoc Option
Prevents oil and other fluid leakage through the probe cable, enhancing automation system reliability and reducing downtime for maintenance.

Seamless Upgrade for Legacy Systems
Designed to replace 7200-series 11 mm and 14 mm systems, fully compatible with 3300 XL 11 mm components and 3500 Monitoring Systems, enabling smooth automation upgrades without recalibration.
