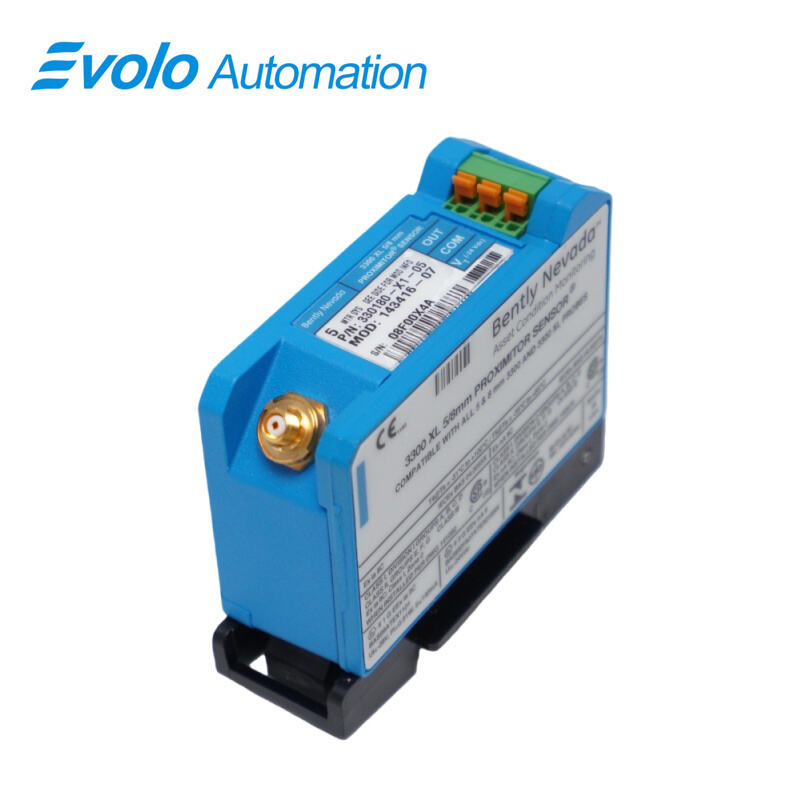

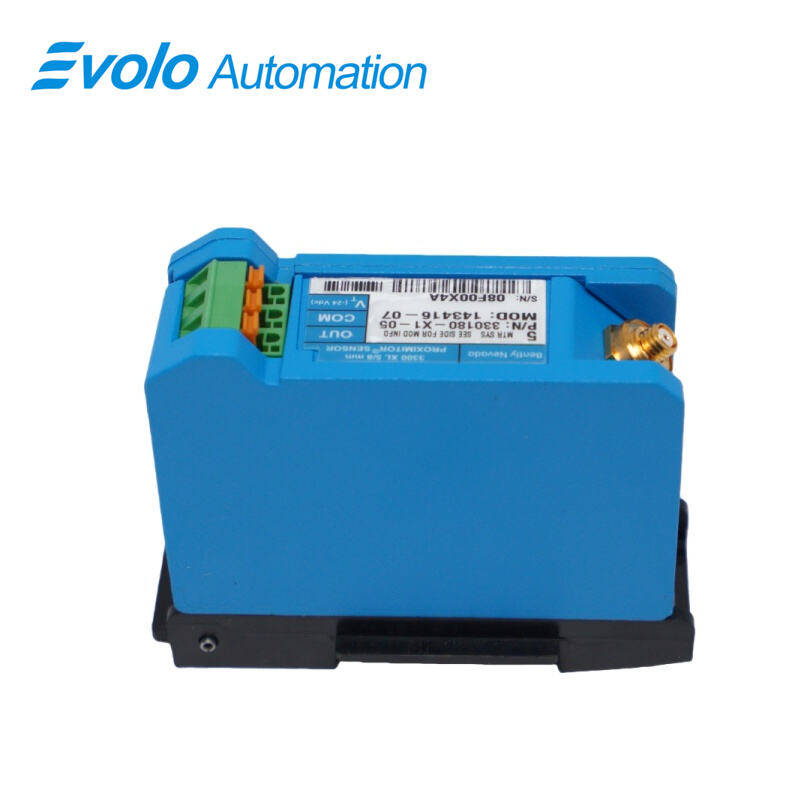

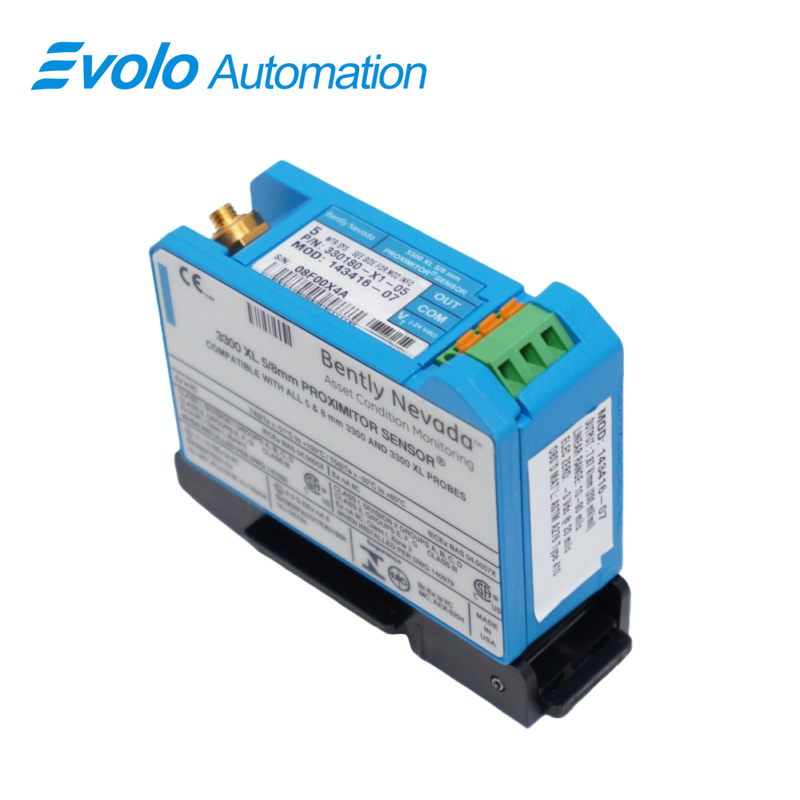

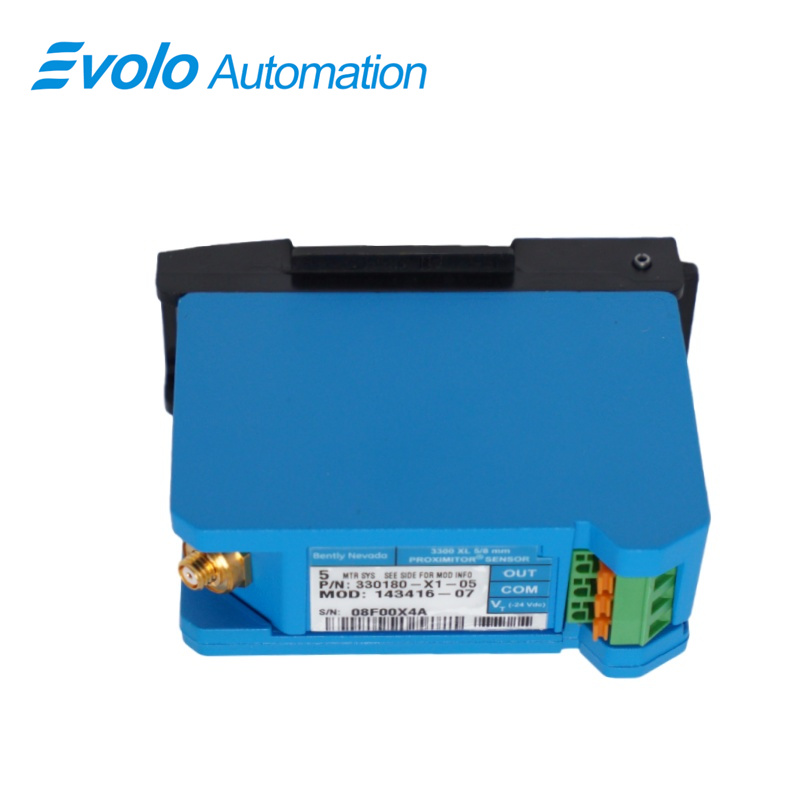

330180-X1-05 MOD：145004-47 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD：145004-47
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD:145004-47 3300 XL Proximitor Sensor is a precision eddy-current transducer interface engineered for industrial vibration and position monitoring in fluid-film bearing machinery and high-speed rotating assets. Designed to operate with 3300-series 5 mm and 3300 XL 8 mm proximity probes and extension cables, the 330180-X1-05 MOD:145004-47 converts probe-to-target gap variations into a conditioned voltage output suitable for automated diagnostics and machine protection systems. With a linear frequency response from 0 to 10 kHz and support for up to 305 meters of field wiring, the Proximitor Sensor enables long-distance signal transmission within distributed control, SCADA, and plant monitoring architectures. It operates from −52°C to +100°C and utilizes an A308 aluminum housing with CSA, ATEX, and IECEx approvals for safe deployment in refineries, petrochemical plants, and power generation facilities. The 330180-X1-05 MOD:145004-47 supports interchangeable installation on DIN-rail or panel-mount configurations, offering improved RFI immunity and electrical isolation for reliable measurements of shaft vibration, axial position, Keyphasor timing, and speed parameters. Its low supply sensitivity and 50 Ω output resistance ensure compatibility with API-670-compliant vibration protection systems and digital condition-based maintenance strategies.

Applications

Application 1 Fluid-Film Bearing Vibration Monitoring
Used to measure shaft vibration on compressors and turbines where hydrodynamic bearings require accurate displacement feedback for machine protection.

Application 2 Axial Position Control on Steam Turbines
Supports continuous axial thrust monitoring to prevent seal rub and bearing overload during transient turbine loading in power generation systems.

Application 3 Keyphasor Phase and Speed Reference
Provides timing reference signals for phase comparison and rotational speed measurement, enabling advanced vibration analysis and diagnostics.

Application 4 Refinery and Petrochemical Rotating Equipment
Deploys in API-670-governed compressor trains, cracked gas expanders, and pump systems to ensure stable operation in hazardous process units.

Application 5 Long-Distance Signal Transmission in Distributed Control
Capable of carrying conditioned vibration signals over up to 305 meters of field wiring, allowing integration into remote control houses and SCADA nodes.

Specifications

Competitive Advantage

Advantage 1 Compatibility with Multiple Probe Sizes
Accepts both 5 mm non-XL and 8 mm XL probe families, enabling flexible installation and spare part standardization across legacy and upgraded machinery.

Advantage 2 Extended Environmental Operating Range
Functional from −52°C to +100°C with ATEX, CSA, and IECEx approvals, supporting deployment in outdoor petrochemical cooling units and enclosed compressor halls.

Advantage 3 Enhanced Electromagnetic Immunity
RFI/EMI-hardened design prevents signal degradation from radio sources and meets CE compliance without shielded conduit, lowering installation cost.

Advantage 4 Flexible Mechanical Integration
DIN-rail and panel-mount footprint improves cabinet density and retrofits easily with older footprint Proximitor designs, reducing upgrade downtime.

Advantage 5 API-670 Measurement Compliance
Provides linear 0-10 kHz bandwidth, stable supply sensitivity, and 50 Ω output characteristics that satisfy API-670 machine protection requirements for critical rotating assets.
