9200-06-01-10-00 Two-wire Transducer , China 9200-06-01-10-00 Two-wire Transducer Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	9200-06-01-10-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Transducer Mounting Angle/Minimum Operating Frequency Option	0 ±100, 10 Hz (600 cpm)
Connector/Cable Option	Top Mount (no cable)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	Without fittings
Dimension:	4x4x10.5cm
Weight:	0.44kg

Description

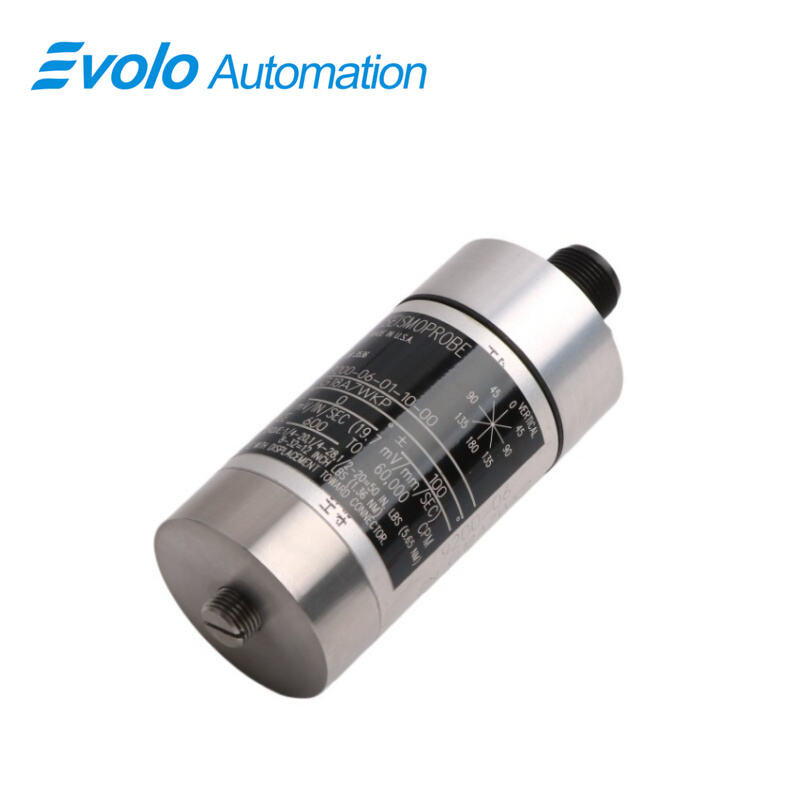

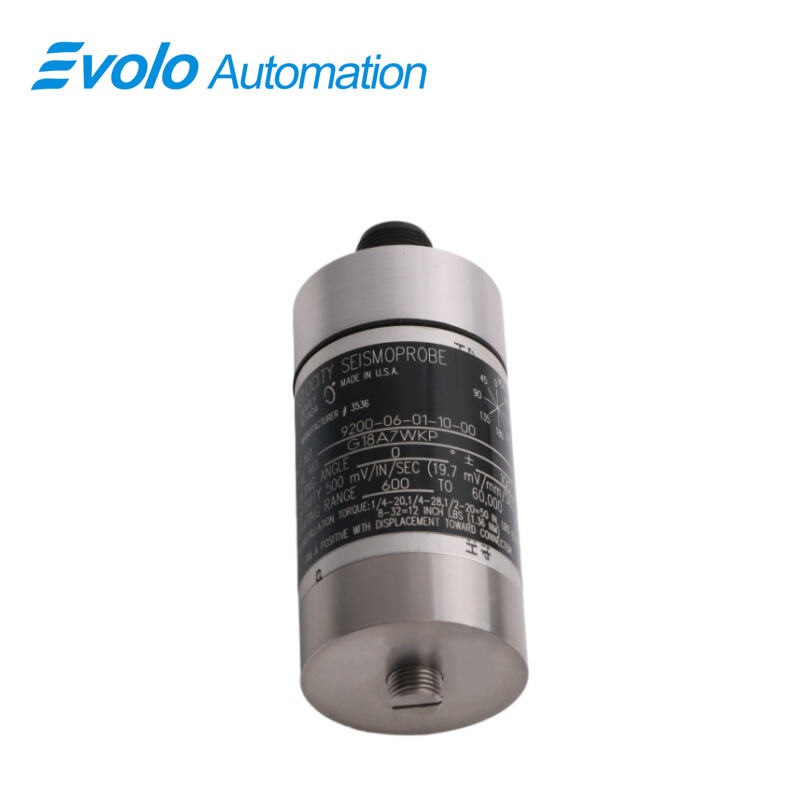

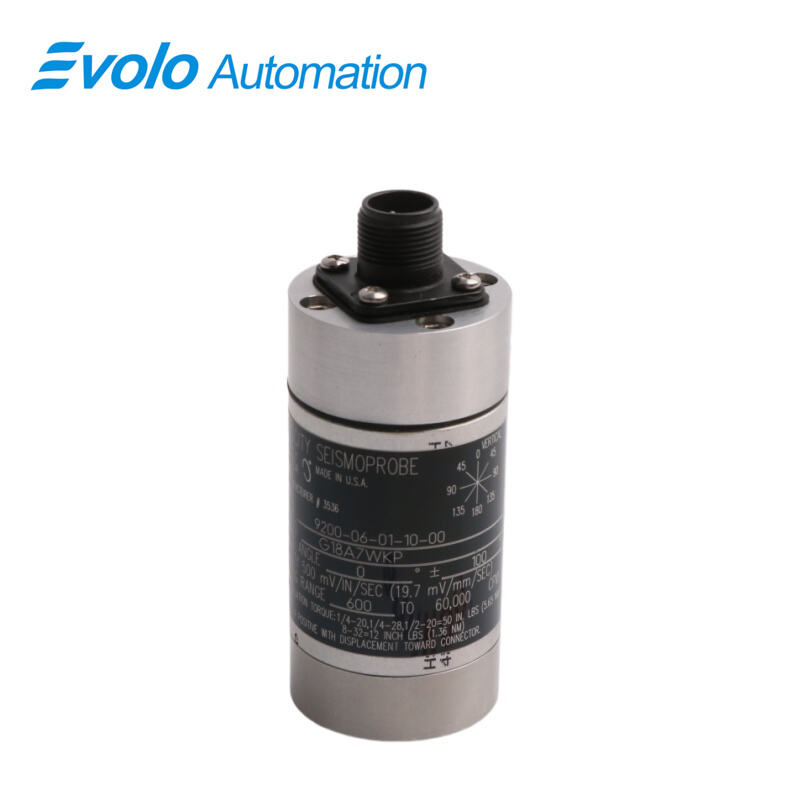

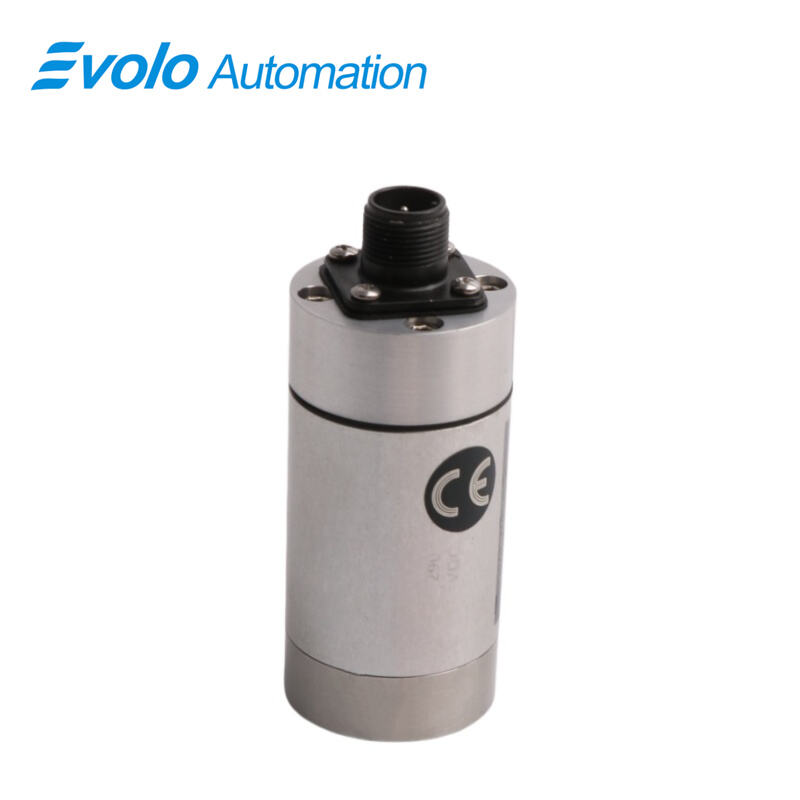

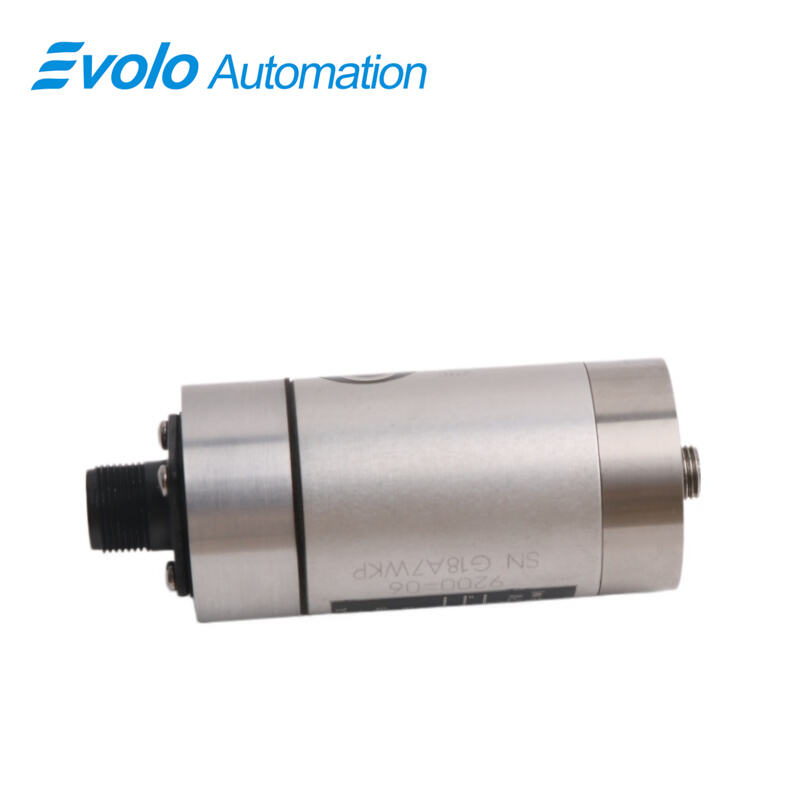

The 9200-06-01-10-00 Two-wire Transducer is designed for measuring absolute vibration in bearings, casing, or structural components in automated systems. Featuring a 0 ±100° mounting angle and 10 Hz minimum operating frequency, the 9200-06-01-10-00 provides 20 mV/mm/s sensitivity, ±5% linearity, and frequency response up to 1 kHz for precise vibration analysis. The transducer mounts on a circular M10X1 stud and outputs voltage directly proportional to vibration velocity, enabling seamless integration with PLCs, DAQs, and monitoring instruments. The 9200-06-01-10-00 withstands shock up to 50 g, operates in -29°C to +121°C environments, and resists dust and moisture. Anodized aluminum housing, neoprene gasket, and cadmium-plated connectors ensure durability without extra enclosures. This two-wire moving-coil design eliminates the need for external power, allowing the 9200-06-01-10-00 to be used in portable or stationary automation diagnostics. Integral cable options enhance performance in corrosive environments. The 9200-06-01-10-00 is ideal for continuous monitoring, structural vibration surveys, and machine diagnostics within automated industrial systems, providing reliable, repeatable vibration data for proactive maintenance.

Applications

Measure Bearing Vibration in Rotating Equipment
The 9200-06-01-10-00 captures axial and radial vibration on pumps, compressors, and turbines. Its 20 mV/mm/s sensitivity, 10 Hz minimum frequency, and velocity range up to 25 mm/s enable accurate monitoring of high-speed rotating machinery. Using the 9200-06-01-10-00, operators can detect early bearing wear and prevent downtime.

Analyze Machine Structure Vibration
Deploy the 9200-06-01-10-00 to measure structural vibrations on automated production lines. The frequency response up to 1 kHz and ±5% amplitude linearity ensures precise detection of oscillations, supporting data-driven maintenance planning.

Portable On-site Diagnostics
The two-wire 9200-06-01-10-00 can connect to handheld vibration analyzers without external power. Its 1.25 kΩ coil resistance and dust- and moisture-resistant housing allow reliable readings in field conditions, providing quick diagnostic insights.

Integrate with Automation Control Systems
The 9200-06-01-10-00 can interface directly with PLCs or DAQs for automated vibration monitoring. With top-terminal connectors and a circular M10X1 mounting base, the 9200-06-01-10-00 supports gap-free integration for condition-based alarms and operational control.

Specifications

Sensitivity	20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
Calibration Load	10 kΩ Terminal "A" to "B" Output taken across pins "A" and "B
Sensitivity Temperature Coefficient	0.2%/°C
Frequency response	From minimum operating frequency (see Ordering Information) to 1 kHz (60,000 cpm); +0, -3dB typical.
Velocity Range	25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load.
Coil Resistance	1.25 kΩ ±5%
Amplitude Linearity	±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100Hz (6000CPM)
Shock resistance	Withstands 50 g peak maximum acceleration along non-sensitive axis.
Transverse sensitivity	±10% maximum of the sensitive axis sensitivity at 100 Hz and 1.0 in/s (2.54 cm/s)
Operating and Storage Temperature	-29°C to +121°C (-20°F to +250°F).
Environment	Dust and moisture resistant.
Relative Humidity	To 95%, noncondensing. 100%, non-submerged, when ordered with integral cable.
Maximum Use Altitude	2000 m (6,561 ft) above sea level.
Case and Adapter Material	Anodized aluminum A204
Gasket Material	Neoprene
Connector Material（Top and Side Mount Options）	Cadmium-plated aluminum, neoprene, and silver-plated copper
Connector Material（Terminal Block Option）	Polyphenylene Sulfide with nickel-plated copper contacts.

Competitive Advantage

High Sensitivity for Accurate Vibration Detection
The 9200-06-01-10-00 provides 20 mV/mm/s sensitivity and ±5% amplitude linearity, delivering precise vibration measurements across a wide velocity range.

Durable Housing for Harsh Environments
With anodized aluminum, neoprene gaskets, and cadmium-plated connectors, the 9200-06-01-10-00 withstands dust, moisture, and temperature extremes from -29°C to +121°C.

Shock Resistant Design
The 9200-06-01-10-00 tolerates 50 g peak acceleration along non-sensitive axes, ensuring consistent performance even in high-impact industrial settings.

Flexible Mounting Options
Circular M10X1 stud mount allows quick installation on various machines, and the two-wire output simplifies connection to existing automation systems.

Power-free Operation
Moving-coil design of the 9200-06-01-10-00 eliminates the need for external power, enabling deployment in portable or stationary monitoring setups.
