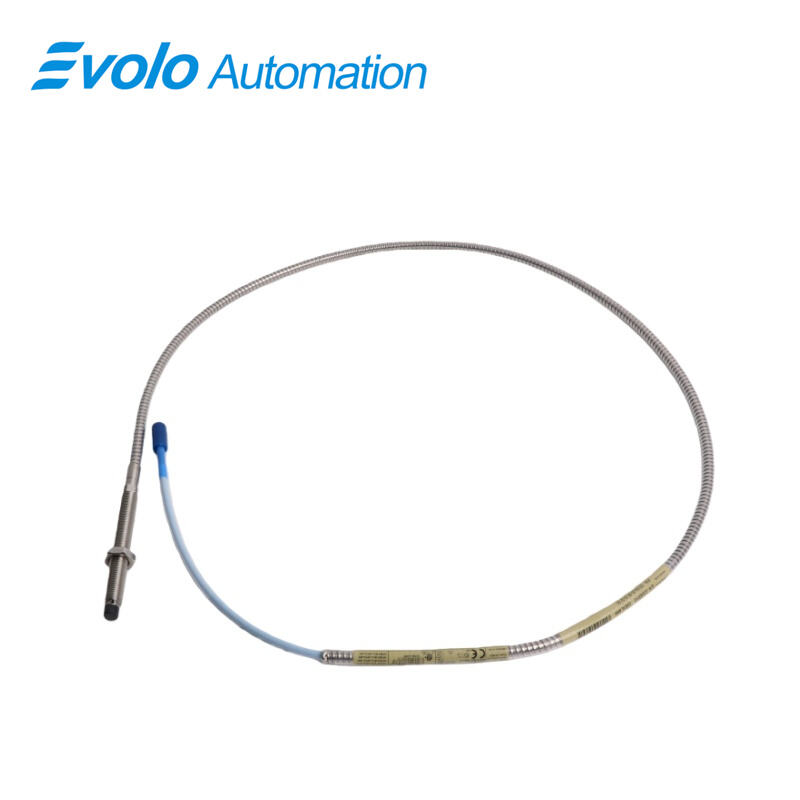

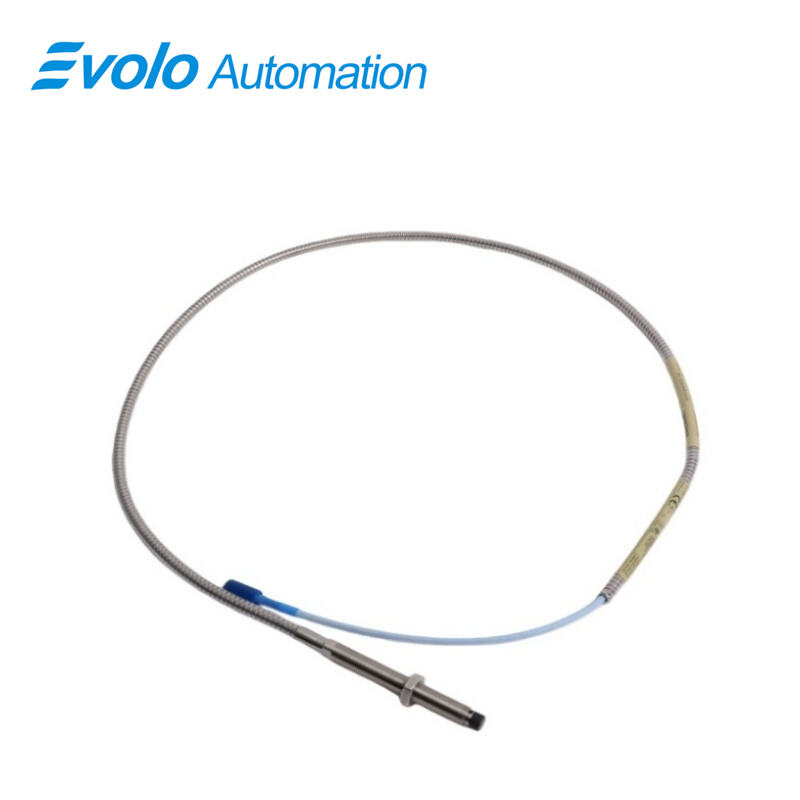

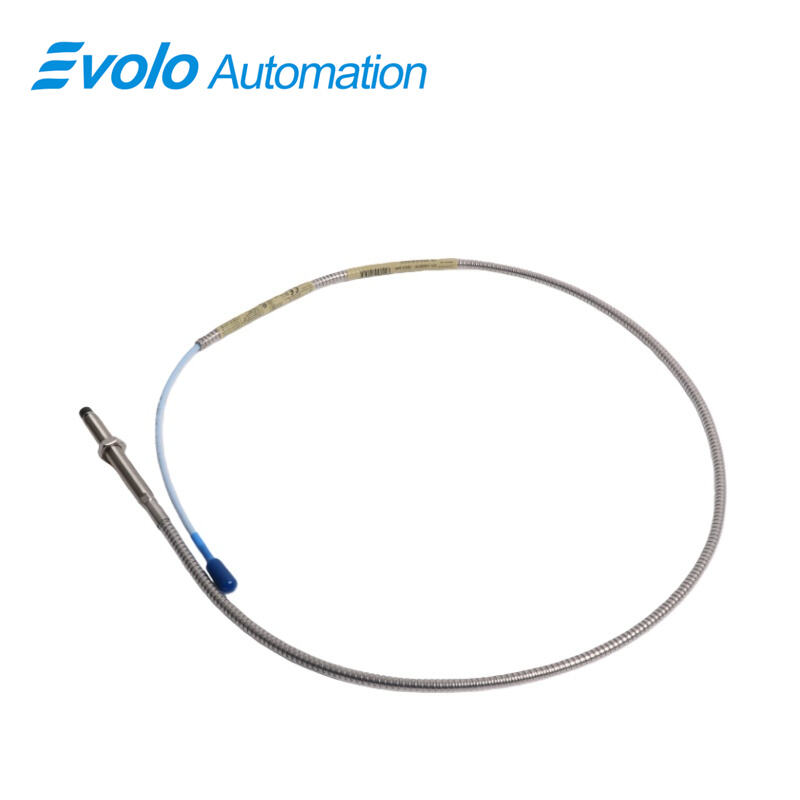

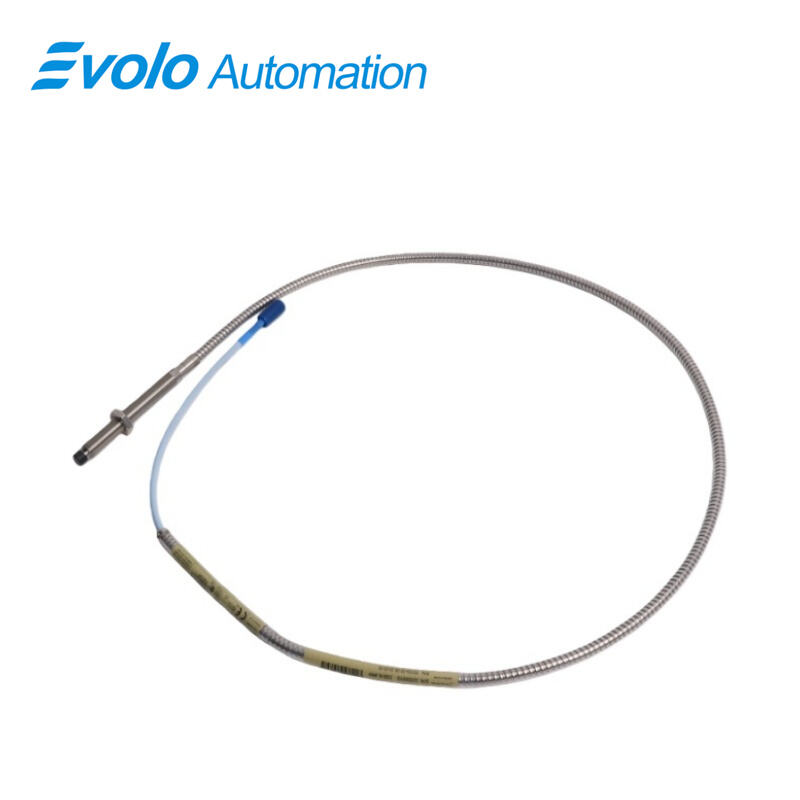

330104-00-08-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-10-02-05 3300 XL 8 mm Proximity Probe represents a state-of-the-art solution for precision vibration and position monitoring in industrial machinery. Designed with an overall case length of 80 mm and a total system length of 1.0 meter (3.3 feet), this probe delivers reliable, high-performance measurements under demanding conditions. Its unthreaded length of 0 mm and M10 x 1 threaded case, with a maximum thread engagement of 15 mm, allows for flexible installation in tight or complex spaces.

Equipped with a miniature coaxial ClickLoc connector and a standard cable, the 3300 XL 8 mm probe ensures secure, high-fidelity signal transmission. The probe is CSA, ATEX, and IECEx approved, providing safety and compliance for hazardous environments. Its robust construction utilizes AISI 303 or 304 stainless steel for the probe case, paired with a polyphenylene sulfide probe tip, allowing operation in extreme temperature ranges from -52°C to +177°C (-62°F to +350°F).

The probe system provides an output voltage directly proportional to the distance between the probe tip and the conductive target surface. This capability enables both static position and dynamic vibration measurements, making it ideal for fluid-film bearing machines. Keyphasor reference and speed measurements are also supported, allowing precise monitoring of rotating equipment. With a linear range of 2 mm (80 mils), the 3300 XL 8 mm probe ensures accurate detection of subtle variations in shaft movement.

A hallmark of the 3300 XL series is complete component interchangeability. Probes, extension cables, and Proximitor sensors can be replaced without recalibration, saving maintenance time and reducing downtime. The system is fully backward compatible with non-XL 3300 series 5 mm and 8 mm probes, ensuring seamless integration into existing setups where space or operational requirements vary.

This 3300 XL probe incorporates significant design improvements. The patented TipLoc molding secures a durable bond between the probe tip and body, while the patented CableLoc design ensures a pull strength of 330 N (75 lbf), preventing accidental disconnection. An optional FluidLoc cable further protects against leakage of oils or other machine fluids through the cable interior, enhancing long-term reliability in industrial environments.

With its combination of high accuracy, robust mechanical design, and full interchangeability, the 330104-00-08-10-02-05 3300 XL 8 mm Proximity Probe stands out as a top choice for engineers seeking dependable, high-performance vibration and position monitoring in critical rotating machinery applications.

Applications

Vibration Monitoring in Rotating Machinery

The 3300 XL 8 mm Proximity Probe is ideal for precise vibration monitoring on fluid-film bearing machines and other high-speed rotating equipment. Its eddy current sensing technology allows accurate measurement of both dynamic vibration and static displacement, enabling engineers to detect early signs of mechanical wear, imbalance, misalignment, or bearing defects. With a linear range of 2 mm (80 mils) and stable output proportional to displacement, the probe ensures high-fidelity data critical for predictive maintenance programs.

Position Measurement

This probe system can measure static positions of rotating shafts or other conductive surfaces with high accuracy. Its robust AISI 303/304 stainless steel case and polyphenylene sulfide probe tip withstand extreme operating temperatures from -52°C to +177°C (-62°F to +350°F), making it suitable for harsh industrial environments. The precise position data provided by the 3300 XL 8 mm system is crucial for applications requiring tight clearance monitoring or alignment verification.

Keyphasor Reference and Speed Detection

The 3300 XL 8 mm Proximity Probe supports Keyphasor reference signals, providing synchronized timing pulses for vibration analysis systems. This feature allows for accurate speed and phase measurements in rotating machinery, essential for condition monitoring, rotor balancing, and troubleshooting high-speed equipment. Its miniature coaxial ClickLoc connector and robust CableLoc design ensure reliable signal integrity even in electrically noisy or high-vibration environments.

Interchangeable System Components

One of the major advantages of the 3300 XL series is the full interchangeability of probes, extension cables, and Proximitor sensors. This eliminates the need for individual calibration or bench matching, simplifying installation and maintenance. The 3300 XL 8 mm probe is fully backward compatible with non-XL 3300 series 5 mm and 8 mm probes, providing flexibility for applications where an 8 mm probe may be too large or space is limited.

Harsh and Hazardous Environment Operation

With CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm probe can be safely deployed in explosive or hazardous locations. The optional FluidLoc cable further enhances reliability by preventing leakage of oils or other liquids from the machine through the cable interior, making it suitable for lubrication-intensive environments such as turbines, compressors, and pumps.

High-Density and Compact Installations

The probe’s compact dimensions, including an 80 mm overall case length and 0 mm unthreaded section, allow installation in tight or high-density mounting scenarios. Its M10 x 1 threaded case, with a maximum thread engagement of 15 mm, ensures secure mechanical attachment while maintaining precise alignment with the measured surface.

Specifications

Competitive Advantage

1. High-Precision Vibration and Position Measurement

The 3300 XL 8 mm Proximity Probe delivers highly accurate output, directly proportional to the distance between the probe tip and the measured conductive surface. Its 2 mm (80 mils) linear range ensures precise monitoring of both static (position) and dynamic (vibration) measurements, making it ideal for fluid-film bearing machines, rotating shafts, and other critical industrial equipment.

2. Robust Mechanical Design for Harsh Environments

Constructed from AISI 303 or 304 stainless steel and featuring a polyphenylene sulfide probe tip, the probe withstands extreme operating conditions ranging from -52°C to +177°C (-62°F to +350°F). Its M10 x 1 threaded case with 15 mm maximum engagement ensures secure mounting in high-vibration or tight-space applications.

3. Advanced Connector and Cable Technology

Equipped with a miniature coaxial ClickLoc connector and standard cable, the 3300 XL 8 mm probe provides reliable, high-fidelity signal transmission. The patented CableLoc design delivers a pull strength of 330 N (75 lbf), securing the probe cable and tip and reducing the risk of accidental disconnection during operation.

4. Improved Tip Bonding with Patented TipLoc Technology

The probe incorporates a patented TipLoc molding method, creating a stronger, more durable bond between the probe tip and body. This enhancement improves reliability and extends the service life of the probe, particularly in demanding industrial environments.

5. Fluid and Leak Protection with Optional FluidLoc Cable

For lubrication-intensive equipment, the optional FluidLoc cable prevents oil and other fluids from leaking through the cable interior, ensuring safe and maintenance-free operation in turbines, compressors, pumps, and other machinery.

6. Compliance with Industry Standards

The 3300 XL 8 mm system meets CSA, ATEX, and IECEx approvals and fully complies with the API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. This guarantees safety and performance in hazardous or high-stakes industrial environments.

7. Full Interchangeability and Backward Compatibility

All 3300 XL 8 mm components—including probes, extension cables, and Proximitor sensors—are fully interchangeable without the need for bench calibration. Additionally, the system is backward compatible with non-XL 3300 series 5 mm and 8 mm components, offering flexibility for installations where space or previous system integration is a concern.
