Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-16-05-00-037-03-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
No probe sleeve |
|
Probe Penetration Option (Option D Dimension): |
3.7 in (94 mm) |
|
Fittings: |
Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
32.02x9.14x9.14cm |
|
Weight: |
1.2 kg |
Description

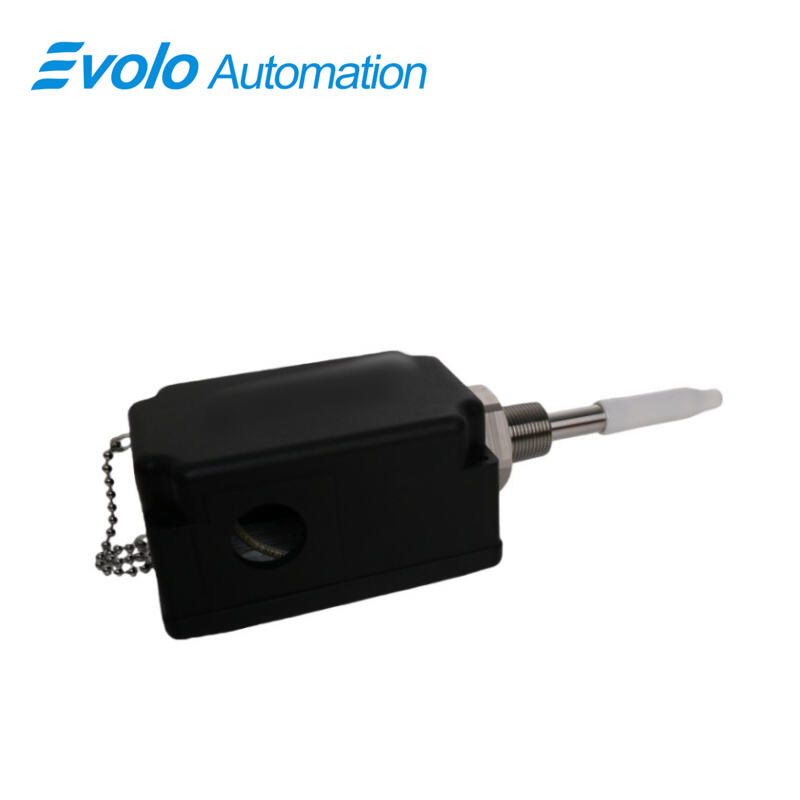

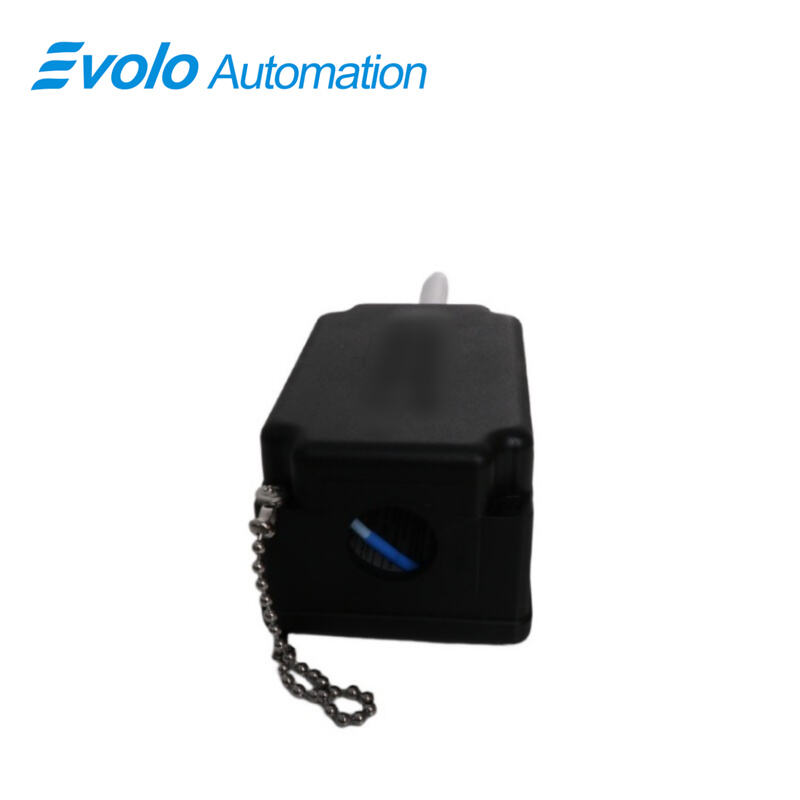

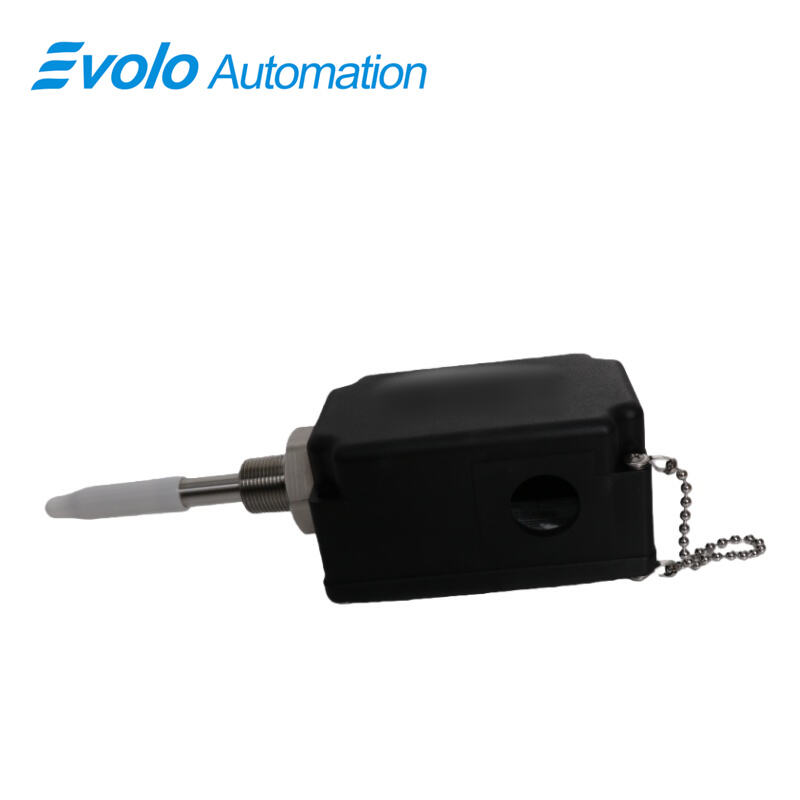

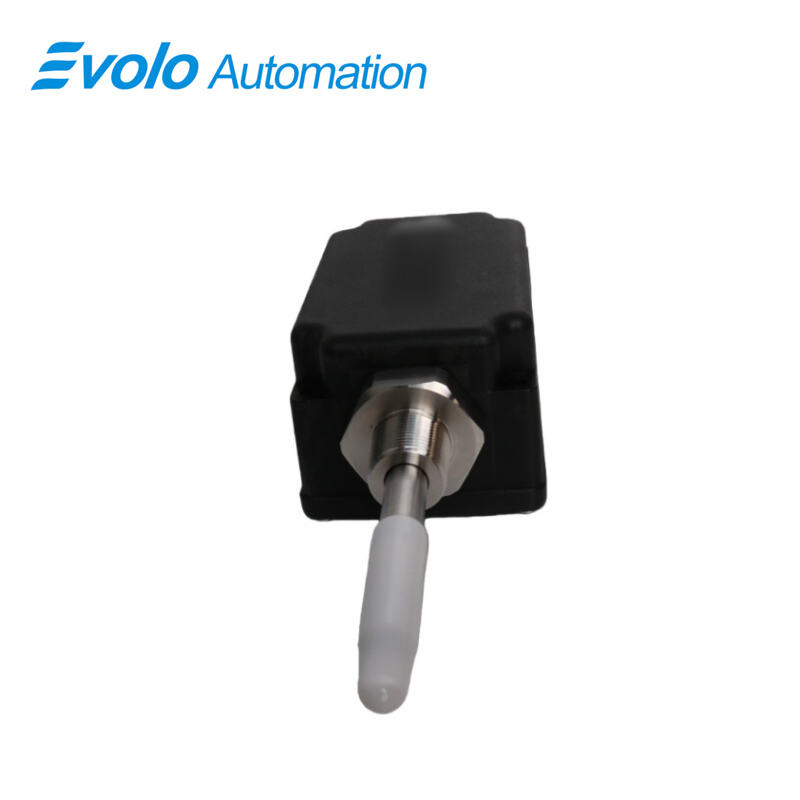

The 31000-16-05-00-037-03-02 Proximity Probe Housing Assembly is engineered for industrial automation systems requiring precise vibration and position monitoring. Designed to house the 3300 XL 8 mm proximity probe, this assembly ensures reliable probe mounting through machine casings, offering robust protection and simplified maintenance. The housing features glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fibers for superior corrosion resistance, while AISI 303/304 stainless steel components and neoprene O-rings provide long-term durability in harsh environments. The assembly accommodates a 0.5 m (20 in) probe cable, 3/4-14 NPT mounting threads, and multiple fittings, allowing flexible conduit and cable configurations. Certified to Type 4X by CSA and tested to withstand two 4 Joule impacts at temperatures ranging from -39°C to 115°C, this housing ensures operational reliability under extreme conditions. With adjustable probe penetration up to 3.7 in (94 mm) and compatibility with standard extension cables, the assembly enables fast probe replacement and gap adjustment without disassembling machinery. Fully compliant with API 670 standards, it is suitable for intrinsically safe hazardous areas when paired with approved transducers and I.S. barriers, making it a critical solution for automated monitoring and control in industrial environments.
Applications
Application 1: Radial Vibration Monitoring
The housing assembly enables precise mounting of 3300 XL proximity probes for radially mounted transducers, allowing continuous monitoring of rotating machinery vibrations in turbines, pumps, and compressors. Its robust Type 4X protection ensures stable operation in harsh conditions.
Application 2: Keyphasor Signal Detection
Used in automated systems for speed and phase detection, the assembly ensures accurate Keyphasor measurements by maintaining stable probe positioning and cable alignment, critical for predictive maintenance of high-speed machinery.
Application 3: Intrinsically Safe Hazardous Areas
When combined with approved I.S. barriers and transducers, the assembly supports safe operation in Class I Division 1 and Zone 1 hazardous locations, allowing proximity probes to function reliably in flammable or explosive environments.
Application 4: Quick Maintenance and Replacement
The assembly allows external access to the 3300 XL probe and extension cable, enabling quick gap adjustments or probe replacements without disassembling machinery, significantly reducing downtime in automated production lines.
Application 5: Corrosion-Resistant Industrial Installations
With PPS housing and stainless steel sleeves, the assembly withstands chemical exposure, high humidity, and temperature extremes, making it ideal for chemical plants, refineries, and offshore platforms where long-term reliability is critical.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Advantage 1: High Structural Integrity
Certified by BASEEFA to endure two separate 4 Joule impacts at -39°C and 115°C, the housing guarantees protection of the 3300 XL proximity probe against mechanical shock, outperforming standard thermoplastic housings.
Advantage 2: Corrosion and Chemical Resistance
The combination of PPS thermoplastic and AISI 303/304 stainless steel components ensures excellent resistance to chemical corrosion, extending the life of automation systems in aggressive industrial environments.
Advantage 3: Flexible Cable and Conduit Configuration
Equipped with multiple plug sizes, NPT fittings, and grommet options, the assembly supports cables ranging from 1/8 to 3/8 inches, allowing versatile integration into diverse automated control systems.
Advantage 4: Compliance with Industry Standards
Fully compliant with API 670 and CSA Type 4X standards, the assembly meets stringent requirements for industrial automation and safety, ensuring reliability in both standard and hazardous operations.
Advantage 5: Maintenance Efficiency
External access to the probe and extension cable allows rapid gap adjustments and replacements, minimizing downtime in critical automated machinery and reducing operational costs.
