Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5463-581 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5463-581 |
|
Product Type |
8 Channel Isolated 4–20 mA Input Module |
|
Application |
Governor Control |
|
Channels |
8 channels |
|
Input Type |
Isolated 4–20 mA |
|
Relay Output |
Yes |
|
LED Indication |
Yes |
|
Operating Temperature |
-40°C to +85°C |
Description

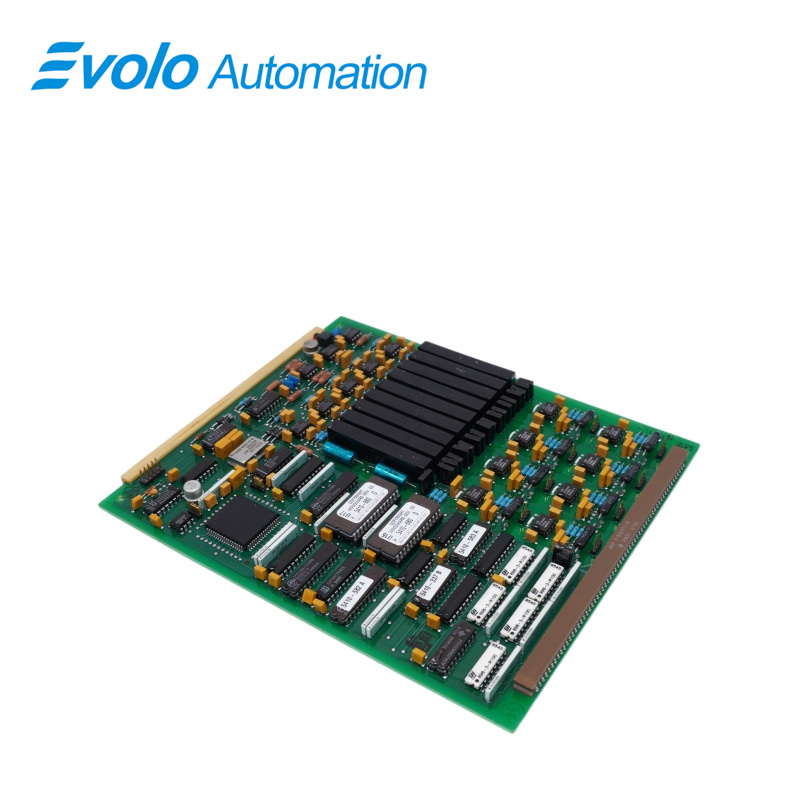

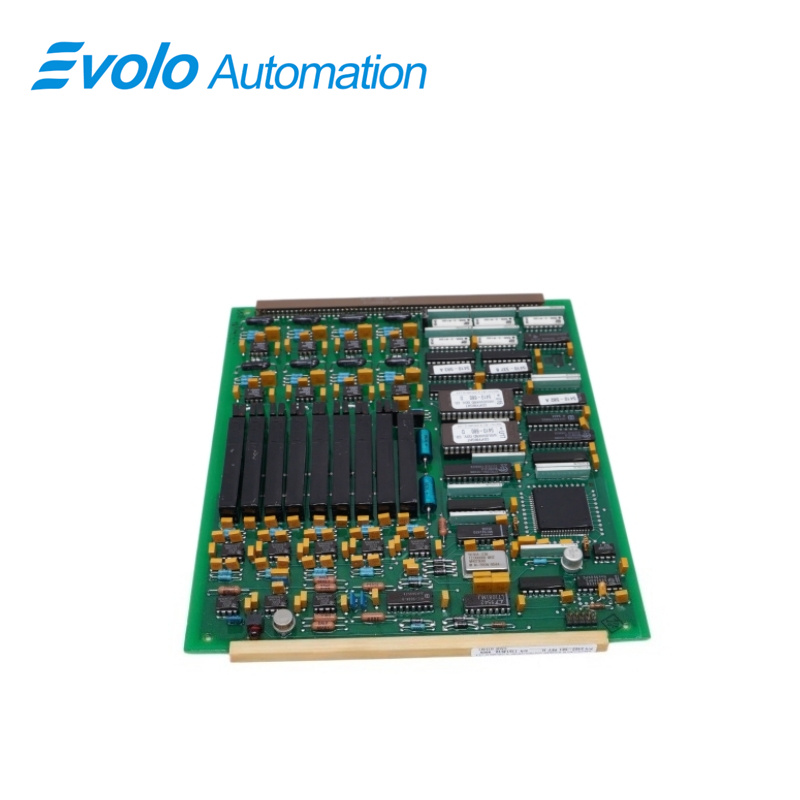

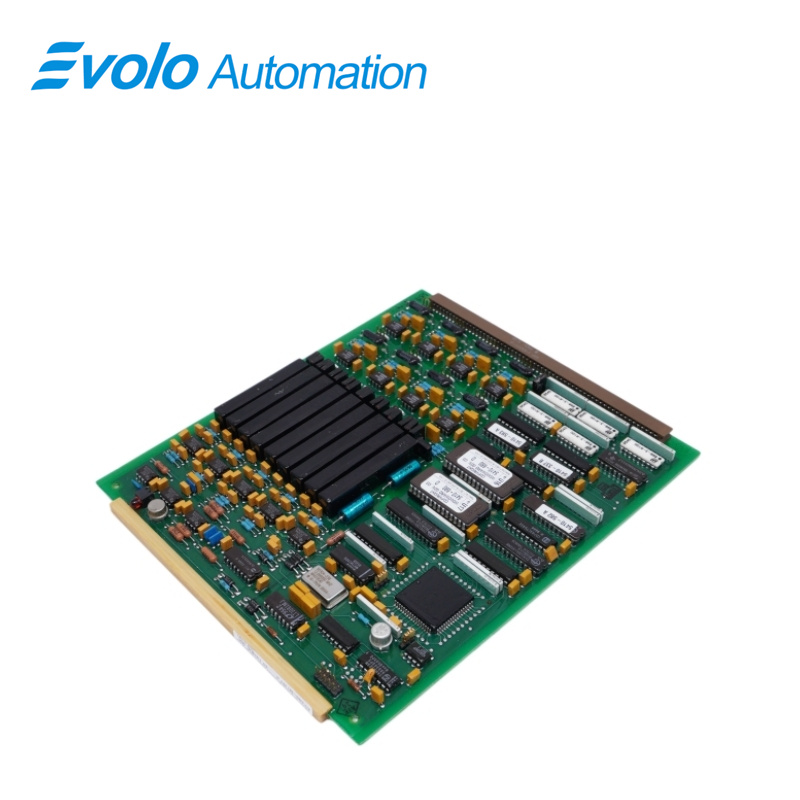

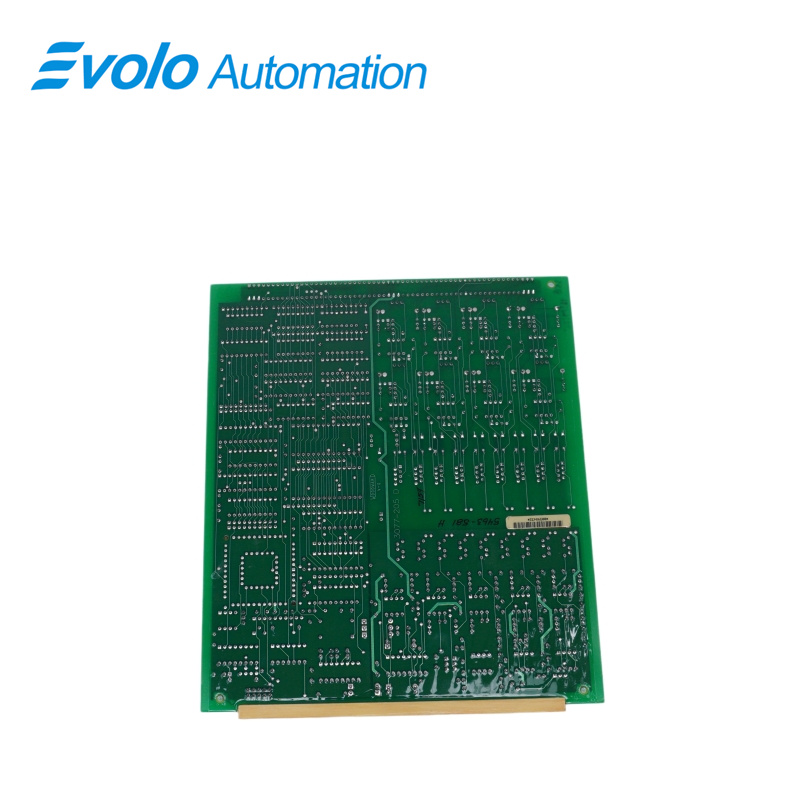

The Woodward 5463-581 is an 8-channel isolated 4–20 mA analog input module. It belongs to Woodward's classic NetCon 5000 or MicroNet series of distributed control system (DCS) rack-mount high-performance I/O boards. It provides real-time and accurate data support for the controller's PID control algorithm and fault interlocking by acquiring field signals with high precision.
Applications
Thermal power plants: Used in turbine governor systems to collect isolated 4–20 mA feedback signals for steam valve position, oil pressure, and speed control.
Heavy chemical plants: Used in compressor control racks, triggering anti-surge valves via relay outputs when process conditions become unstable.
Shipbuilding yards: Used in marine propulsion control networks, designed to withstand harsh temperature variations in engine room environments.
Steel smelting plants: Used in blast furnace blower and recovery turbine systems, with LED indicators for fast fault identification in noisy workshops.
Installation and Field Safety Guidelines
Installation and Safety: Hot-swapping is not allowed. The 5463-581 module must be fully powered down before removal to avoid arcing, circuit damage, or CPU communication failure.
ESD Protection: The module contains sensitive A/D and amplifier circuits. Use anti-static wrist straps and avoid direct contact with components, handling only edges or panels.
Wiring and Shielding: 4–20 mA signals are vulnerable to EMI. Use shielded twisted-pair cables with single-point grounding; poor grounding may cause unstable signals and valve fluctuation.
FAQ
Q: How many channels does the 5463-581 include?
A: Includes 8 channels.
Q: What type of input signal does the 5463-581 use?
A: Uses isolated 4–20 mA input type.
Q: Does the 5463-581 include relay outputs?
A: Includes relay outputs.
Q: Does the 5463-581 feature LED indicators on the panel?
A: Equipped with LED indicators.
Q: What is the operating temperature range of the 5463-581?
A: Operating temperature range is -40°C to +85°C.
