Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-12-20-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Agency Approval Option: |
Not required |
|
Unthreaded Length Option : |
120 mm |
|
Overall Case Length Option : |
200 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
105x1.4x1.5cm |
|
Weight: |
0.14kg |
Description

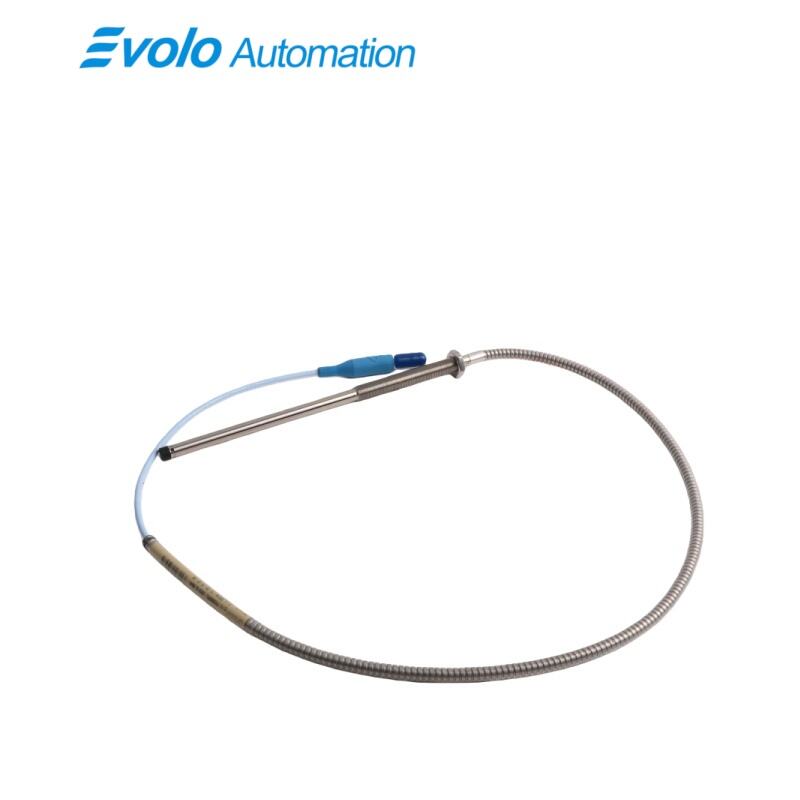

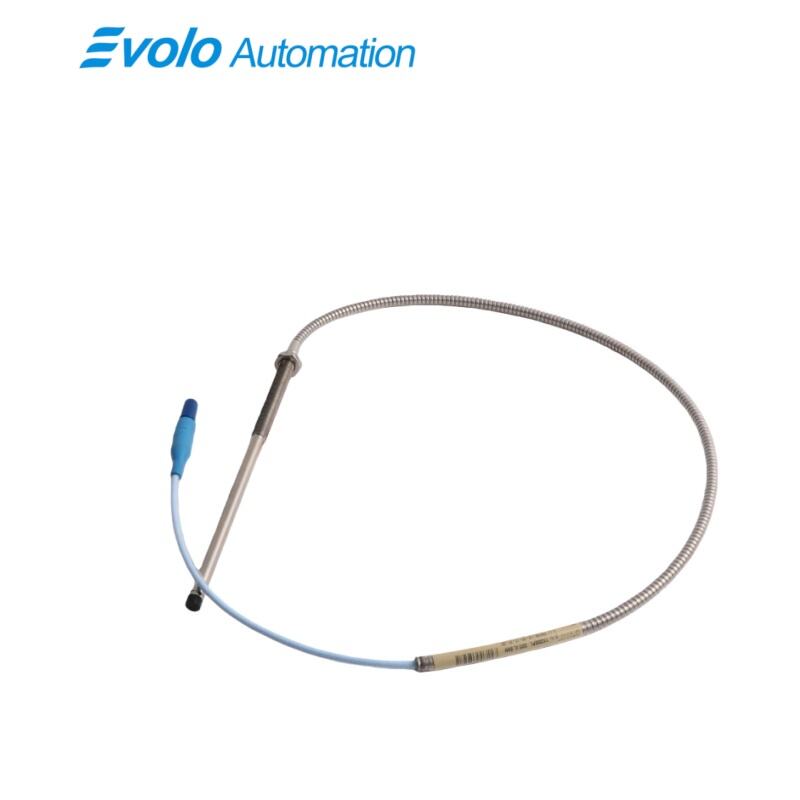

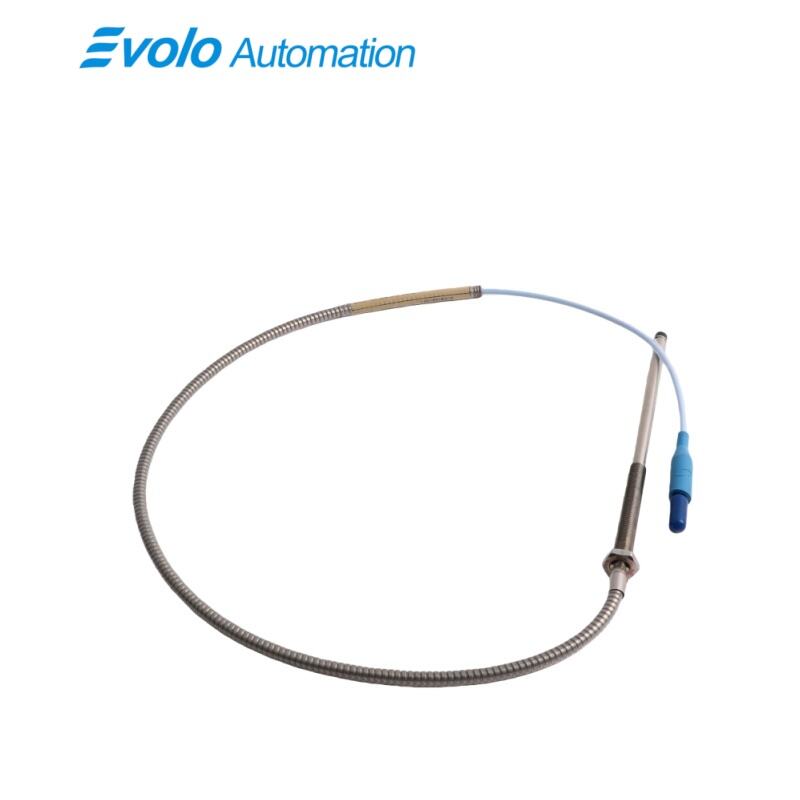

The 330104-12-10-10-02-00 is a high-performance 3300 XL 8 mm Proximity Probe engineered by Bently Nevada for precision displacement monitoring in critical rotating machinery. As a cornerstone of the 3300 XL 8 mm Proximity Probes line, this eddy current sensor is designed to provide high-fidelity data on shaft vibration, position, and speed. This specific model features a unique mechanical configuration with a 120 mm unthreaded length and a 200 mm overall case length, making it an ideal "long-reach" solution for applications where the probe must pass through deep machine casings or specialized mounting brackets to reach the target shaft.
The technical integrity of the 330104-12-10-10-02-00 ensures full compliance with the API 670 standard, which is the global benchmark for machinery protection systems. Within the 3300 XL 8 mm Proximity Probes ecosystem, this unit offers a 1.0-meter total length (3.3 feet) and is equipped with a Miniature coaxial ClickLoc connector, providing a secure, finger-tight connection that resists loosening under extreme vibration. The probe tip is manufactured from high-grade Polyphenylene Sulfide (PPS), a specialized engineering plastic known for its immunity to oil, water, and corrosive chemicals, while the probe body is constructed from AISI 304 stainless steel for maximum structural rigidity.
Applications
Specifications
|
Operating Temperature Range: |
-50°C to +105°C (-55°F to+205°F) |
|
Linear Range: |
2 mm |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.8 Vdc to -20 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Competitive Advantage
1. Specialized Long-Reach Mechanical Design
The 330104-12-20-10-02-00 features a 120 mm unthreaded portion and a 200 mm case, which provides superior flexibility for thick-walled machinery. Unlike standard short probes that require additional sleeves or mounting hardware, this "long-reach" configuration simplifies the installation process and reduces the number of potential mechanical vibration points in the mounting assembly.
2. Advanced ClickLoc Connector Reliability
Equipped with a Miniature coaxial ClickLoc connector, this probe eliminates the risks associated with traditional threaded connectors that can vibrate loose. The "ClickLoc" mechanism provides a tactile and audible confirmation of a secure connection, ensuring consistent electrical contact and preventing signal loss, which is essential for maintaining system uptime in high-vibration environments.
3. Superior Material Durability and PPS Tip
The probe tip is constructed from Polyphenylene Sulfide (PPS), an advanced polymer that offers higher chemical and thermal resistance than standard materials. Combined with an AISI 304 stainless steel body, the 3300 XL 8 mm Proximity Probes are built to survive environments contaminated with synthetic lubricants, corrosive gases, and moisture, resulting in a lower total cost of ownership through extended service life.
