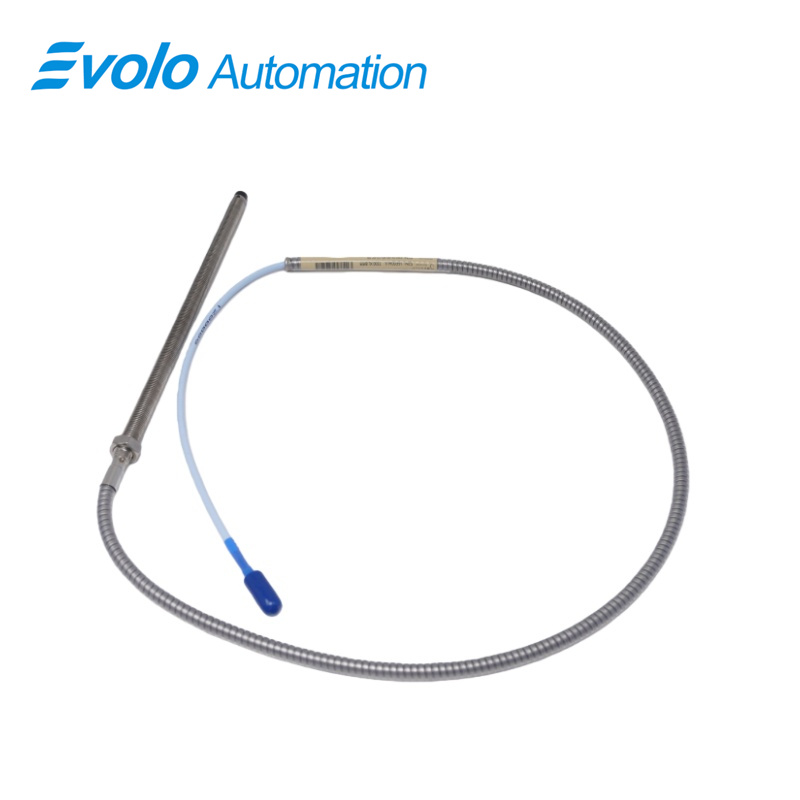

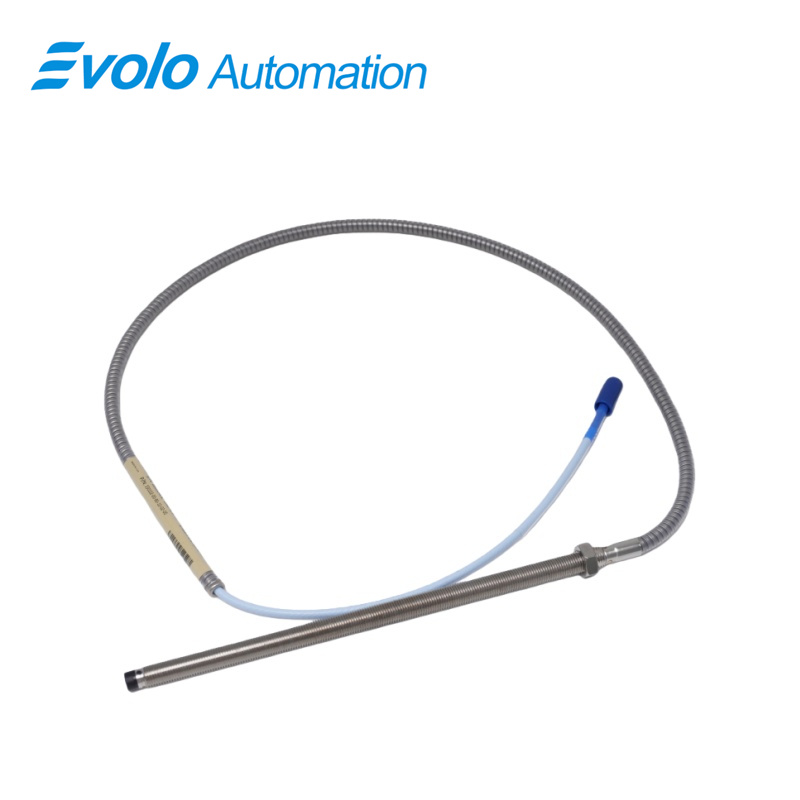

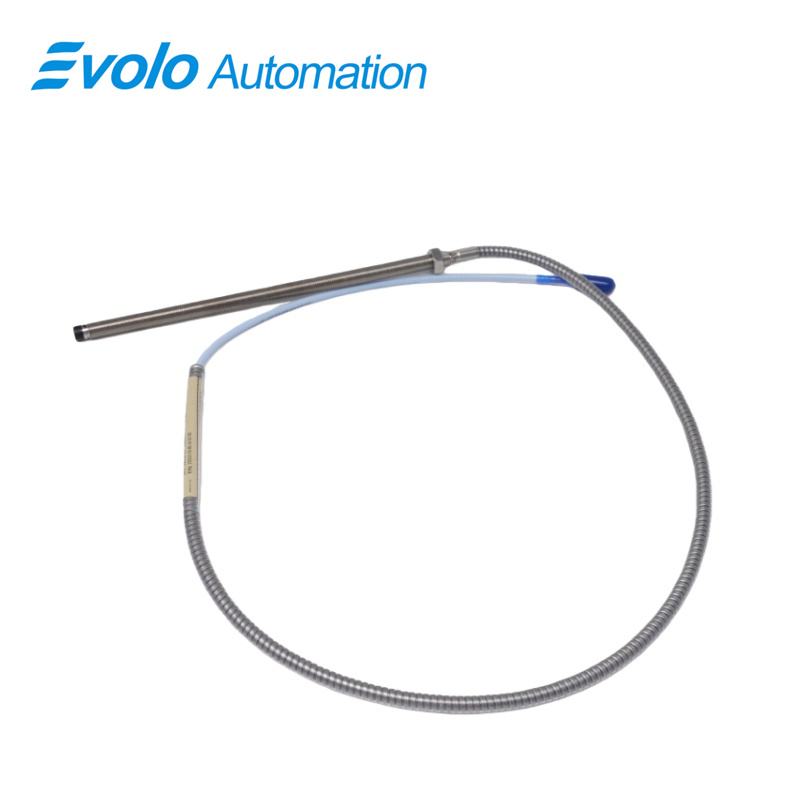

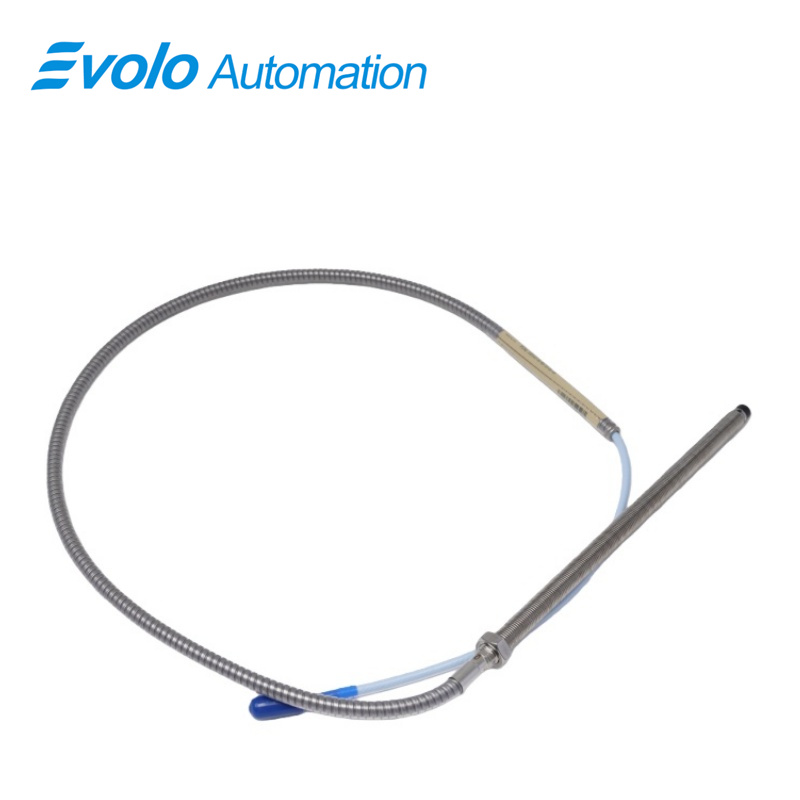

330102-00-96-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-96-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-96-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation applications. It delivers an output voltage directly proportional to the distance between the probe tip and a conductive surface, providing accurate position and vibration measurements. With a linear range of 2 mm (80 mils) and an operating temperature from -52°C to +177°C (-62°F to +350°F), this 3300 XL 8 mm probe ensures reliable operation in extreme environments. Its miniature coaxial ClickLoc connector and standard cable enable flexible field wiring from 0.2 to 1.5 mm² (16–24 AWG), while the extension cable maintains a typical capacitance of 69.9 pF/m (21.3 pF/ft). The probe’s 3/8-24 UNF threaded case allows secure mounting with a maximum thread engagement of 0.563 in. CSA, ATEX, and IECEx approvals ensure global compliance. The 3300 XL 8 mm system fully meets API 670 standards for mechanical configuration, linearity, and accuracy. Robust design improvements, including TipLoc molding and CableLoc cable retention, provide superior durability with 330 N (75 lbf) pull strength. Optional FluidLoc cables prevent fluid leakage, making this probe ideal for precise, high-reliability industrial monitoring and automation applications.

Applications

1. Fluid-Film Bearing Vibration Monitoring
The 3300 XL 8 mm probe measures dynamic shaft vibrations in turbines and pumps, maintaining linear accuracy within ±2% over a 2 mm range, enabling predictive maintenance and reducing unplanned downtime.

2. Rotating Machinery Position Measurement
Provides precise static position data of shafts or machine components with less than 2 mV change per volt input variation, ensuring optimal control of critical industrial equipment.

3. Keyphasor Reference Generation
Accurately detects rotational speed and angular position for synchronizing high-speed machinery in compressors and generators, supporting advanced automation systems.

4. API 670 Compliance in Petrochemical Plants
Implements vibration and position monitoring on critical rotating equipment in refineries, ensuring adherence to API 670 mechanical and performance standards.

5. Harsh Environment Industrial Monitoring
Operates reliably in extreme temperatures (-52°C to +177°C) and hazardous environments (ATEX and IECEx certified), ideal for oil, gas, and chemical automation systems.

Specifications

Competitive Advantage

1. Robust Mechanical Design
TipLoc molded probe tips and CableLoc cables provide 330 N pull strength, enhancing durability and reducing probe maintenance in high-vibration environments.

2. Superior Interchangeability
Fully compatible with other 3300 XL and standard 3300 series probes, extension cables, and Proximitor sensors, simplifying spare parts management and reducing calibration effort.

3. High-Precision Measurement
Linear range of 2 mm and supply sensitivity below 2 mV/V ensure accurate position and vibration measurements critical for industrial automation and predictive maintenance systems.

4. Flexible Installation Options
Miniature coaxial ClickLoc connectors and field wiring compatibility from 16 to 24 AWG allow easy integration into existing monitoring systems.

5. Fluid-Resistant Option
Optional FluidLoc cables prevent fluid leakage, maintaining system integrity in oil-lubricated machinery and other industrial automation setups.
