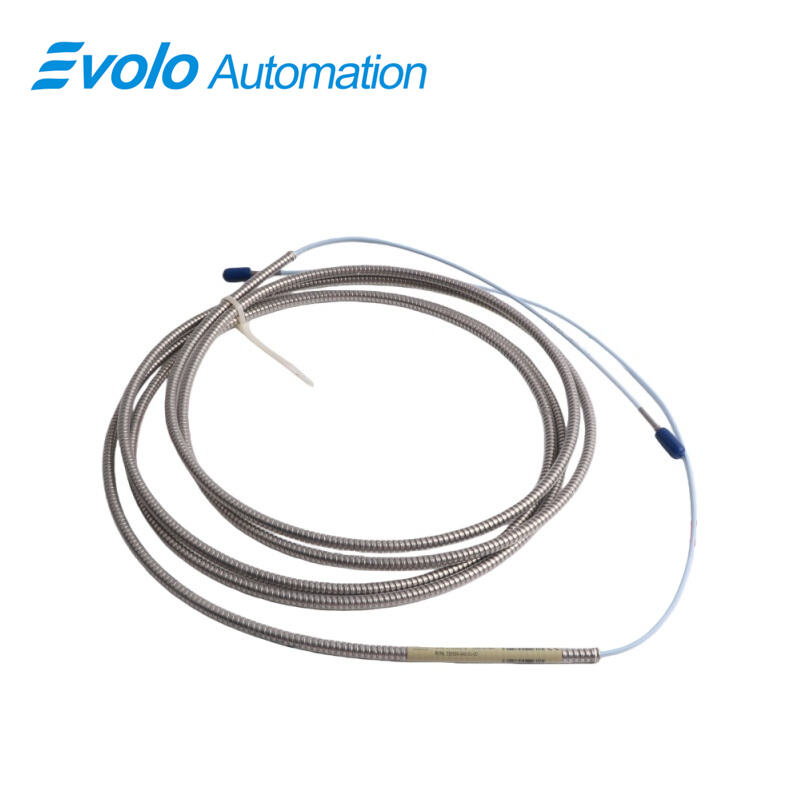

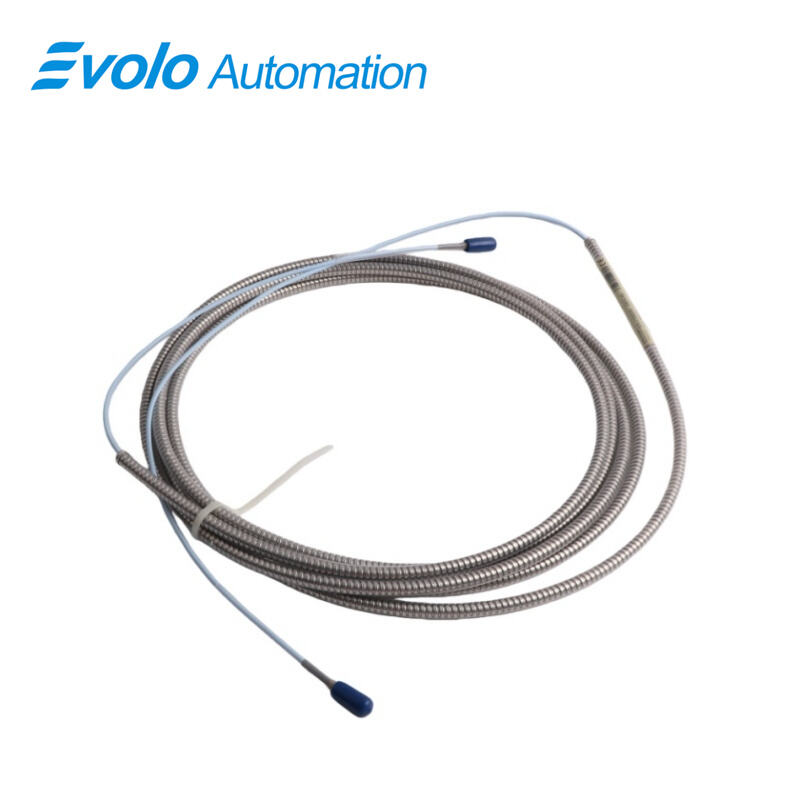

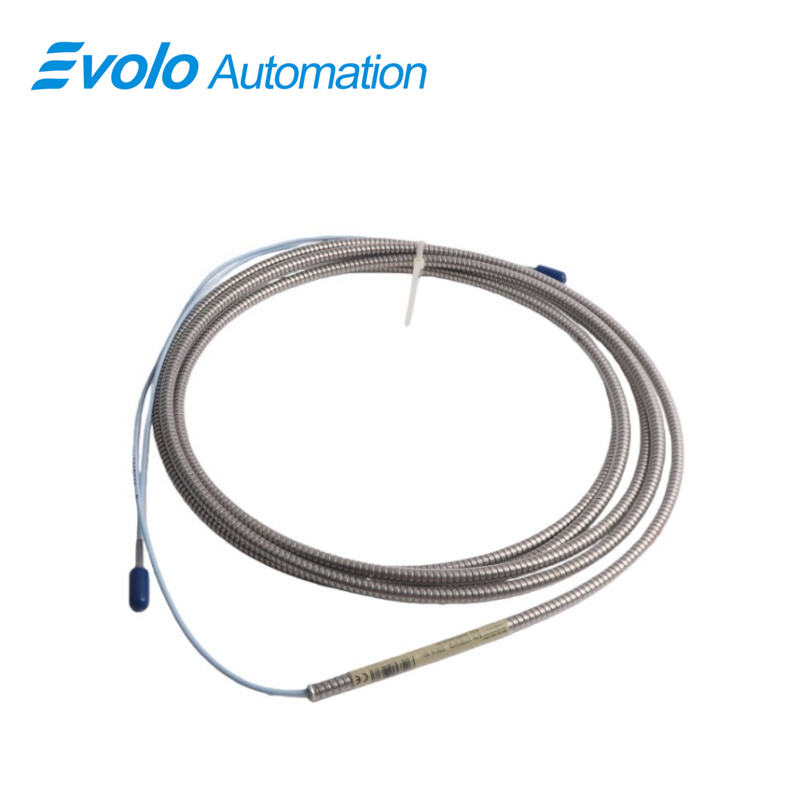

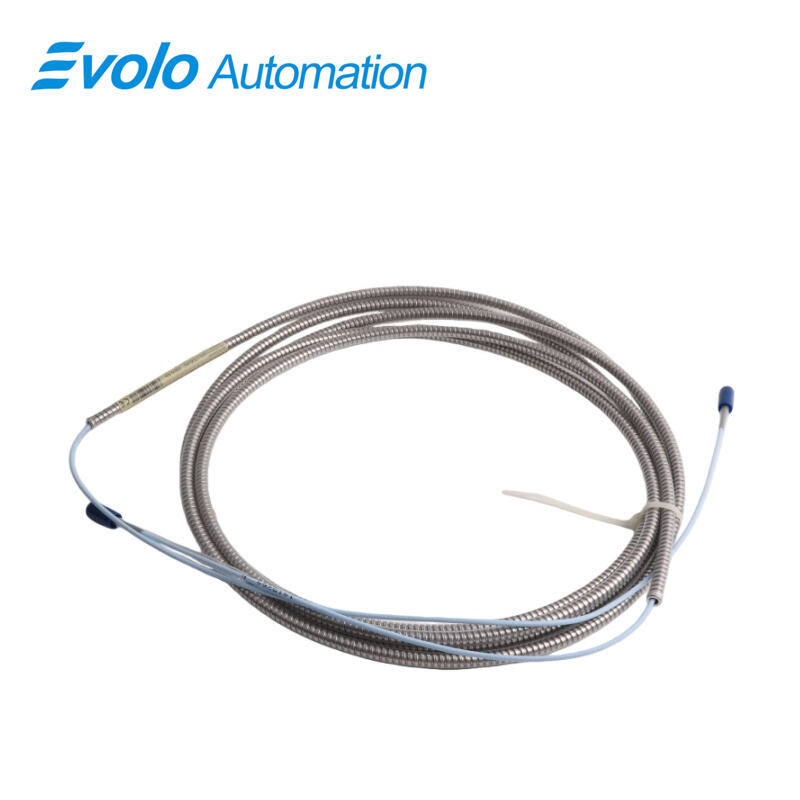

330930-040-01-CN 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-040-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330930-040-01-CN 3300 NSv Extension Cable is designed for automated systems using 3300 NSv Proximity Probes in tight installation environments, such as centrifugal compressors, refrigeration compressors, and process gas machines. This armored 4.0-meter extension cable features a stainless steel jacket with FEP insulation, supporting probe temperatures from -52°C to +177°C and maintaining linear range of 1.5 mm (60 mils) for accurate radial vibration, axial position, tachometer, and phase reference measurements. The 330930-040-01-CN 3300 NSv Extension Cable uses 50 Ω output resistance and less than 2 mV/V supply sensitivity to deliver stable signal transmission. Its ClickLoc connectors secure the 3300 NSv probe connection, preventing loosening and signal loss. The cable is compatible with upgrades from 3300 RAM, 3000-series, or 7000-series transducer systems, allowing seamless integration with existing automation controls while supporting precise monitoring of small shafts (<51 mm) or narrow side-view targets (<15 mm). This extension cable ensures that 3300 NSv Proximity Probes maintain full functionality and reliable performance in automated monitoring applications.

Applications

Radial Vibration Measurement on Small Shafts
The 330930-040-01-CN 3300 NSv Extension Cable, paired with 3300 NSv Proximity Probes, transmits signals for shafts smaller than 51 mm (2 in), enabling precise radial vibration monitoring in centrifugal compressors and small process machinery.

Axial (Thrust) Position Monitoring
Used in axial position measurement setups, the 330930-040-01-CN 3300 NSv Extension Cable carries probe signals to Proximitor Sensors for real-time tracking of thrust bearing displacement.

Tachometer and Zero-Speed Detection
The 330930-040-01-CN 3300 NSv Extension Cable supports Proximitor Sensor output with 50 Ω resistance, allowing accurate rotational speed measurement and zero-speed detection for automated control systems.

Phase Reference (Keyphasor Signals) Transmission
For automated control applications, the 330930-040-01-CN 3300 NSv Extension Cable delivers Keyphasor signals from 3300 NSv Proximity Probes to monitoring systems, enabling precise phase reference for rotating equipment.

Specifications

Competitive Advantage

High-Temperature Operation
The 330930-040-01-CN 3300 NSv Extension Cable supports probe temperatures from -52°C to +177°C (-62°F to +351°F), maintaining accurate signal transmission in extreme process environments.

Armored Protection and FEP Insulation
The stainless steel armor and FEP outer jacket of the 330930-040-01-CN 3300 NSv Extension Cable prevent mechanical damage and contamination, ensuring uninterrupted signal delivery from the 3300 NSv Proximity Probe.

ClickLoc Connector Security
Gold-plated ClickLoc connectors lock the 330930-040-01-CN 3300 NSv Extension Cable to probes and Proximitor Sensors, preventing loosening and maintaining high-quality signal transmission for automated monitoring.

Compact Signal Transmission for Small Targets
With a linear range of 1.5 mm (60 mils), the 330930-040-01-CN 3300 NSv Extension Cable enables accurate monitoring of narrow side-view targets (<15 mm), supporting precision automation in constrained spaces.
