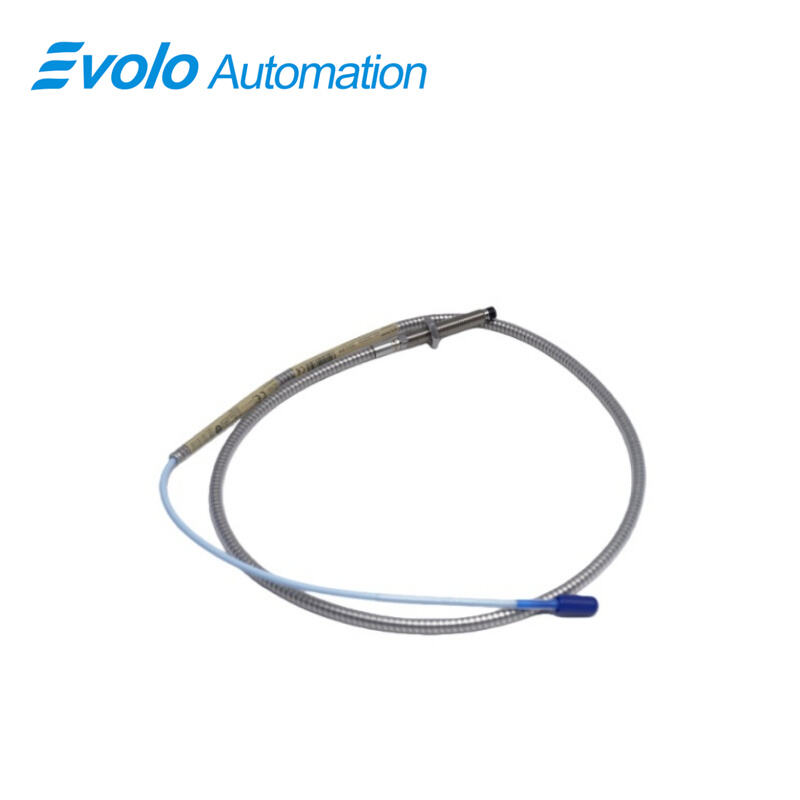

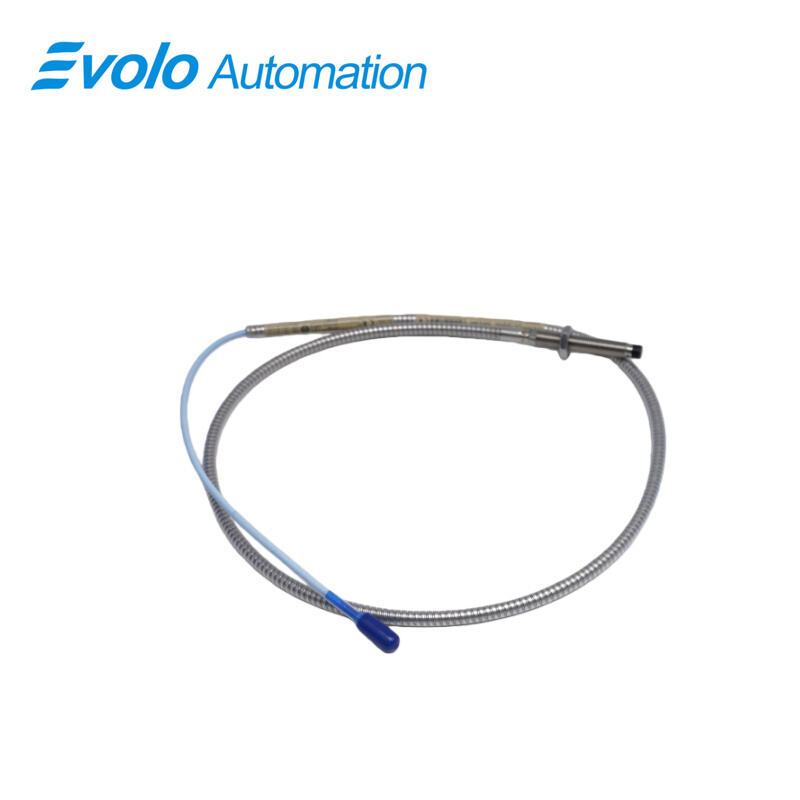

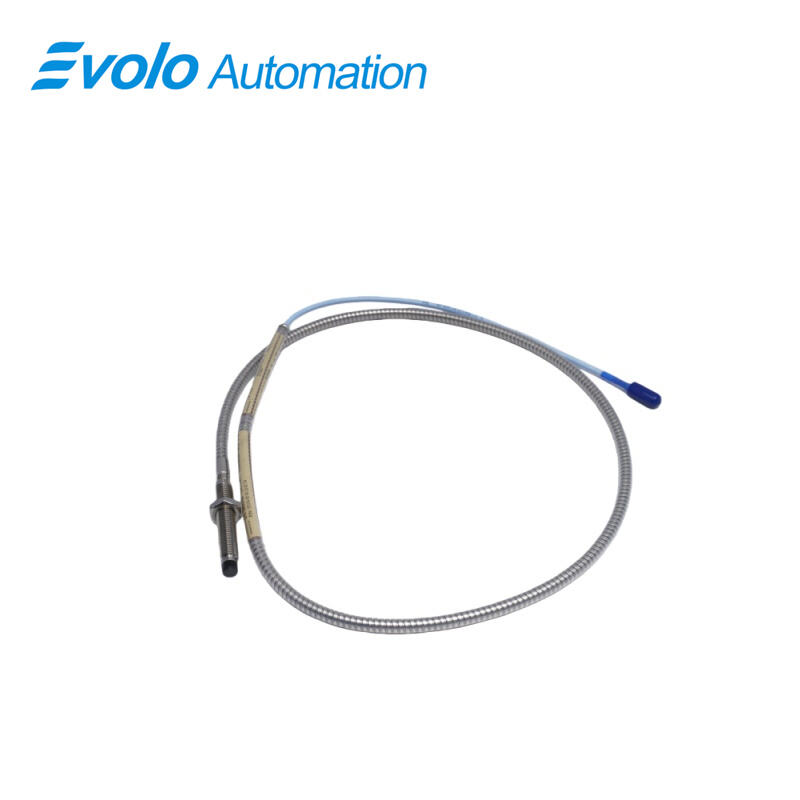

330104-00-06-10-02-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-06-10-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330104-00-06-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor independently developed by Bently Nevada, dedicated to continuous condition monitoring and machinery protection of critical industrial rotating equipment. As a core component of the proximity transducer system, this 3300 XL 8 mm Proximity Probe is designed to accurately measure the distance between the probe tip and the conductive target surface, converting mechanical motion into stable and linear voltage signals, which provide reliable data support for vibration, position and speed analysis of industrial equipment.
The 330104-00-06-10-02-05 3300 XL 8 mm Proximity Probe adopts the proven eddy current measurement principle, which can output instantaneous and proportional signals corresponding to shaft movement, and is widely used in radial vibration, axial (thrust) position and Keyphasor reference signal monitoring of high-speed and high-load machinery. The probe has a defined 2 mm (80 mils) linear range, which ensures high-precision measurement resolution, enabling operators to detect subtle mechanical changes such as imbalance, misalignment, bearing wear or thermal expansion at an early stage, so as to implement proactive maintenance strategies and avoid sudden equipment failures.
In terms of mechanical structure, the 330104-00-06-10-02-05 3300 XL 8 mm Proximity Probe focuses on durability and long-term stability. The probe shell is made of AISI 303 or 304 stainless steel, which has strong resistance to corrosion, mechanical stress and industrial pollutants. The probe tip is made of polyphenylene sulfide (PPS), a high-performance engineering material with excellent thermal stability and chemical corrosion resistance. The product has a total length of 1.0 meter (3.3 feet), an overall case length of 60 mm and an unthreaded length of 0 mm, with compact dimensions of 1.8×1.4×120 cm and a lightweight design of only 0.15 kg, which is convenient for installation and deployment in narrow spaces.
Equipped with a miniature coaxial ClickLoc connector and standard cable, the 330104-00-06-10-02-05 3300 XL 8 mm Proximity Probe has obtained multiple agency approvals including CSA, ATEX and IECEx, and can operate stably in the temperature range of -55°C to +110°C (-60°F to +200°F). It is suitable for oil-rich, humid or chemically aggressive environments in power generation, petrochemical processing and heavy manufacturing industries. Its stable electrical performance, with an output resistance of 45 Ω and supply sensitivity of less than 2 mV change in output voltage per volt change in input voltage, ensures long-term reliable operation of the equipment, effectively improves the operation efficiency of the production line and reduces the maintenance cost of the enterprise.
Key Functions
Applications
The 330104-00-06-10-02-05 3300 XL 8 mm Proximity Probe is widely used in radial vibration monitoring of core rotating equipment in industrial fields, including turbines, compressors, pumps and large motors. Relying on its 2 mm linear measurement range, the probe can capture the tiny shaft position changes of equipment during high-speed operation, realize early identification of potential faults such as rotor imbalance, shafting misalignment and bearing wear, and provide data support for maintenance personnel to formulate targeted maintenance plans, so as to avoid sudden shutdown of the production line caused by equipment failures.
This proximity probe is also an ideal choice for axial thrust position measurement of heavy machinery. In power generation and petrochemical processing equipment, excessive axial displacement of the shaft will easily lead to mechanical contact and even catastrophic damage. The probe can output linear voltage signals corresponding to shaft movement in real time, continuously monitor the working status of thrust bearings, and send out early warning when the displacement exceeds the safe threshold, thus ensuring the safe and stable operation of the equipment.
In addition, the 330104-00-06-10-02-05 3300 XL 8 mm Proximity Probe can be used as a Keyphasor sensor to detect shaft keyways or notches and generate high-precision phase reference signals. This function is crucial for rotational speed measurement, phase analysis and dynamic balance correction of high-speed rotating machinery. It can help enterprises optimize the operation parameters of equipment, improve the operation efficiency of equipment, and is widely integrated into the machinery protection system of industrial plants to realize continuous monitoring and alarm linkage of critical equipment.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
0 mm |
|
Overall Case Length Option : |
60 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.8x1.4x120cm |
|
Weight: |
0.15kg |
Specifications
|
Operating Temperature Range: |
-55°C to +110°C (-60°F to+200°F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
45 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.7 Vdc to -30 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330104-00-06-10-02-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.High-Precision Measurement & Stable Signal Output
The probe has a 2 mm linear measurement range and low supply sensitivity (less than 2 mV output voltage change per volt input voltage change), with an output resistance of 45 Ω, which ensures consistent and low-noise signal output. It can accurately capture subtle mechanical changes of equipment, providing reliable data support for condition monitoring and fault diagnosis.
2.Durable Material & Excellent Environmental Adaptability
The probe shell is made of AISI 303/304 stainless steel, and the probe tip is made of PPS high-performance engineering material, which has strong corrosion resistance and chemical stability. It can operate stably in the temperature range of -55°C to +110°C, and is suitable for harsh industrial environments such as oil-rich, humid and corrosive gas, effectively extending the service life of the product.
3.Compact & Lightweight Design & Easy Installation
With an overall case length of 60 mm, unthreaded length of 0 mm, dimensions of 1.8×1.4×120 cm and weight of only 0.15 kg, the probe is compact and lightweight. It is equipped with a miniature coaxial ClickLoc connector, which can be flexibly installed in narrow equipment spaces such as bearing housings, reducing the difficulty of on-site installation and shortening the construction period.
4.Multiple Agency Approvals & Global Compliance
The product has obtained CSA, ATEX, IECEx and other authoritative agency approvals, meeting the safety and regulatory requirements of different regions and industries. It can be safely deployed in global industrial sites such as power generation and petrochemicals, helping users avoid regulatory risks and realize cross-regional application.
5.Seamless Integration & Strong System Compatibility
With standardized electrical characteristics and connector design, the probe can be seamlessly integrated with Bently Nevada's existing proximity transducer systems and machinery protection systems, without the need for complex system transformation. It simplifies the configuration process and reduces the downtime of equipment during maintenance and replacement.
