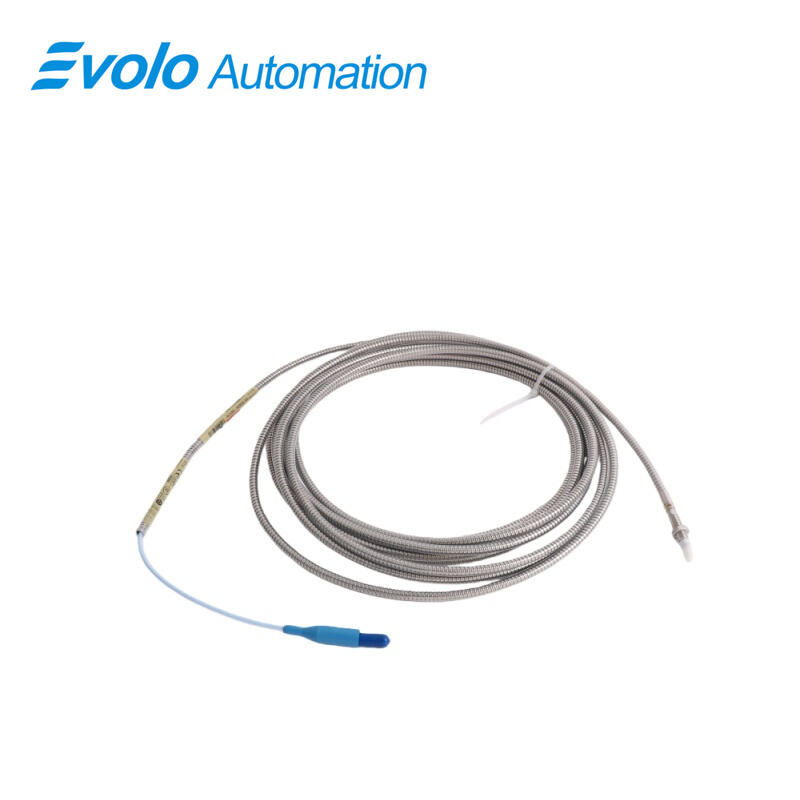

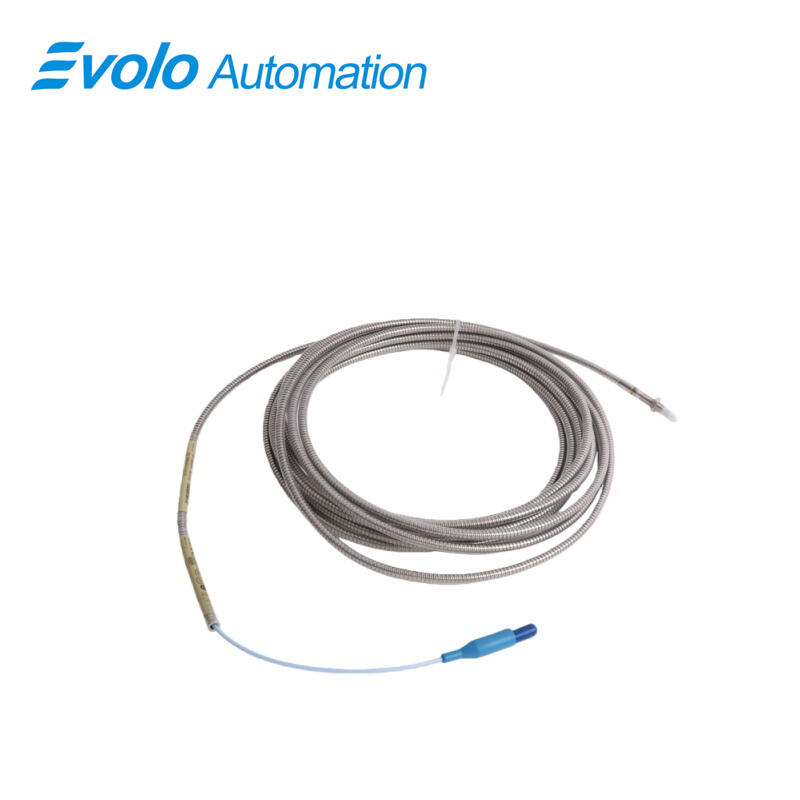

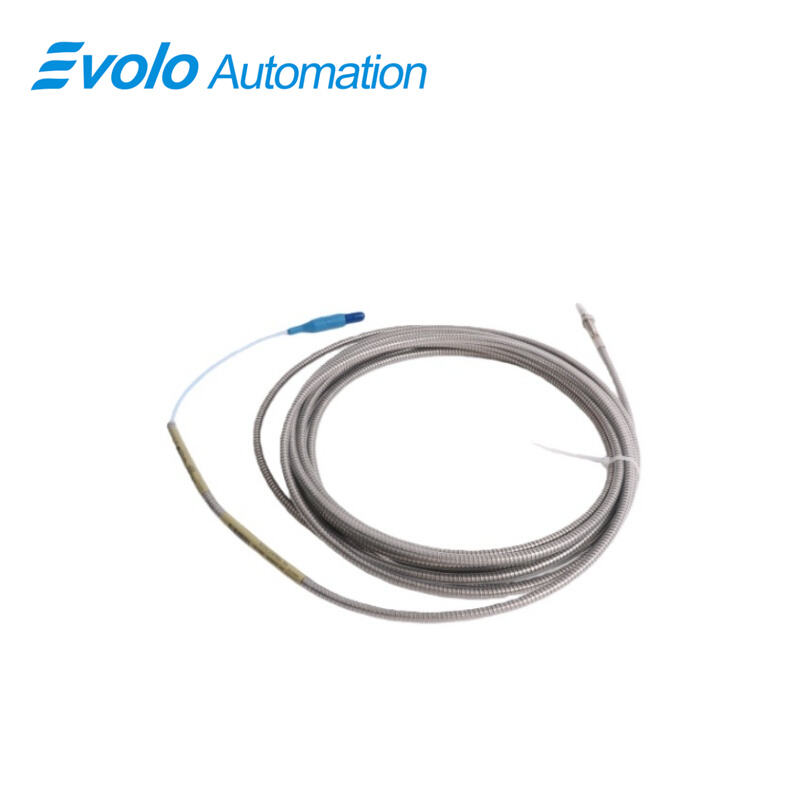

330904-00-12-10-01-CN 3300 NSv Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330904-00-12-10-01-CN |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330904-00-12-10-01-CN 3300 NSv Proximity Probes are high-performance non-contact eddy current sensors engineered for precise and stable measurement of shaft vibration, rotor displacement, and axial position in critical rotating machinery. As a core member of the 3300 NSv Proximity Probes family, this model is designed to deliver dependable long-term monitoring performance while maintaining full mechanical and electrical compatibility with existing 3300-series proximity probe systems.
The operating principle of the 3300 NSv Proximity Probes is based on converting variations in the distance between the probe tip and a conductive target into a highly linear electrical signal. This allows accurate tracking of both dynamic vibration and static shaft position, supporting early fault detection and effective machinery protection strategies. With a recommended gap setting of 1.0 mm and a linear range of 1.5 mm (60 mils), the 3300 NSv Proximity Probes provide consistent measurement accuracy across a wide range of industrial applications.
One of the key strengths of the 3300 NSv Proximity Probes is their enhanced resistance to chemical exposure and harsh operating conditions. The probe construction is optimized to withstand continuous contact with lubricating oils, process fluids, and industrial contaminants, ensuring signal stability and mechanical integrity over extended service periods. This makes the 3300 NSv Proximity Probes particularly suitable for environments where standard proximity probes may experience premature degradation.
Key Functions
Applications
1. Rotating Machinery Vibration and Displacement Monitoring
The 330904-00-12-10-01-CN 3300 NSv Proximity Probes are primarily used for continuous monitoring of radial vibration and shaft displacement in turbines, compressors, motors, and pumps. Their stable linear output and defined 1.5 mm measurement range allow early detection of imbalance, misalignment, and bearing wear.
2. Harsh Industrial and Process Environments
With enhanced chemical resistance and an operating temperature range up to +175°C, the 3300 NSv Proximity Probes are well suited for applications in refineries, chemical plants, and power generation facilities where exposure to oils, process fluids, and elevated temperatures is common.
3. Retrofit and System Upgrade Applications
Due to their mechanical and electrical compatibility with existing 3300-series installations, the 3300 NSv Proximity Probes can be used as direct replacements in legacy systems. This allows users to improve reliability and durability without changing mounting hardware or system architecture.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0 mm |
|
Overall Case Length Option: |
120 mm |
|
Total Length Option: |
1.0 meter (39 in) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Not required |
|
Dimension: |
1.5x1.3x116cm |
|
Weight: |
0.12kg |
Specifications
|
Operating and Storage Temperature: |
-50°C to +175°C (-65°F to+351°F) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output Resistance: |
45 Ω |
|
Linear Range: |
1.5 mm (60 mils) |
|
Field Wiring: |
0.3 to 1.4 mm2 (16 to 24 AWG) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Power： |
Requires -17.5 Vdc to -26 Vdc without barriers at 12 |
Frequently Asked Questions
What is the model number?
The listed model number is 330904-00-12-10-01-CN.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Enhanced Chemical Resistance for Extended Service Life
The 3300 NSv Proximity Probes are designed to maintain performance in environments with continuous exposure to lubricants and industrial fluids, reducing signal degradation and minimizing maintenance frequency compared with conventional proximity probes.
2. Secure Mechanical and Electrical Connection Design
The miniature coaxial ClickLoc connector with connector protector provides a locked, vibration-resistant connection that helps prevent signal interruption and accidental disconnection in high-vibration machinery.
3. Stable Electrical Performance Across Wide Temperature Range
With low supply sensitivity, controlled output resistance, and reliable operation from -50°C to +175°C, the 3300 NSv Proximity Probes deliver consistent measurement accuracy in both extreme cold and high-temperature operating conditions.
