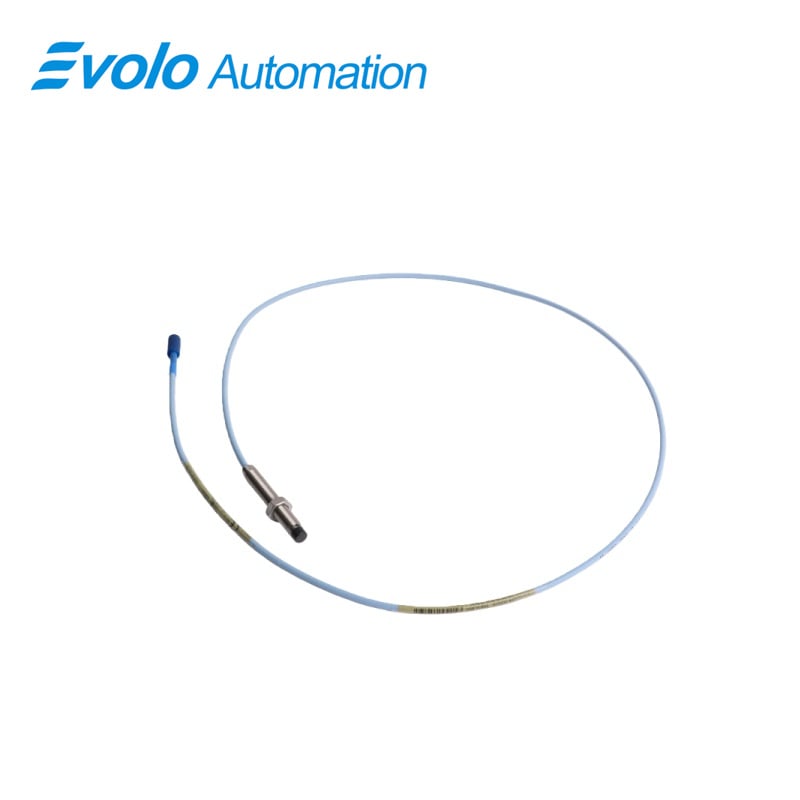

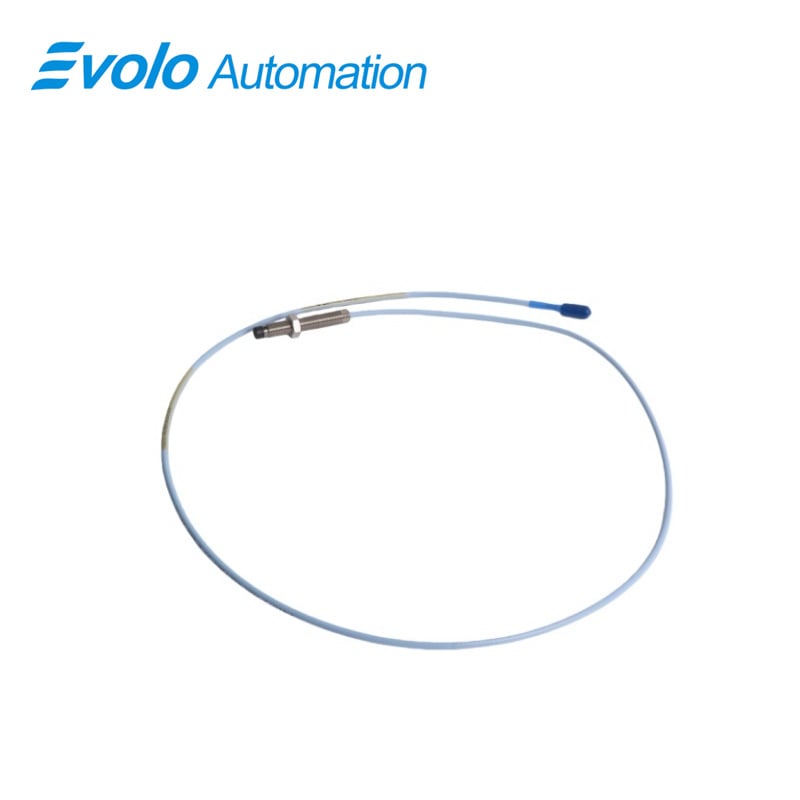

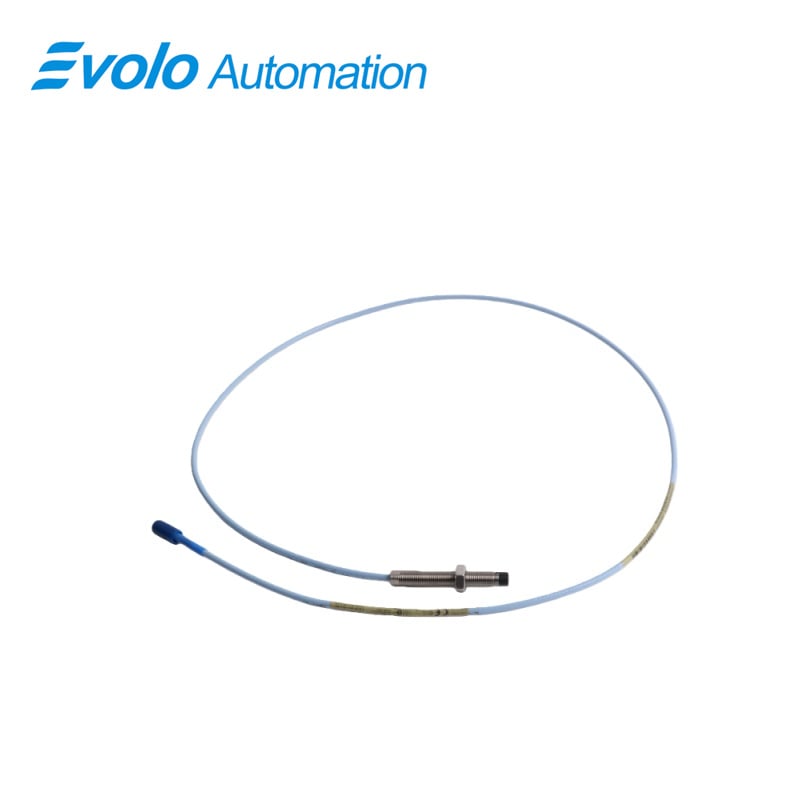

330101-00-50-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-50-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-50-10-01-00 3300 XL 8 mm Proximity Probes represent a significant leap forward in eddy current sensor engineering, specifically designed to address the mechanical vulnerabilities of earlier transducer generations. This specific model, the 330101-00-50-10-01-00, integrates several proprietary manufacturing breakthroughs that enhance the overall durability and signal reliability of the 3300 XL 8 mm Proximity Probes series. One of the most notable advancements is the patented TipLoc molding process. This innovative method creates an incredibly resilient bond between the polyphenylene sulfide (PPS) probe tip and the stainless steel body. In the demanding environments where 3300 XL 8 mm Proximity Probes are typically deployed, such as high-pressure steam turbines, this TipLoc technology prevents tip separation, ensuring the 330101-00-50-10-01-00 remains functional even under extreme thermal stress.

Furthermore, the mechanical integrity of the cable assembly in the 330101-00-50-10-01-00 is reinforced by the patented CableLoc design. This feature provides the 3300 XL 8 mm Proximity Probes with an impressive pull strength of 330 N (75 lbf). By more securely attaching the probe cable to the probe tip, the 330101-00-50-10-01-00 significantly reduces the risk of internal wiring damage during installation or high-vibration operation. For facilities dealing with pressurized systems, the 3300 XL 8 mm Proximity Probes can be ordered with the optional FluidLoc cable technology. This specific upgrade for the 330101-00-50-10-01-00 is engineered to prevent the migration of oil or other process liquids through the interior of the cable, effectively acting as a secondary seal to prevent leaks from the machine housing.

The 330101-00-50-10-01-00 model also benefits from a refined connector design that ensures high-fidelity signal transmission. As part of the broader 3300 XL 8 mm Proximity Probes family, this probe is fully interchangeable with standard extension cables and Proximitor sensors, eliminating the need for complex bench calibration. Whether measuring shaft vibration or axial position, the 3300 XL 8 mm Proximity Probes provide the ruggedness required for long-term predictive maintenance. The combination of TipLoc, CableLoc, and the optional FluidLoc features makes the 330101-00-50-10-01-00 a superior choice for protecting critical rotating assets in oil, gas, and power generation sectors. By investing in the 3300 XL 8 mm Proximity Probes, operators ensure that their machinery protection systems are built on a foundation of mechanical strength and leak-proof reliability.

Applications

The 330101-00-50-10-01-00 3300 XL 8 mm Proximity Probes serve as a high-precision diagnostic cornerstone for critical industrial machinery, converting the physical gap between the probe tip and a rotating shaft into a proportional voltage signal. Primarily applied in the power generation and petrochemical sectors, the 330101-00-50-10-01-00 excels at monitoring radial vibration and axial thrust position within fluid-film bearings, allowing operators to detect shaft instability or bearing wear before mechanical failure occurs. With its extensive CSA, ATEX, and IECEx approvals, these 3300 XL 8 mm Proximity Probes are ideal for hazardous area deployments, such as monitoring centrifugal compressors in refineries or offshore oil platforms. The robust mechanical design of the 330101-00-50-10-01-00, featuring a 5.0-inch overall case length and a fully threaded body, enables deep-mount installations in thick-walled machine housings where precise shaft access is required.

Operating with exceptional stability across a temperature range of -53°C to +177°C, the 3300 XL 8 mm Proximity Probes are perfectly suited for the high-heat environments of steam turbines and large-scale generators. The 330101-00-50-10-01-00 also functions as a highly accurate Keyphasor sensor, providing the once-per-turn timing pulse necessary for rotational speed tracking and phase angle analysis in predictive maintenance. Signal integrity is safeguarded by the Miniature coaxial ClickLoc connector with connector protector, which maintains a secure, vibration-proof electrical path even in the most turbulent industrial conditions. Furthermore, the 3300 XL 8 mm Proximity Probes utilize a high-performance PPS tip and stainless steel casing, ensuring the 330101-00-50-10-01-00 remains resistant to corrosive lubricants and process fluids. By providing a 2 mm linear range and maintaining low supply sensitivity, this probe ensures that critical machinery protection systems receive clear, noise-free data for real-time decision-making.

Specifications

Competitive Advantage

1.Superior Thermal Range and Signal Stability

Engineered for extreme environments, this probe maintains its 2 mm (80 mils) linear range across a wide temperature spectrum from -53°C to +177°C. The 330101-00-50-10-01-00 outperforms many competitors by offering exceptional thermal stability, ensuring that vibration readings do not drift even during the intense heat of steam turbine operation or the deep cold of outdoor industrial exposure.

2.Enhanced Connectivity with Integrated Protection

A standout advantage of the 330101-00-50-10-01-00 is the Miniature coaxial ClickLoc connector paired with a connector protector. While the ClickLoc mechanism provides a secure, vibration-proof audible lock, the included protector adds an extra layer of defense against environmental contaminants and mechanical strain. This ensures long-term electrical integrity for the 3300 XL 8 mm Proximity Probes and reduces the risk of signal degradation in moisture-heavy or oily environments.

3.Precision Engineering and Noise Immunity

With a supply sensitivity of less than 2 mV change per volt of input change and a stable 50 Ω output resistance, the 330101-00-50-10-01-00 offers world-class immunity to electrical noise. This precision allows the 3300 XL 8 mm Proximity Probes to deliver high-fidelity data to monitoring systems, preventing false alarms caused by power fluctuations and providing a clear window into the actual mechanical state of the machine.

4.Rugged Material Science and Deep-Mount Versatility

Constructed with a Polyphenylene sulfide (PPS) tip and AISI 303/304 Stainless Steel, the 330101-00-50-10-01-00 is built to resist corrosion and chemical wear. Its 5.0-inch overall case length with a 0-inch unthreaded length (fully threaded) provides maximum installation flexibility, allowing the 3300 XL 8 mm Proximity Probes to be mounted deep into thick machine casings while maintaining a secure, flush-threaded fit.
