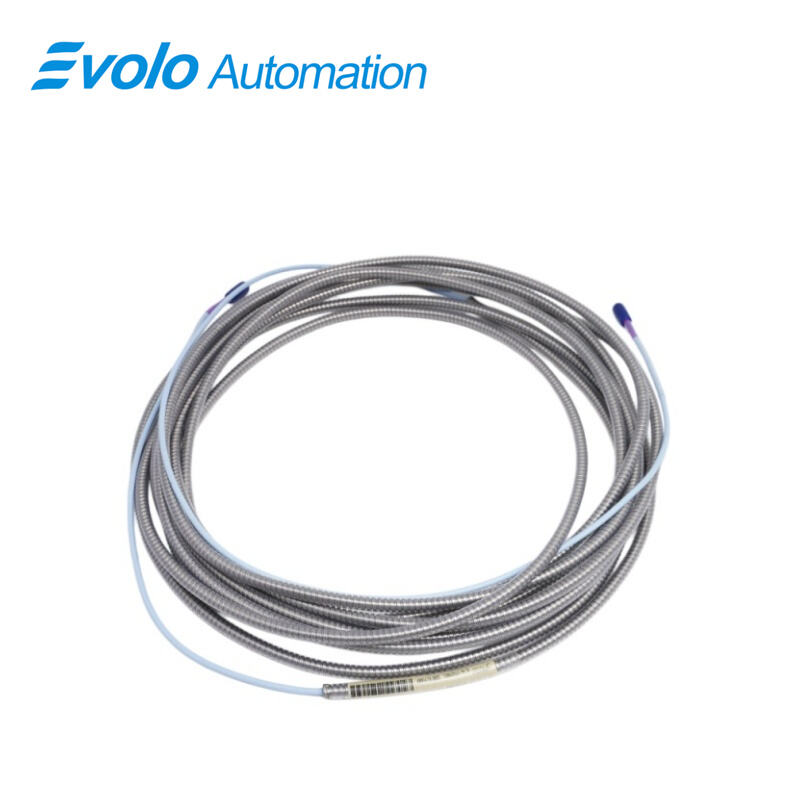

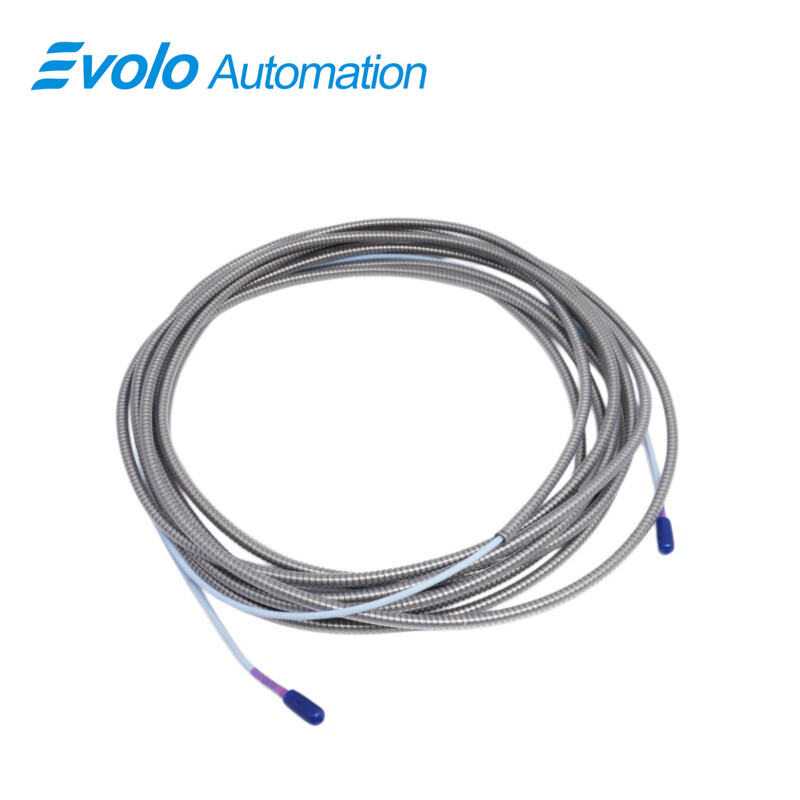

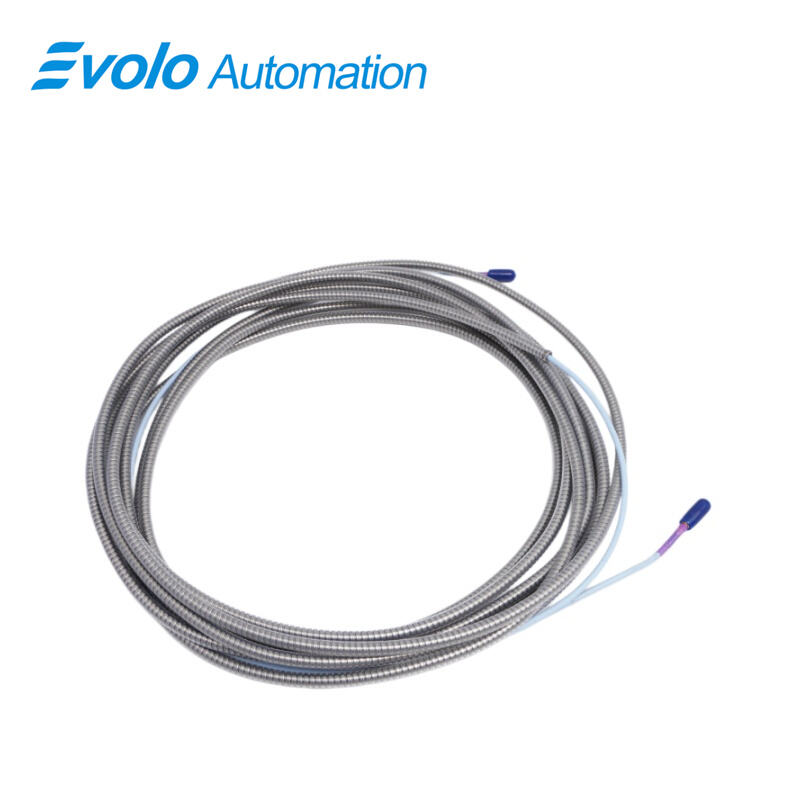

330730-080-12-CN 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-080-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330730-080-12-CN 3300 XL 11 mm Extension Cable delivers accurate signal transmission for industrial automation systems. Measuring 8.0 meters (26.2 ft), this FluidLoc cable with connector protector supports 50 Ω output resistance and <2 mV per volt supply sensitivity. Its 75 Ω triaxial FEP insulation and flexible AISI 302 SST armor with FEP jacket allow operation from –52°C to +177°C (–62°F to +351°F). 330730-080-12-CN supports field wiring from 0.2–1.5 mm² (16–24 AWG) and connects securely with Bently Nevada™ 3300 XL 11 mm probes and Proximitor sensors using ClickLoc connectors rated at 330 N pull strength. The 330730-080-12-CN transmits precise 3.94 V/mm (100 mV/mil) signals for axial position, rod position, differential expansion, tachometer, and Keyphasor measurements in fluid film bearing machines. Its armored design and connector protection prevent fluid ingress and maintain accurate automated monitoring.

Applications

Measure Axial Position on Steam Turbines

The 330730-080-12-CN transmits probe signals to measure thrust bearing displacement. Its 8.0-meter length and 50 Ω output maintain precise 3.94 V/mm readings for automated turbine monitoring.

Track Rod Position in Reciprocating Compressors

Connect 330730-080-12-CN to Proximitor sensors to monitor rod drop. The cable supports 0.2–1.5 mm² wiring and operates in –52°C to +177°C environments for accurate compressor cycle measurement.

Capture Tachometer and Zero Speed Signals

The 330730-080-12-CN provides rotor speed signals with supply sensitivity below 2 mV/V. ClickLoc connectors maintain 330 N pull strength for uninterrupted automation data collection.

Monitor Differential Expansion in Rotors

Install 330730-080-12-CN to measure ramp expansion in multi-stage turbines. Flexible SST armor and FEP jacket handle mechanical stress and high temperatures without affecting 3.94 V/mm output.

Specifications

Competitive Advantage

Direct Integration with 3300 XL Systems

The 330730-080-12-CN connects directly to 3300 XL 11 mm probes and Proximitor sensors. Its 8.0-meter length and 75 Ω triaxial FEP cable maintain precise signal transmission.

High Pull Strength Connection

ClickLoc connectors on 330730-080-12-CN provide 330 N pull strength, preventing disconnections during vibration while maintaining 50 Ω output.

Prevent Fluid and Contaminant Entry

The FluidLoc design and connector protector of 330730-080-12-CN block oil, water, and debris, maintaining 3.94 V/mm signals in humid or wet conditions.

Rugged Construction for Extreme Temperatures

Flexible AISI 302 SST armor with FEP jacket allows 330730-080-12-CN to operate from –52°C to +177°C without affecting signal quality or supply sensitivity.

Flexible Wiring for Multiple Probe Types

330730-080-12-CN supports 0.2–1.5 mm² (16–24 AWG) wiring, enabling rapid deployment across diverse automation probe configurations.
