330180-10-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-10-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

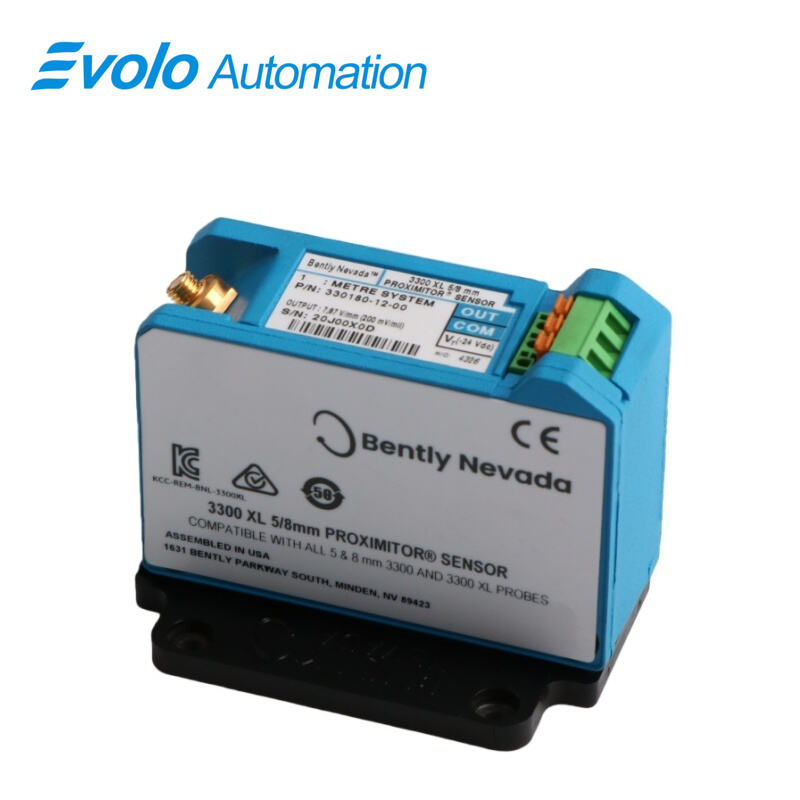

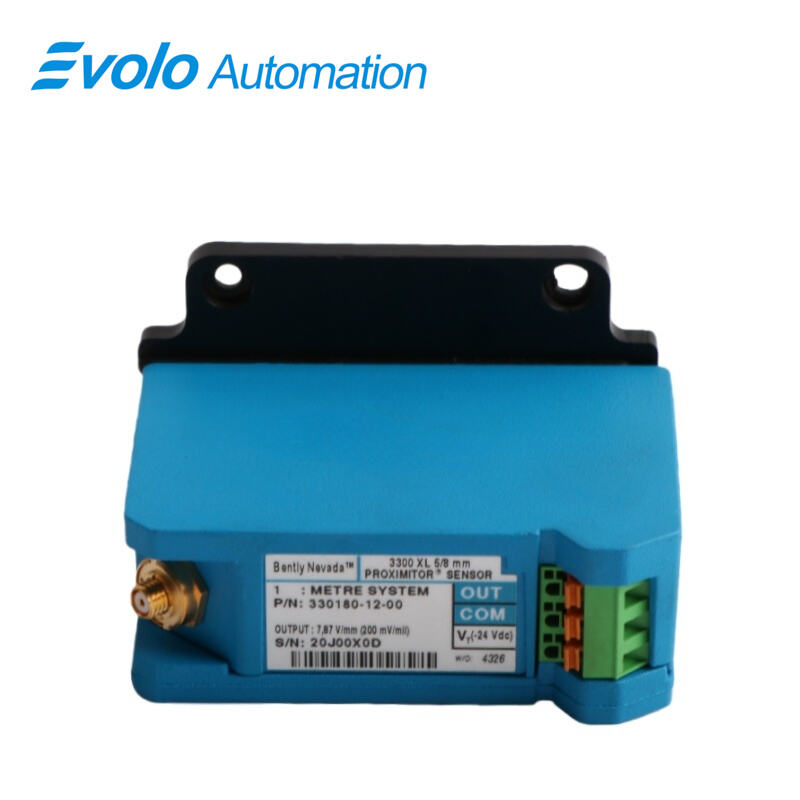

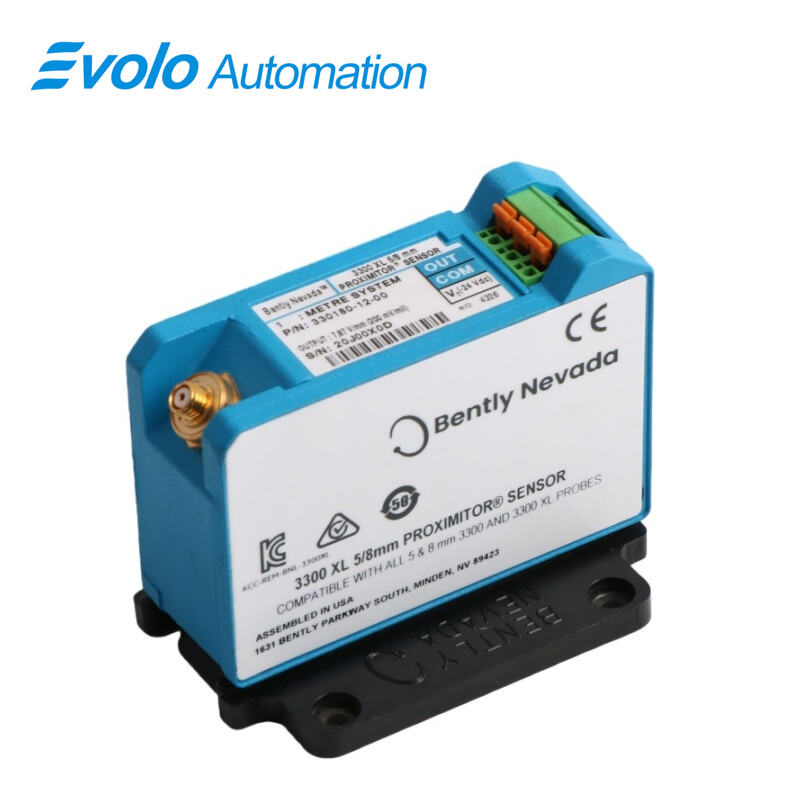

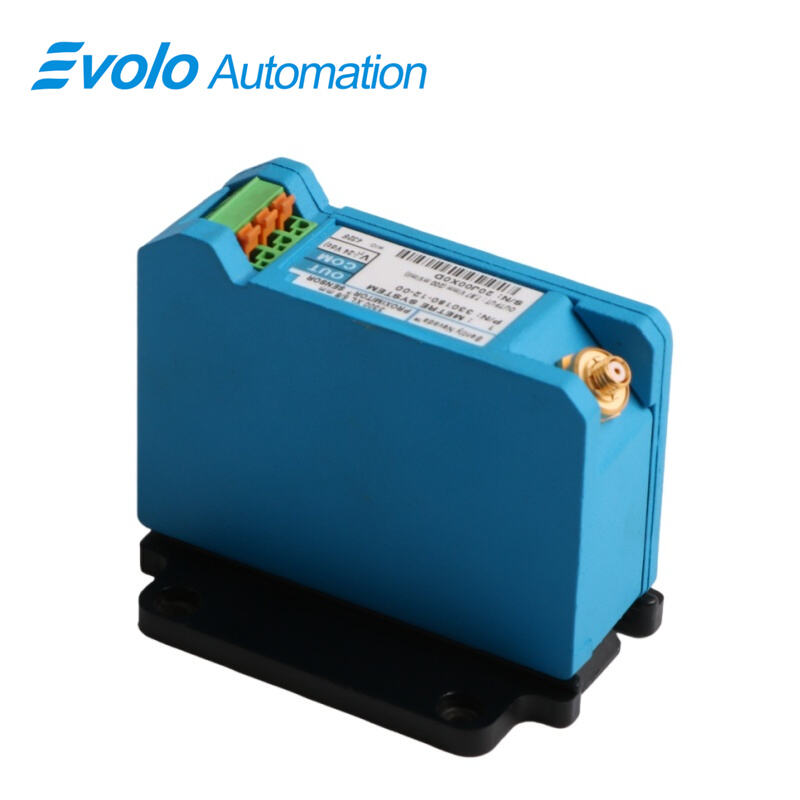

The 330180-10-05 3300 XL Proximitor Sensor is an advanced signal conditioning module specifically designed for the 3300 XL 8 mm Proximity Transducer System, providing high-fidelity output voltage proportional to the distance between the probe tip and the conductive surface. With a 1.0-meter (3.3-foot) panel mount system length, this sensor is fully compatible with a single non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe and extension cable. Constructed from robust A308 aluminum, the 3300 XL Proximitor Sensor operates reliably in extreme temperatures ranging from -52°C to +100°C (-62°F to +212°F) and maintains stable performance during storage up to +105°C (221°F). It delivers a 50 Ω output resistance and maintains signal integrity with less than 2 mV change per volt of input voltage fluctuation, supporting precise measurement of both static position and dynamic vibration. The sensor’s frequency response spans 0 to 10 kHz (+0, -3 dB), even with up to 305 meters (1000 feet) of field wiring, and it can detect minimum targets as small as 15.2 mm (0.6 in) diameter. Equipped with CSA, ATEX, and IECEx approvals, this sensor ensures compliance with international safety standards. The 3300 XL Proximitor Sensor also incorporates SpringLoc terminal strips for fast, secure field wiring, and provides exceptional RFI/EMI immunity, making it suitable for installations in fiberglass or electrically noisy environments. Designed for interchangeability with legacy 3300 Proximitor Sensors, it simplifies upgrades while maintaining full compatibility with existing probe and extension cable configurations.

Applications

1. Vibration Monitoring in Turbines
The 3300 XL Proximitor Sensor accurately transmits vibration data from 8 mm proximity probes to monitor turbine rotor health, allowing early detection of imbalance or misalignment, with frequency response up to 10 kHz supporting dynamic measurements.

2. Position Control in Industrial Compressors
Provides precise shaft position feedback in high-speed compressors, using a minimum target size of 15.2 mm, enabling predictive maintenance and reducing unscheduled downtime.

3. Speed Sensing and Keyphasor Reference
Supports Keyphasor signal output for rotational speed and phase measurements. Output voltage ranges from 0.0247 to 0.0348 mil pp/Gauss, depending on probe gap, ensuring precise synchronization in rotating equipment controls.

4. High-Density Panel Mount Installations
Compact packaging allows multiple 3300 XL Proximitor Sensors in limited panel space, reducing installation footprint while maintaining electrical isolation without separate isolator plates.

5. Harsh Environment Monitoring
The sensor’s robust A308 aluminum housing and RFI/EMI immunity ensure reliable performance in fiberglass housings and electrically noisy environments, reducing the need for additional shielding.

Specifications

Competitive Advantage

1. Superior Signal Accuracy
Maintains less than 2 mV output variation per volt input, even with long field wiring, ensuring highly precise position and vibration monitoring.

2. Extreme Temperature Operation
Operates reliably from -52°C to +100°C, covering the harsh conditions of petrochemical, power generation, and heavy industrial applications.

3. Easy Field Wiring
SpringLoc terminal strips eliminate traditional screw clamps, providing faster, more secure wiring installation and reducing potential for loose connections in the field.

4. International Compliance
CSA, ATEX, and IECEx approvals make the sensor suitable for global installations, ensuring safety and compliance in explosive and industrial environments.

5. Legacy System Compatibility
Supports interchangeability with older 3300 Proximitor Sensor designs and 3300 XL probe/extension cable systems, enabling cost-effective upgrades without recalibration or system redesign.
