31000-28-05-50-050-03-02 Proximity Probe Housing Assemblies, China 31000-28-05-50-050-03-02 Proximity Probe Housing Assemblies Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	31000-28-05-50-050-03-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Probe with Connector:	3300 XL 8 mm probe, multiple approvals
Probe Cable Length:	0.5 m (20 in)
Standoff Adapter Length (Option C Dimension):	5.0 inTwo plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches
Probe Penetration Option (Option D Dimension):	5.0 in
Fittings:	Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches
Mounting Thread Option:	3/4-14 NPT (Required if ordering Standoff Adapter Option).
Dimension:	37x9x8cm
Weight:	1.5kg

Description

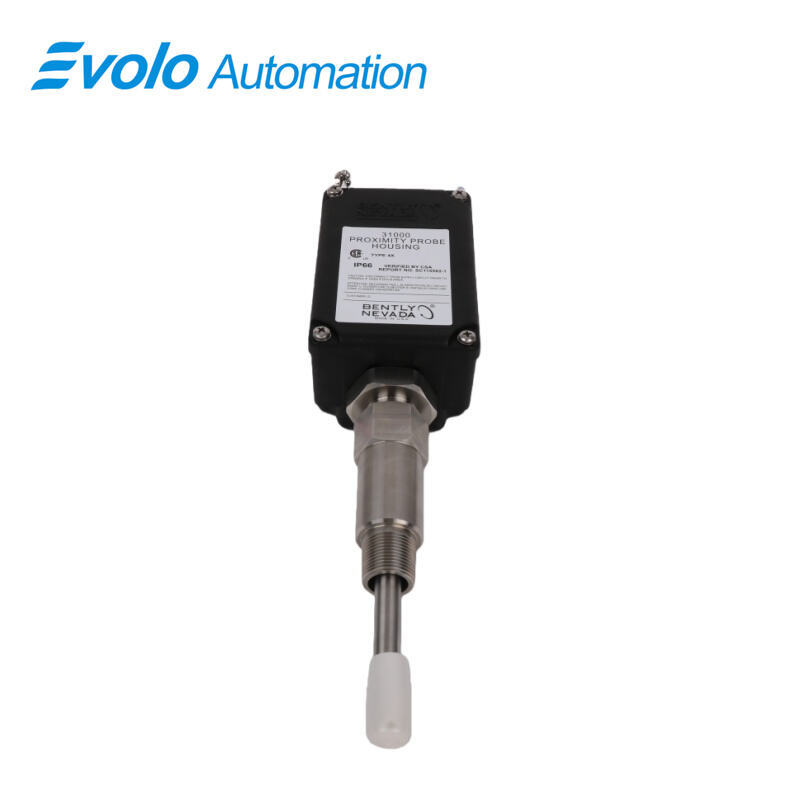

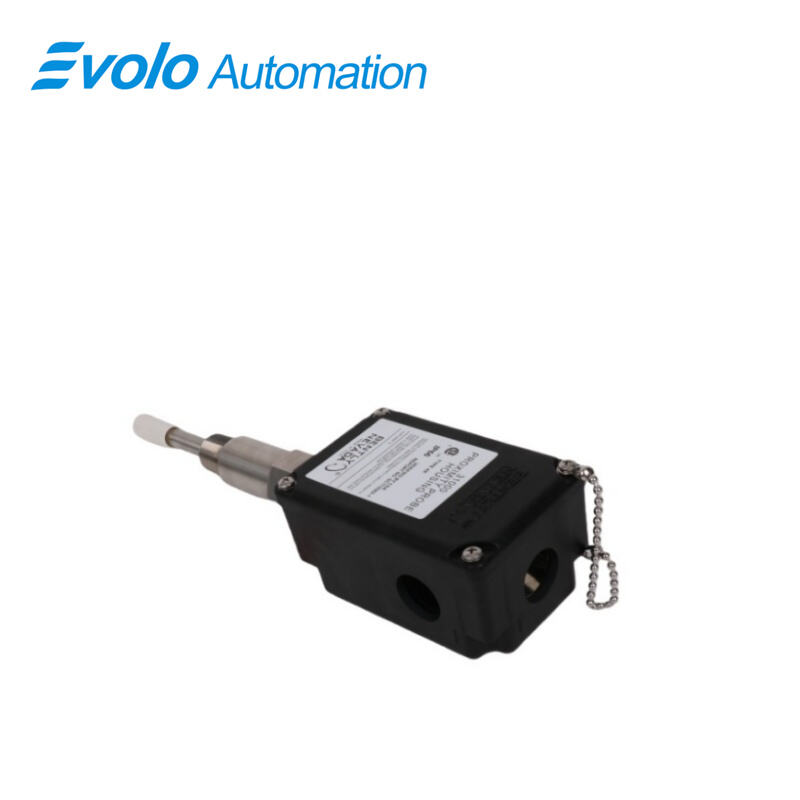

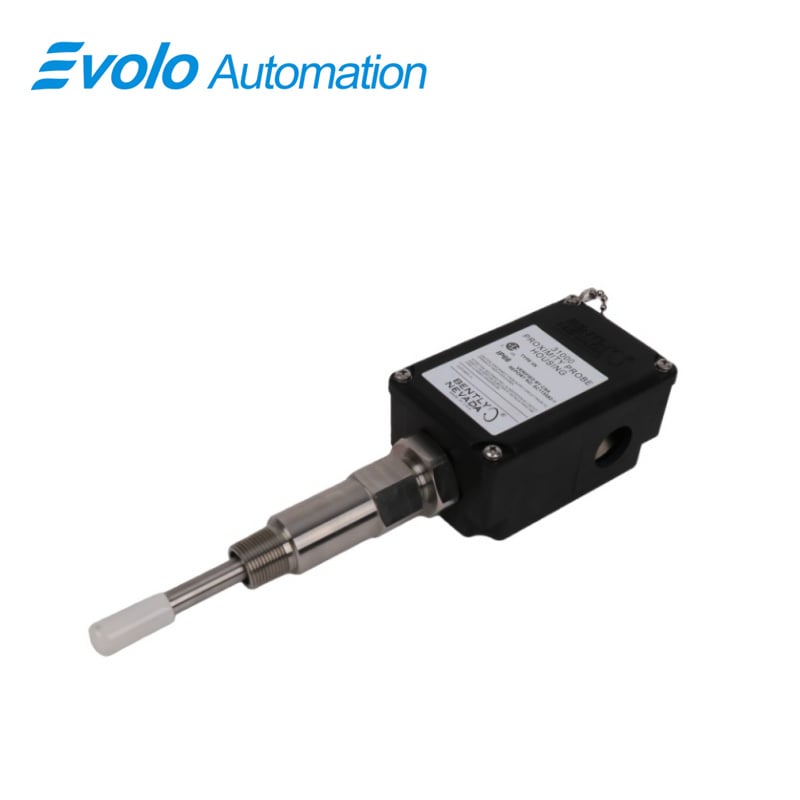

The 31000-28-05-50-050-03-02 Proximity Probe Housing Assembly is engineered for precision industrial automation and vibration monitoring systems, providing a robust mounting solution for radially installed 3300 XL proximity probes. Designed to be mounted through the machine case, this assembly enables external access to the probe and its extension cable, allowing gap adjustment, inspection, or replacement without disassembly of the machine, which improves maintenance efficiency and reduces downtime.

Constructed from glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fibers, the housing delivers exceptional mechanical strength and chemical resistance, while stainless steel components—AISI 303 and 304—ensure corrosion resistance in harsh industrial environments. With Type 4X CSA certification, this housing provides protection against dust and water ingress, and its configuration meets API 670 standards for externally mounted probe housings. Optional conduit fittings and integrated standoff adapters with 3/4-14 NPT or 1/2-14 NPT reducers allow flexible installation in both standard and hazardous areas. The assembly supports 3300 XL 8 mm probes with multiple approvals, a probe cable length of 0.5 m (20 in), and penetration depth of 5 in, making it suitable for predictive maintenance, automated monitoring, and Keyphasor signal acquisition.

Applications

Application 1: Radial Vibration Monitoring

Used in rotating machinery such as turbines, compressors, and generators. The housing allows precise gap adjustment of the 3300 XL probe to measure radial vibration amplitudes up to ±2 mm with high linearity.

Application 2: Keyphasor Signal Integration

Supports phase reference measurements by securing the probe in optimal alignment with the shaft, ensuring accurate speed and rotational position feedback for automated control systems.

Application 3: Maintenance-Friendly Probe Access

The housing assembly provides external access to the probe and cable, enabling quick replacement or calibration without shutting down machinery, reducing planned maintenance downtime by up to 30%.

Application 4: Corrosive or High-Temperature Environments

Glass-reinforced PPS and stainless steel construction allows the housing to withstand extreme temperatures (-39°C to 115°C) and chemical exposure, making it suitable for petrochemical and process industries.

Application 5: Hazardous Area Monitoring

When installed with appropriate I.S. barriers, the housing supports intrinsically safe operation in Class I, Division 1 hazardous areas, ensuring automation systems remain compliant with safety regulations.

Specifications

Protection Ratings :	Type 4X rating certified by Canadian Standards Association (CSA)
Housing Material:	Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain:	AISI 304 stainless steel
Outer Sleeve and Exterior Screws:	AISI 303 stainless steel
O-Ring Material :	Neoprene
Recommended Torque(retaining nut) :	29.4 N·m (260 in·lb)
Housing Strength (typical):	Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole
Housing Impact Strength:	Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F)

Competitive Advantage

Competitive Advantage 1: Durable Material Construction

Glass-reinforced PPS and stainless steel components provide high impact strength, certified for two 4 J impacts at -39°C and 115°C, ensuring reliable operation in demanding industrial environments.

Competitive Advantage 2: API 670 Compliance

Fully compliant with API 670 standards for externally mounted probe housings, guaranteeing consistent measurement reliability, linear range, and installation integrity.

Competitive Advantage 3: Maintenance Efficiency

External probe access allows gap adjustment, inspection, or replacement without machine disassembly, minimizing operational downtime and reducing labor costs.

Competitive Advantage 4: Flexible Installation Options

Standoff adapter lengths, NPT conduit fittings, and cable seal grips for multiple cable sizes (1/8–3/8 in) support versatile integration with existing automation and monitoring systems.

Competitive Advantage 5: Environmental Protection

Type 4X CSA rating, neoprene O-rings, and corrosion-resistant metals provide protection against dust, water, and chemical ingress, extending the lifecycle of the automation and condition monitoring system.
