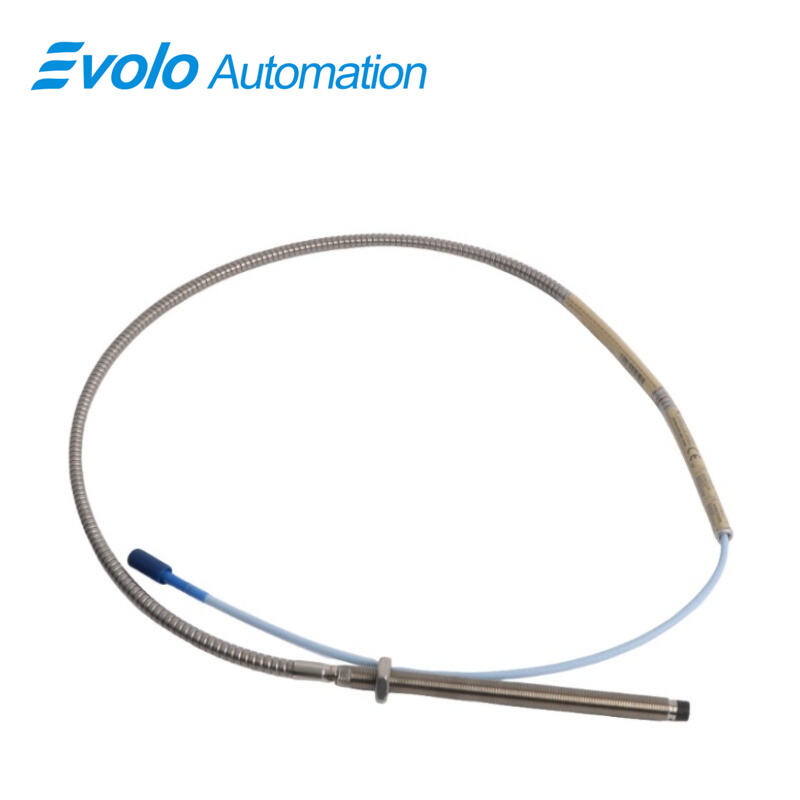

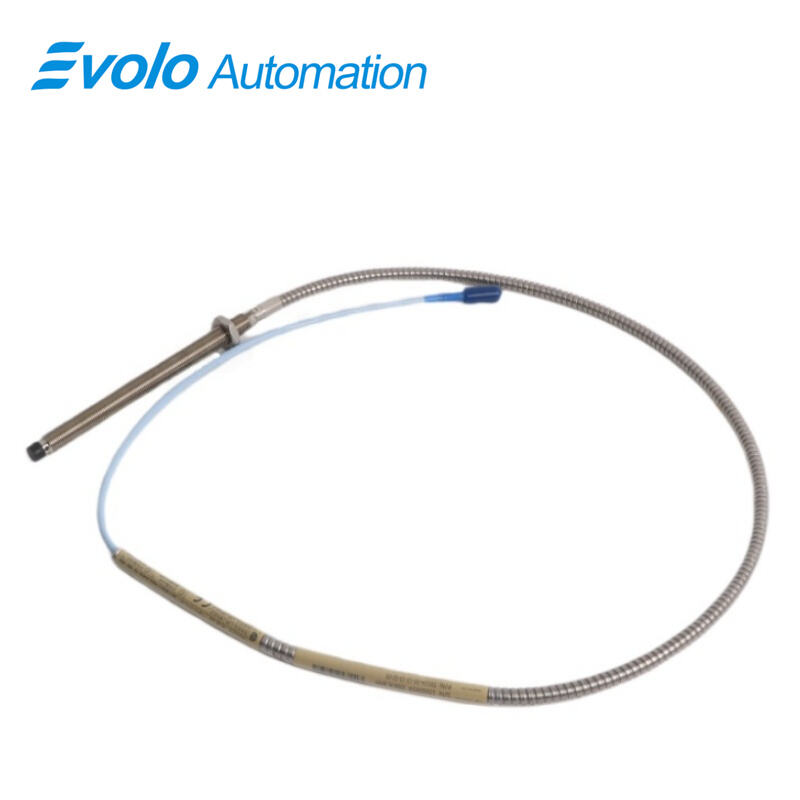

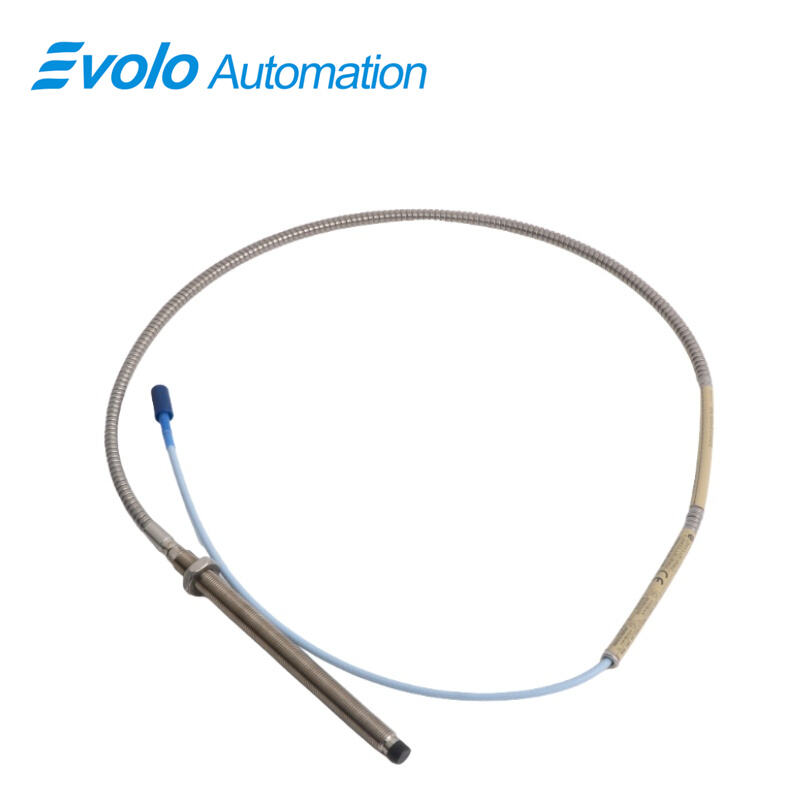

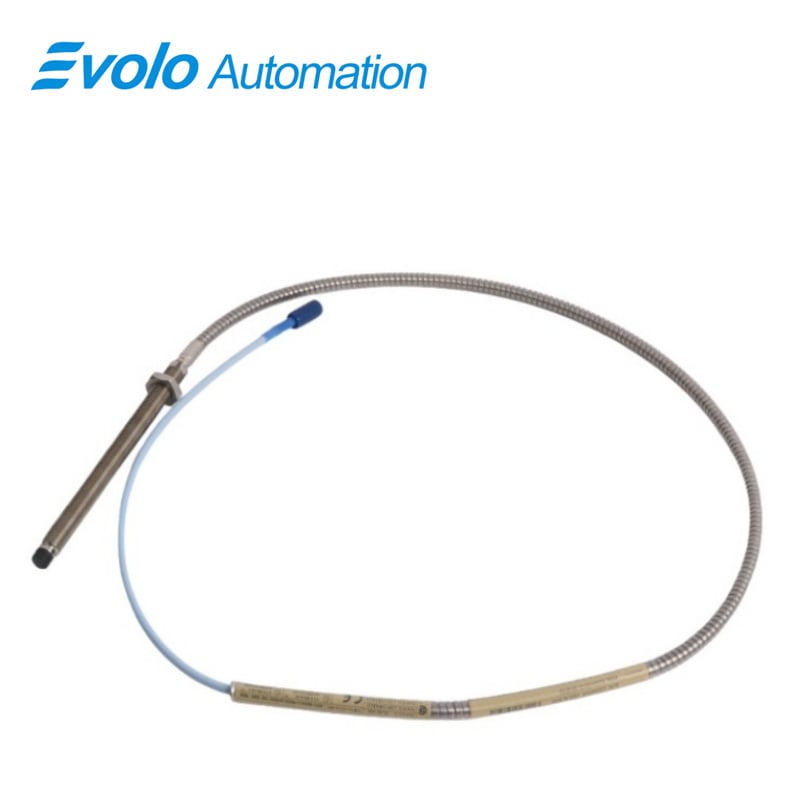

330104-00-13-90-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-13-90-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (model 330104-00-13-90-02-CN) is a precision eddy current transducer designed for industrial automation systems, delivering highly accurate vibration and position measurements in rotating machinery. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, this probe provides a voltage output directly proportional to the distance between the probe tip and the measured conductive surface. Built for demanding industrial environments, the probe supports operating temperatures from -52°C to +177°C (-62°F to +350°F) and is compatible with both static position and dynamic vibration measurements.

Equipped with an M10x1 threaded probe case and maximum thread engagement of 15 mm, the 3300 XL 8 mm probe integrates with miniature coaxial ClickLoc connectors and extension cables up to 9.0 meters (29.5 feet). The system complies with API 670 standards for mechanical configuration, linearity, accuracy, and thermal stability. Enhanced with patented TipLoc and CableLoc designs, the probe ensures superior tip-to-body bonding and cable retention up to 330 N (75 lbf), while the optional FluidLoc feature prevents oil or liquid leakage, making it ideal for industrial automation applications in oil & gas, power generation, and process industries. Its modular design guarantees full interchangeability with other 3300 XL and legacy 3300 series components, streamlining maintenance and reducing downtime.

Applications

1. Rotating Machinery Vibration Monitoring
The 3300 XL 8 mm probe accurately measures vibration amplitude in turbines, compressors, and pumps with linear range of 2 mm, enabling predictive maintenance to reduce unplanned downtime by up to 30%.

2. Position Feedback for Fluid-Film Bearings
Provides precise shaft position data for fluid-film bearing machines, supporting dynamic monitoring under high-temperature conditions (-52°C to +177°C) to ensure stable operation.

3. Speed and Keyphasor Measurement
Enables accurate speed and phase reference measurements using its high-resolution eddy current output, improving turbine rotational speed detection and automated control feedback.

4. High-Temperature Industrial Environments
Designed for extreme conditions, the probe operates reliably in thermal ranges up to +177°C, suitable for chemical reactors, refining equipment, and high-temperature motors.

5. Oil-Contaminated or Wet Areas
Optional FluidLoc cable configuration prevents fluid ingress into the machine housing, allowing reliable operation in lubrication-heavy machinery or pump stations.

Specifications

Competitive Advantage

1. Superior Accuracy and Stability
Linear range of 2 mm with supply sensitivity <2 mV per volt ensures precise measurement with minimal drift, exceeding standard performance in competitive probes.

2. Robust Mechanical Design
TipLoc and CableLoc patented features enhance tip-body bonding and cable retention (330 N pull strength), increasing probe durability by over 25% compared to previous models.

3. Modular and Interchangeable Components
Fully compatible with other 3300 XL and legacy 3300 series probes, cables, and Proximitor modules, reducing inventory complexity and calibration time by 40%.

4. Industry Standard Compliance
Certified to CSA, ATEX, and IECEx approvals and API 670, ensuring seamless integration into global automation and industrial systems.

5. Extended Cable Capability
Supports up to 9.0 meters (29.5 feet) of extension cable with low capacitance (69.9 pF/m), maintaining signal integrity in large industrial installations.
