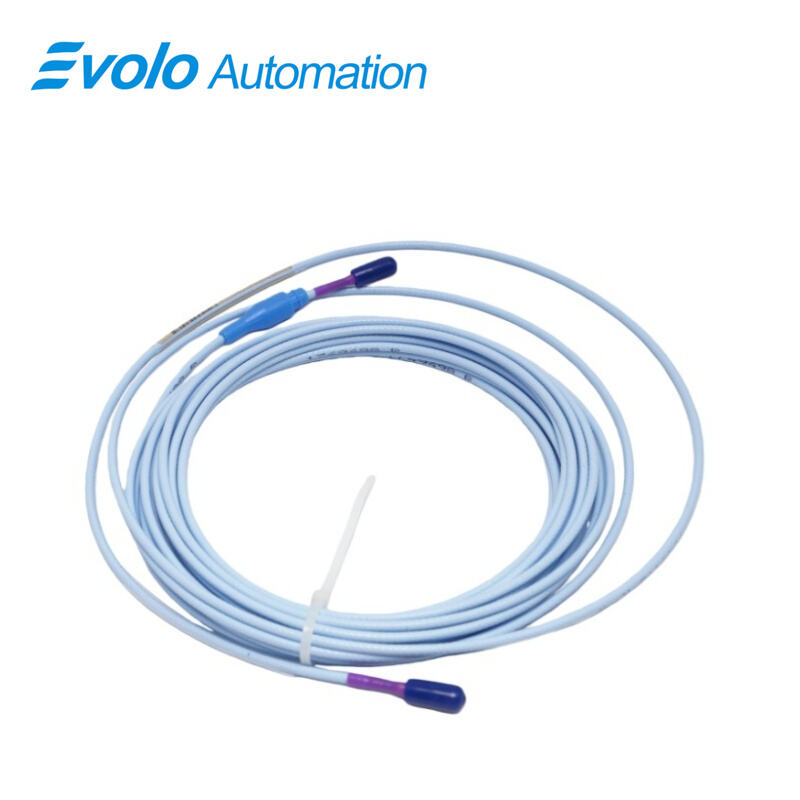

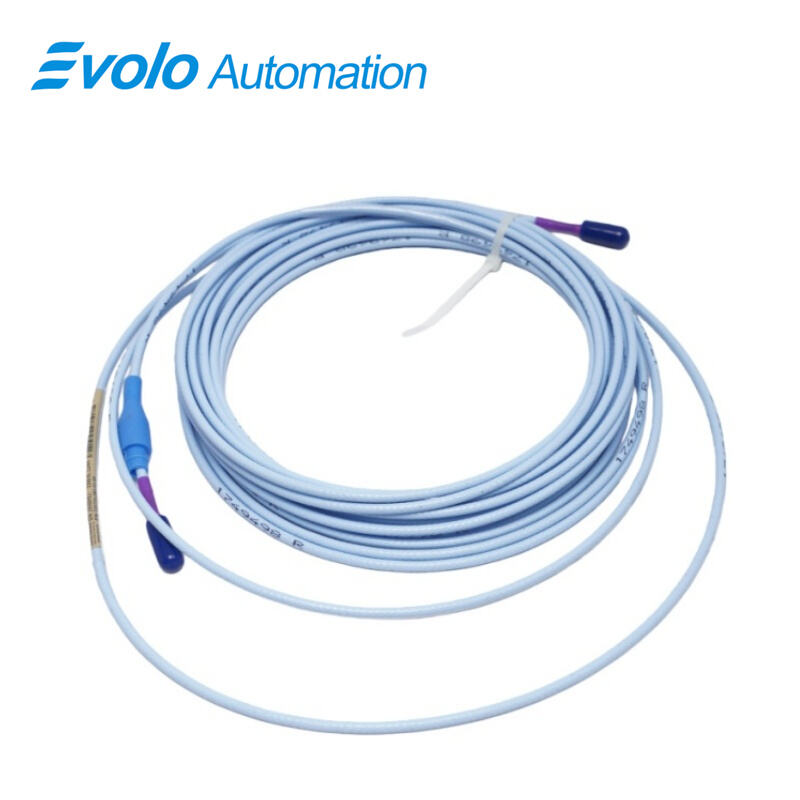

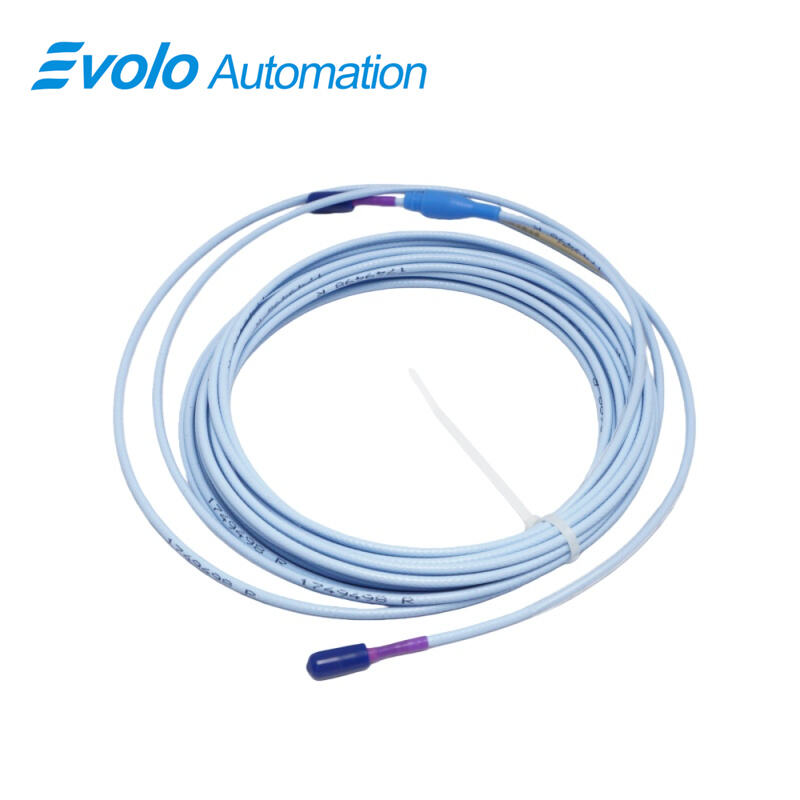

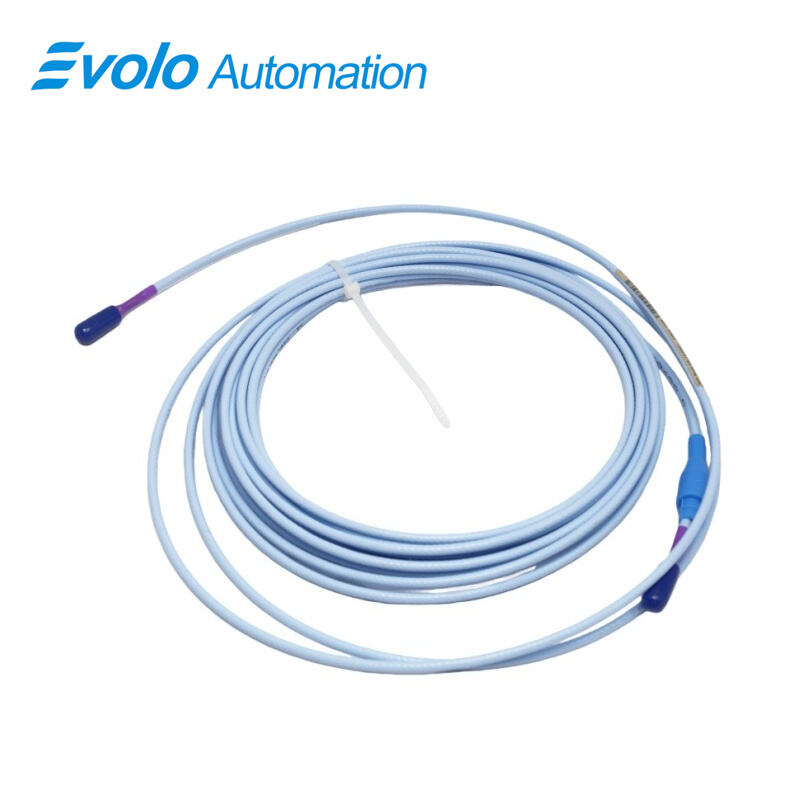

330730-080-03-00 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-080-03-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330730-080-03-00 3300 XL 11 mm Extension Cable is designed for automated vibration and displacement monitoring with 3300 XL 11 mm Proximity Probes. 330730-080-03-00 features an 8.0-meter (26.2 feet) armored cable with a connector protector, allowing secure signal transmission from probes to monitoring or automation systems in industrial environments.

The 330730-080-03-00 cable is constructed from 75 Ω triaxial fluoroethylene propylene (FEP) insulation and optional flexible AISI 302 stainless steel armor with FEP outer jacket. Operating from −52°C to +177°C, 330730-080-03-00 maintains accurate output in extreme temperatures. Its 50 Ω output resistance and less than 2 mV/V supply sensitivity deliver precise signals over field wiring from 16–24 AWG (0.2–1.5 mm²) or 18–23 AWG with ferrules.

330730-080-03-00 supports 3300 XL 11 mm Proximity Probes for axial position, rod drop, Keyphasor phase reference, and rotor speed measurements on turbines, compressors, and pumps. The cable’s ClickLoc connector and patented CableLoc attachment provide 330 N pull strength to secure connections and prevent loosening. Optional FluidLoc protection ensures oil and fluid containment. 330730-080-03-00 is ideal for automated condition monitoring and real-time industrial control of rotating machinery.

Applications

Extend Signal Transmission for 3300 XL 11 mm Proximity Probes
The 330730-080-03-00 3300 XL 11 mm Extension Cable provides an 8.0-meter link for industrial automation systems, connecting probes to monitoring or control units while maintaining accurate output over long distances. Its 50 Ω output resistance and <2 mV/V supply sensitivity ensure precise signal delivery.

Enable Axial Shaft Position Measurement
330730-080-03-00 carries signals from 3300 XL 11 mm Proximity Probes during axial position measurements on pumps, turbines, and compressors. The cable’s 75 Ω triaxial FEP construction with optional armored AISI 302 stainless steel protects the signals in automated measurement applications.

Support Keyphasor Phase Reference and Rotor Speed Monitoring
The 330730-080-03-00 cable transmits clean signals for Keyphasor and zero-speed measurements in real-time automation systems. Field wiring from 16–24 AWG (0.2–1.5 mm²) or 18–23 AWG with ferrules is supported.

Operate in Harsh Industrial Environments
330730-080-03-00 performs reliably from −52°C to +177°C, allowing continuous automated monitoring of rotating machinery without sensor replacement.

Specifications

Competitive Advantage

Armored Cable with Connector Protection
330730-080-03-00 features an armored cable and connector protector to prevent damage and maintain signal integrity in high-vibration or humid industrial settings.

Patented CableLoc Pull Strength
The 330730-080-03-00 cable attaches securely with patented CableLoc design providing 330 N pull strength, preventing disconnection during automated machinery operation.

Fluid Containment with Optional FluidLoc
330730-080-03-00 can be ordered with FluidLoc protection to prevent oil or liquids from leaking through the cable interior, supporting safe automation system operation.

Supports Long-Distance Monitoring
330730-080-03-00 enables 8-meter extension for 3300 XL 11 mm Proximity Probes, allowing flexible probe placement in industrial automation without signal loss.
