Overview

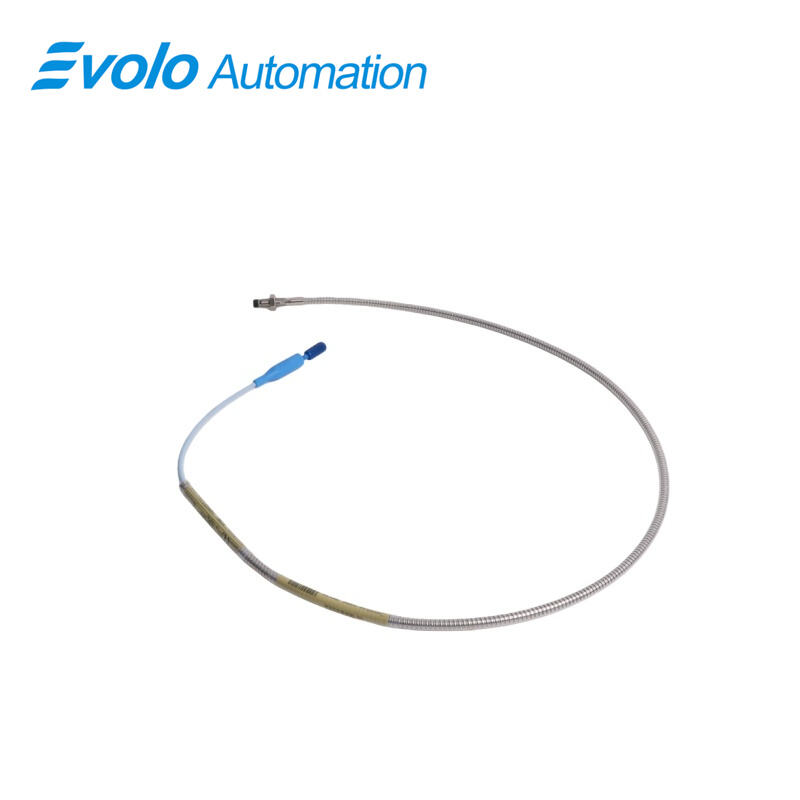

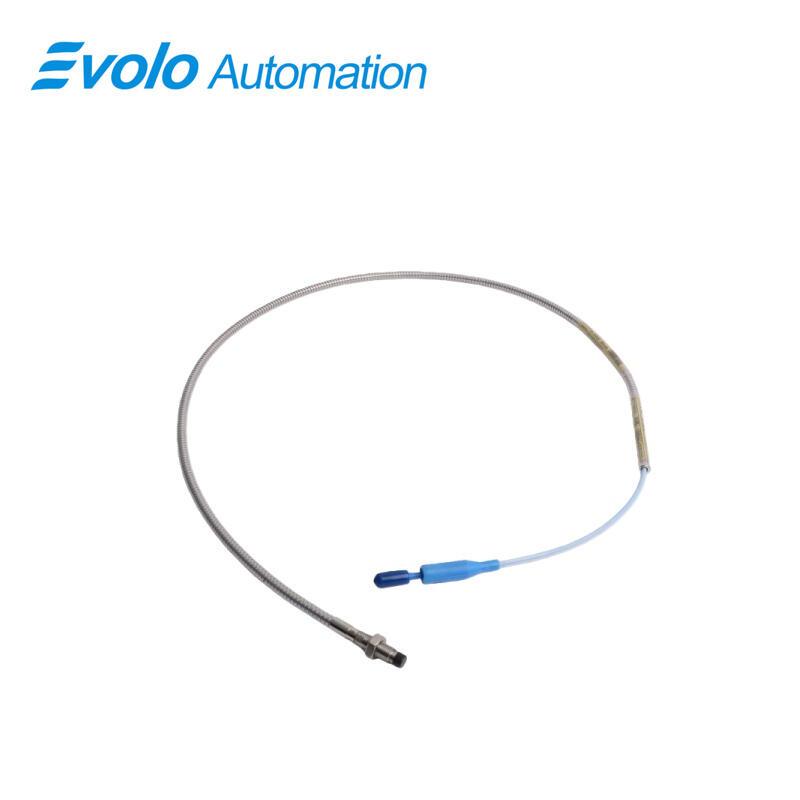

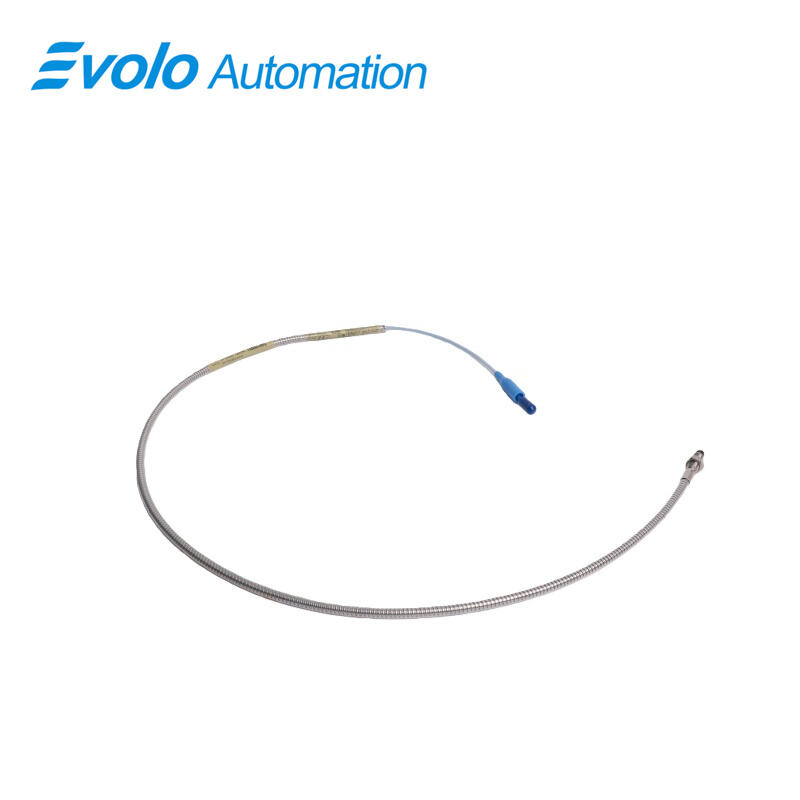

330102-00-12-10-02-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-12-10-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330102-00-12-10-02-05 3300 XL 8 mm Proximity Probes are advanced non-contact eddy current sensors designed for high-precision machinery condition monitoring in demanding industrial environments. As a core model within the 3300 XL series, the 3300 XL 8 mm Proximity Probes provide accurate, repeatable measurement of shaft vibration, position, and displacement by converting the physical gap between the probe tip and a conductive target into a stable, linear voltage signal. This capability makes the 3300 XL 8 mm Proximity Probes essential for predictive maintenance and machinery protection systems across oil and gas, power generation, petrochemical processing, and heavy industrial applications.
A defining characteristic of the 3300 XL 8 mm Proximity Probes is the integration of patented mechanical reinforcement technologies that significantly enhance long-term reliability. The TipLoc molding process forms a permanent, high-strength bond between the probe tip and the probe body, eliminating separation risks caused by continuous vibration, thermal cycling, or mechanical shock. Compared with conventional proximity probes, the TipLoc structure allows the 3300 XL 8 mm Proximity Probes to maintain structural integrity and measurement accuracy throughout extended service life in high-stress operating conditions.
Equally important is the CableLoc cable retention design, which secures the cable to the probe body with a pull strength of up to 330 N. This feature protects the signal path from accidental tension, installation stress, or maintenance-related handling, ensuring uninterrupted data transmission. For applications involving lubricated bearings or sealed housings, the optional FluidLoc cable configuration further enhances system integrity by preventing oil or process fluids from migrating along the cable path, preserving both equipment cleanliness and sensor performance.
Key Functions
Applications
The 330102-00-12-10-02-05 3300 XL 8 mm Proximity Probes are widely applied in critical rotating machinery to provide continuous measurement of radial vibration, axial position, and shaft displacement under both steady-state and transient operating conditions. With CSA, ATEX, and IECEx approvals, they are suitable for hazardous-area installations such as offshore platforms, refineries, chemical plants, and power generation facilities. Their compact mechanical design, 0 mm unthreaded length, and short case length enable precise installation in space-constrained turbine housings, gearboxes, pumps, and compressors. Operating reliably across a wide temperature range from -55°C to +175°C, the probes deliver stable performance in extreme cold and high-heat environments, while the 2 mm linear range, low supply sensitivity, and 50 Ω output resistance ensure accurate detection of shaft runout, thrust movement, and bearing wear. Integrated with standard monitoring systems through the miniature ClickLoc connector and 1.0 m cable, the probes support predictive maintenance strategies by providing early warning of imbalance, misalignment, or mechanical degradation, helping operators reduce unplanned downtime and extend equipment life.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
0 mm |
|
Overall Case Length Option : |
1.2in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.5x1.4x121cm |
|
Weight: |
0.12kg |
Specifications
|
Operating Temperature Range: |
-55°C to +175°C (-62°F to+351°F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.7 Vdc to -25 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
|
Proximitor Sensor Input: |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8mm Proximity Probe and Extension Cable. |
Frequently Asked Questions
What is the model number?
The listed model number is 330102-00-12-10-02-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Certified Safety for Hazardous Industrial Environments
The 3300 XL 8 mm Proximity Probes are certified with CSA, ATEX, and IECEx approvals, enabling safe deployment in explosive and flammable environments. This compliance ensures reliable operation in high-risk industrial zones while reducing regulatory and safety management burdens for end users.
2.Patented Mechanical Reinforcement for Extended Service Life
With TipLoc probe-tip bonding and CableLoc cable retention providing up to 330 N pull strength, the probes resist vibration-induced loosening, cable strain, and mechanical fatigue. These patented features significantly improve durability compared with conventional proximity probes.
3.Compact Design with High Measurement Stability
The short overall case length, zero unthreaded section, and lightweight structure allow installation in tight spaces without compromising accuracy. Combined with a stable 2 mm linear range and low supply sensitivity, the probes deliver consistent, high-quality measurement data for long-term condition monitoring.
