330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-090-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

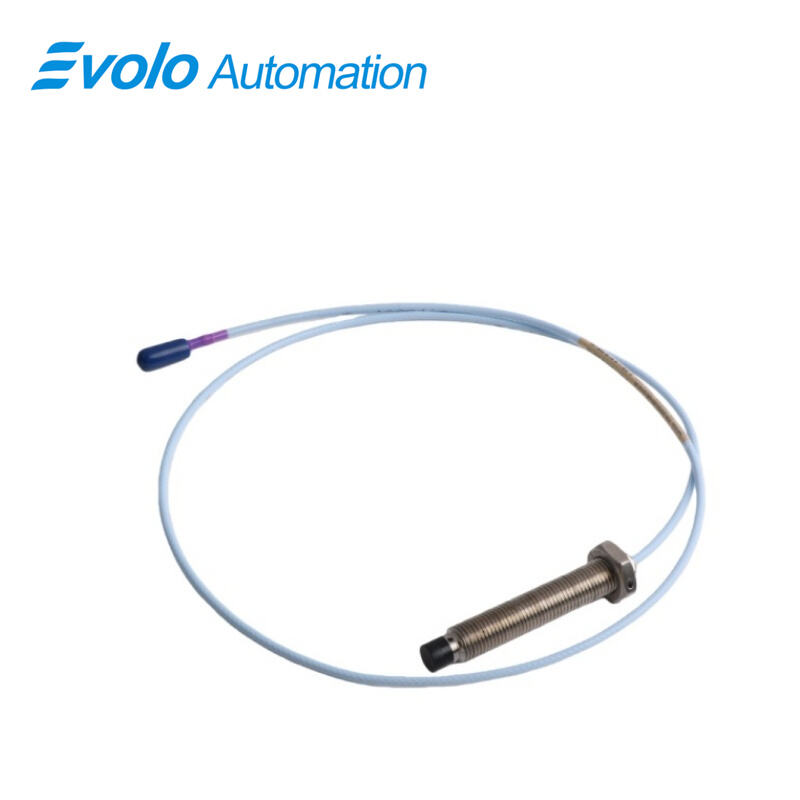

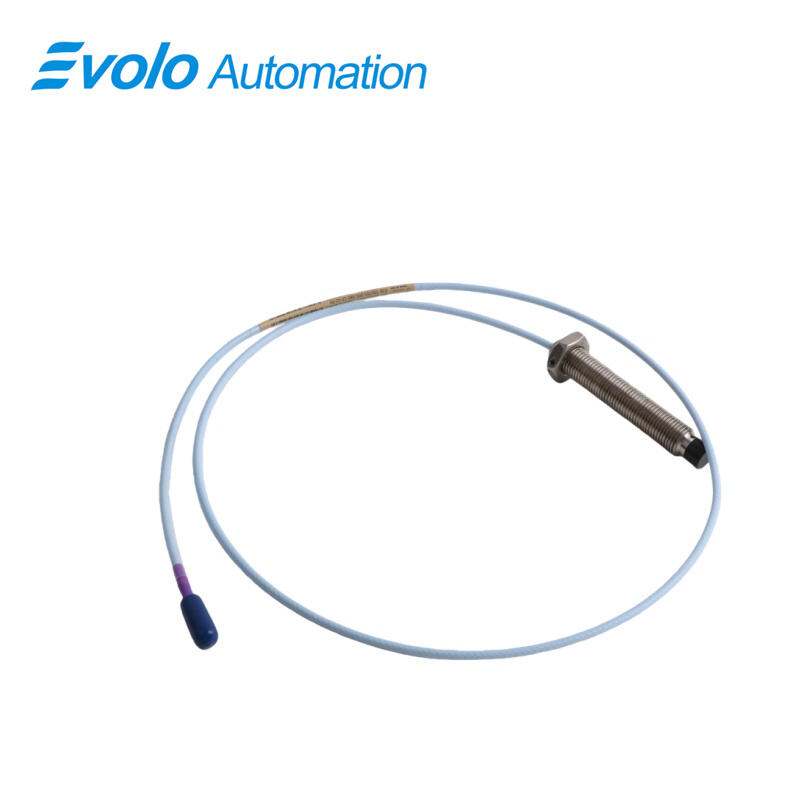

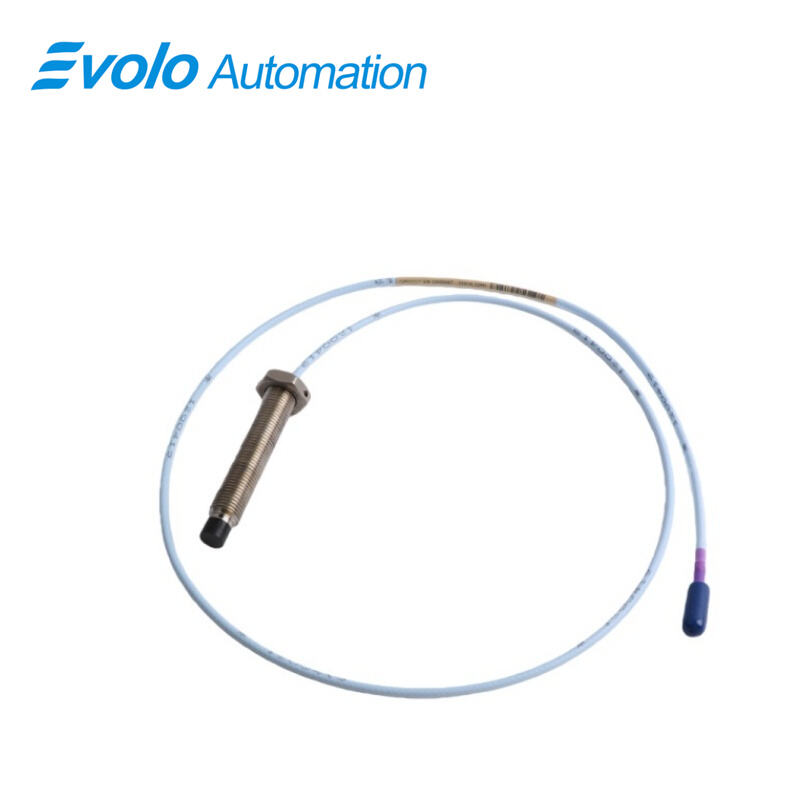

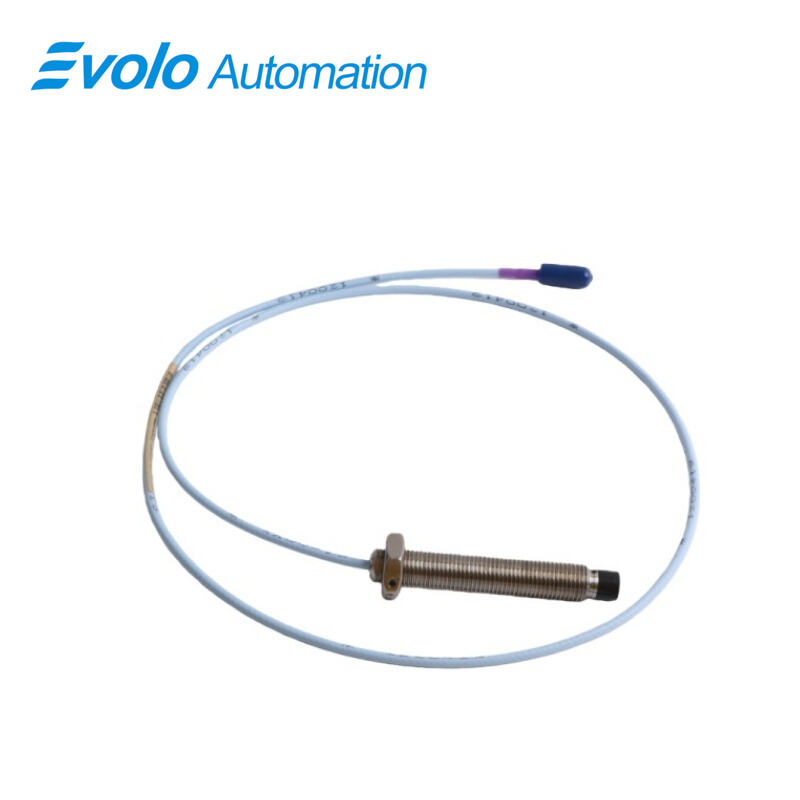

The 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe is a non-contact probe designed for automated monitoring of rotating machinery. The 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe features a 90 mm overall case, M14 × 1.5 thread with 21 mm engagement, and a 1.0 m standard cable with miniature coaxial ClickLoc connector, delivering precise displacement signals directly to proximitor modules.

With a 3.94 V/mm output, the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe accurately measures shaft vibration and axial movement on turbines, compressors, and pumps. Its 99.9% braided copper shielding reduces interference, while IP67 sealing protects the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe from dust and water ingress. Operating between −40°C and +85°C, the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe transmits rod drop, axial position, and keyphasor signals for automated control and protection systems.

Applications

Measure turbine axial thrust position

The 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe monitors shaft axial movement and sends 3.94 V/mm signals to monitoring modules. Its 21 mm engagement ensures the probe tip is correctly positioned for automated trip or alarm activation.

Detect rod drop in reciprocating compressors

The 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe is installed near piston rods to transmit displacement data to protection relays. The 99.9% braided shielding of 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe ensures clean signal transmission for immediate automated shutdown when rod travel exceeds limits.

Provide phase reference for vibration monitoring

The 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe outputs keyphasor pulses for calculating shaft speed and phase. The IP67 sealing allows the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe to operate in dusty or wet environments without signal loss.

Monitor shaft vibration on pumps and motors

Mounted near journal bearings, the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe converts shaft motion into voltage signals. The 1.0 m cable enables the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe to connect directly to control cabinets while preventing oil migration.

Specifications

Competitive Advantage

Direct mount on standard bearing housing threads

The M14 × 1.5 thread and 21 mm engagement of 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe allow installation without adapters, positioning the probe tip accurately for precise displacement measurement.

Long cable to connect directly to automation modules

The 1.0 m standard cable of 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe reduces intermediate connectors, minimizing signal loss and simplifying integration into automated monitoring systems.

Operate in harsh industrial environments

IP67 sealing ensures the 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe functions near turbines, compressors, and pumps exposed to dust, water, or oil mist, providing reliable measurement for automated control.

Reduce electrical noise in automation systems

The 99.9% braided copper shielding of 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe blocks interference from nearby motors or drives, providing clean 3.94 V/mm signals to monitoring and protection systems.
