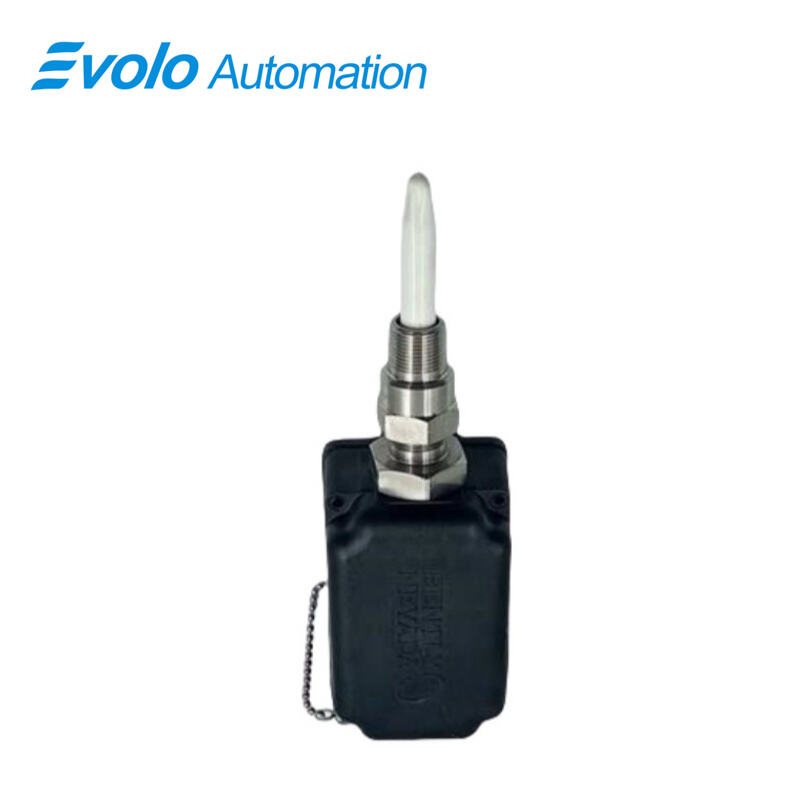

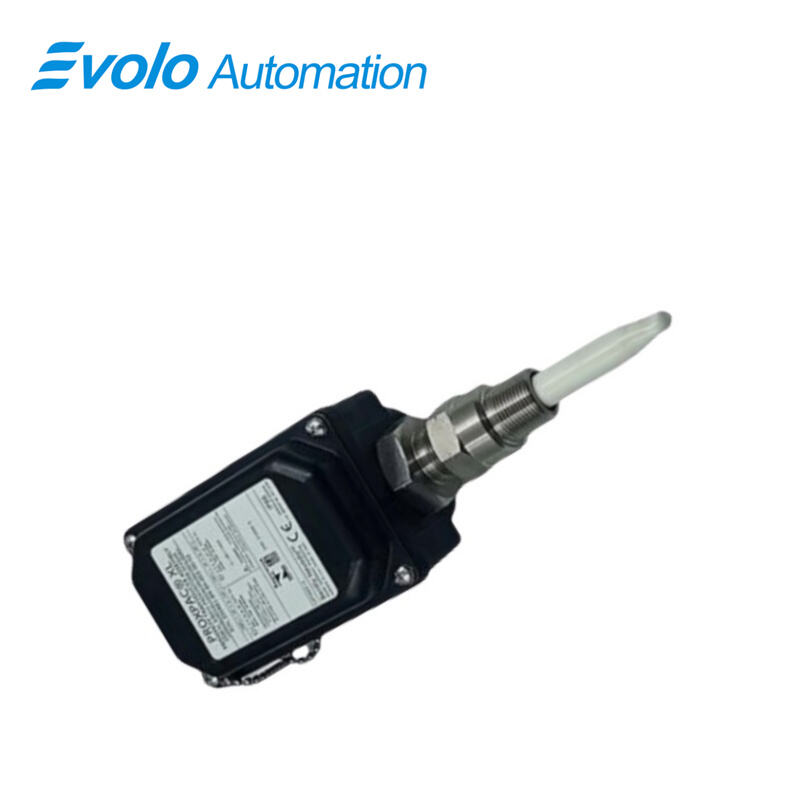

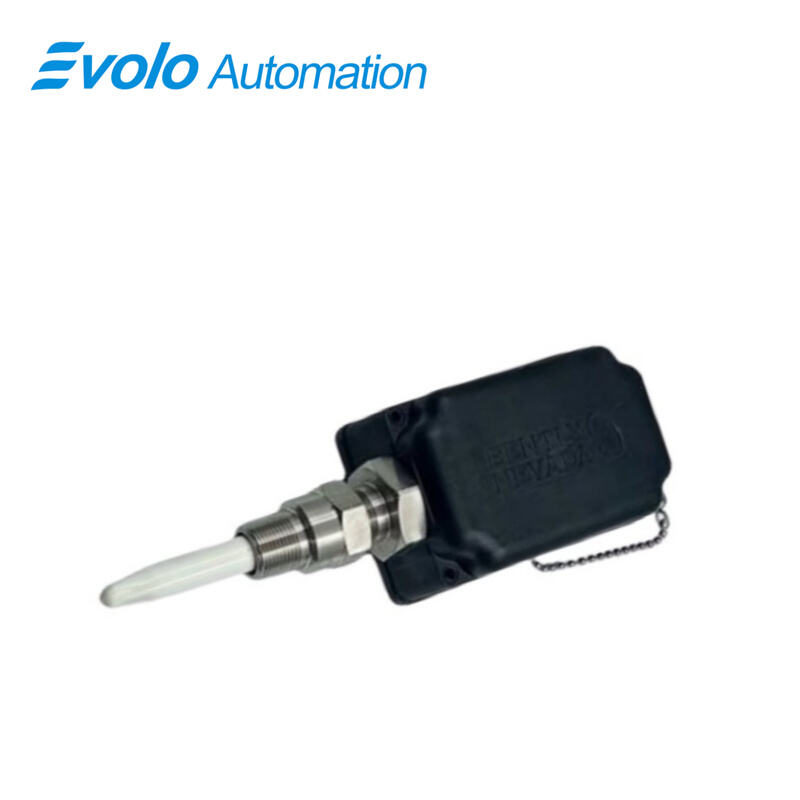

330881-28-04-034-06-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-28-04-034-06-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The PROXPAC XL Proximity Transducer (330881-28-04-034-06-02) is a high-precision automation sensor designed for industrial machinery monitoring, rotating shaft diagnostics, and predictive maintenance applications. Featuring a 34 mm probe penetration with a 40 mm standoff adapter and an 8 mm 3300 XL probe with multiple approvals, this transducer delivers accurate displacement and vibration measurement for shafts ranging from 50.8 mm to 76.2 mm in diameter. The self-contained PROXPAC XL design integrates the 3300 XL Proximitor sensor directly within the housing, eliminating the need for extension cables or separate Proximitor housings, while allowing direct connection to monitoring systems through 16–24 AWG field wiring.

Constructed from reinforced Polyphenylene Sulfide (PPS) thermoplastic with glass and conductive fibers, the housing provides enhanced mechanical strength, corrosion resistance, and electrostatic discharge mitigation. Rated IP66 and Type 4X, it withstands harsh industrial environments, including dust, moisture, and chemical exposure. Electrical specifications include <2 mV change in output per volt of input variation, 50 Ω output resistance, and a 2 mm linear range with a recommended 1.27 mm gap, making it ideal for turbines, compressors, pumps, and motor-driven equipment in automated industrial settings.

Applications

1. Turbine Shaft Condition Monitoring
34 mm probe penetration provides precise measurement of turbine shaft vibrations and displacement, enabling predictive maintenance and reducing unplanned downtime.

2. Industrial Pump and Compressor Surveillance
Captures real-time displacement data to optimize pump and compressor performance, ensuring operational efficiency and reliability.

3. Motor-Driven Equipment Diagnostics
Monitors motors and generators for early detection of misalignment or imbalance, supporting proactive maintenance programs.

4. Compact Industrial Automation Integration
Short probe penetration and self-contained design enable easy installation in space-constrained environments while maintaining accurate shaft monitoring.

5. Harsh Environment Resilience
With IP66 and Type 4X rating, the transducer ensures reliable operation under extreme temperatures (-52°C to +100°C), dust, moisture, and chemical exposure.

Specifications

Competitive Advantage

1. Self-Contained Design
Eliminates the need for separate Proximitor housings or extension cables, simplifying installation and reducing potential failure points.

2. Reinforced PPS Housing
Glass and conductive fiber-reinforced thermoplastic provides high mechanical strength, electrostatic discharge protection, and corrosion resistance, extending sensor lifespan.

3. Optimized Compact Probe
34 mm penetration is ideal for confined or recessed shaft applications, providing precise measurement without compromising installation space.

4. High Environmental Tolerance
IP66 and Type 4X ratings ensure stable performance in challenging industrial environments, including exposure to dust, water, and chemicals.

5. Easy Mounting and Wiring
Supports 3/4-14 NPT threads and 0.2–1.5 mm² field wiring, facilitating quick installation and seamless integration into industrial monitoring systems.
