330930-065-02-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-065-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

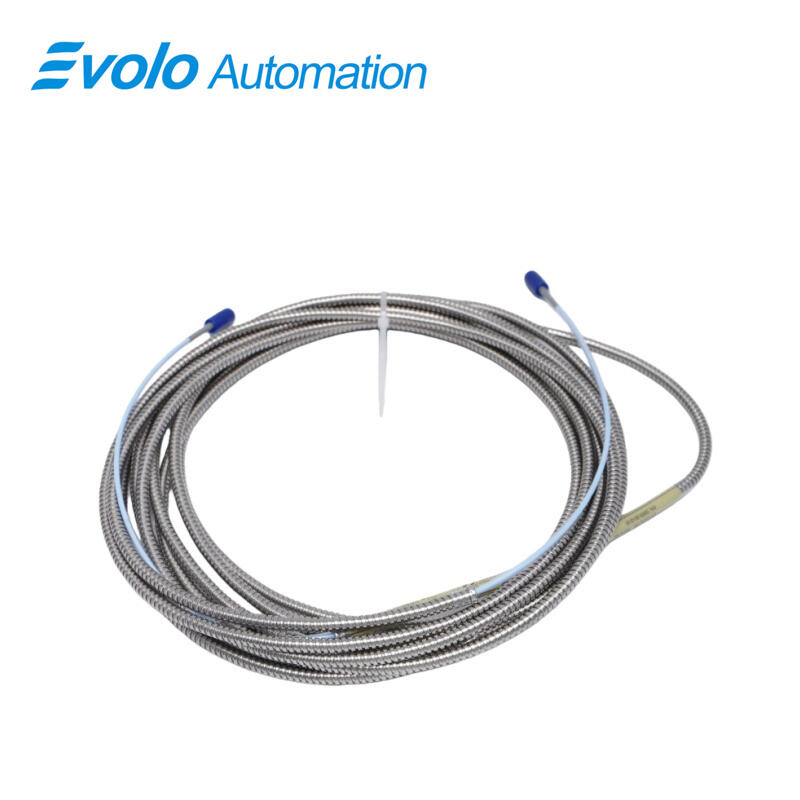

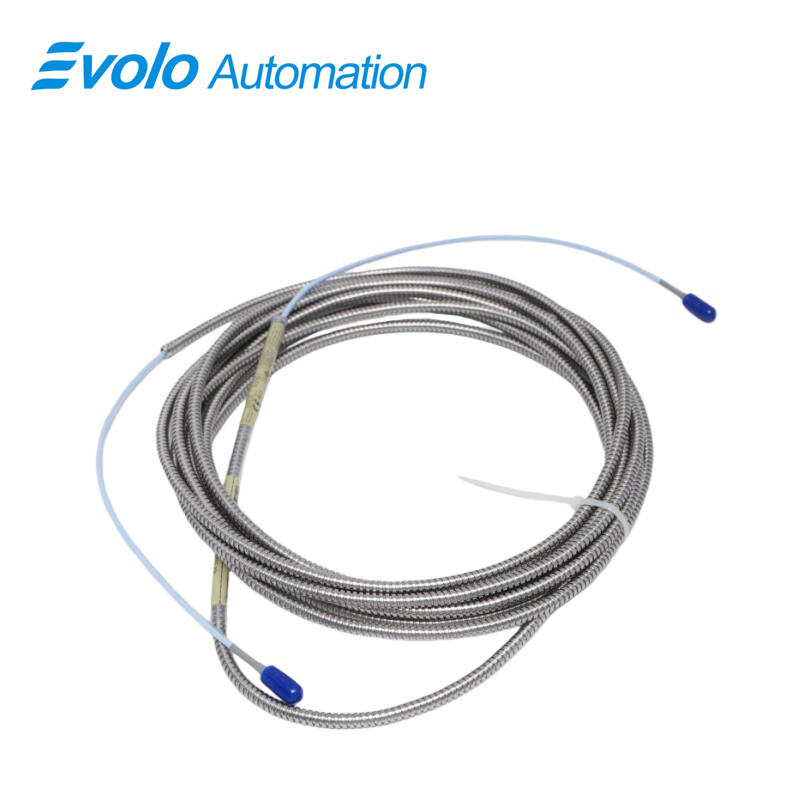

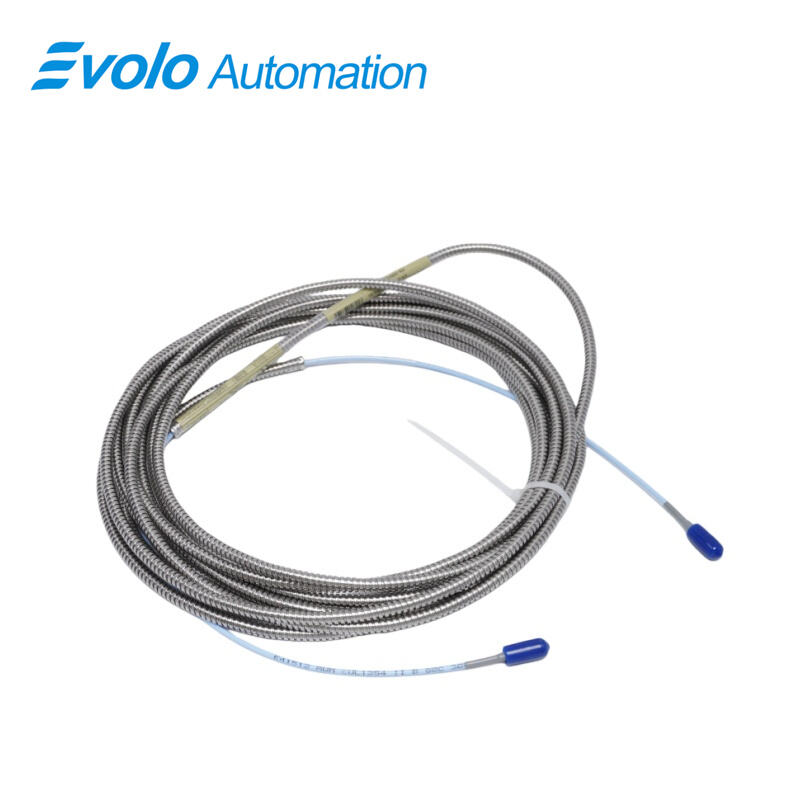

The 330930-065-02-05 3300 NSv Extension Cable is designed for high-precision automation and monitoring systems, specifically for integration with Bently Nevada 3300 NSv Proximity Probes in industrial machinery such as centrifugal air compressors, process gas compressors, and refrigeration compressors. This extension cable provides a 6.5-meter (21.3 ft) connection with stainless steel armor, delivering robust mechanical protection while ensuring reliable signal transmission. Compatible with ClickLoc connectors and engineered for harsh process environments, the cable supports a probe temperature range of -52°C to +177°C (-62°F to +351°F) and maintains linear measurement accuracy over a 1.5 mm (60 mils) linear range with a recommended gap of 1.0 mm (40 mils). The cable is optimized for automation systems requiring high signal fidelity, offering low output resistance of 50 Ω and minimal supply sensitivity (<2 mV per volt change), ensuring precise radial vibration, axial position, and tachometer measurements. Made from AISI 304 stainless steel and featuring a polyphenylene sulfide (PPS) probe tip, the 3300 NSv extension cable is built for long-term durability in chemical and high-temperature industrial environments, making it an ideal solution for advanced machine condition monitoring.

Applications

Radial Vibration Measurement on Small Shafts
Used on shafts smaller than 51 mm (2 in), the 3300 NSv extension cable ensures accurate radial vibration measurement in tight spaces, supporting automation systems with high-resolution feedback.

Axial (Thrust) Position Monitoring
Enables precise axial position measurements on flat targets smaller than 15 mm (0.6 in), ensuring accurate control in fluid-film bearing compressors and other automation machinery.

Tachometer and Zero-Speed Detection
Integrated with NSv probes, the extension cable provides stable tachometer signals and zero-speed detection, critical for automated rotational speed control and predictive maintenance.

Phase Reference Signal Acquisition
Delivers high-fidelity Keyphasor signals for phase synchronization in automation systems, supporting vibration analysis and predictive maintenance algorithms.

Harsh Process Environment Monitoring
Chemical-resistant and high-temperature rated (-52°C to +177°C), suitable for automated monitoring of compressors, refrigeration, and gas processing machines exposed to corrosive or high-temperature conditions.

Specifications

Competitive Advantage

Mechanical and Electrical Interchangeability
Fully compatible with 3300 RAM probes and extension cables, enabling easy automation system upgrades without complete replacement, reducing downtime and cost.

Enhanced Side-View Performance
Designed for restricted counter-bore and side-view applications, providing superior gapping accuracy compared to 3000-series probes, improving automation measurement reliability.

High Durability and Chemical Resistance
Constructed with stainless steel armor and PPS probe tip, ensuring long-term operation in chemical, high-temperature, and industrial automation environments.

Robust Connector System
ClickLoc connectors and patented CableLoc design provide 220 N (50 lb) pull strength, preventing signal loss and maintaining reliable automation system connectivity.

Optimized Linear Range for Small Targets
With a linear range of 1.5 mm (60 mils) and recommended 1.0 mm gap, the extension cable ensures high-precision measurements in small-target applications, enhancing automation system performance.
