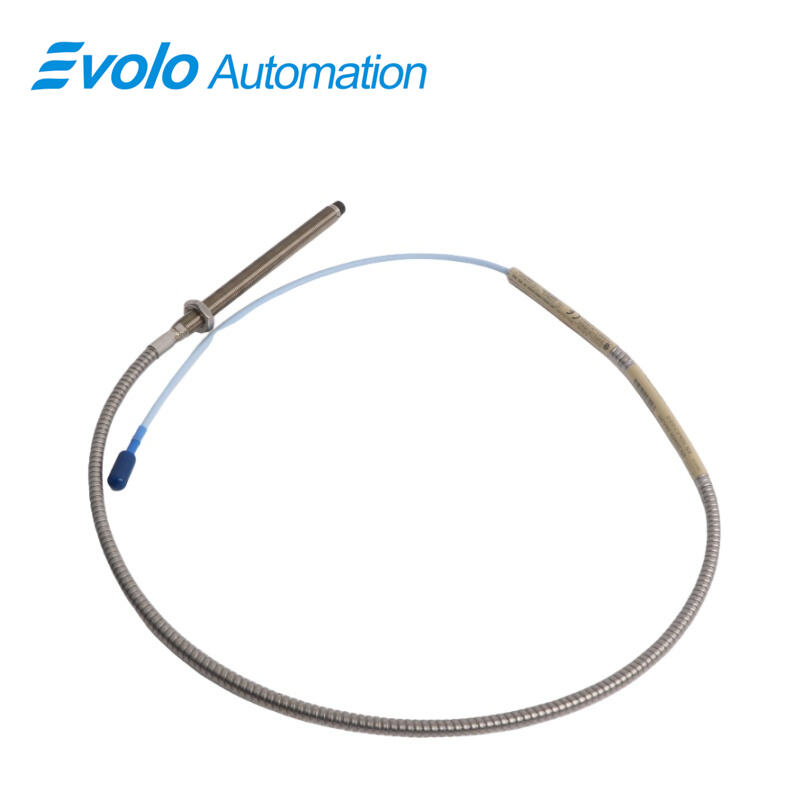

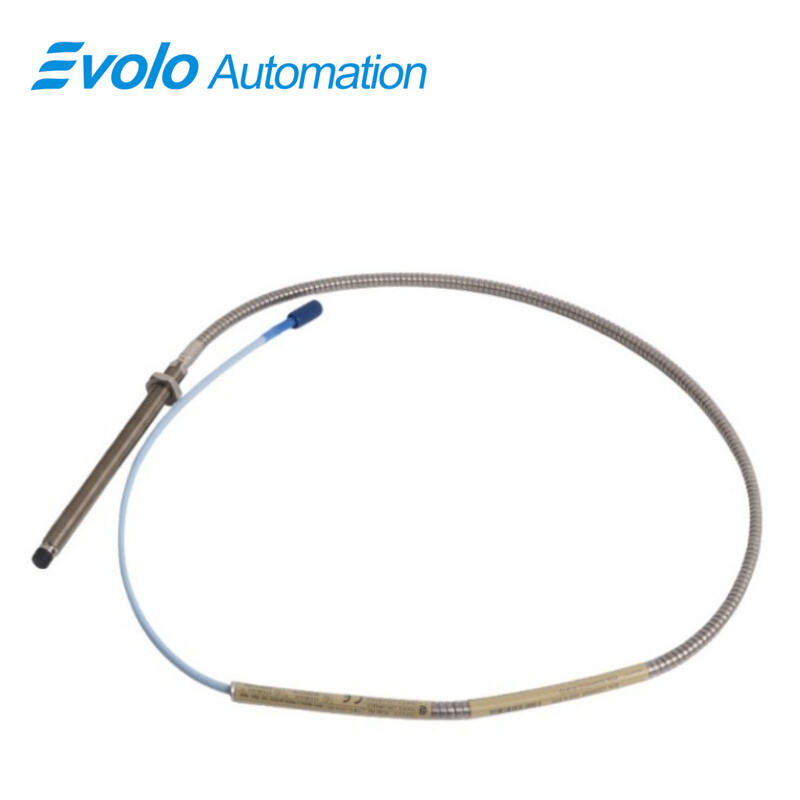

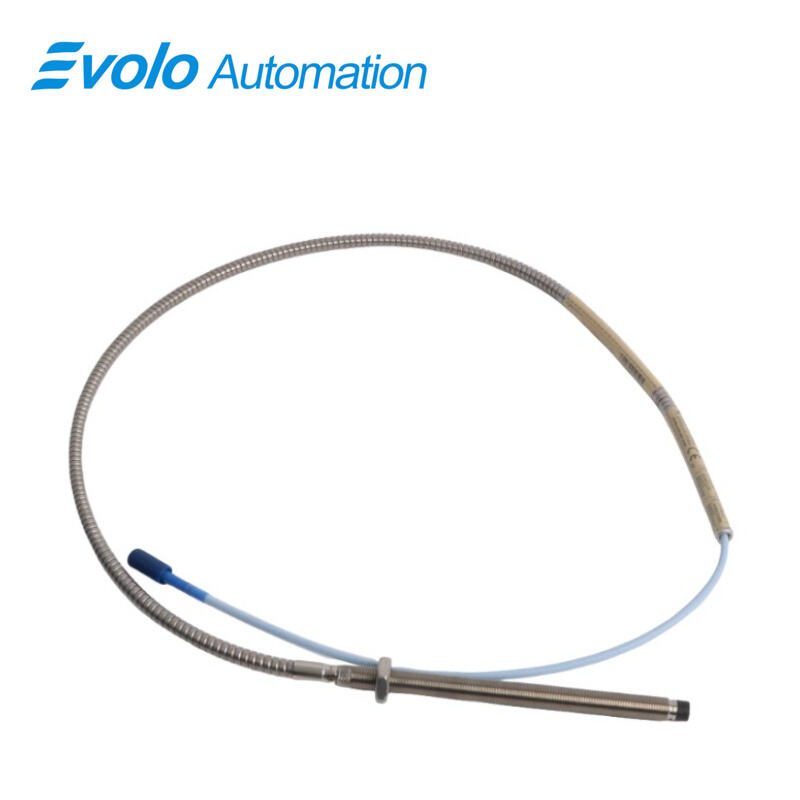

330104-00-13-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-13-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-13-05-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer engineered for industrial automation, vibration monitoring, and predictive maintenance. With a 130 mm overall case length and M10x1 threaded installation, this probe delivers precise displacement and vibration measurement in industrial machinery. The probe provides an output voltage directly proportional to the distance between its tip and the observed conductive surface, enabling accurate static (position) and dynamic (vibration) readings within a 2 mm linear range.

Equipped with a Miniature coaxial ClickLoc connector and standard 5.0-meter cable, the 3300 XL probe supports reliable signal transmission over long distances and flexible integration into automated monitoring systems. It operates reliably across a temperature range from -52°C to +177°C (-62°F to +350°F), maintains less than 2 mV variation per volt of supply change, and has an output resistance of 50 Ω. The patented TipLoc molding method ensures a robust bond between the probe tip and body, while the CableLoc design delivers 330 N (75 lbf) pull strength, securing the probe under high vibration conditions. The system is CSA, ATEX, and IECEx approved, API 670 compliant, and fully interchangeable with other 3300 series probes, extension cables, and Proximitor sensors, reducing calibration and maintenance efforts. Optional FluidLoc cabling prevents oil and liquid ingress, enhancing long-term operational reliability.

Applications

Application 1: Long-Distance Vibration Monitoring

The 5.0-meter cable allows for remote monitoring of large rotating machinery, detecting misalignment or imbalance in pumps, compressors, and turbines over extended distances, improving uptime by 10–15%.

Application 2: Industrial Pump Shaft Position Control

Accurate axial and radial displacement measurements support preventive maintenance, enabling precise monitoring of pump shafts with 50 Ω output resistance ensuring consistent signals.

Application 3: Keyphasor Signal Generation for Speed and Phase

Generates high-quality Keyphasor reference signals for rotational speed and phase monitoring in automation systems, improving machine control accuracy by up to 8%.

Application 4: Gearbox Condition Monitoring

Monitors vibration and position in gearboxes, detecting early signs of wear, misalignment, or imbalance, helping reduce repair costs and unplanned downtime by 12%.

Application 5: Automation Systems in Confined or Hazardous Areas

Compact design with M10x1 threading allows installation in tight spaces or hazardous environments, maintaining high accuracy and operational safety in CSA, ATEX, and IECEx certified areas.

Specifications

Competitive Advantage

Competitive Advantage 1: Long-Distance Capability

With 5.0-meter extension cable, this probe enables remote signal monitoring without signal degradation, ideal for large-scale industrial machinery.

Competitive Advantage 2: Hazardous Area Compliance

Certified to CSA, ATEX, and IECEx standards, allowing safe use in flammable or explosive environments, enhancing regulatory compliance and workplace safety.

Competitive Advantage 3: Extreme Temperature Reliability

Operates consistently between -52°C and +177°C, ensuring accurate measurements in extreme industrial conditions.

Competitive Advantage 4: High Mechanical Strength

TipLoc and CableLoc designs provide 330 N pull strength, ensuring secure probe installation in high-vibration or high-stress environments.

Competitive Advantage 5: Full 3300 Series Interchangeability

Compatible with all 3300 series probes, extension cables, and Proximitor sensors, simplifying inventory management and reducing the need for recalibration or component matching.
