Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-03-90-11-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
30 mm |
|
Total Length Option: |
9.0 meters (29.5 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.8x58cm |
|
Weight: |
0.08kg |
Description

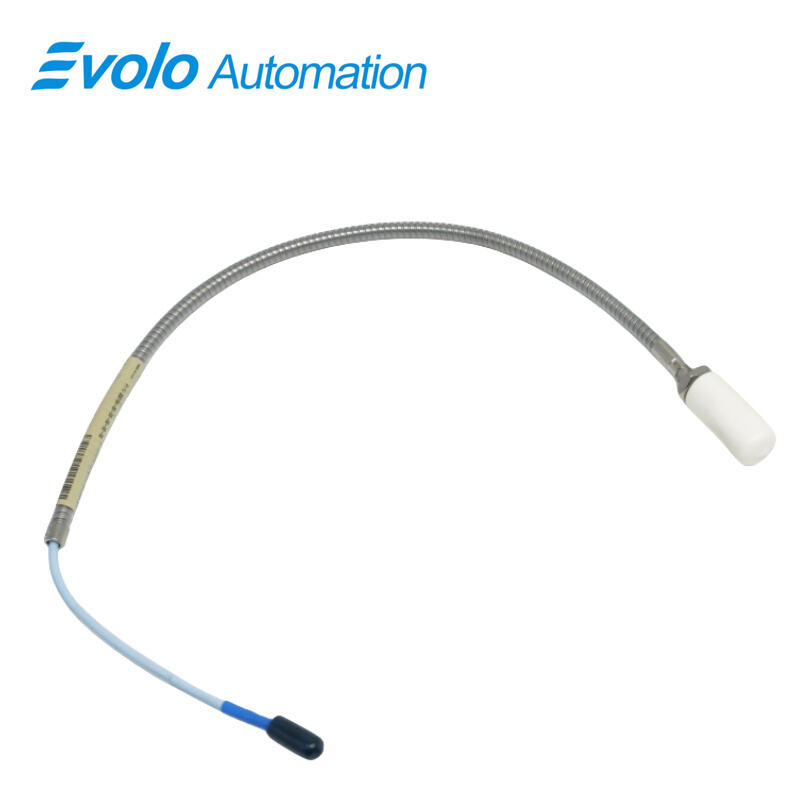

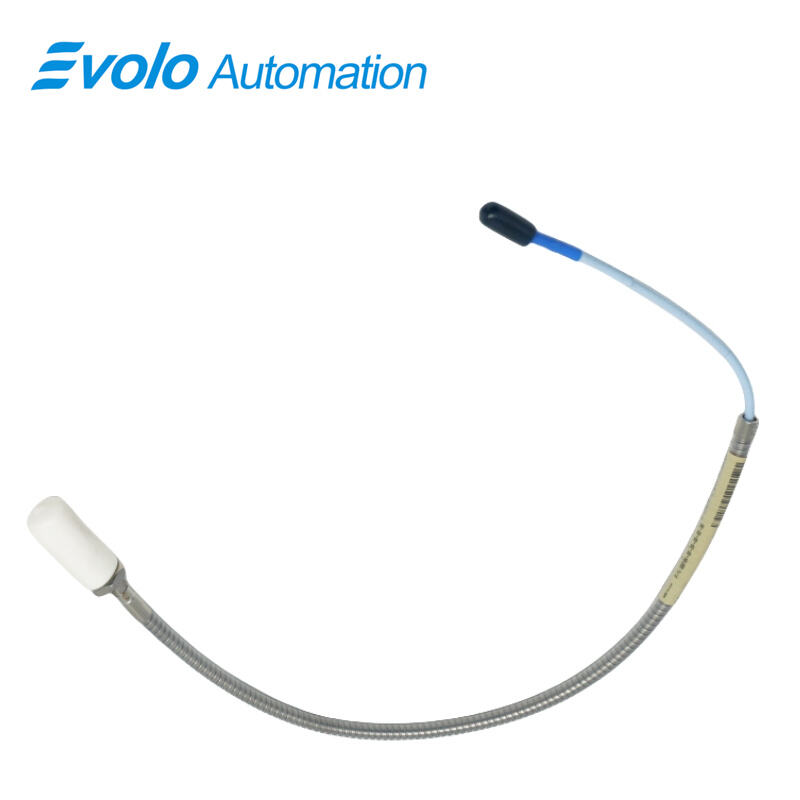

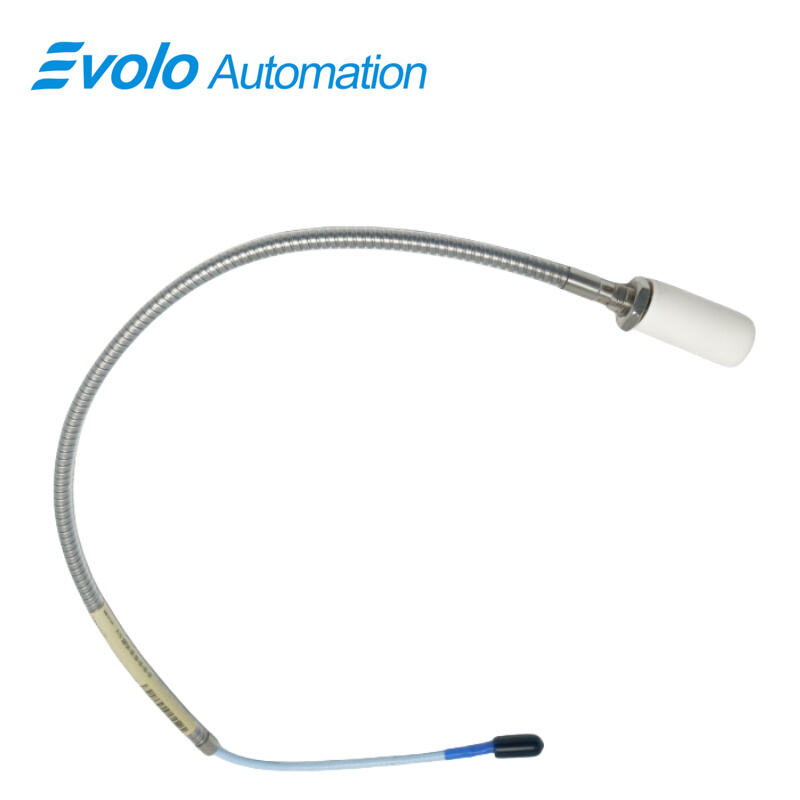

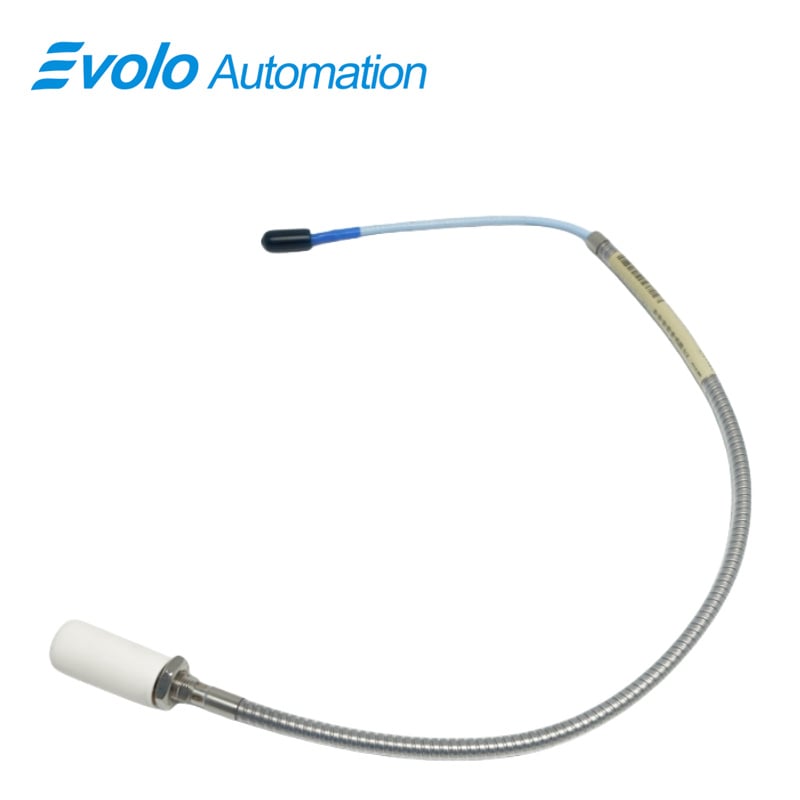

The 330104-00-03-90-11-00 3300 XL 8 mm Proximity Probe features a total length of 9.0 meters with M10x1 probe case thread and FluidLoc cable for leak prevention. It outputs voltage directly proportional to the 2 mm linear displacement between the probe tip and conductive surfaces, supporting both static position and dynamic vibration measurements. The 330104-00-03-90-11-00 3300 XL 8 mm enables automated monitoring of fluid-film bearings, rotor shafts, and Keyphasor speed signals. Extension cable capacitance of 69.9 pF/m and output resistance of 50 Ω ensures precise data collection. Operating from -52°C to +177°C, the 330104-00-03-90-11-00 3300 XL 8 mm can be integrated into long-range automated systems for real-time positional and vibration feedback in industrial machinery. Miniature coaxial ClickLoc connectors with protector ensure secure connections for automated operations.
Applications
Vibration Monitoring on Fluid-Film Bearings
The 330104-00-03-90-11-00 3300 XL 8 mm probe measures dynamic vibrations on fluid-film bearing machines with a linear range of 2 mm, capturing real-time displacement data to detect early misalignment or imbalance issues.
Rotor Shaft Position Measurement
Using the 50 Ω output resistance and miniature coaxial ClickLoc connector, the 330104-00-03-90-11-00 3300 XL 8 mm probe precisely tracks rotor shaft position across a 9.0-meter extension, supporting automated rotor position control in industrial machinery.
Keyphasor Speed Signal Acquisition
The 330104-00-03-90-11-00 3300 XL 8 mm probe provides accurate voltage proportional to tip-to-surface distance, enabling automated speed monitoring and Keyphasor reference signal generation for rotor speed analysis and synchronization.
Long-Range Automated Monitoring
With FluidLoc cable and extension capacitance of 69.9 pF/m, the 330104-00-03-90-11-00 3300 XL 8 mm probe supports long-distance wiring in automated systems, providing consistent data for process control and predictive maintenance over 9.0 meters.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-Precision Measurement
The 330104-00-03-90-11-00 3300 XL 8 mm probe ensures minimal supply sensitivity (<2 mV per volt) and high linearity over 2 mm, delivering accurate automated readings of both static and dynamic machine components.
Extended Operating Range
Operating temperatures from -52°C to +177°C allow the 330104-00-03-90-11-00 3300 XL 8 mm probe to function in harsh industrial environments without data loss, supporting automated monitoring in extreme conditions.
Seamless Integration with Automation Systems
With a standard M10x1 probe case thread and field wiring support (0.2–1.5 mm²), the 330104-00-03-90-11-00 3300 XL 8 mm probe is compatible with existing automated machinery, reducing setup time for industrial monitoring solutions.
