Overview
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Model Number: | 330104-00-12-10-02-00 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Original new Factory Sealed |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T |
| Supply Ability: | In stock |
Quick Detail
| Probe and Approvals Option: | 3300 XL 8 mm probe with Multiple Approvals |
| Standoff Adapter Option (B Dimension) : | 70 mm |
| Probe Penetration Option (C Dimension) : | 155 mm |
| Fittings Option (supplied as a kit) : | One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs |
| Mounting Thread Option : | 3/4-14 NPT (required if ordering Standoff Adapter Option) |
| Dimension: | 37x9x8cm |
| Weight: | 1.5 kg |
Description

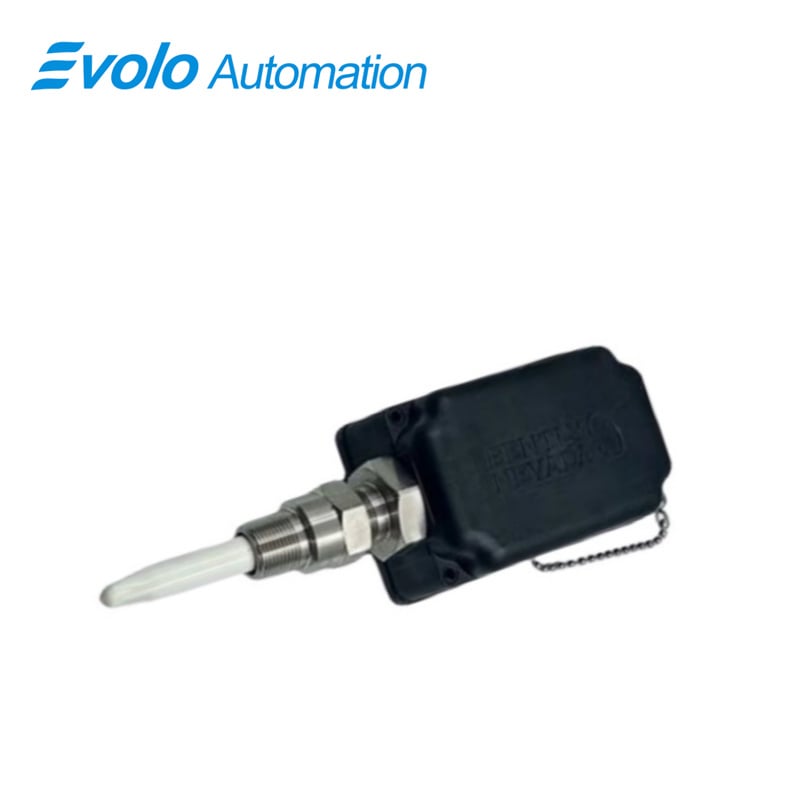

The PROXPAC XL Proximity Transducer (330881-28-07-155-06-02) is a high-performance automation sensor engineered for industrial machinery monitoring, rotating shaft diagnostics, and predictive maintenance in harsh environments. Featuring a 155 mm probe penetration combined with a 70 mm standoff adapter and an 8 mm 3300 XL probe with multiple approvals, this transducer ensures accurate displacement and vibration measurement for shafts with diameters from 50.8 mm to 76.2 mm. Its self-contained design integrates the 3300 XL Proximitor sensor directly within the housing, eliminating the need for extension cables or separate Proximitor housings, and allows direct connection to monitoring systems via 16–24 AWG field wiring.
The transducer housing is made of reinforced Polyphenylene Sulfide (PPS) thermoplastic, incorporating glass and conductive fibers for enhanced mechanical strength, electrostatic dissipation, and corrosion resistance. Rated IP66 and Type 4X, it withstands dust, water, and extreme temperatures (-52°C to +100°C), making it ideal for industrial turbines, pumps, compressors, and motor-driven equipment. Electrical specifications include <2 mV change in output per volt of supply variation, 50 Ω output resistance, and a 2 mm linear range with a recommended 1.27 mm gap, ensuring precise and stable measurements for automated condition monitoring systems.
Applications
1. High-Precision Turbine Monitoring
The 155 mm probe penetration provides extended reach for large turbine shafts, enabling accurate vibration and displacement analysis for preventive maintenance.
2. Industrial Pump and Compressor Optimization
Delivers continuous shaft displacement feedback to optimize pump and compressor performance and reduce energy waste.
3. Motor-Driven Equipment Condition Analysis
Monitors misalignment and imbalance in motors and generators, preventing unexpected failures and reducing maintenance costs.
4. Confined Space Machinery Integration
The standoff adapter and extended probe penetration allow installation in difficult-to-access areas while maintaining accurate shaft monitoring.
5. Extreme Environment Reliability
IP66 and Type 4X ratings allow stable operation under dust, moisture, high/low temperatures, and chemical exposure in industrial plants.
Specifications
|
Supply Sensitivity: |
< 2 mV change in output per volt change in input |
|
Output Resistance: |
50 Ω |
|
Field Wiring: |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Recommended Gap Setting: |
1.27 mm (50 mils) |
|
Shaft Diameter Minimum: |
50.8 mm (2.0 in) |
|
Shaft Diameter Recommended: |
76.2 mm (3.0 in) |
|
Housing Rating: |
IP66 (verified by BASEEFA report T07/0709) |
|
Operating Temperature: |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature: |
-52°C to +105°C (-62°F to +221°F) |
Competitive Advantage
1. Self-Contained Proximitor Sensor
Integrates the 3300 XL sensor within the housing, removing the need for separate housings or extension cables and simplifying installation.
2. Reinforced PPS Housing
Glass and conductive fiber reinforcement improves mechanical durability, electrostatic discharge resistance, and corrosion protection, increasing sensor lifespan.
3. Extended Probe Penetration
155 mm probe length supports monitoring of large or recessed shafts, providing flexibility in various industrial applications.
4. High Environmental Resistance
Rated IP66 and Type 4X, the transducer operates reliably in extreme temperatures, dust, water, and chemically aggressive environments.
5. Simplified Mounting and Wiring
Supports 3/4-14 NPT threads and 0.2–1.5 mm² field wiring, enabling easy integration into industrial automation and monitoring systems.
