Overview

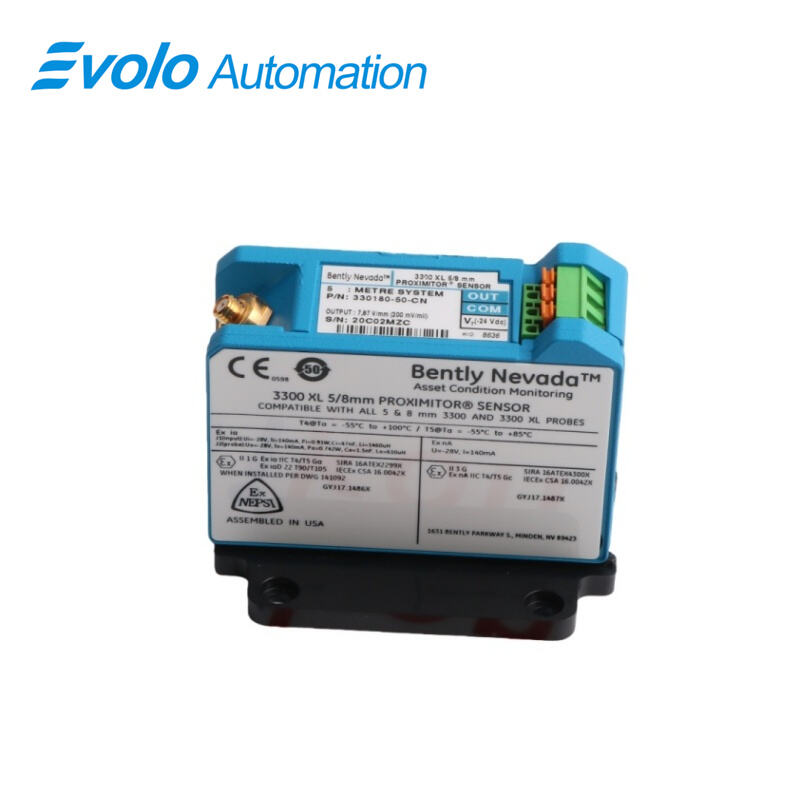

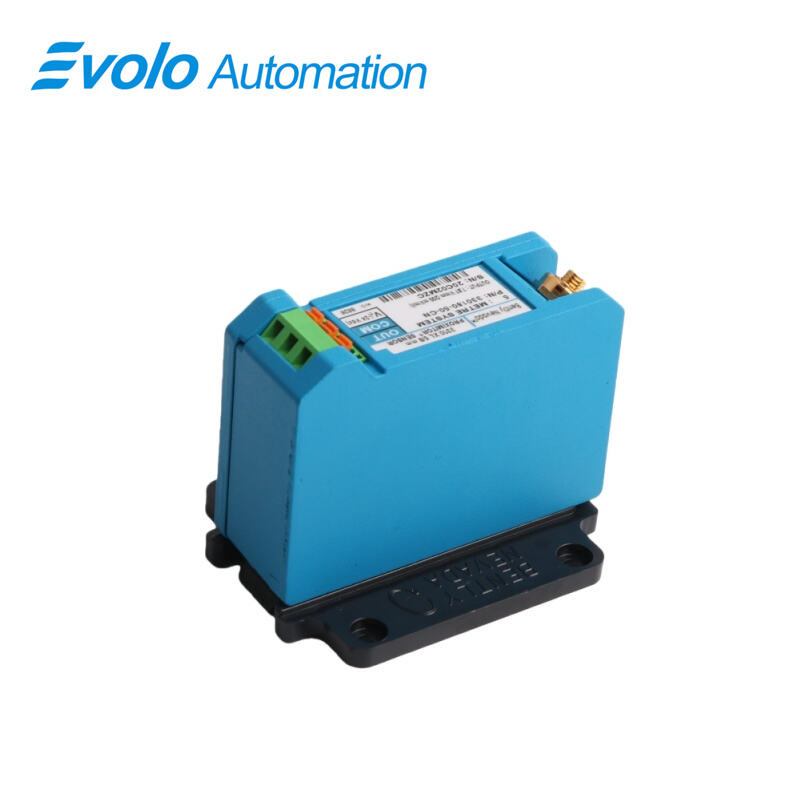

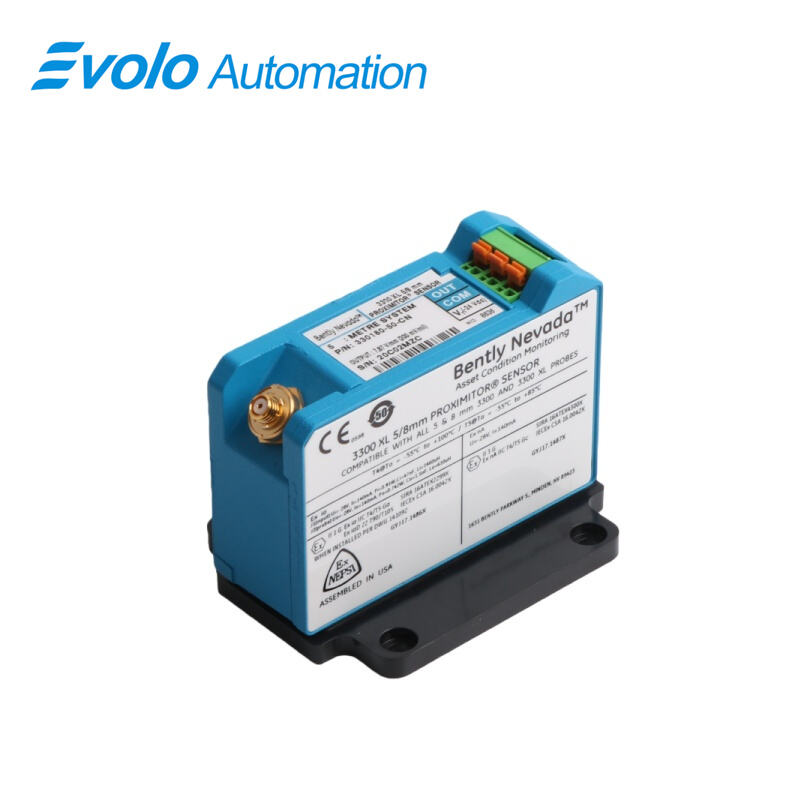

330180-50-CN 3300 XL Proximitor Sensor
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330180-50-CN |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330180-50-CN 3300 XL Proximitor Sensor stands as a flagship eddy current proximity sensing component, engineered to deliver output voltage that maintains a direct proportional relationship with the gap between the probe tip and target conductive surfaces—enabling precise measurement of both static positional data and dynamic vibration values. As a core part of the 3300 XL transducer system, this Proximitor Sensor excels in critical industrial applications, including vibration and position monitoring for fluid-film bearing machines, as well as Keyphasor reference detection and accurate speed measurements. Whether deployed in turbines, compressors, or other rotating equipment, the 3300 XL Proximitor Sensor consistently delivers reliable data to support predictive maintenance and operational safety across diverse industrial sectors.
Designed to set a new benchmark for performance in eddy current proximity transducer systems, the 330180-50-CN 3300 XL Proximitor Sensor integrates advanced technology to meet the most demanding industrial requirements. The standard 5-meter configuration of the 3300 XL Proximitor Sensor fully adheres to the rigorous specifications of the American Petroleum Institute’s (API) 670 Standard, covering critical aspects such as mechanical design, linear measurement range, operational accuracy, and temperature stability. This compliance makes it an ideal choice for oil & gas, petrochemical, and power generation applications where API certification is mandatory, ensuring seamless integration into mission-critical monitoring setups.
A key differentiator of the 330180-50-CN 3300 XL Proximitor Sensor is its exceptional component interchangeability within the 3300 XL product ecosystem. Probes, extension cables, and Proximitor sensors can be freely swapped without the need for tedious bench calibration or component matching, significantly reducing installation time and maintenance costs for industrial operators. This interchangeability streamlines system upgrades and replacements, ensuring minimal downtime in critical production environments. Additionally, the 3300 XL Proximitor Sensor offers robust backward compatibility with non-XL 3300 series components, including 5 mm and 8 mm transducers from the original 3300 lineup. This cross-compatibility extends to the 3300 5 mm probe, providing a flexible solution for applications where the 8 mm probe’s dimensions exceed the available mounting space, without compromising measurement accuracy or system performance.
Key Functions
Applications
The 330180-50-CN 3300 XL Proximitor Sensor is a high-performance eddy current sensing solution engineered for critical industrial monitoring across diverse sectors, leveraging its robust parameters to deliver reliable results in harsh and demanding environments. Equipped with CSA, ATEX, and IECEx approvals, it meets global safety standards for explosive atmospheres, making it ideal for oil refineries, offshore drilling platforms, and natural gas processing plants—where it connects to 3300-series 5 mm/8 mm probes to monitor pumps, compressors, and turbines. Its aluminum body with 304 stainless steel sleeve resists corrosion from hydrocarbons, saltwater, and chemical contaminants, while the -52°C to +177°C (-62°F to +350°F) operating temperature range adapts seamlessly to frigid offshore winters and high-heat refining processes. With a 5.0-meter (16.4-foot) system length and panel mount design, it integrates securely into control room panels or on-site enclosures, and the compact 8.7x3.5x7cm dimensions and 0.22kg weight simplify installation in confined spaces like turbine casings or reactor openings.In power generation (thermal, nuclear, combined-cycle plants), the sensor excels at monitoring steam turbines, generators, and boiler feed pumps, utilizing its 50 Ω output resistance and supply sensitivity of less than 2 mV/V to capture precise vibration, position, and Keyphasor data—critical for preventing catastrophic equipment failure. Compatibility with 0.2 to 1.5 mm² (16 to 24 AWG) field wiring streamlines on-site connections, while the 69.9 pF/m (21.3 pF/ft) typical extension cable capacitance minimizes signal degradation over long distances.
Official Specifications
Quick Detail
|
Total Length and Mounting Option: |
5.0 meters (16.4 feet) system length, panel mount |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
12.7 mm (0.5 in) |
|
Overall Case Length Option : |
50.8 mm (2.0 in) |
|
Material: |
Aluminum body with 304 stainless steel sleeve |
|
Dimension: |
8.7x3.5x7cm |
|
Weight: |
0.22kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Proximitor Sensor Input: |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
Frequently Asked Questions
What is the model number?
The listed model number is 330180-50-CN.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Comprehensive International Compliance Certifications
Hold multiple authoritative certifications from CSA, ATEX, and IECEx, complying with global mainstream industrial safety standards. It can be seamlessly applied to hazardous environments (such as explosion-proof scenarios) in North America, Europe, and international general use, eliminating compliance barriers for cross-regional applications and reducing project certification costs.
2. Durable Material Selection
Adopts a combination of aluminum alloy body + 304 stainless steel sleeve, balancing lightweight performance with corrosion resistance and wear resistance. It can withstand dust, humidity, and mild chemical medium erosion in industrial sites, extending the service life of the sensor in harsh environments and reducing maintenance frequency.
3. Wide Temperature Range Adaptability
Operating and storage temperature ranges from -52°C to +177°C (-62°F to +350°F), enabling stable operation in extreme high and low temperature scenarios (such as low-temperature refrigeration equipment and high-temperature industrial furnace surroundings). Compared with conventional sensors, it has a wider application range and does not require additional temperature control protection devices, improving equipment operation reliability.
