Overview

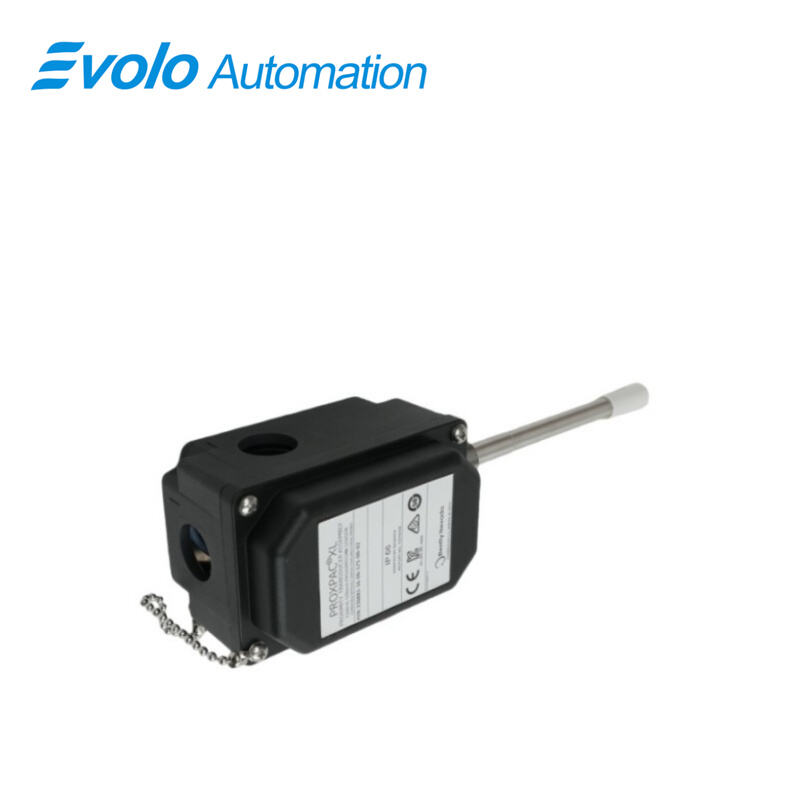

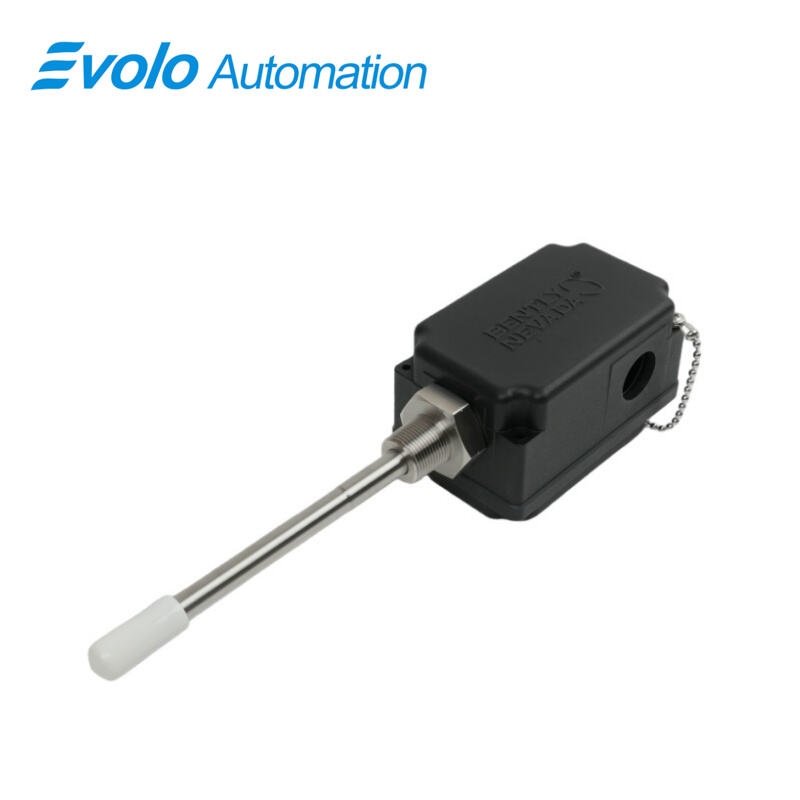

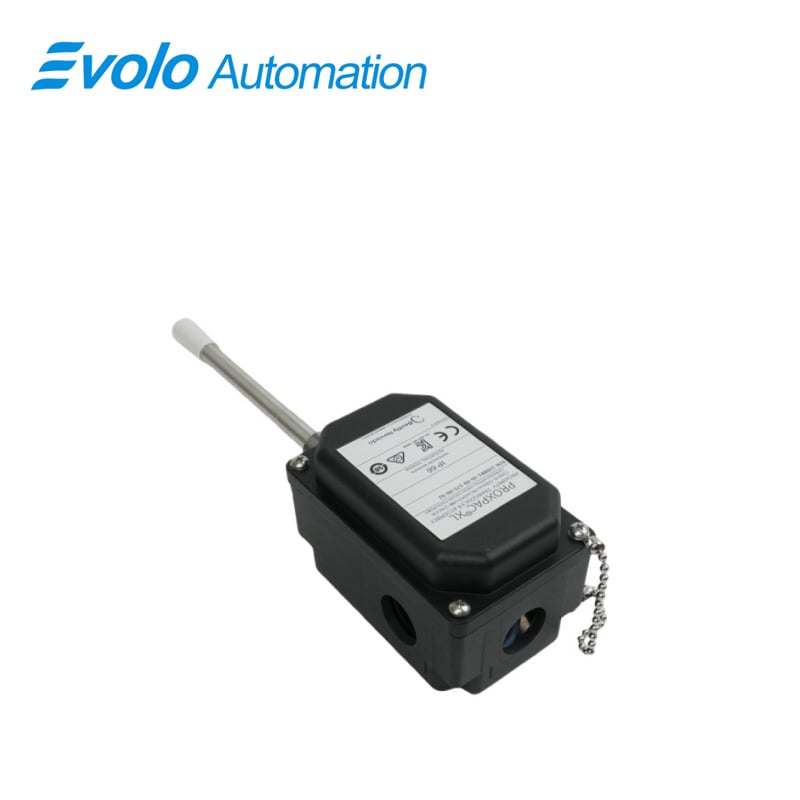

330881-16-00-200-06-02 PROXPAC XL Proximity Transducer
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330881-16-00-200-06-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The PROXPAC XL Proximity Transducer 330881-16-00-200-06-02 integrates a 3300 XL 8 mm proximity probe within a self-contained housing, providing precise shaft position and vibration monitoring for industrial automation systems. Unlike traditional assemblies requiring separate Proximitor sensors and extension cables, this PROXPAC XL system directly connects field wiring to monitoring units, simplifying installation and reducing potential signal loss. The housing, constructed from reinforced Polyphenylene Sulfide (PPS) with glass and conductive fibers, ensures robust mechanical strength, electrostatic dissipation, and long-term durability in harsh environments. Rated IP66 and Type 4X, it withstands operating temperatures from -52°C to +100°C, supporting applications in extreme industrial settings. Key specifications include a linear range of 2 mm, recommended gap of 1.27 mm, output resistance of 50 Ω, and field wiring compatibility from 0.2 to 1.5 mm² (16–24 AWG), enabling precise, stable measurements in rotating machinery, turbines, and critical automation processes.
Key Functions
Applications
1. Rotating Machinery Monitoring
The PROXPAC XL provides real-time shaft displacement and vibration data for large industrial motors and turbines. Its 2 mm linear range ensures accurate measurement of critical machinery movements, minimizing mechanical failures and unplanned downtime.
2. Turbine Vibration Analysis
Designed for high-speed turbines, the transducer supports a recommended shaft diameter of 76.2 mm, enabling precise detection of rotor imbalance, misalignment, and eccentricity. It enhances predictive maintenance strategies in power generation.
3. Automation Feedback Systems
Integrated into automated production lines, the PROXPAC XL delivers stable, high-precision proximity feedback. Its supply sensitivity of <2 mV per volt ensures reliable signal integrity under voltage fluctuations, improving control accuracy in high-speed manufacturing.
4. Harsh Environment Operations
With an IP66 housing rating and temperature tolerance from -52°C to +100°C, this transducer is ideal for chemical plants, offshore platforms, and industrial sites requiring protection against dust, water, and extreme temperatures.
5. Self-Contained Sensor Integration
The built-in 3300 XL Proximitor sensor eliminates the need for extension cables or additional housings, simplifying installation in compact systems while maintaining precise shaft position measurement for rotating equipment and conveyors.
Official Specifications
Quick Detail
|
Probe and Approvals Option: |
3300 XL 8 mm probe without |
|
Standoff Adapter Option (B Dimension) : |
No standoff adapter |
|
Probe Penetration Option (C Dimension) : |
200 mm |
|
Fittings Option (supplied as a kit) : |
One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs |
|
Mounting Thread Option : |
3/4-14 NPT (required if ordering Standoff Adapter Option) |
|
Dimension: |
36.5x9x9.3cm |
|
Weight: |
1.35kg |
Specifications
|
Supply Sensitivity: |
< 2 mV change in output per volt change in input |
|
Output Resistance: |
50 Ω |
|
Field Wiring: |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Recommended Gap Setting: |
1.27 mm (50 mils) |
|
Shaft Diameter Minimum: |
50.8 mm (2.0 in) |
|
Shaft Diameter Recommended: |
76.2 mm (3.0 in) |
|
Housing Rating: |
IP66 (verified by BASEEFA report T07/0709) |
|
Operating Temperature: |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature: |
-52°C to +105°C (-62°F to +221°F) |
Frequently Asked Questions
What is the model number?
The listed model number is 330881-16-00-200-06-02.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Fully Self-Contained Design
By integrating the 3300 XL Proximitor sensor into the housing, the PROXPAC XL reduces cabling complexity and installation time, lowering system costs and signal degradation risks.
2. Robust PPS Construction
The Polyphenylene Sulfide housing with glass and conductive fibers offers superior mechanical strength and electrostatic dissipation compared to traditional aluminum or steel housings, enhancing durability in industrial environments.
3. High Environmental Protection
Rated IP66 and Type 4X, it protects against dust, water, and corrosive atmospheres, ensuring long-term reliability even in extreme operating conditions.
4. Precision Measurement Stability
With an output resistance of 50 Ω and field wiring range of 0.2–1.5 mm², the transducer maintains stable output signals, supporting high-accuracy automated control systems and vibration monitoring applications.
5. Wide Operating Temperature Range
The device functions reliably from -52°C to +100°C, allowing deployment in cold storage, high-heat processing, or other extreme temperature industrial applications without compromising performance.
