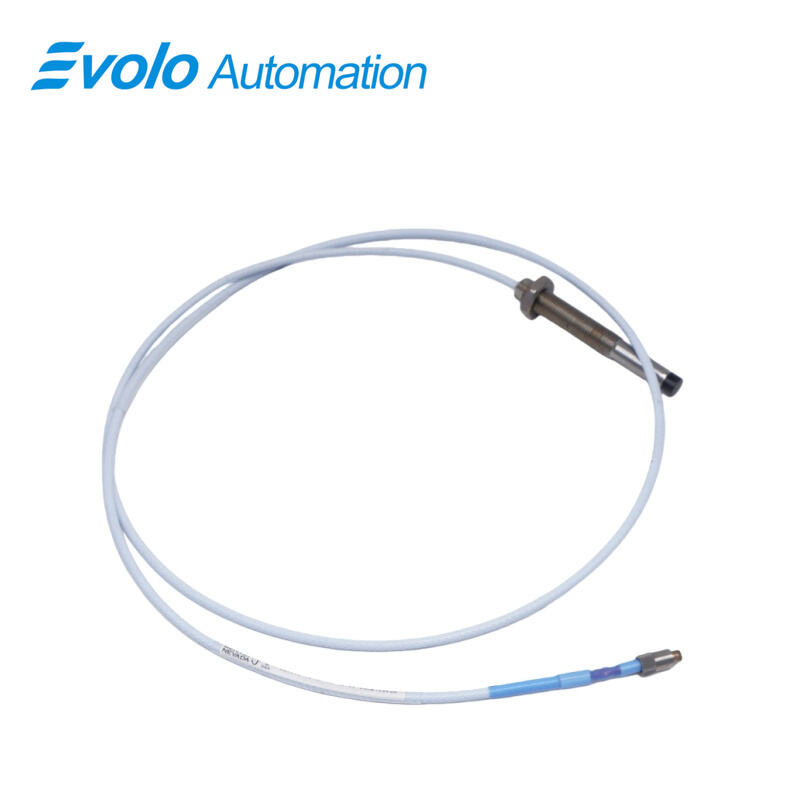

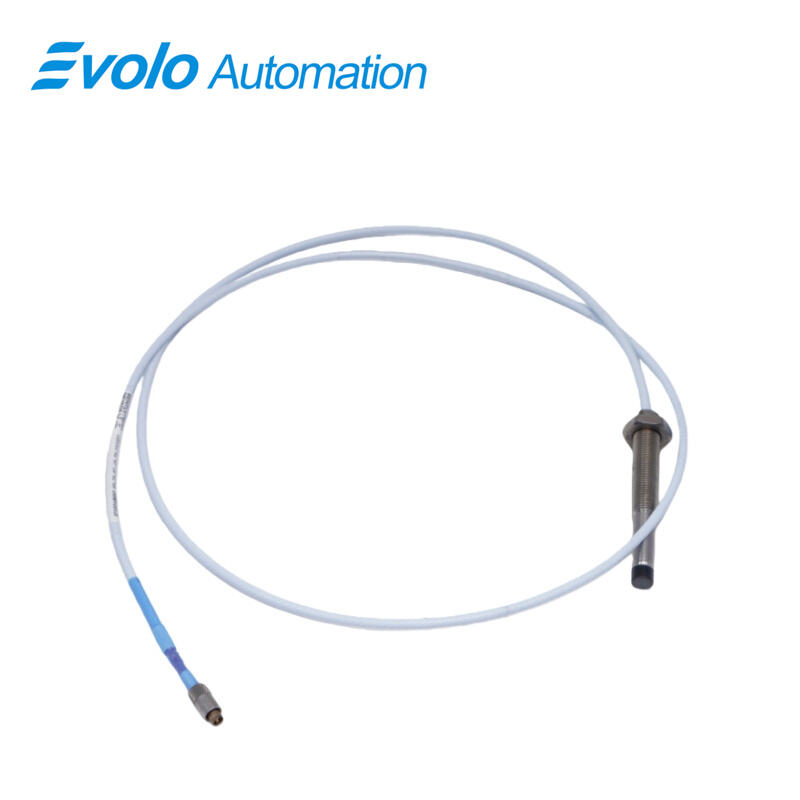

330103-00-07-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-07-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-07-10-02-00 3300 XL 8 mm Proximity Probe converts the distance between the probe tip and conductive surfaces into a precise voltage signal. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity under 2 mV per volt, 330103-00-07-10-02-00 captures both static shaft position and dynamic vibration for automated monitoring systems. Its M10x1 threaded probe case and 70 mm minimum case length allow secure installation in confined machinery spaces. The 1.0-meter standard cable with miniature coaxial ClickLoc connector transmits signals reliably to control and data acquisition systems. Operating from -52°C to +177°C, 330103-00-07-10-02-00 provides consistent output for turbines, pumps, and compressors under extreme temperature variations. This probe integrates directly with Keyphasor reference setups for speed measurement and supports fluid-film bearing monitoring. The patented TipLoc probe tip bond and CableLoc connector design enhance mechanical attachment and signal integrity. Optional FluidLoc cables prevent fluid leakage through the cable interior, maintaining clean and accurate signal delivery for automated control loops.

Applications

Rotor Vibration Monitoring: The 330103-00-07-10-02-00 probe is ideal for detecting high-precision vibrations on turbines, compressors, and pumps. Its 2 mm linear range allows capturing both micro and macro shaft movements. The probe’s 70 mm minimum case length and M10x1 threaded body enable secure installation even in confined spaces.

Shaft Position Tracking: 330103-00-07-10-02-00 provides accurate real-time shaft displacement measurements in fluid-film bearing machines. The probe’s miniature coaxial ClickLoc connector and 1.0-meter cable allow seamless integration with automated monitoring systems, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG).

Keyphasor Reference Measurement: Use 330103-00-07-10-02-00 as a phase reference sensor for precise speed and phase detection in rotating machinery. The 50 Ω output resistance ensures consistent voltage signal delivery to control systems.

Automated Condition Monitoring: Integrate 330103-00-07-10-02-00 into PLCs or DCS systems for continuous monitoring. Its extension cable capacitance of 69.9 pF/m provides low-noise signal transmission, supporting proactive automation maintenance.

Specifications

Competitive Advantage

High-Precision Signal Output: 330103-00-07-10-02-00 converts distance between probe tip and conductive surface into voltage with less than 2 mV change per volt of supply variation, delivering reliable readings for automation systems.

Extreme Temperature Operation: Operable from -52°C to +177°C (-62°F to +350°F), 330103-00-07-10-02-00 supports harsh industrial environments, maintaining performance in high-heat and low-temperature applications.

Robust Mechanical Design: With M10x1 threaded probe, maximum 15 mm thread engagement, and 70 mm minimum case length, 330103-00-07-10-02-00 ensures durable mounting and precise positioning on rotating equipment.

Optimized Signal Transmission: The 50 Ω output resistance and 69.9 pF/m extension cable capacitance of 330103-00-07-10-02-00 maintain signal integrity over long distances, supporting automated data acquisition and control systems.
