330106-05-30-05-12-05 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-05-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

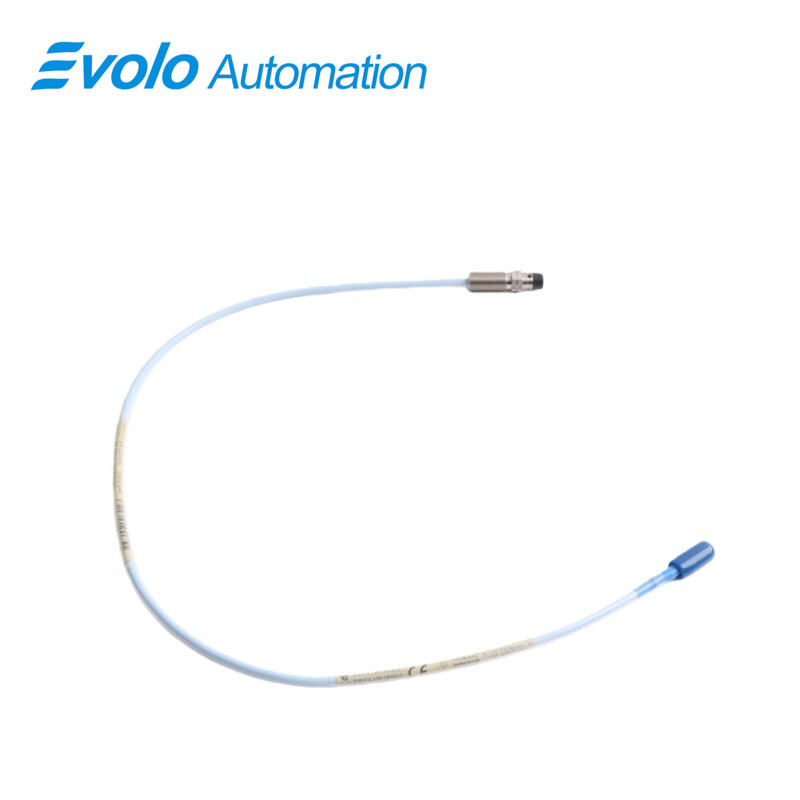

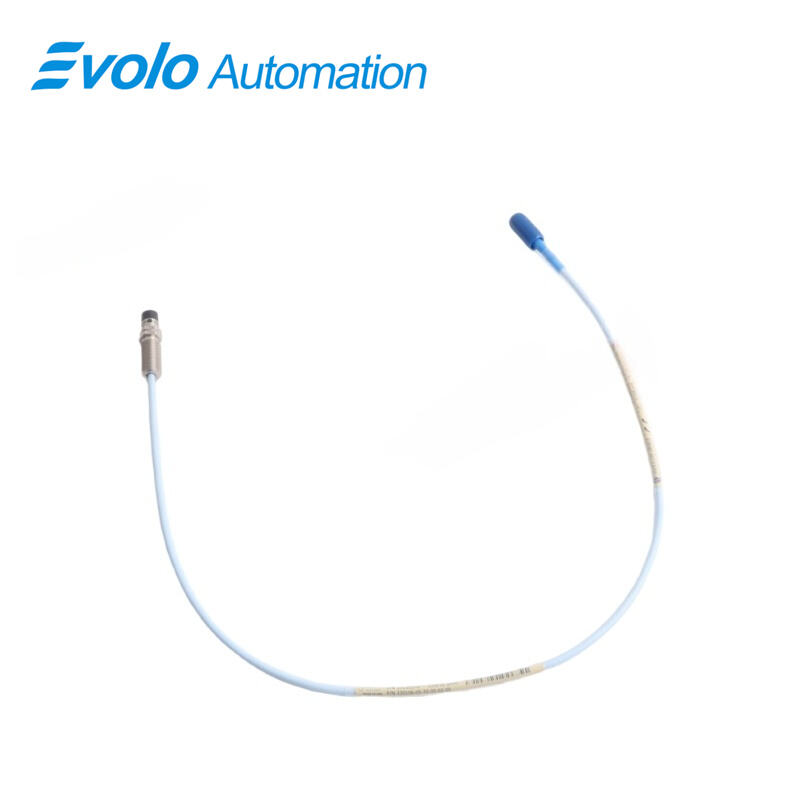

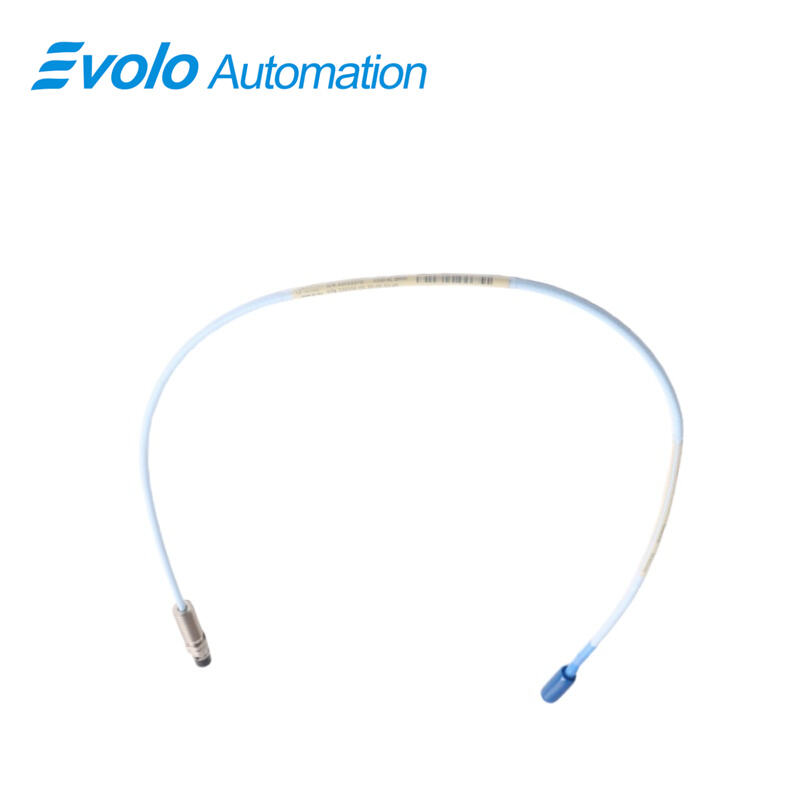

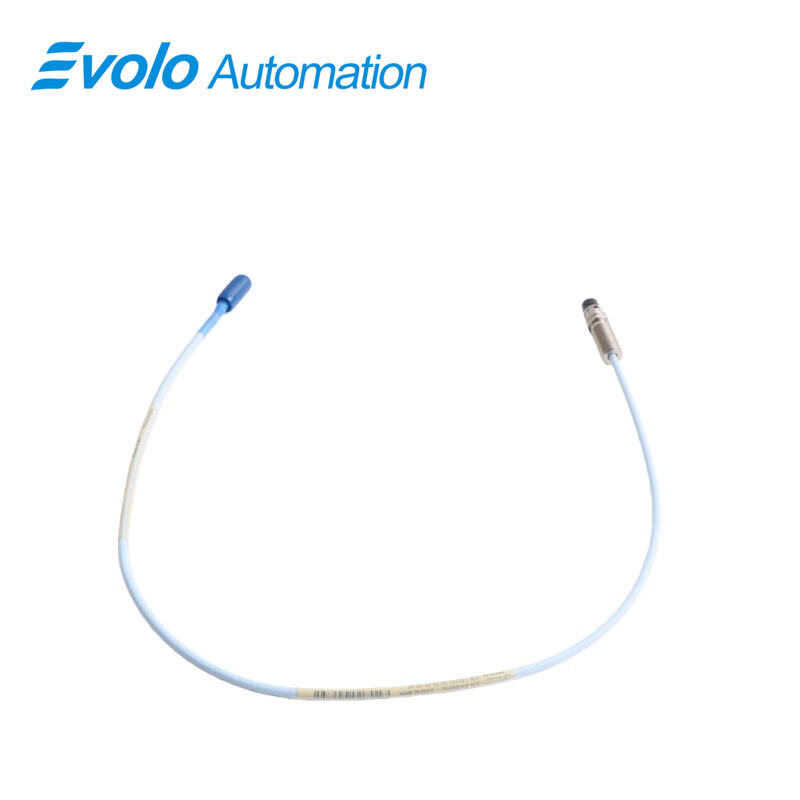

The 330106-05-30-05-12-05 3300 XL 8 mm Reverse Mount Proximity Probe is a high-precision eddy current sensor designed for advanced industrial automation and condition monitoring applications. This 8 mm probe provides output voltage directly proportional to the distance between the probe tip and the conductive target, enabling accurate measurement of both static positions and dynamic vibrations in fluid-film bearing machinery. Engineered with AISI 303/304 stainless steel and a polyphenylene sulfide probe tip, the reverse mount design allows installation in tight or reversed orientations without compromising linearity or sensitivity. With a linear range of 2 mm, operating temperature from -52°C to +177°C, and robust M10 x 1 threaded mounting, the 3300 XL reverse mount probe delivers exceptional reliability under harsh industrial environments. The system supports CSA, ATEX, and IECEx approvals, and its miniature ClickLoc coaxial connector with optional FluidLoc cable ensures secure electrical connections while preventing leakage of fluids. This probe is fully compatible with the 3300 XL system, extension cables, and Proximitor sensors, maintaining backward interchangeability and eliminating the need for component-specific calibration. Advanced TipLoc and CableLoc designs enhance mechanical robustness, providing up to 330 N pull strength, making the 3300 XL 8 mm Reverse Mount Proximity Probe ideal for vibration monitoring, position feedback, Keyphasor reference, and speed measurement in automated industrial equipment.

Applications

1. Vibration Monitoring in Turbomachinery
The 3300 XL 8 mm Reverse Mount Probe measures vibration amplitudes with high sensitivity, supporting predictive maintenance for pumps, turbines, and compressors in fluid-film bearing systems. Its 2 mm linear range ensures precise displacement tracking under variable load conditions.

2. Position Sensing in Rotating Equipment
Used for shaft or rotor position detection, this probe provides real-time linear displacement data, supporting automated alignment and control processes. The reverse mount design allows installation in compact or recessed spaces.

3. Keyphasor Reference for Speed Measurement
Integrated into rotating machinery, the probe enables accurate Keyphasor signal generation for speed and phase reference, critical for vibration analysis and synchronization with PLC or DCS automation systems.

4. High-Temperature Industrial Applications
Rated for operation up to 177°C (350°F), the probe performs reliably in steam turbines, chemical reactors, and petrochemical processing equipment where high temperature and harsh conditions are present.

5. Automated Machinery Condition Monitoring
By coupling with Proximitor sensors and extension cables, the 3300 XL probe supports automated condition monitoring systems, providing continuous feedback on bearing wear, rotor misalignment, and mechanical imbalance.

Specifications

Competitive Advantage

1. Superior Mechanical Robustness
Patented TipLoc molding and CableLoc designs deliver up to 330 N pull strength, reducing probe failure and ensuring long-term operational reliability in high-vibration environments.

2. Reverse Mount Flexibility
The 8 mm reverse mount configuration allows installation in tight or unconventional spaces without sacrificing measurement linearity or accuracy, offering enhanced adaptability over standard probes.

3. High-Temperature and Harsh Environment Tolerance
Operating range from -52°C to +177°C (-62°F to +350°F) with AISI 303/304 stainless steel housing ensures stable performance in extreme thermal and industrial environments.

4. Full System Interchangeability
Compatible with all 3300 XL extension cables and Proximitor sensors, eliminating the need for separate calibration and enabling easy replacement in automated monitoring systems.

5. Regulatory and Safety Compliance
Certified with CSA, ATEX, and IECEx approvals, the probe meets international safety and automation standards, making it suitable for global industrial deployment in hazardous or explosive atmospheres.
