330104-00-13-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-13-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

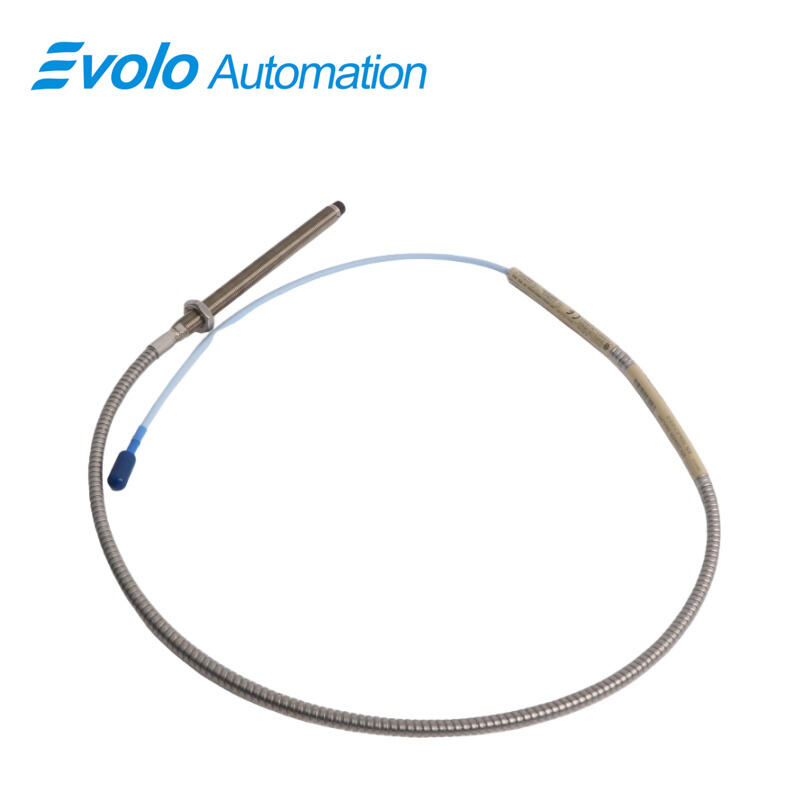

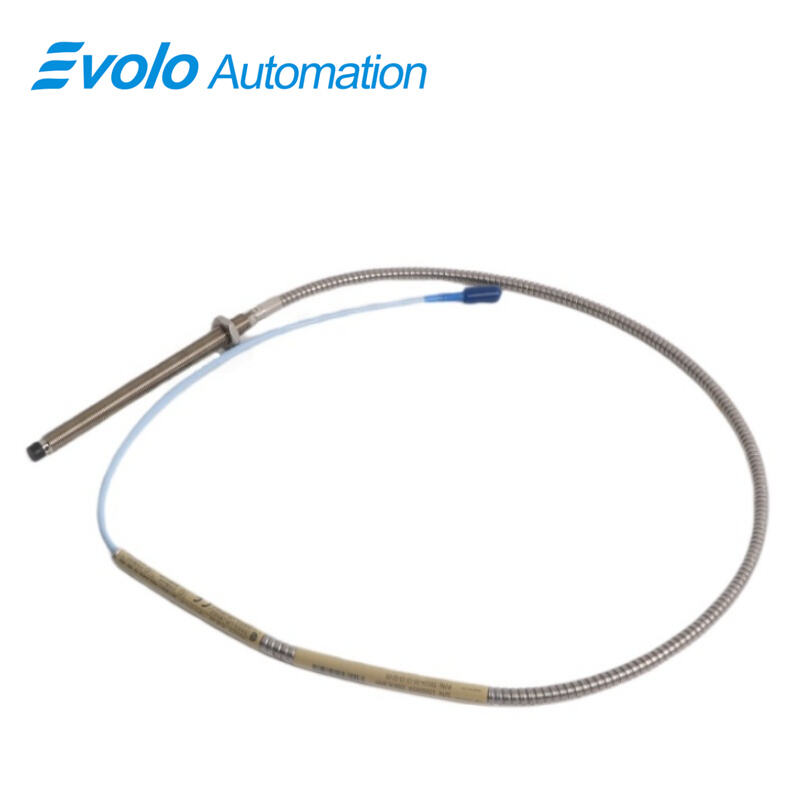

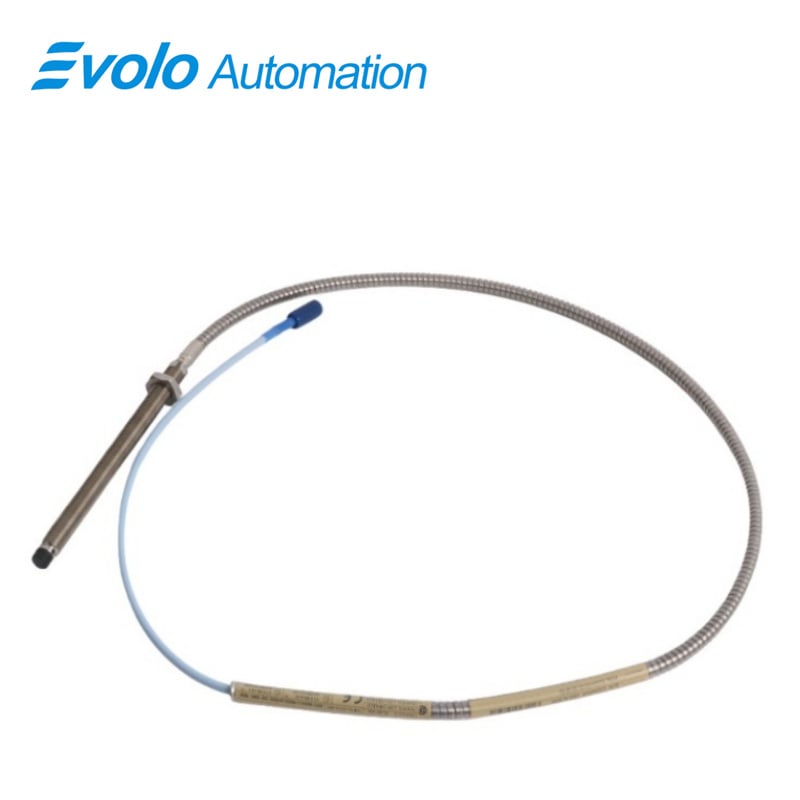

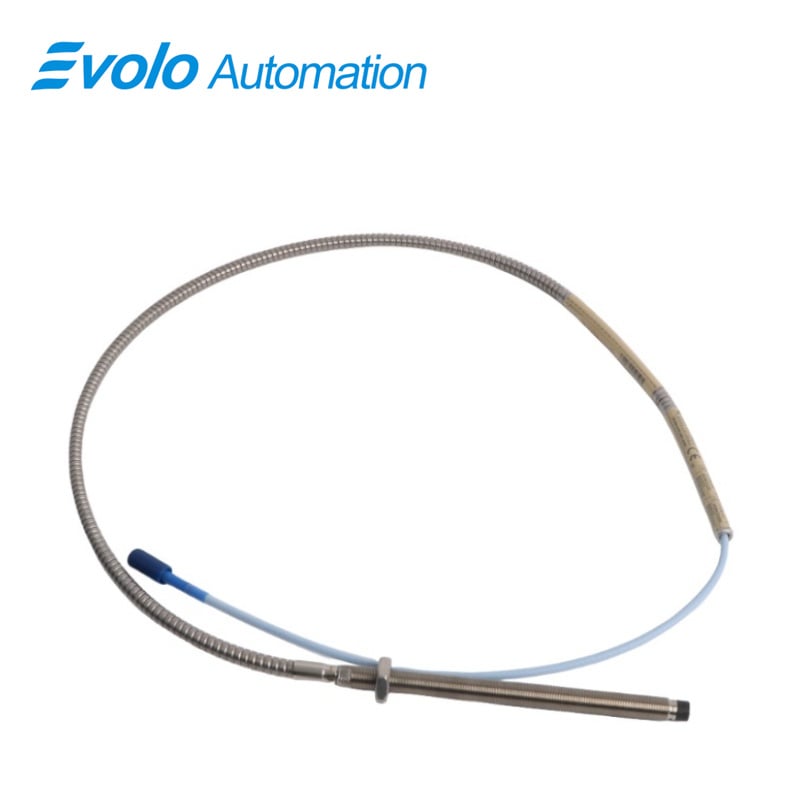

The 3300 XL 8 mm Proximity Probe (model 330104-00-13-10-02-05) is an advanced eddy current transducer designed for industrial automation systems, delivering precise vibration and position monitoring in rotating machinery. This probe generates an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, providing high-resolution static and dynamic measurements. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, the probe ensures minimal signal deviation even under extreme operating conditions.

Designed for rugged industrial environments, the 3300 XL 8 mm probe supports temperatures from -52°C to +177°C (-62°F to +350°F) and integrates a M10x1 threaded probe case with a maximum thread engagement of 15 mm. The system utilizes miniature coaxial ClickLoc connectors and supports an extension cable of up to 1.0 meter (3.3 feet) with a typical capacitance of 69.9 pF/m, maintaining signal integrity for reliable automation measurements. Enhanced with patented TipLoc and CableLoc designs, the probe offers superior tip-to-body bonding and cable retention up to 330 N (75 lbf), while the optional FluidLoc feature prevents fluid leakage, making it suitable for oil-lubricated machinery and high-precision process applications. Fully compatible with other 3300 XL and legacy 3300 series components, the system simplifies maintenance, reduces calibration time, and ensures seamless integration into industrial automation networks.

Applications

1. Turbine and Compressor Vibration Monitoring
The 3300 XL 8 mm probe provides precise vibration measurements on turbines and compressors with a linear range of 2 mm, supporting predictive maintenance and reducing unexpected downtime by 25–30%.

2. Shaft Position Detection in Fluid-Film Bearings
Accurately monitors shaft displacement and alignment, enabling real-time position feedback under extreme conditions (-52°C to +177°C), crucial for high-speed industrial pumps and generators.

3. Keyphasor and Rotational Speed Sensing
Delivers high-resolution phase and speed data for automation control systems, improving machinery efficiency and ensuring synchronization in turbine speed control applications.

4. High-Temperature Process Equipment Monitoring
The probe operates reliably in thermal environments up to +177°C, ideal for chemical reactors, refineries, and power generation systems requiring continuous high-precision position tracking.

5. Oil-Lubricated and Wet Environment Applications
Optional FluidLoc cable configuration prevents oil or fluid ingress, ensuring reliable operation in lubrication-heavy machinery or pumps, minimizing leakage and contamination risks.

Specifications

Competitive Advantage

1. High Accuracy and Stability
Less than 2 mV output variation per volt change in supply voltage ensures stable, precise readings, outperforming standard industrial probes in dynamic vibration and position monitoring.

2. Robust Mechanical Design
TipLoc and CableLoc patented features provide enhanced bonding and cable retention (330 N), increasing durability and reducing maintenance frequency by over 20%.

3. Modular and Interchangeable Components
Fully backward-compatible with other 3300 XL and legacy 3300 probes, cables, and Proximitor modules, reducing calibration efforts and simplifying system upgrades.

4. Industry Standard Compliance
Certified to CSA, ATEX, IECEx, and compliant with API 670 for mechanical configuration, linearity, and temperature stability, ensuring seamless integration in global automation systems.

5. Compact, Low-Capacitance Cable System
Supports 1.0 meter extension cable with low capacitance (69.9 pF/m), maintaining signal integrity in tight industrial layouts, critical for precision automation measurements.
