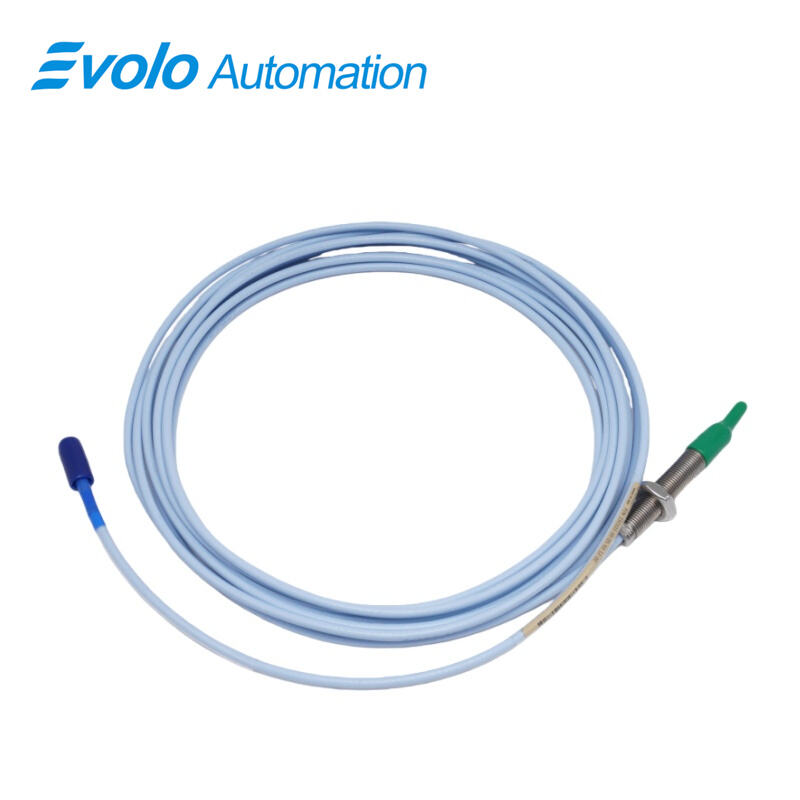

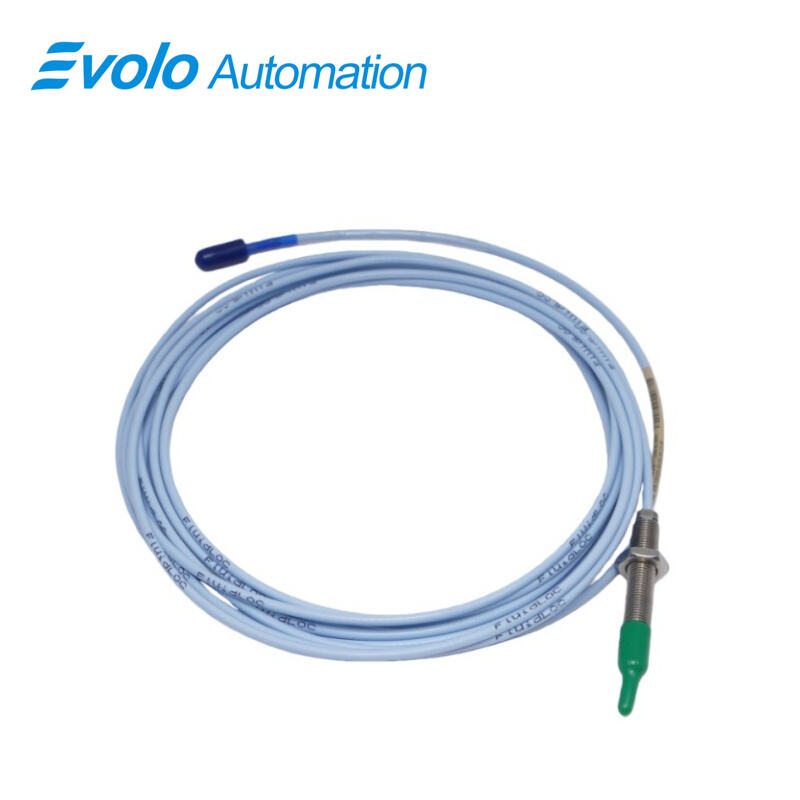

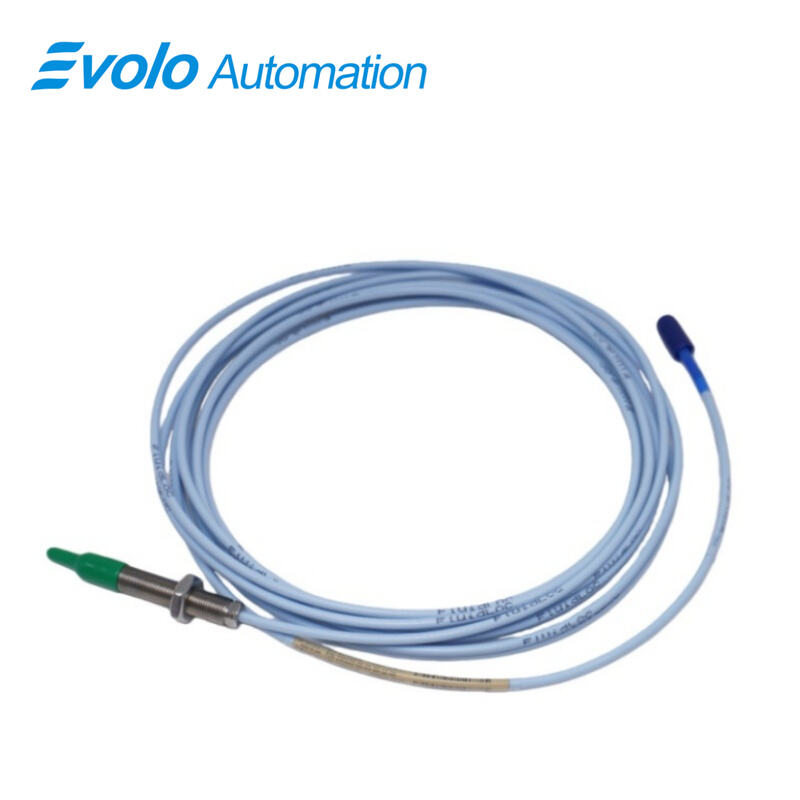

330103-00-05-50-12-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-50-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-05-50-12-00 is a 3300 XL 8 mm Proximity Probe engineered for automated machinery monitoring where long-distance vibration and position measurement is required. 330103-00-05-50-12-00 converts the distance between the probe tip and a conductive surface into a proportional voltage output, supporting both static and dynamic displacement measurement. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, 330103-00-05-50-12-00 delivers precise signals to automation and protection systems.

The probe body of 330103-00-05-50-12-00 features an M10x1 threaded case with a minimum case length of 50 mm and maximum thread engagement of 15 mm, allowing close installation near bearings and shafts. The total probe length of 5.0 meters allows 330103-00-05-50-12-00 to connect directly to remote automation racks without additional cable extensions. Equipped with a miniature coaxial ClickLoc connector and optional FluidLoc cable, 330103-00-05-50-12-00 ensures reliable signal transmission while preventing oil or fluid migration, making it ideal for motors, pumps, and compressors in industrial automation requiring continuous vibration and position monitoring.

Applications

Vibration monitoring in large industrial machinery
330103-00-05-50-12-00 is installed near shafts of turbines, compressors, and pumps to convert vibration displacement into a proportional voltage signal within a 2 mm linear range. The 50 Ω output resistance allows 330103-00-05-50-12-00 to deliver accurate vibration data to automated monitoring and protection systems.

Long-distance shaft position measurement
With a total probe length of 5.0 meters, 330103-00-05-50-12-00 can connect remote bearing housings directly to control racks. The M10x1 threaded case with 15 mm maximum thread engagement enables 330103-00-05-50-12-00 to be mounted precisely close to the shaft for axial movement measurement.

Speed and phase reference input for automation
The 69.9 pF/m extension cable capacitance ensures 330103-00-05-50-12-00 provides repeatable waveform signals for speed detection and phase reference in automated control systems.

Condition monitoring for automated motors, pumps, and compressors
Equipped with a miniature coaxial ClickLoc connector and optional FluidLoc cable, 330103-00-05-50-12-00 transmits continuous vibration and position data to support alarm logic and automated shutdown procedures.

Specifications

Competitive Advantage

Direct mounting in deep or remote bearing housings
The 50 mm minimum case length of 330103-00-05-50-12-00 allows it to reach measurement points inside deep bearing housings without additional adapters.

Reliable long-distance signal transmission
With a 5.0-meter total probe length, 330103-00-05-50-12-00 delivers consistent voltage output over extended cable runs, reducing signal loss to automation racks.

Wide operational temperature range
Rated from -52°C to +177°C, 330103-00-05-50-12-00 operates effectively in cold start and high-temperature environments, maintaining accurate measurement outputs.

Secure electrical connection under continuous vibration
The miniature coaxial ClickLoc connector and optional FluidLoc cable enable 330103-00-05-50-12-00 to maintain a secure electrical connection even under high-vibration conditions in automated industrial equipment.
