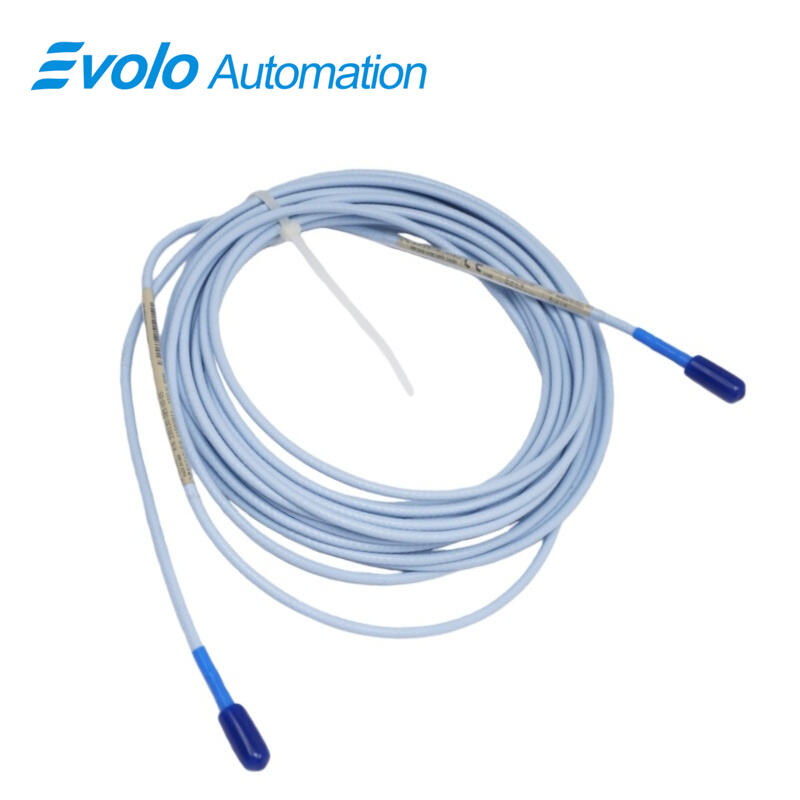

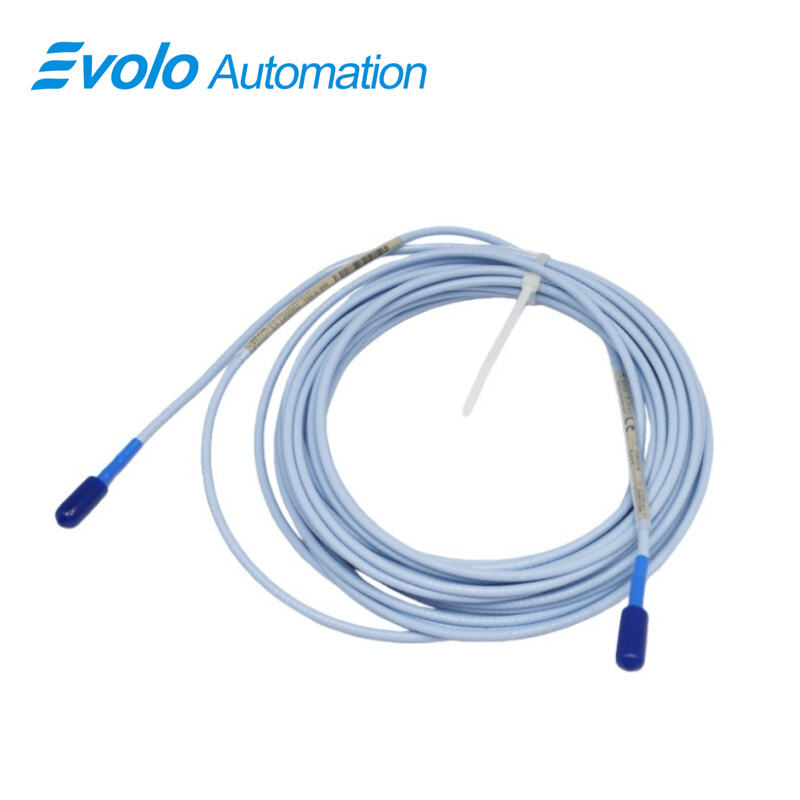

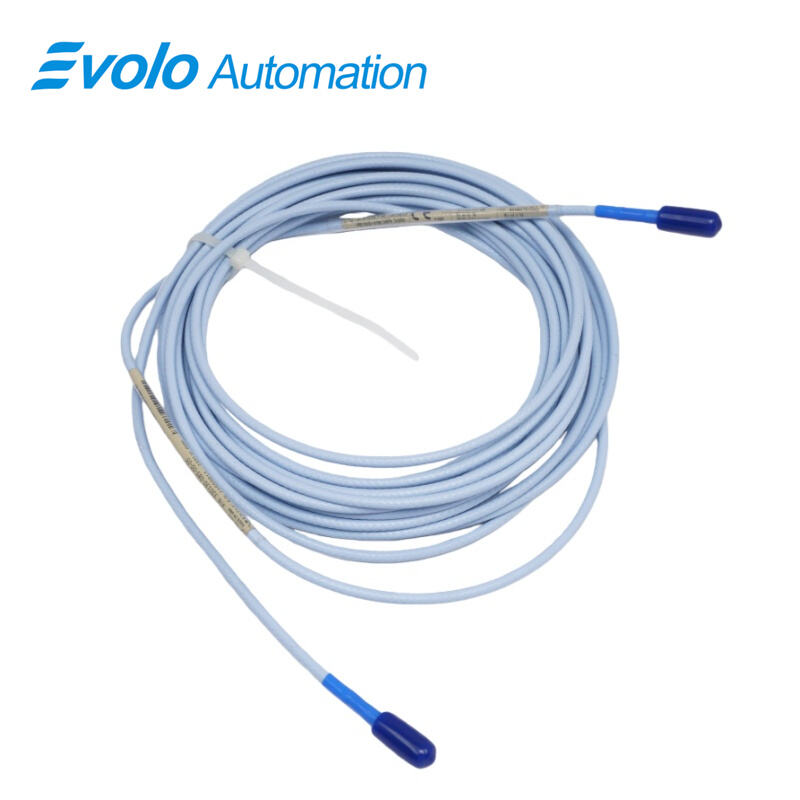

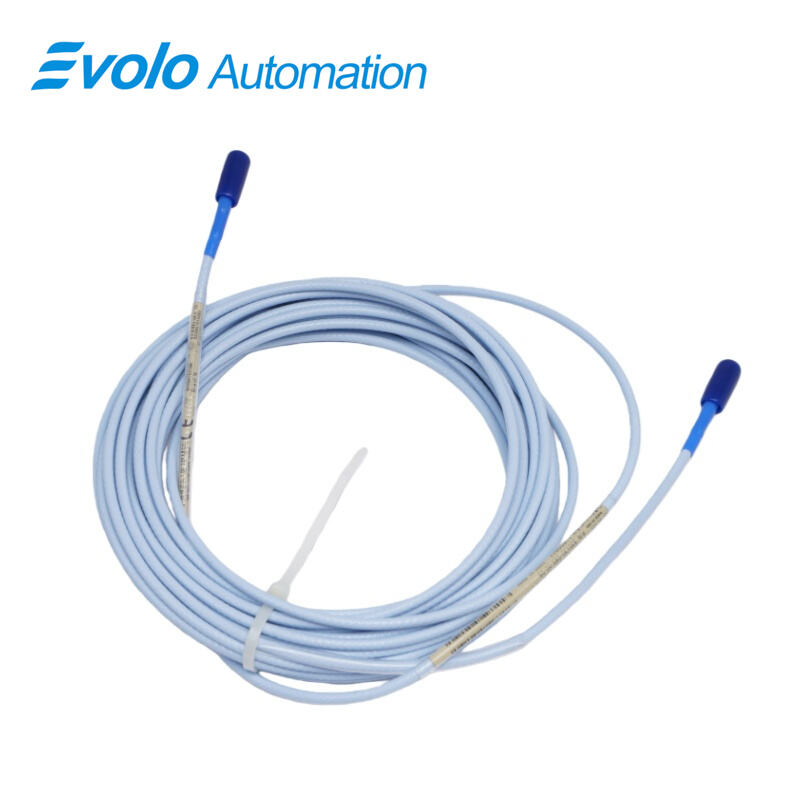

330130-080-03-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-03-05 0.82kg
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-00-02 3300 XL Standard Extension Cable is an integral component of the 3300 XL 8 mm Proximity Transducer System, specifically designed to deliver reliable, high-precision signal transmission in industrial automation and rotating machinery monitoring applications. This extension cable ensures seamless connectivity between the 3300 XL proximity probes and Proximitor sensors, enabling accurate measurement of both static displacement (position) and dynamic vibration signals on critical machinery.

Engineered for advanced automation systems, the 3300 XL Standard Extension Cable supports the full capabilities of the 3300 XL proximity transducer system. It maintains signal integrity over extended lengths, providing a robust connection that minimizes interference, electrical noise, and potential signal loss. This makes it ideal for applications on fluid-film bearing machines, turbine monitoring, generator shafts, and other high-speed rotating equipment.

Designed with compliance and performance in mind, the 330130-085-00-02 extension cable adheres to the American Petroleum Institute (API) 670 standard, guaranteeing mechanical configuration, linearity, temperature stability, and accuracy requirements are met. Each cable is fully interchangeable with other 3300 XL system components, allowing operators to replace or extend cables without the need for recalibration or custom matching. This backward compatibility extends to non-XL 3300 series components, including 5 mm and 8 mm probes, providing versatile deployment in diverse industrial environments.

The cable incorporates a rugged design optimized for automation environments. Its construction includes high-strength insulation, a durable jacket resistant to oils and industrial fluids, and superior strain relief for extended operational life. An optional FluidLoc cable variant prevents leakage of lubricants or other fluids through the cable interior, ensuring both safety and system reliability in challenging process conditions.

With the 330130-085-00-02 3300 XL Standard Extension Cable, industrial automation systems gain enhanced operational reliability, easy integration, and optimal performance for vibration and position monitoring tasks. This extension cable exemplifies Bently Nevada’s commitment to delivering robust, high-accuracy, and long-lasting components for modern industrial machinery monitoring. Its role in enabling precise signal transmission is critical for predictive maintenance programs, reducing unplanned downtime, and optimizing machine performance in automated facilities.

Applications

The 330130-085-00-02 3300 XL Standard Extension Cable is specifically designed to complement the 3300 XL 8 mm Proximity Transducer System, enabling precise transmission of both static and dynamic signals from proximity probes to Proximitor sensors in industrial automation environments. With a cable length of 8.5 meters (27.9 feet), it allows flexible installation in large machinery, ensuring reliable measurements even at extended distances.

This extension cable is widely applied in vibration and position monitoring of rotating equipment, including fluid-film bearing machines, turbines, generators, and compressors. It provides the stable and accurate signal transmission required for Keyphasor reference signals and rotational speed measurements, supporting advanced machinery condition monitoring and predictive maintenance programs.

Built to withstand harsh industrial conditions, the 3300 XL Standard Extension Cable operates reliably across an extensive temperature range of -52°C to +177°C (-62°F to +350°F). Its construction utilizes 75 Q triaxial cables with fluoroethylene propylene (FEP) insulation, ensuring excellent resistance to oils, lubricants, and environmental contaminants. The cable’s low capacitance (69.9 pF/m) and high output stability ensure minimal signal degradation, making it suitable for high-precision automation applications.

The cable’s mechanical and electrical design supports a linear measurement range of 2 mm (80 mils) with a recommended radial vibration gap setting of -9 Vdc (~1.27 mm or 50 mils). Its output resistance of 50 Ω and minimal sensitivity to supply voltage changes (less than 2 mV per volt) guarantee reliable data collection in real-time monitoring systems. The cable accommodates field wiring from 16 to 24 AWG (0.2–1.5 mm²), providing installation flexibility for diverse automation setups.

Additionally, the 330130-085-00-02 extension cable is fully compliant with CSA, ATEX, and IECEx approvals, enabling deployment in hazardous or explosive environments. It is backward compatible and interchangeable with other 3300 XL 8 mm and 5 mm transducer system components, simplifying system upgrades and reducing maintenance downtime. Optional FluidLoc cable variants are available to prevent fluid leakage through the cable, further enhancing operational safety and reliability.

In summary, the 3300 XL Standard Extension Cable is essential for automated machinery monitoring systems, offering precise signal integrity, robust environmental resistance, and versatile installation options. It supports critical industrial applications that demand accurate vibration and position measurements, contributing directly to equipment performance optimization and predictive maintenance strategies.

Specifications

Competitive Advantage

Exceptional Signal Integrity for Automation Systems

The 330130-085-00-02 3300 XL Standard Extension Cable ensures precise and reliable signal transmission between 3300 XL proximity probes and Proximitor sensors. With a low capacitance of 69.9 pF/m and output resistance of 50 Ω, the cable minimizes signal degradation over its 8.5-meter (27.9 feet) length, providing consistent, high-fidelity data for both static position and dynamic vibration monitoring in automated machinery systems.

Rugged Design for Harsh Industrial Environments

Constructed with 75 Q triaxial cable and fluoroethylene propylene (FEP) insulation, this extension cable withstands extreme operating conditions ranging from -52°C to +177°C (-62°F to +350°F). Its robust design resists oils, lubricants, and environmental contaminants, making it suitable for use in turbines, generators, compressors, and fluid-film bearing machines. Optional FluidLoc cable variants prevent oil or fluid leakage, enhancing operational safety and system reliability.

Flexible Installation and Interchangeability

The cable supports field wiring from 16 to 24 AWG (0.2–1.5 mm²), allowing easy integration into diverse industrial setups. Fully compatible with all 3300 XL 8 mm and 5 mm transducer system components, it eliminates the need for custom calibration or matching of individual components. This interchangeability simplifies maintenance, reduces downtime, and enables quick system upgrades.

Compliance with Industry Standards

With CSA, ATEX, and IECEx approvals, the 3300 XL Standard Extension Cable meets global safety and performance requirements for hazardous and high-risk industrial environments. Its adherence to the API 670 standard ensures consistent mechanical configuration, linear range, and temperature stability, giving operators confidence in long-term reliability and operational accuracy.

Enhanced Mechanical Performance

The cable incorporates patented CableLoc and TipLoc designs, providing high pull strength (330 N / 75 lbf) and a robust bond between the probe and cable. These improvements ensure durability, reduce installation errors, and support the rigorous demands of continuous monitoring in automated industrial systems.

In summary, the 330130-085-00-02 3300 XL Standard Extension Cable offers unmatched reliability, high-precision signal transmission, and robust performance in demanding automation applications, making it an essential component for predictive maintenance and advanced machinery monitoring systems.
