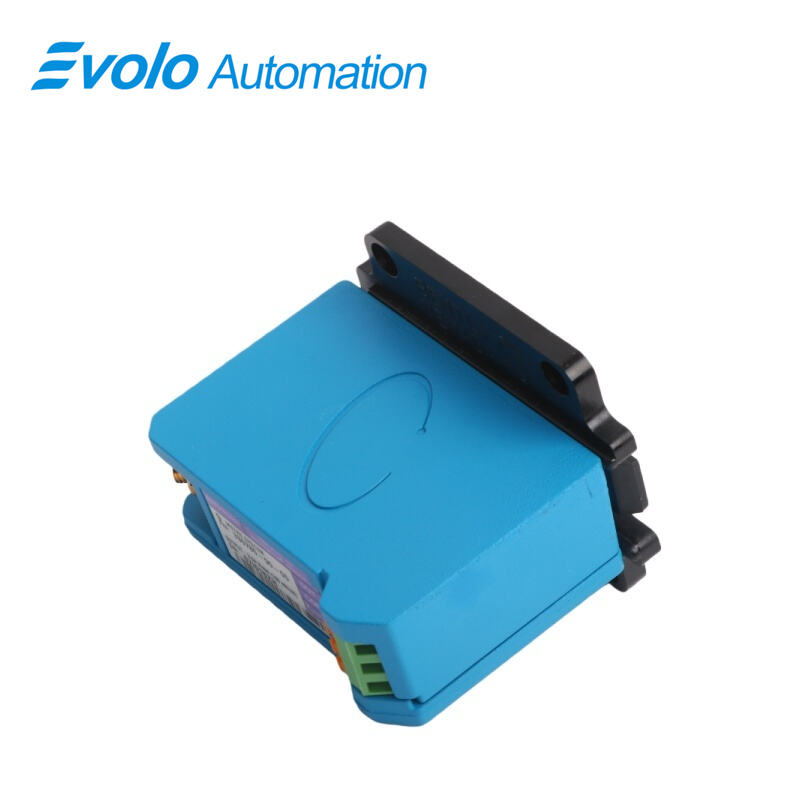

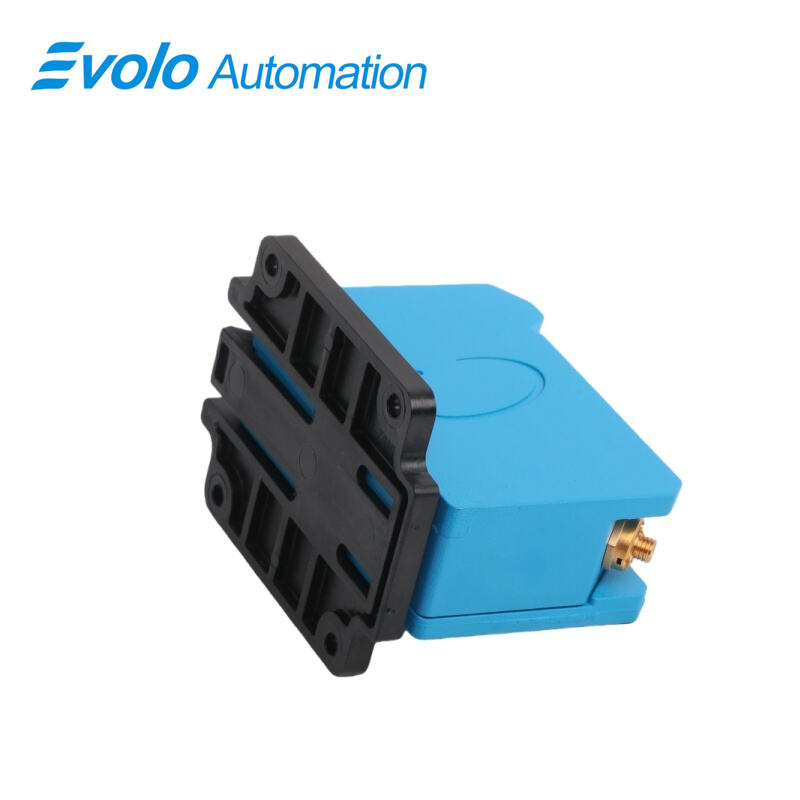

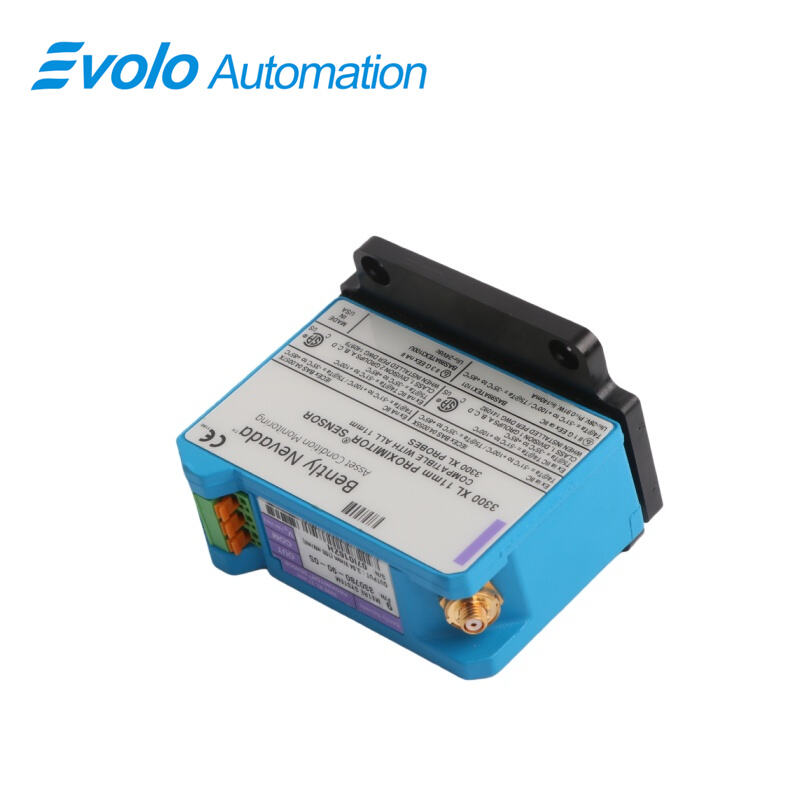

330780-90-05 3300 XL 11 mm Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330780-90-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330780-90-05 3300 XL 11 mm Proximitor Sensor is an advanced condition monitoring solution engineered to serve as a high-performance replacement for the legacy 7200-series 11 mm and 14 mm Transducer Systems, bringing enhanced reliability, precision, and compatibility to industrial rotating equipment monitoring. As a core component of the 3300 XL Transducer System, this 330780-90-05 3300 XL 11 mm Proximitor Sensor is designed to address the limitations of older 7200-series systems, delivering superior signal integrity and adaptability for modern industrial workflows. When upgrading from 7200-series systems to the 3300 XL 11 mm platform, it is critical to replace all existing components with dedicated 3300 XL 11 mm counterparts—including probes, extension cables, and the 330780-90-05 3300 XL 11 mm Proximitor Sensor itself—to ensure seamless system integration and optimal performance. This full-component upgrade eliminates compatibility gaps that could compromise measurement accuracy or system stability, a key advantage over partial retrofits that often lead to operational disruptions.

Beyond component replacement, the 330780-90-05 3300 XL 11 mm Proximitor Sensor requires corresponding updates to the monitoring system to unlock its full capabilities. For users leveraging the 3500 Monitoring System, an updated version of the configuration software is mandatory—this software upgrade explicitly lists the 3300 XL 11 mm Transducer System as a compatible option, enabling intuitive setup and parameter customization. Existing 3300 Monitoring Systems, while inherently more aligned with the 3300 XL ecosystem, may require minor modifications to fully support the 330780-90-05 3300 XL 11 mm Proximitor Sensor’s advanced features, such as enhanced RFI/EMI immunity and expanded temperature tolerance. To ensure a smooth upgrade process, contacting local sales and service representatives is highly recommended, as they can provide tailored guidance on software updates, system modifications, and on-site support to minimize downtime during transition.

Applications

1. Power Generation Industry​

Ideal for thermal, nuclear, and hydropower facilities, it monitors steam turbines, generators, and pumps. Its -52°C to +177°C range withstands extreme temperatures, while the 12cm×8cm×4cm, 0.3kg design (140mm case length) fits standard control cabinets via panel mount. 5.0/9.0-meter cable options and 50 Ω/69.9 pF/m low-loss design ensure accurate detection of shaft misalignment and rotor vibration, safeguarding power supply continuity.​

2. Oil and Gas Industry​

Compliant with industry safety standards via multiple approvals, it operates reliably in flammable/corrosive environments (e.g., drilling platforms, refineries). -17.5 to -26 Vdc power and /V sensitivity ensure stable output amid voltage fluctuations. Panel mounting and dual cable lengths adapt to diverse layouts, monitoring pump wear and compressor imbalance to prevent unplanned downtime.

3. Heavy Machinery and Manufacturing Industry​

Used for motors, gearboxes, and conveyors in steel, cement, and automotive sectors. Compact 12cm×8cm×4cm, 0.3kg build enables flexible panel mounting in dense workshops. Compatible with 0.2–1.5 mm² (16–24 AWG) wiring, it resists EMI via low capacitance/50 Ω output, delivering accurate data for predictive maintenance and efficiency gains.​

4. Aerospace and Marine Industry​

Excels in extreme environments (aircraft test benches, ship propulsion systems) with -52°C to +177°C tolerance. Multiple approvals meet strict industry standards. 5.0/9.0-meter cables fit compact on-board systems and large facilities alike, providing stable, precise monitoring of rotor displacement and vibration for operational safety.​

Specifications

Competitive Advantage

1. Extreme Temperature Resilience for Harsh Environments​

With an ultra-wide operating and storage temperature range of -52°C to +177°C, the sensor outperforms standard industrial alternatives, delivering consistent performance in extreme conditions—from freezing outdoor power facilities to high-heat turbine enclosures and humid marine environments. This resilience eliminates the need for additional thermal protection, reducing deployment complexity and costs.​

2. Space-Saving Panel Mount & Flexible Installation​

Boasting a compact 12cm×8cm×4cm footprint, 0.3kg lightweight design, and 140mm overall case length, the sensor fits seamlessly into space-constrained control cabinets via panel mount. Dual length options (5.0m standard, 9.0m system length) cater to short and long-distance wiring needs, while compatibility with 0.2–1.5 mm² (16–24 AWG) field wiring enables hassle-free integration with existing industrial infrastructure.​

3. Global Compliance for Critical Industry Deployment​

Backed by multiple agency approvals, the sensor meets stringent international safety and quality standards (e.g., CE, UL, CSA), making it suitable for regulated sectors like power generation, oil and gas, aerospace, and marine. This compliance removes market access barriers for global projects and supports project bidding requirements.
