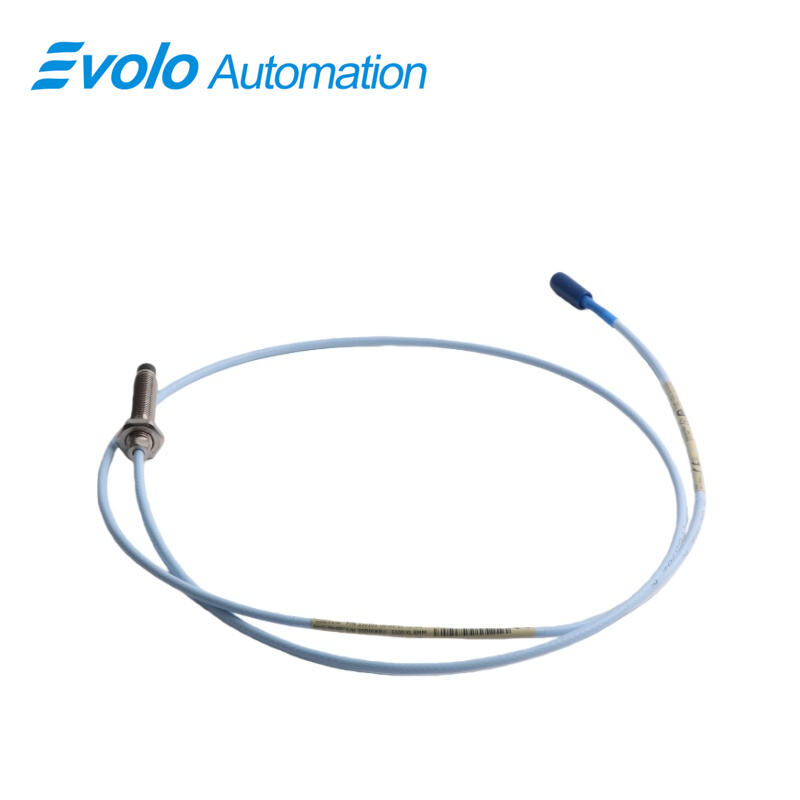

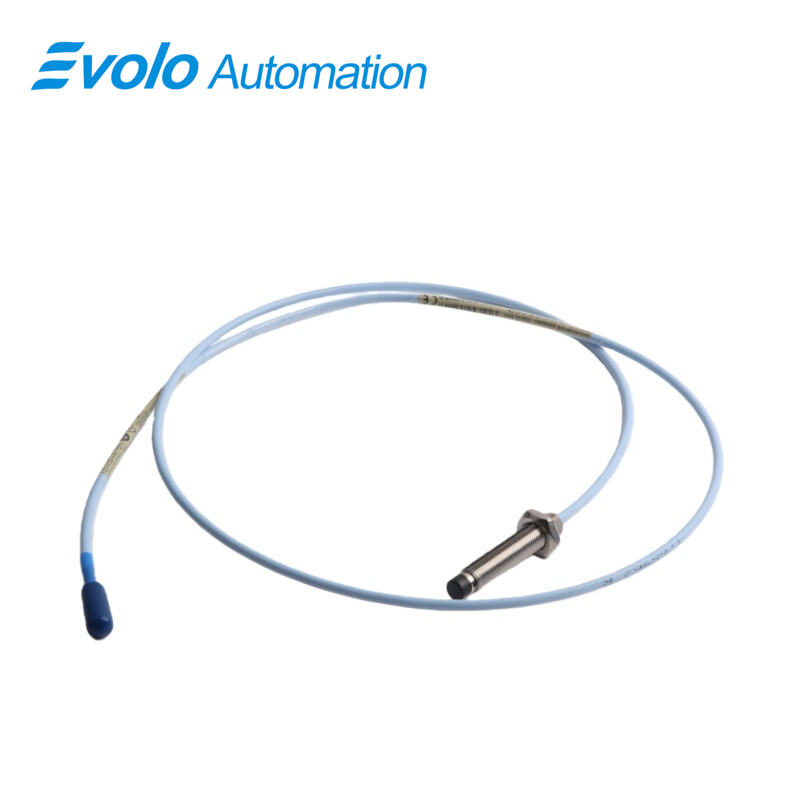

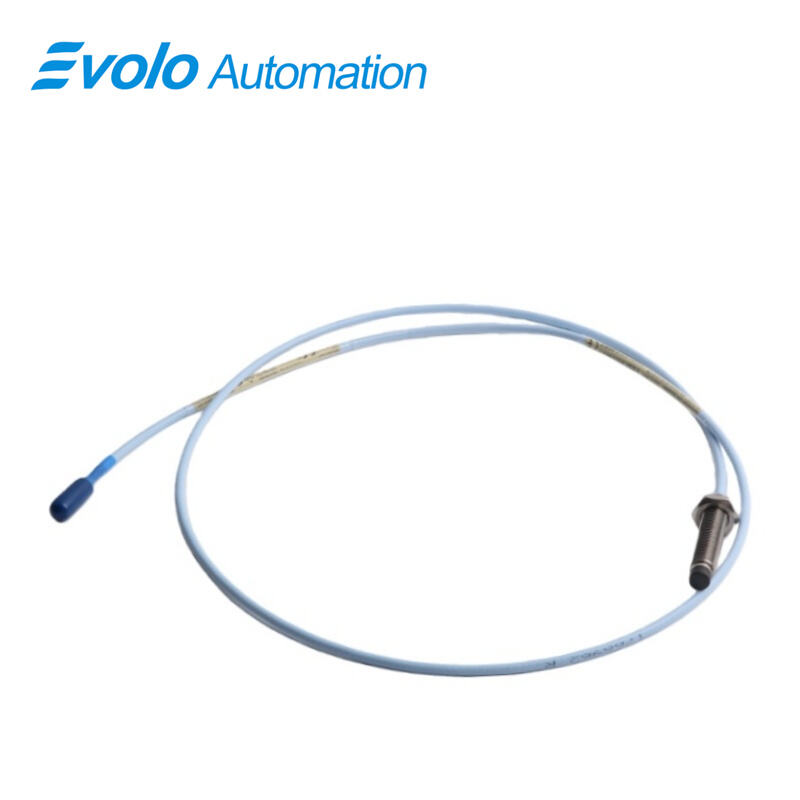

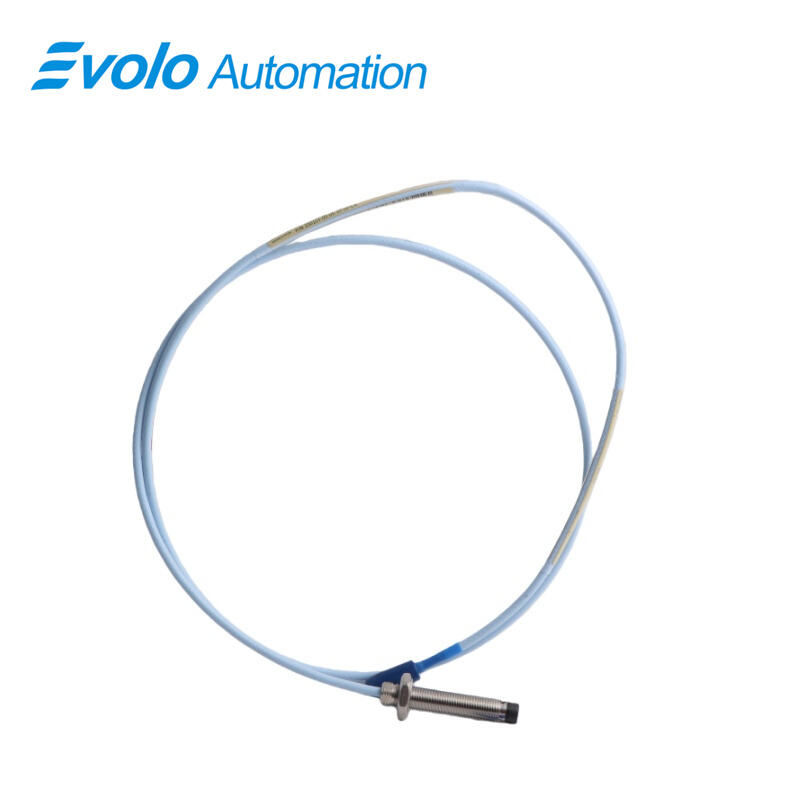

330103-00-05-10-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-05-10-02-CN is a 3300 XL 8 mm Proximity Probe designed for automated machinery monitoring where precise shaft position and vibration data are required. 330103-00-05-10-02-CN converts the distance between the probe tip and a conductive surface into a proportional voltage signal, enabling automation systems to capture both static and dynamic displacement. With a linear range of 2 mm, an output resistance of 50 Ω, and supply sensitivity below 2 mV per volt, 330103-00-05-10-02-CN delivers accurate signals to control and protection racks.

The probe body of 330103-00-05-10-02-CN features an M10x1 threaded case with a minimum case length of 50 mm and maximum thread engagement of 15 mm, supporting installation near bearings and shafts. The 1.0 meter total probe length, combined with a miniature coaxial ClickLoc connector and standard cable, ensures reliable signal transmission. Rated for operating temperatures from -52°C to +177°C and approved for CSA, ATEX, and IECEx, 330103-00-05-10-02-CN is suitable for automated motors, pumps, and compressors in industrial applications requiring continuous vibration and position monitoring.

Applications

Vibration monitoring in rotating machinery
330103-00-05-10-02-CN is installed near turbine, compressor, and pump shafts to convert vibration displacement into a proportional voltage output within a 2 mm linear range. The 50 Ω output resistance allows 330103-00-05-10-02-CN to transmit clean signals to automated protection racks.

Axial position measurement for bearing systems
By maintaining supply sensitivity below 2 mV per volt, 330103-00-05-10-02-CN tracks axial movement in thrust and journal bearings. The M10x1 threaded case with 15 mm maximum thread engagement enables 330103-00-05-10-02-CN to be installed precisely in bearing housings.

Speed and phase reference for automation control
The controlled extension cable capacitance of 69.9 pF/m allows 330103-00-05-10-02-CN to provide repeatable waveform signals for speed detection and phase reference calculations in automated machinery control systems.

Condition monitoring in industrial automation
The 1.0 meter total probe length allows 330103-00-05-10-02-CN to connect directly to monitoring racks in automated motors, pumps, and compressors where vibration and position data are required for alarms and control logic.

Specifications

Competitive Advantage

Direct mounting in deeper bearing housings
The 50 mm minimum case length allows 330103-00-05-10-02-CN to reach measurement points inside deeper bearing housings without adapters.

Predictable voltage output for automation inputs
With a 2 mm linear range and 50 Ω output resistance, 330103-00-05-10-02-CN delivers consistent signals that simplify alarm threshold setup and signal scaling in automation systems.

Wide temperature operation
Rated from -52°C to +177°C, 330103-00-05-10-02-CN supports automated equipment during cold start and high-temperature operation.

Secure electrical connection under vibration
The miniature coaxial ClickLoc connector allows 330103-00-05-10-02-CN to maintain electrical connection in continuously vibrating automated machinery.
