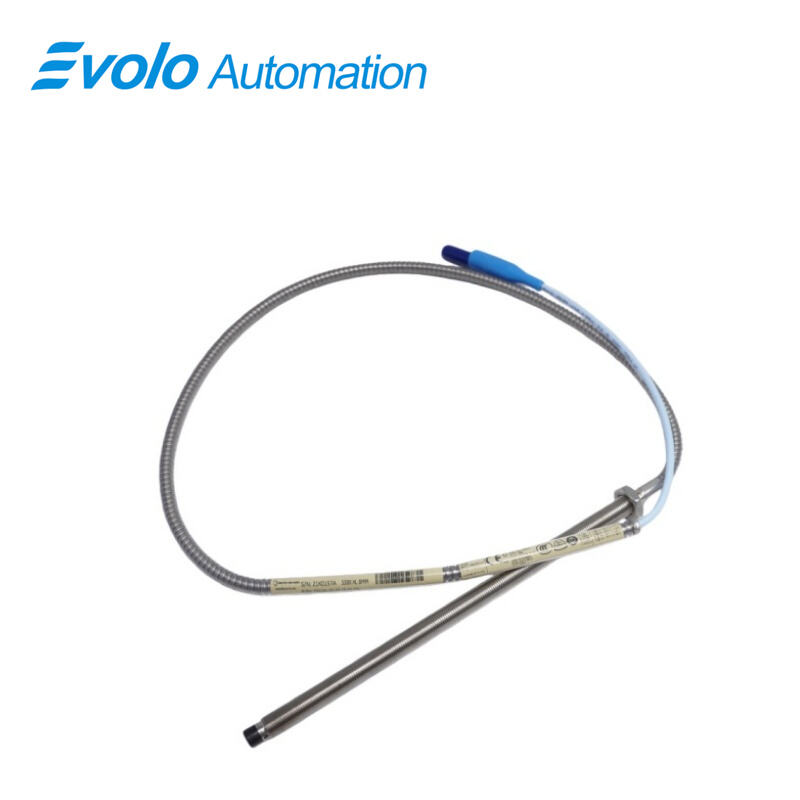

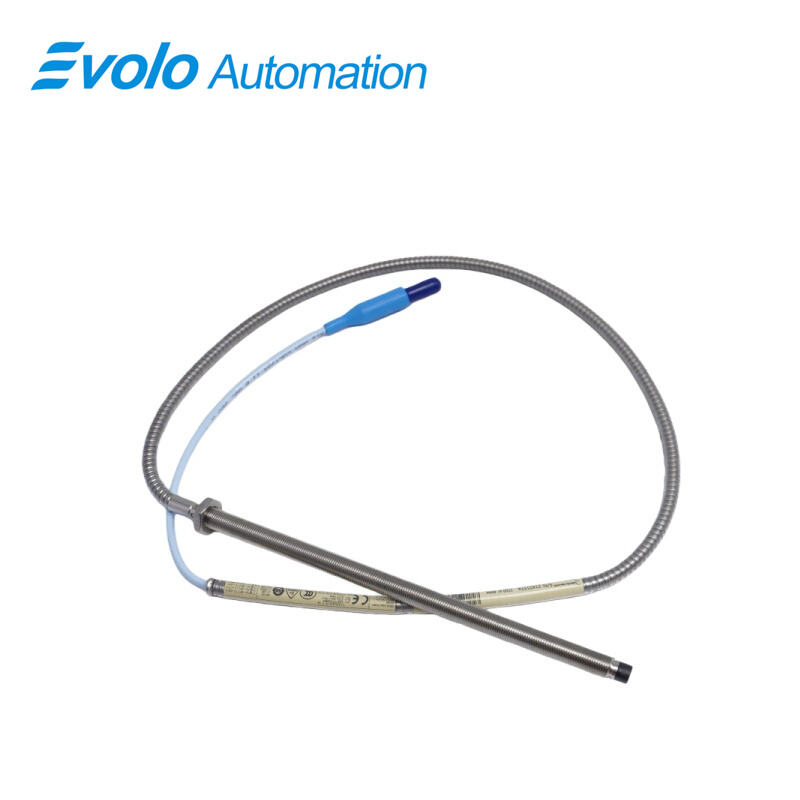

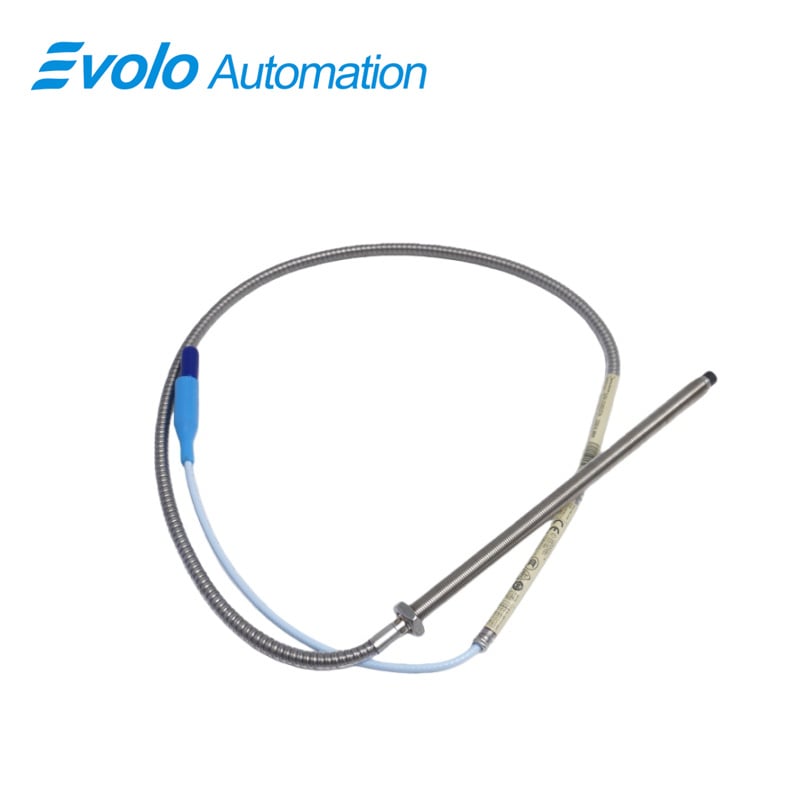

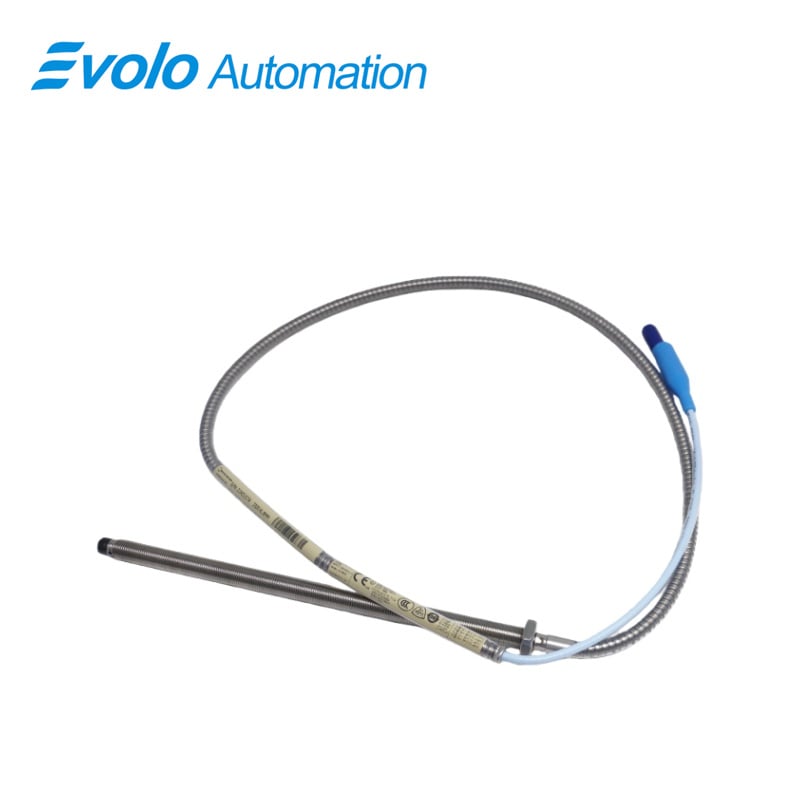

330104-00-20-10-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-20-10-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-20-10-01-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation, condition monitoring, and predictive maintenance applications. Featuring a 200 mm overall case length and an M10x1 threaded probe, this sensor provides accurate measurements of both static (position) and dynamic (vibration) values within a 2 mm linear range (80 mils). The probe delivers an output voltage directly proportional to the distance between the probe tip and conductive surfaces, enabling real-time monitoring of pumps, turbines, compressors, and fluid-film bearings in automated systems.

Equipped with a Miniature coaxial ClickLoc connector with protector and a 1.0-meter standard cable, the probe ensures consistent signal integrity and low noise transmission. It operates reliably in extreme temperatures from -52°C to +177°C (-62°F to +350°F), with supply sensitivity less than 2 mV per volt and 50 Ω output resistance, ensuring high-accuracy readings in critical automation processes. The patented TipLoc molding strengthens the bond between probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength, maintaining secure attachment under heavy vibration. Fully CSA, ATEX, and IECEx approved and API 670 compliant, the probe supports interchangeability across all 3300 series components, reducing calibration and maintenance efforts. Optional FluidLoc cable prevents fluid ingress, enhancing durability in oil-lubricated environments.

Applications

Application 1: Vibration Analysis in Rotating Machinery

Provides high-resolution vibration data on turbines and pumps, detecting imbalance and misalignment early, reducing potential downtime by up to 15%.

Application 2: Shaft Position Monitoring

Measures axial and radial shaft displacement in compressors and motors, supporting predictive maintenance and improving operational reliability.

Application 3: Keyphasor Signal Generation

Generates precise Keyphasor and speed reference signals, enhancing control system accuracy and improving phase detection consistency to ±1°.

Application 4: Bearing Condition Monitoring

Monitors fluid-film bearings and gearboxes, enabling early detection of wear or lubrication issues, which can extend component life by 12–15%.

Application 5: Hazardous Environment Automation

Certified for CSA, ATEX, and IECEx zones, enabling safe and precise operation in flammable or confined industrial spaces.

Specifications

Competitive Advantage

Competitive Advantage 1: Extreme Temperature Tolerance

Operates reliably from -52°C to +177°C, maintaining consistent readings under harsh industrial conditions.

Competitive Advantage 2: Mechanical Robustness

TipLoc and CableLoc designs provide 330 N pull strength, ensuring secure connections in high-vibration or high-speed machinery environments.

Competitive Advantage 3: Component Interchangeability

Fully compatible with all 3300 XL and standard series components, eliminating the need for custom calibration and reducing inventory complexity.

Competitive Advantage 4: Superior Signal Integrity

With 50 Ω output resistance and low extension cable capacitance (69.9 pF/m), the probe ensures accurate, low-noise measurements for critical automation systems.

Competitive Advantage 5: Optional FluidLoc Cabling

Prevents oil and liquid ingress, enhancing probe longevity, reducing maintenance intervals, and protecting sensitive equipment from contamination.
