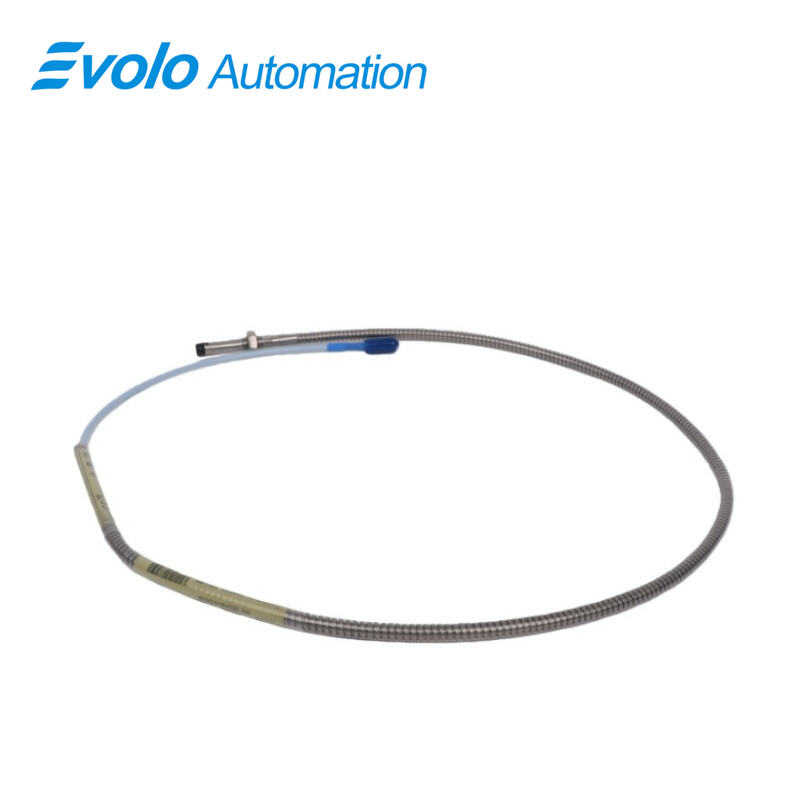

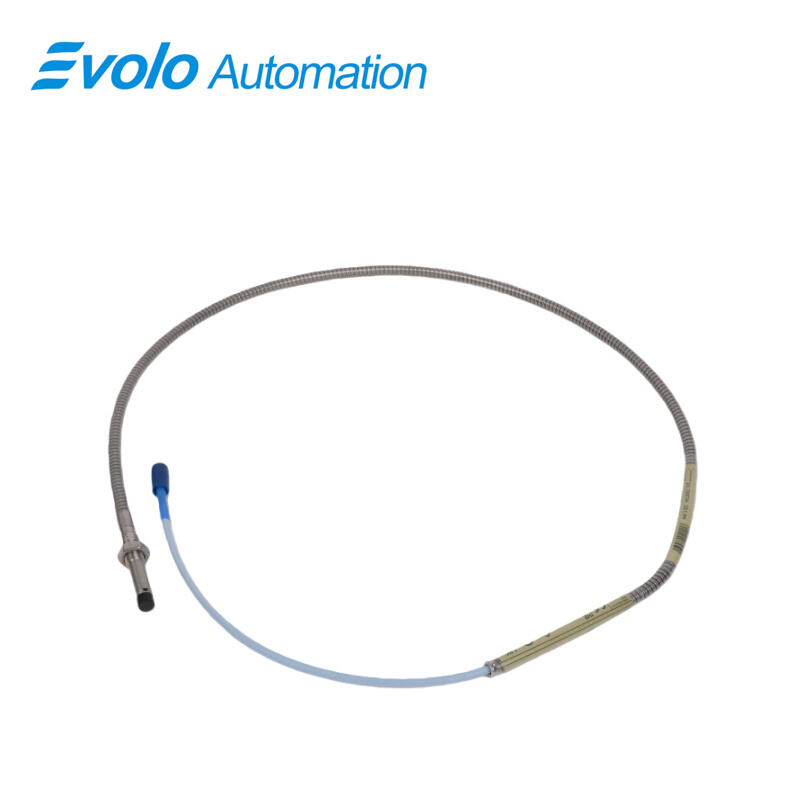

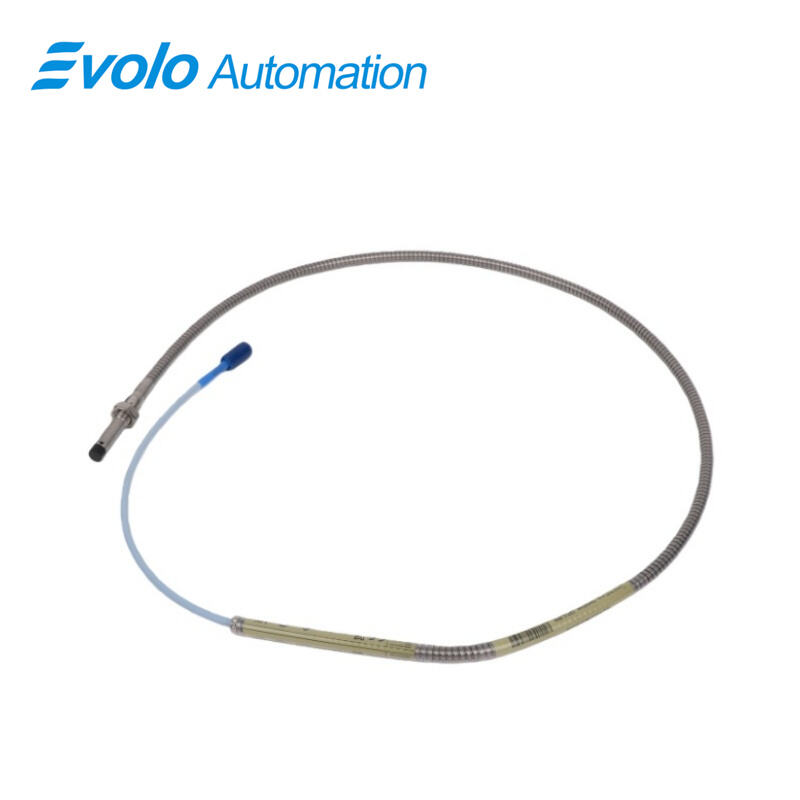

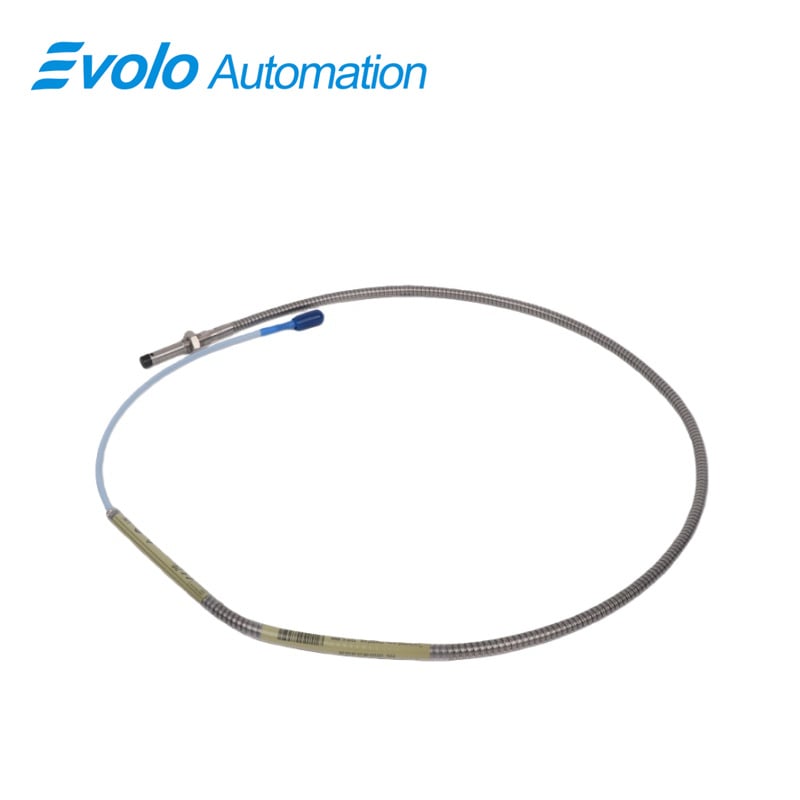

330102-08-15-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-08-15-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-08-15-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for advanced industrial automation applications. Designed to measure both static positions and dynamic vibrations, this probe provides an output voltage directly proportional to the distance between the probe tip and the target conductive surface. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m, the 3300 XL ensures accurate vibration and position monitoring on fluid-film bearing machines. The probe features a miniature coaxial ClickLoc connector with a standard 1-meter cable, 3/8-24 UNF threaded housing, and maximum thread engagement of 0.563 in, ensuring easy integration with existing 3300 series systems. Operating reliably in extreme environments from -52°C to +177°C (-62°F to +350°F), the probe maintains less than 2 mV variation in output voltage per volt change in input voltage, supporting stable, high-fidelity measurements. Its patented TipLoc and CableLoc designs provide enhanced mechanical durability, securing the probe tip and cable with 330 N (75 lbf) pull strength. Optional FluidLoc cables prevent leakage of oil and liquids, making this probe ideal for industrial automation environments demanding high precision, reliability, and compliance with API 670 standards.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 3300 XL 8 mm Proximity Probe delivers precise vibration measurements, with a linear range of 2 mm (80 mils), enabling early detection of bearing wear or imbalance in turbines, compressors, and pumps.

Position Measurement in Rotating Equipment
Capable of high-accuracy displacement sensing, this probe can monitor shaft or rotor positions in automation systems, maintaining <2 mV voltage drift per volt input change for reliable real-time control.

Keyphasor Reference for Speed Analysis
Integrated with Keyphasor systems, the 3300 XL 8 mm provides precise speed and phase reference signals for predictive maintenance and control, improving rotational machinery diagnostics.

High-Temperature Industrial Environments
Rated for -52°C to +177°C (-62°F to +350°F), the probe operates in harsh chemical or thermal environments such as petrochemical and power plants without compromising measurement accuracy.

Interchangeable Probe Systems
Compatible with standard 3300 series components, the 3300 XL 8 mm supports quick field replacements without bench calibration, enabling flexible deployment across multiple automation systems.

Specifications

Competitive Advantage

API 670 Compliance
Fully meets API 670 mechanical and performance standards, ensuring linearity, accuracy, and temperature stability for industrial automation applications requiring certified vibration monitoring.

Enhanced Mechanical Durability
Patented TipLoc molding strengthens the bond between probe tip and body, while CableLoc design secures the probe cable with 330 N (75 lbf) pull strength, reducing downtime due to mechanical failures.

Fluid Containment with FluidLoc Option
Optional FluidLoc cable design prevents leakage of lubricants or process fluids, enhancing safety and equipment longevity in automated industrial environments.

High Sensitivity and Signal Stability
Output voltage remains highly stable under varying input voltages (<2 mV per volt), ensuring precise measurement in critical control systems and automated feedback loops.

Backward Compatibility and Interchangeability
The 3300 XL 8 mm system works seamlessly with non-XL 3300 probes and extension cables, simplifying maintenance, reducing inventory complexity, and ensuring long-term integration flexibility.
