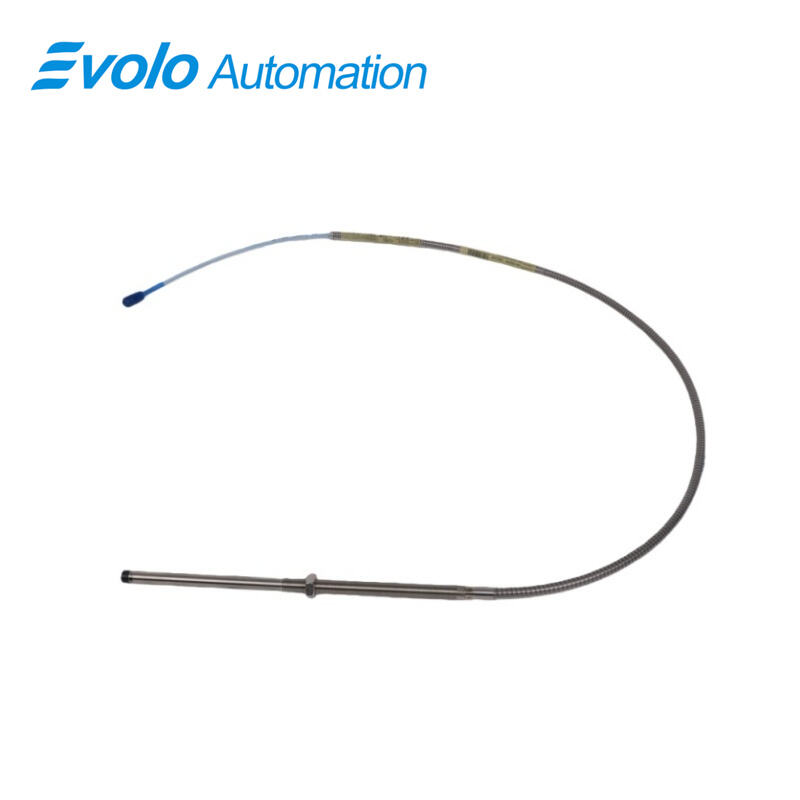

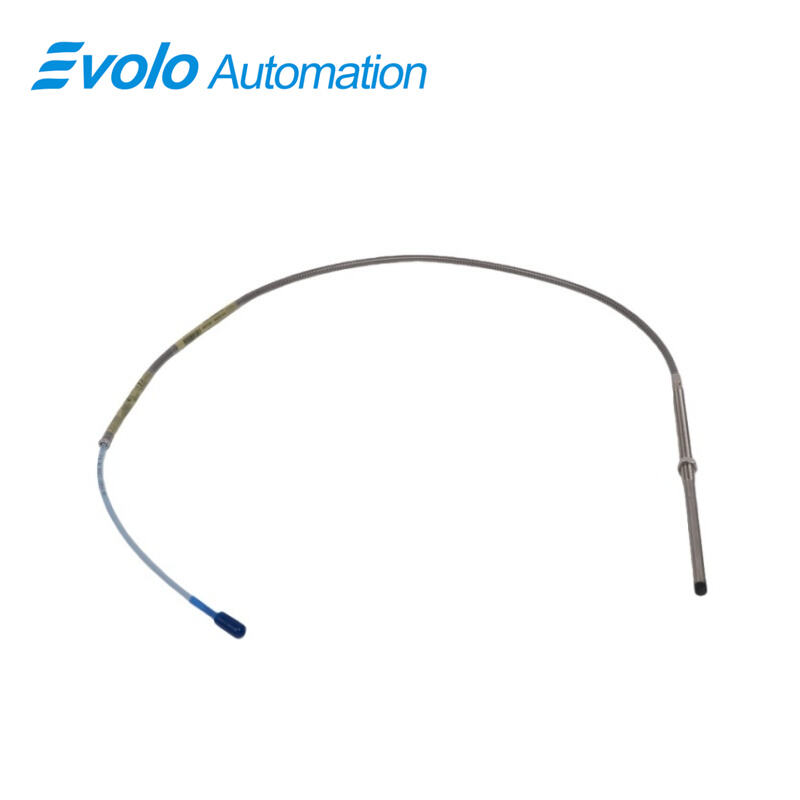

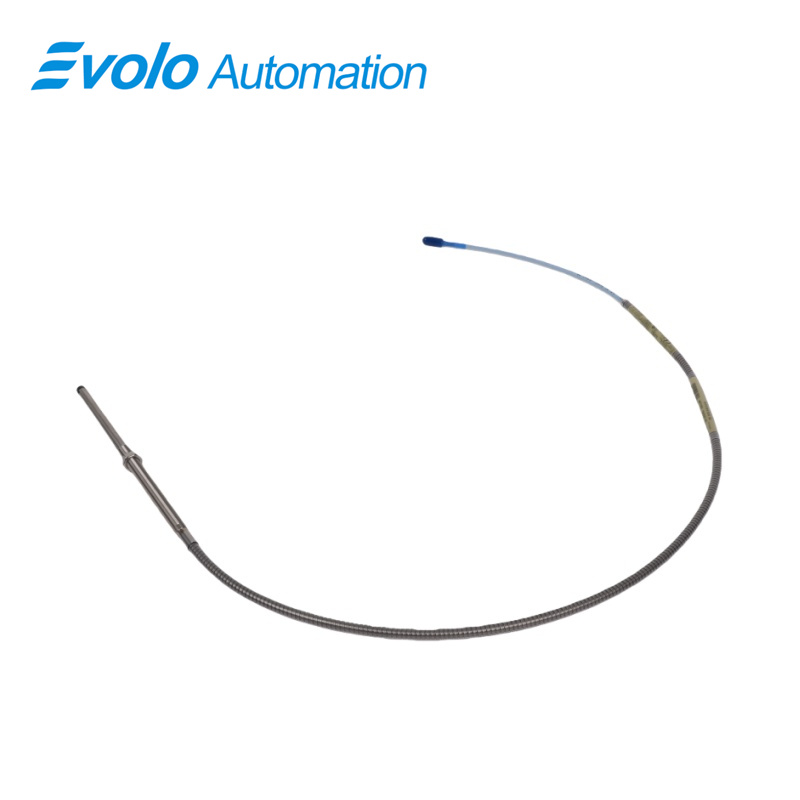

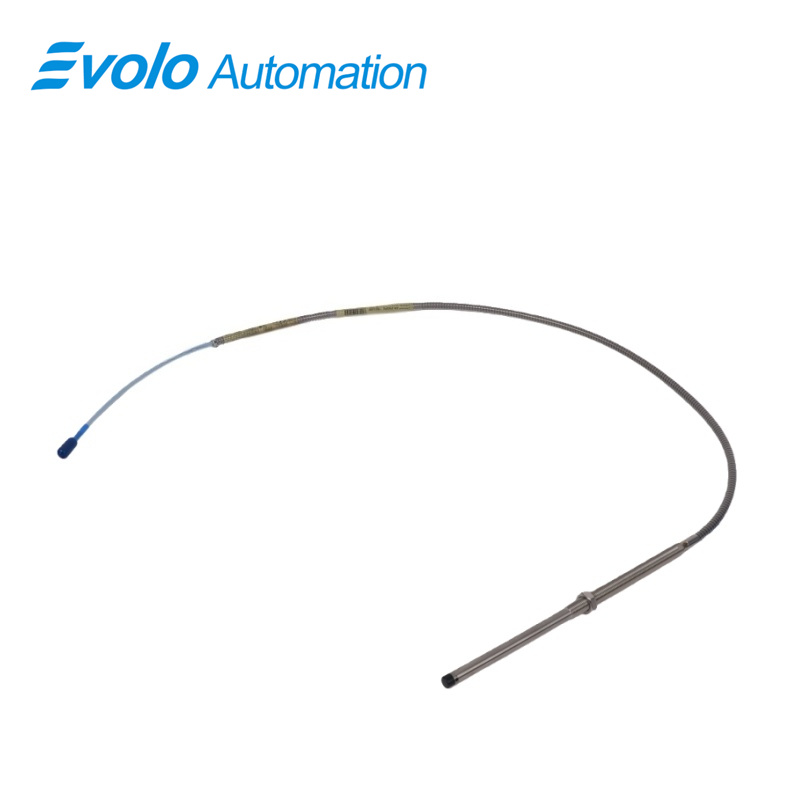

330102-36-80-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-36-80-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-36-80-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance, non-contacting transducer designed for precise vibration and position monitoring in industrial automation systems. Its M10x1 threaded stainless steel probe body, combined with a miniature coaxial ClickLoc connector and standard 1-meter cable, enables reliable measurements in harsh environments ranging from -52°C to +177°C (-62°F to +350°F). The probe outputs a voltage directly proportional to the distance between the tip and conductive target, supporting both static and dynamic measurements with a 2 mm linear range. Fully compliant with CSA, ATEX, and IECEx hazardous area approvals, it is ideal for applications in fluid-film bearing machines, turbines, and compressors. Patented TipLoc and CableLoc designs ensure robust mechanical and electrical connections, delivering 330 N (75 lbf) pull strength for secure probe-cable attachment. This 3300 XL 8 mm probe is fully interchangeable with other 3300 XL series probes, extension cables, and Proximitor sensors, eliminating the need for recalibration and simplifying system upgrades, while the optional FluidLoc cable prevents oil and fluid leakage from the machine interior.

Applications

Vibration Monitoring on Fluid-Film Bearings
Captures high-resolution radial and axial vibrations on centrifugal pumps and turbines, enabling predictive maintenance and reducing unplanned downtime.

Rotating Shaft Position Measurement
Accurately measures shaft displacement and alignment in compressors and motors, supporting real-time control and protecting equipment from misalignment or wear.

Keyphasor Phase Reference Signals
Provides reliable phase reference for rotor balancing, speed synchronization, and advanced diagnostics in compliance with API 670 standards.

Speed and Zero-Speed Detection
Enables precise speed monitoring and zero-speed detection for safe start-up and shutdown of rotating machinery, supporting automated control systems.

Hazardous Environment Monitoring
CSA, ATEX, and IECEx approvals allow use in chemical, petrochemical, and refinery operations, ensuring safe installation in potentially explosive atmospheres.

Specifications

Competitive Advantage

High Measurement Accuracy
Delivers 2 mm linear range with less than 2 mV change per volt of input variation, ensuring precise monitoring under dynamic operating conditions.

Robust Construction and Extreme Temperature Resistance
M10x1 stainless steel body operates from -52°C to +177°C, providing reliable performance in harsh, high-temperature industrial environments.

Enhanced Mechanical Stability
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, minimizing probe tip or cable detachment in high-vibration installations.

Full Interchangeability
Compatible with other 3300 XL probes, extension cables, and Proximitor sensors, enabling easy system upgrades without bench recalibration.

Leak-Resistant Cable Option
Optional FluidLoc cable prevents oil or fluid leakage through the cable, ensuring stable and contamination-free operation in lubricated machinery.
