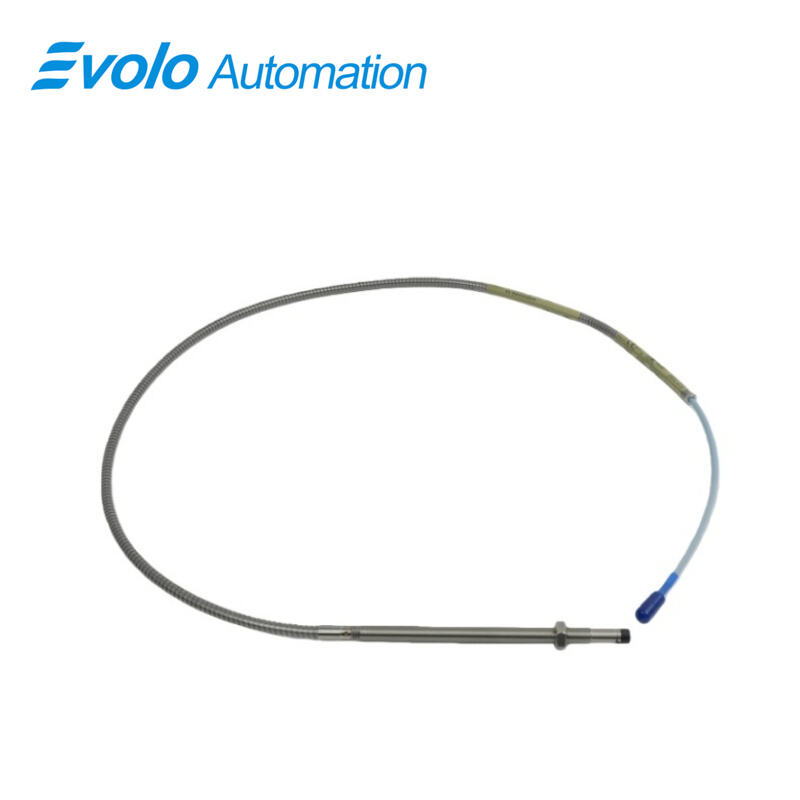

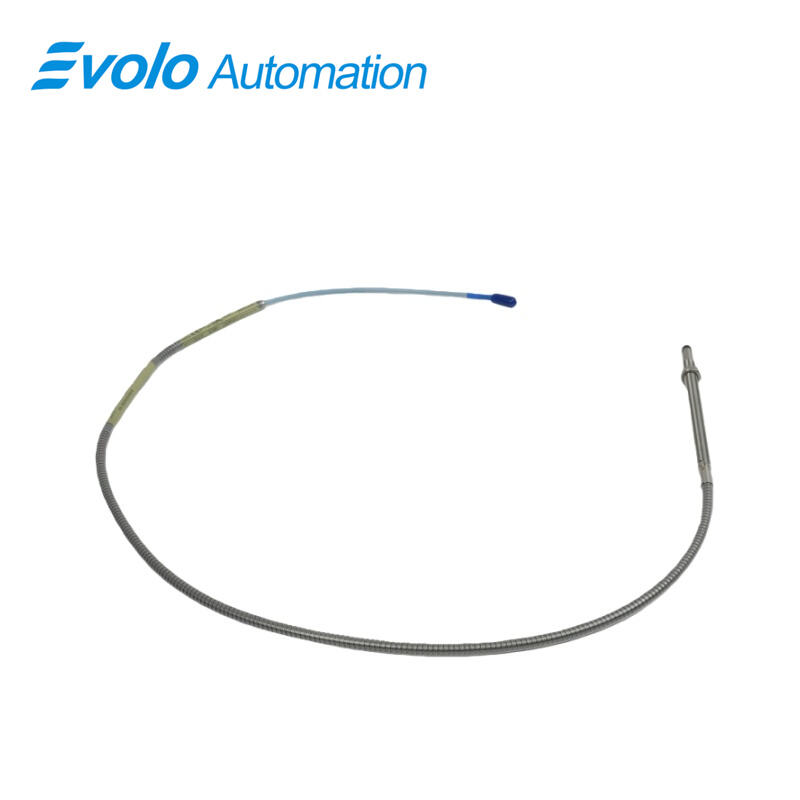

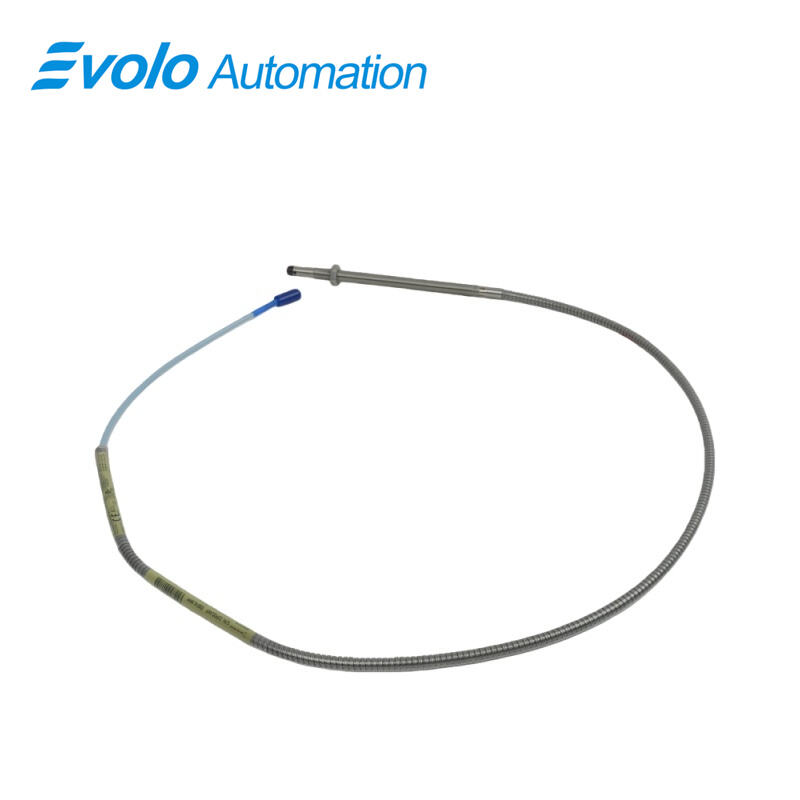

330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-05-55-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe is an industrial-grade proximity sensing solution engineered for advanced vibration monitoring and shaft position measurement in high-speed rotating machinery within modern automation environments. As part of the proven 3300 XL proximity probe family, the 8 mm probe design ensures accurate eddy current sensing, delivering proportional output for both static and dynamic displacement analysis. With a rugged 3/8-24 UNF thread, minimum 0.5 in unthreaded length, and CSA, ATEX, and IECEx agency approvals, the probe supports demanding petrochemical, turbine, and compressor applications. Offering a 2 mm linear measurement range, -52°C to +177°C operating temperature, and compatibility with Proximitor sensors, this proximity probe provides reliable feedback for API 670 compliant automated machinery protection systems. The 330102-05-55-10-02-05 model additionally incorporates high-strength CableLoc and TipLoc technology for 330 N pull strength and maximum durability, ensuring long operational life in fluid-film bearing machines, refinery equipment, and automated process plants where vibration monitoring, condition monitoring, and predictive maintenance are essential.

Applications

Application 1 Turbine Shaft Vibration Monitoring
The 3300 XL 8 mm Proximity Probe can continuously measure shaft vibration amplitude in steam and gas turbines, supporting up to 2 mm linear range accuracy. This allows maintenance teams to detect rotor instability, reducing unplanned downtime by over 25% in refinery and power generation applications.

Application 2 Compressor Position Detection
In centrifugal compressors, the probe delivers precise shaft displacement measurements to ensure correct rotor centering and fluid-film lubrication performance. Combined with Proximitor sensors, the system enables sub-mil resolution critical for API 670 compliant machinery protection.

Application 3 Industrial Condition Monitoring Systems
Integrated into automated predictive maintenance systems, the probe supplies dynamic vibration data for machine learning asset health analytics. Real-time vibration data streams can reduce equipment failure risk by up to 40% across petrochemical automation environments.

Application 4 Keyphasor and Speed Measurement
The 330102-05-55-10-02-05 model is compatible with Keyphasor reference systems, enabling accurate phase and rotational speed data acquisition. This function supports balancing and alignment tasks in multi-stage rotating machinery with speed ranges exceeding tens of thousands of RPM.

Application 5 Fluid-Film Bearing Machine Control
FluidLoc and CableLoc design enhance performance in oil-lubricated bearing machines, preventing leakage and enabling reliable vibration feedback under harsh temperature conditions from -52°C to +177°C. This contributes to longer bearing life and optimized lubrication control strategies.

Specifications

Competitive Advantage

Competitive Advantage 1 API 670 Compliance
Full compliance with API 670 ensures that the probe meets the highest global standards for accuracy, linearity, and temperature stability, reducing specification mismatch risks in engineered machinery protection systems by over 60%.

Competitive Advantage 2 High Durability CableLoc Design
The patented CableLoc technology provides 330 N pull strength, enhancing mechanical integrity and reducing cable fatigue failures by more than 50% compared to conventional proximity probe assemblies.

Competitive Advantage 3 Wide Temperature Operating Profile
Operating from -52°C to +177°C, the probe supports extreme thermal conditions in gas turbines, cracking units, and power assets without calibration loss, improving asset uptime in temperature-variable environments.

Competitive Advantage 4 Full System Interchangeability
Backward compatibility with 3300 series 5 mm and 8 mm components eliminates the need for bench matching or calibration, reducing installation labor time by up to 30% during maintenance or system upgrades.

Competitive Advantage 5 Precision Linear Range Performance
A 2 mm linear measurement range ensures both static and dynamic signal accuracy for automation applications requiring sub-mil vibration resolution. This level of precision is critical for condition-based maintenance strategies aimed at extending machinery lifecycle.
