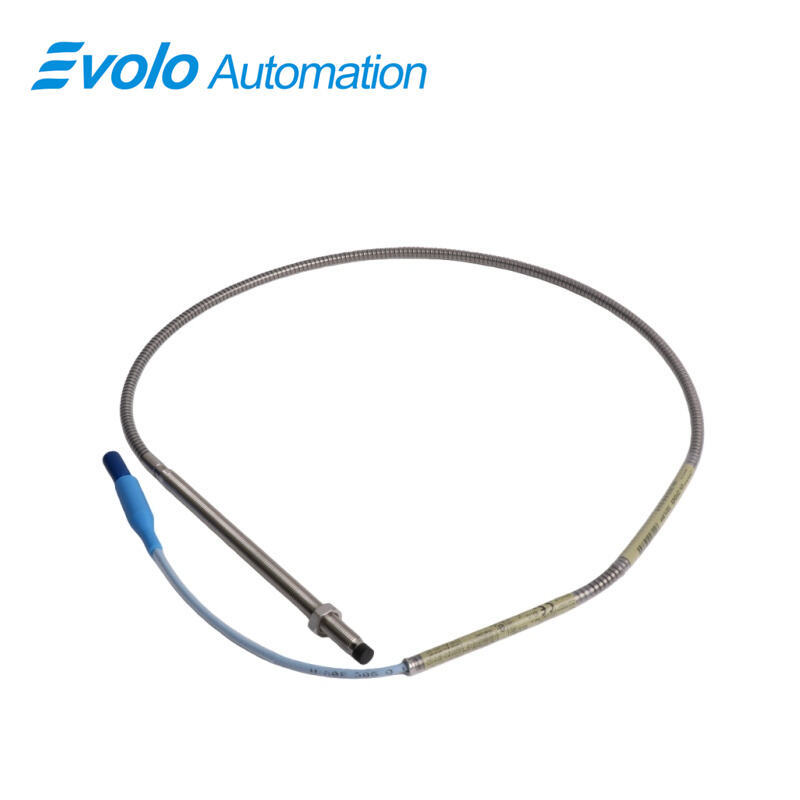

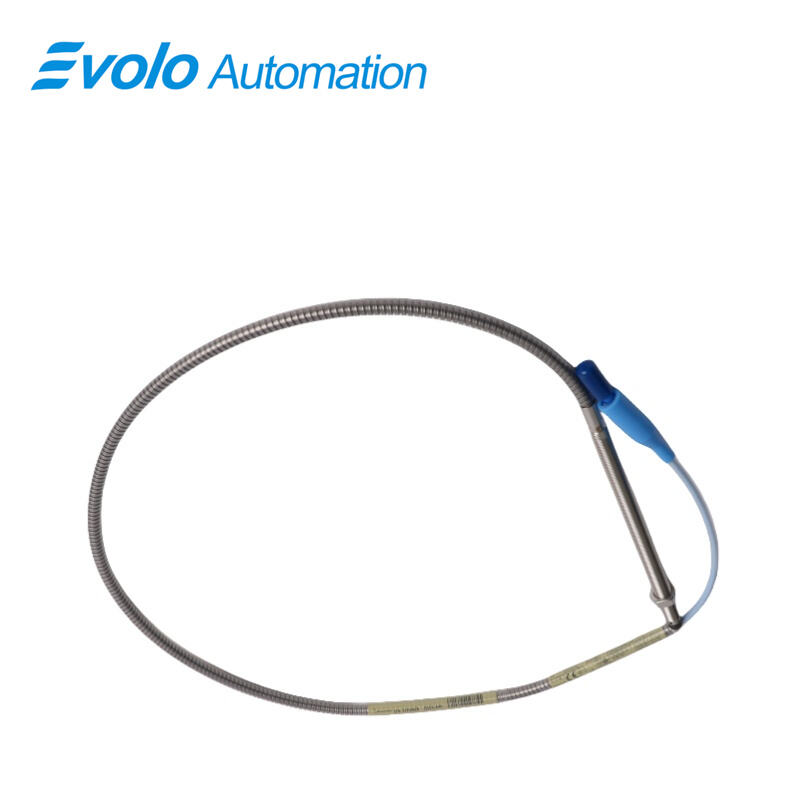

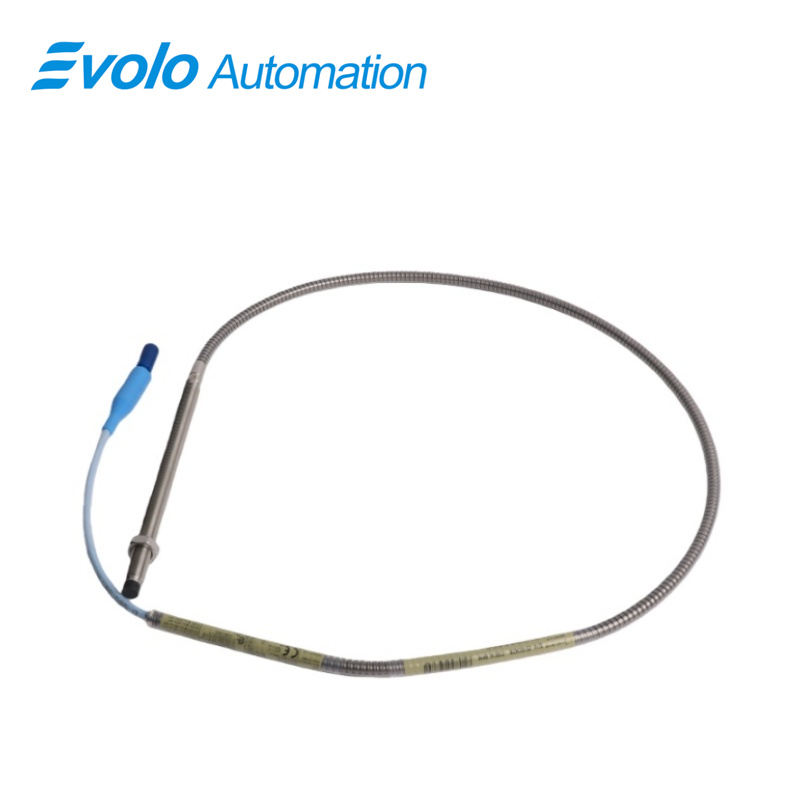

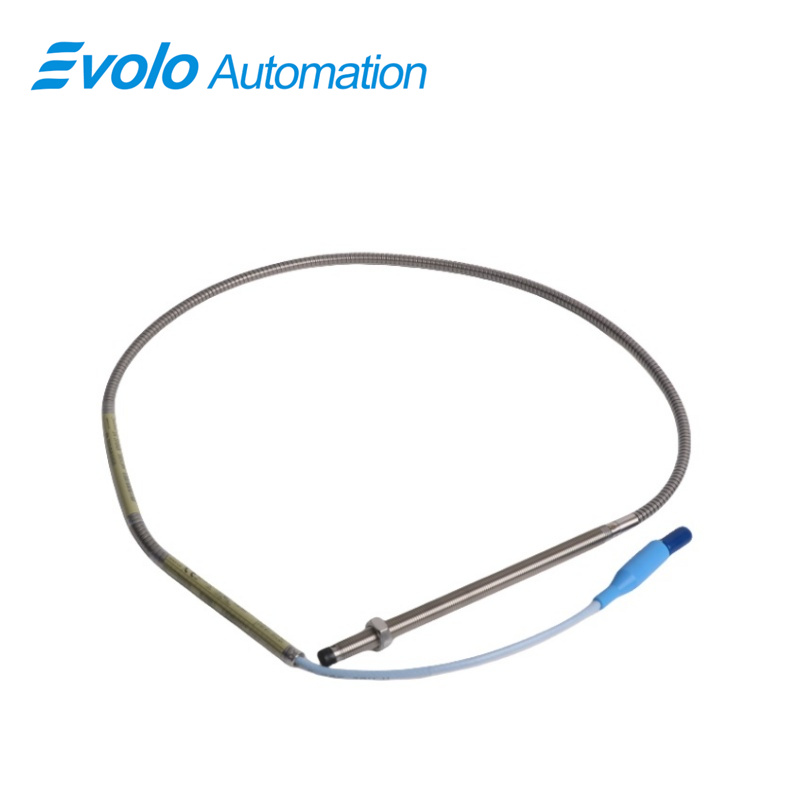

330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-60-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between the probe tip and the measured conductive surface. With a 2 mm (80 mils) linear range, M8X1 probe case thread, and miniature coaxial ClickLoc connector with protector, the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe measures both static (position) and dynamic (vibration) signals in fluid-film bearing machines. Operating from −52°C to +177°C (−62°F to +350°F) and CSA, ATEX, IECEx approved, this 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe supports 16–24 AWG wiring and 50 Ω output resistance for reliable signal transmission. Its extension cable capacitance of 69.9 pF/m (21.3 pF/ft) ensures accurate distance measurements over 1.0 m (3.3 ft) length. The patented TipLoc and CableLoc designs of the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe secure the probe tip to the cable, while the optional FluidLoc cable option prevents leakage of oil and fluids in industrial machinery. This 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe enables fast installation, accurate radial and axial measurements, and integration with 3300 XL transducer systems without additional calibration.

Applications

Measure Radial Vibration on Small Shafts
The 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe captures radial vibration on shafts smaller than 50 mm, using its 2 mm linear range and 50 Ω output resistance to provide accurate readings in compact installations.

Monitor Axial (Thrust) Position in Compressors
Install the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe to measure axial shaft movements on centrifugal and refrigeration compressors. Its 3/8-24 UNF threaded probe and TipLoc design maintain precise tip positioning.

Provide Keyphasor and Speed Signals for Control Systems
The 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe outputs signals for tachometer and zero-speed measurements, using the standard 1.0 m cable with 69.9 pF/m capacitance for stable signal transmission.

Integration with Fluid-Film Bearing Machines
Use the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe to track dynamic and static shaft positions in fluid-film bearings, leveraging CSA, ATEX, and IECEx approvals for safe operation in industrial environments.

Specifications

Competitive Advantage

High-Temperature Operation for Harsh Environments
The 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe works from −52°C to +177°C, enabling reliable vibration and position monitoring under extreme temperatures without signal drift.

Secure Cable and Probe Connection
Patented TipLoc and CableLoc designs on the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe provide up to 330 N pull strength, ensuring the probe tip remains firmly attached to the cable even in high-vibration machinery.

Prevents Oil and Fluid Intrusion
Optional FluidLoc on the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe blocks fluid ingress into the cable, maintaining clean electrical signals and reducing maintenance downtime.

Direct Integration with 3300 XL Systems
The 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe is fully compatible with existing 3300 XL probes, extension cables, and Proximitor sensors, allowing straightforward system upgrades and consistent scale factor of 7.87 V/mm.

Accurate Long-Distance Measurements
With 1.0 m cable and 69.9 pF/m capacitance, the 330102-00-60-10-01-05 3300 XL 8 mm Proximity Probe ensures high-fidelity readings over distance, critical for industrial monitoring on large machines.
