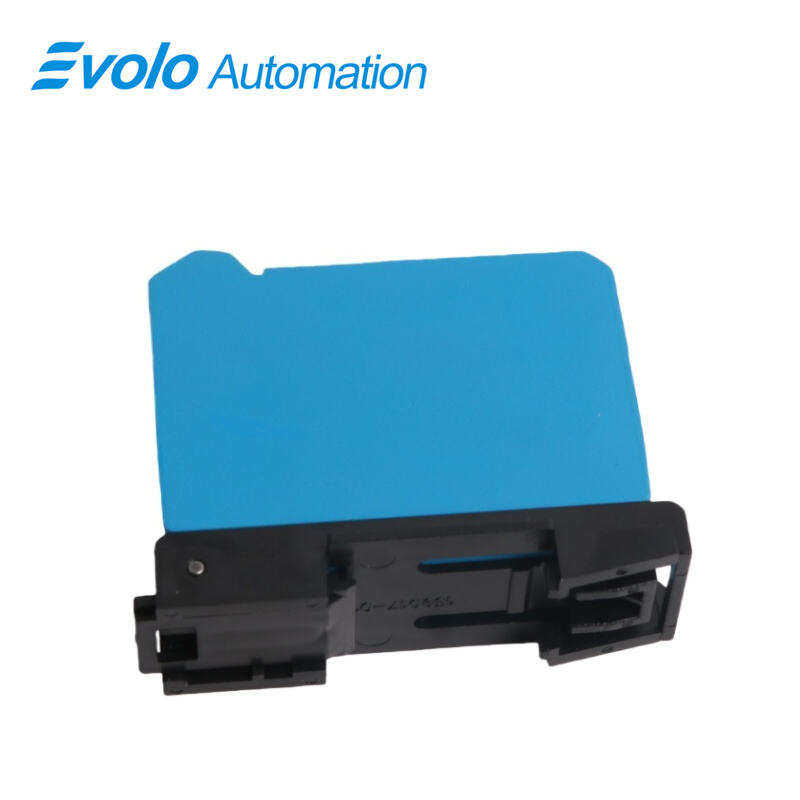

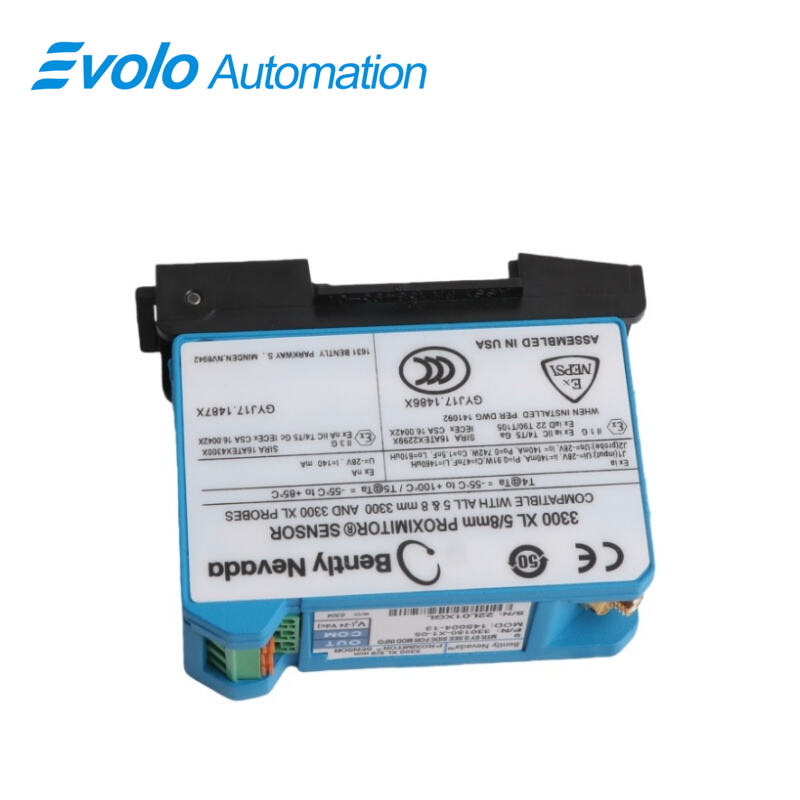

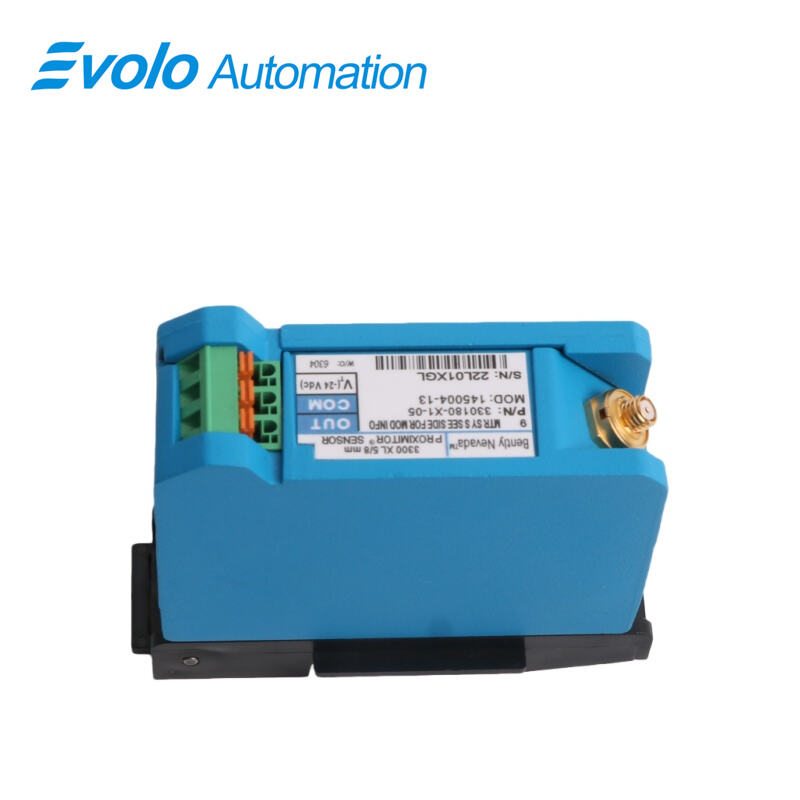

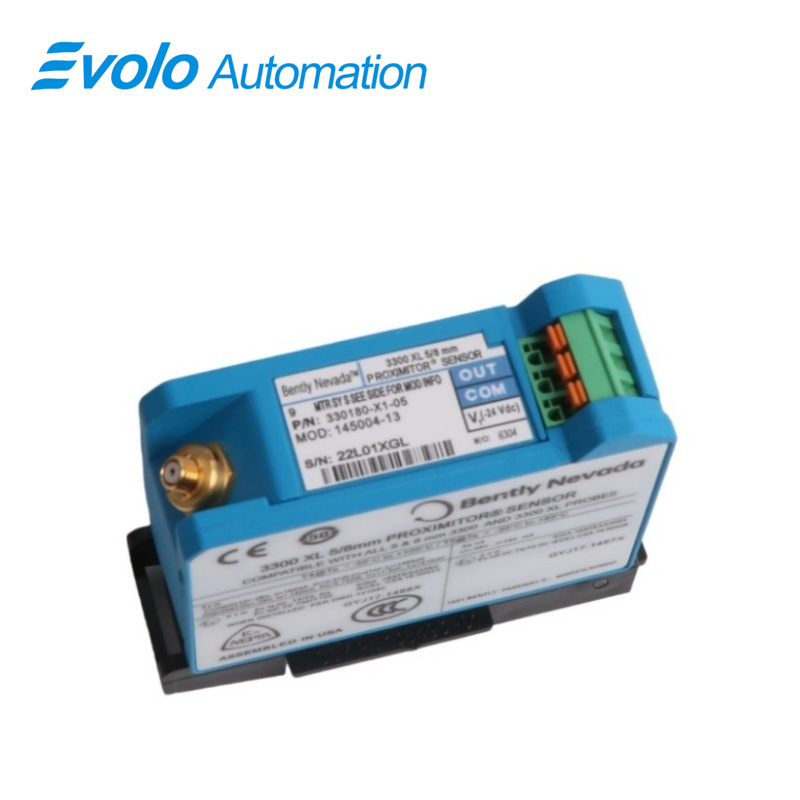

330180-X1-05 MOD:145004-13 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD:145004-13
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD:145004-13 3300 XL Proximitor Sensor is an essential signal conditioning module within the 3300 XL proximity transducer system, providing accurate non-contact vibration and displacement measurements for rotating machinery in advanced industrial automation environments. Designed to interface with 3300-series 5 mm and 3300 XL 8 mm proximity probes, the 330180-X1-05 MOD:145004-13 Proximitor Sensor converts probe signals into precise voltage outputs proportional to the dynamic and static characteristics of fluid-film bearing machines, enabling real-time condition monitoring, predictive maintenance, and protection system integration.

Constructed from A308 aluminum and certified for CSA, ATEX, and IECEx approval, the Proximitor Sensor supports global hazardous area deployment. Its wide operating temperature range from -52°C to +100°C and frequency response from 0 to 10 kHz enable high-fidelity vibration diagnostics, Keyphasor phase reference acquisition, and speed measurements. With supply sensitivity below 2 mV per volt and 50-Ω output resistance, the 330180-X1-05 MOD:145004-13 ensures stable, noise-immune signal delivery through long wiring distances up to 305 meters, supporting plant-wide monitoring architectures. Additionally, improved RFI/EMI immunity allows installation in fiberglass housings without metallic shielding, reducing installation cost and complexity. Mounting adaptability for DIN-rail or panel configurations and SpringLoc wiring terminals further streamline integration into modern digital automation platforms, API-670 compliant vibration protection systems, and high-value rotating equipment fleets across oil & gas, petrochemical, power generation, and compressor industries.

Applications

Vibration Monitoring on Turbo Machinery
Used for shaft vibration measurement on gas turbines, steam turbines, and compressors. Frequency response up to 10 kHz supports broadband diagnostic analysis for predictive maintenance.

Axial and Radial Displacement Measurement
Supports non-contact shaft displacement measurements to detect thrust wear and casing-shaft misalignment. Enables early detection of mechanical degradation affecting operational efficiency.

Keyphasor Phase Reference Signal Acquisition
Provides phase angle information for synchronous analysis, balancing, and order tracking. High immunity to electrical noise maintains stable phase accuracy in industrial RF-dense environments.

Zero-Speed and Tachometer Monitoring
Converts probe signals into tachometer outputs for process control loops, surge control, and safety protection functions in critical rotating assets.

Hazardous Area Machine Protection
CSA, ATEX, and IECEx approvals allow deployment in petrochemical plants and refineries. Compatible with intrinsically safe architectures and API-670 compliant protection systems.

Specifications

Competitive Advantage

Extended Wiring Infrastructure Advantage
Field wiring capability up to 305 meters enables centralized monitoring architectures, reducing installation overhead and enabling distributed asset integration across large industrial sites.

EMI/RFI Immunity Advantage
Enhanced immunity allows installation within non-metallic housings without shielding, reducing conduit costs and simplifying compliance for CE-marked installations.

Mounting Flexibility Advantage
DIN-rail and panel mounting options provide integration scalability for OEM equipment, retrofit projects, and high-density control cabinets. Eliminates need for dedicated isolator plates.

Low Supply Sensitivity Advantage
<2 mV/V supply sensitivity ensures measurement stability during voltage fluctuations, increasing reliability of predictive analytics and vibration protection logic.

Temperature and Environmental Robustness Advantage
Operational range from -52°C to +100°C enables high performance under thermal cycling, harsh ambient conditions, and outdoor refinery environments, reducing failure risk and lifecycle cost.
