330101-00-43-15-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-43-15-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

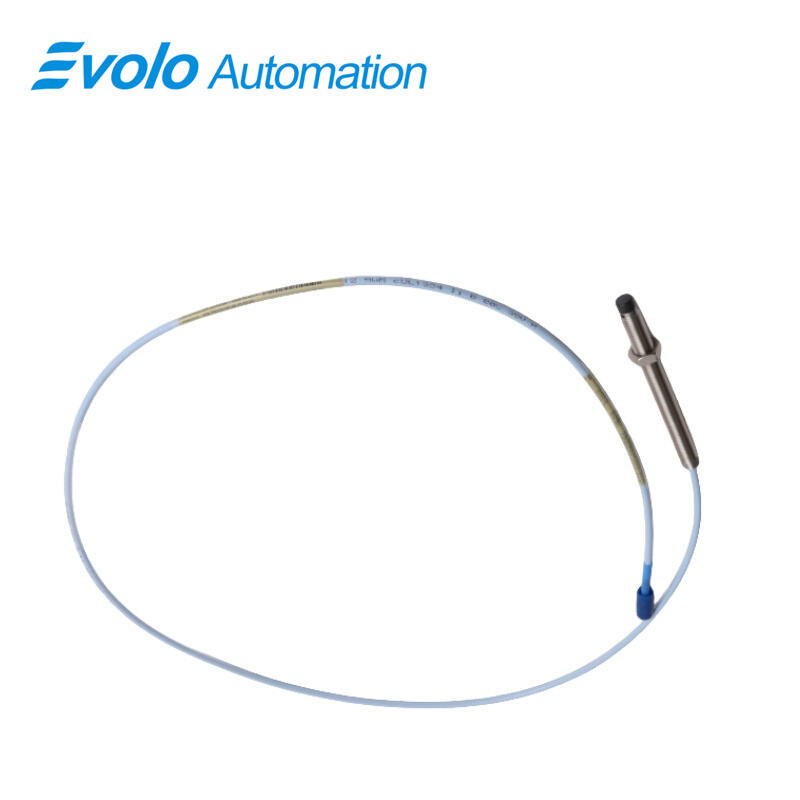

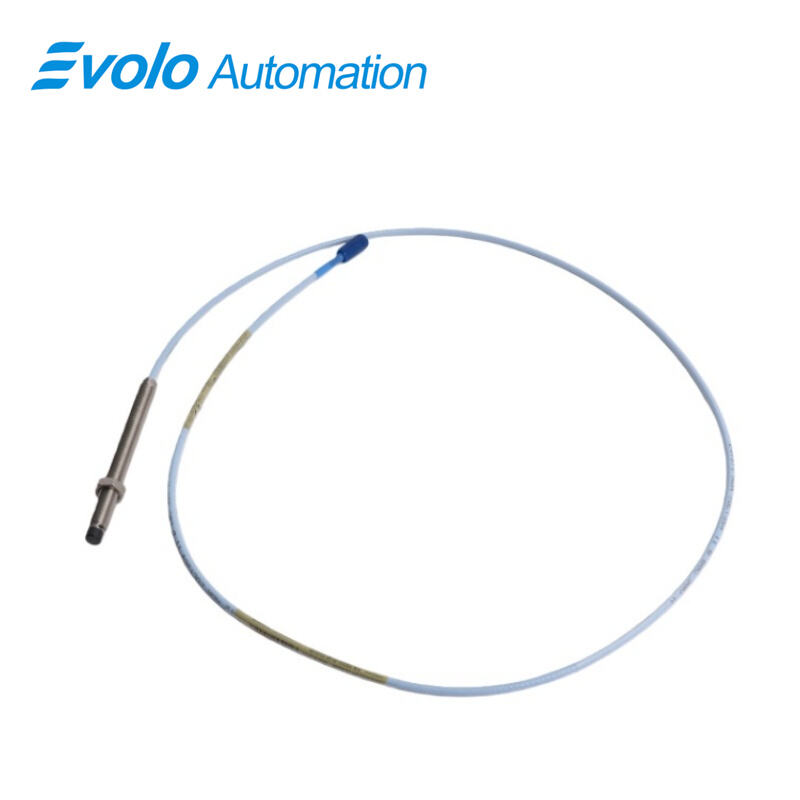

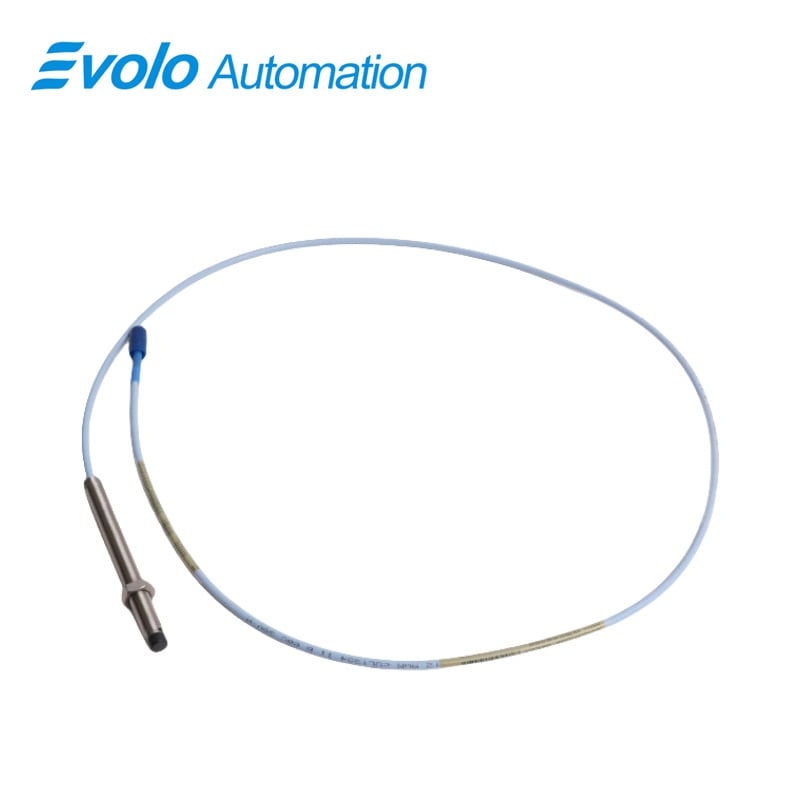

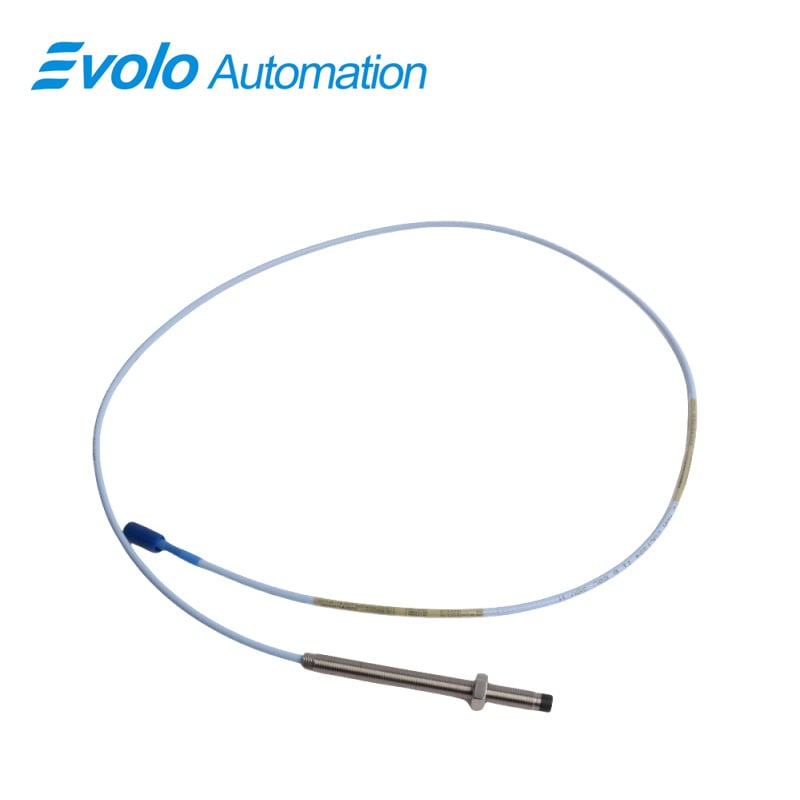

The 330101-00-43-15-02-00 3300 XL 8 mm Proximity Probe is an advanced eddy-current proximity transducer engineered for precision vibration and position monitoring in automated industrial systems. With a linear range of 2 mm (80 mils) and a 3/8-24 UNF probe thread, this probe provides accurate static and dynamic measurements on fluid-film bearing machines, turbines, and compressors. Featuring a 4.3-inch overall case length and a 1.5-meter (4.9 ft) miniature coaxial ClickLoc cable, it ensures reliable connectivity while maintaining signal integrity in demanding automation environments.

The probe is built with TipLoc molding, creating a robust bond between the probe tip and the body, and CableLoc technology, providing 330 N (75 lbf) pull strength for secure cable attachment under high-vibration conditions. Optional FluidLoc protection prevents oil or other liquids from entering the machinery through the cable, enhancing reliability in harsh industrial environments. Fully compatible with other 3300 XL probes, extension cables, and Proximitor sensors, this system allows interchangeable components without bench recalibration, simplifying maintenance and ensuring high uptime. The 3300 XL 8 mm probe system complies with API 670 standards, guaranteeing mechanical stability, linearity, and temperature resilience, making it ideal for automated monitoring and control applications.

Applications

1. High-Speed Turbine Vibration Monitoring
Provides precise vibration measurements for turbines operating at high RPM, enabling automated predictive maintenance and reducing the risk of unexpected failures.

2. Shaft Position and Alignment Control
Monitors shaft displacement in compressors and pumps, supporting automated alignment and position verification to minimize wear and downtime.

3. Keyphasor Signal Generation
Generates accurate phase reference signals for automated speed measurement and synchronization, critical for process control and condition monitoring systems.

4. Extreme Temperature Industrial Operations
Operates effectively between -52°C to +177°C, suitable for high-temperature applications in petrochemical, energy, and process automation plants.

5. Maintenance-Free Installation
Supports gap adjustment or probe replacement without disassembly, improving operational uptime and efficiency in automated systems.

Specifications

Competitive Advantage

1. Precise Measurement Performance
Maintains linearity over 2 mm range with supply sensitivity under 2 mV per volt, ensuring highly accurate static and dynamic readings.

2. Robust Mechanical Integrity
TipLoc and CableLoc designs ensure secure probe and cable attachment, capable of withstanding high-vibration industrial environments with 330 N pull strength.

3. Fluid Containment
Optional FluidLoc cable system prevents oil or other fluids from leaking, protecting probe and machinery integrity in harsh automation applications.

4. Interchangeable and Compatible Components
Supports all 3300 XL probes, extension cables, and Proximitor sensors, eliminating the need for individual component calibration and simplifying system maintenance.

5. API 670 Compliance
Meets API 670 standards for mechanical configuration, linear range, and temperature stability, ensuring reliable, high-performance operation in industrial automation monitoring.
