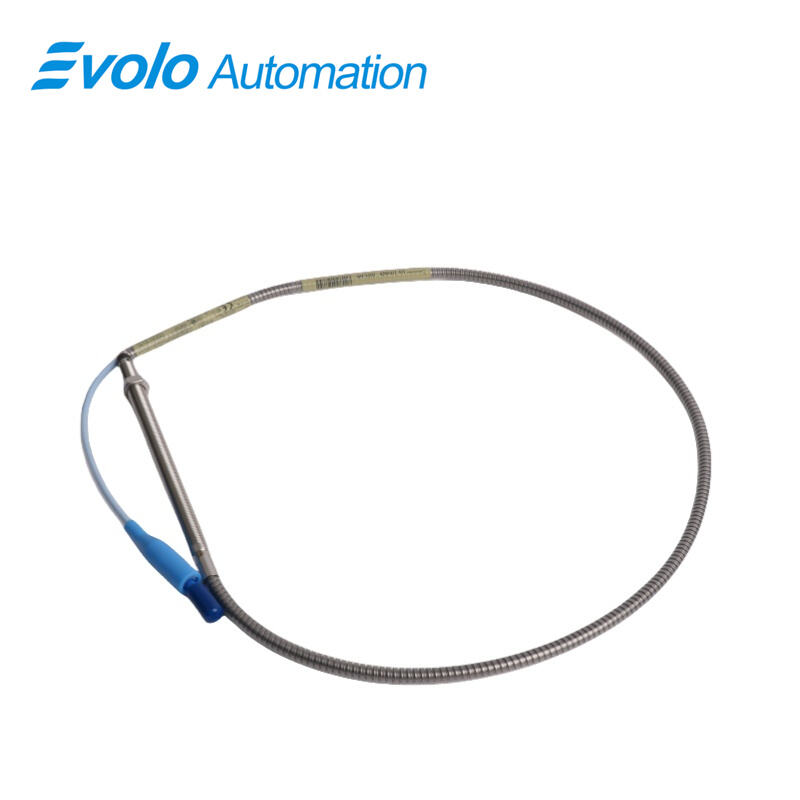

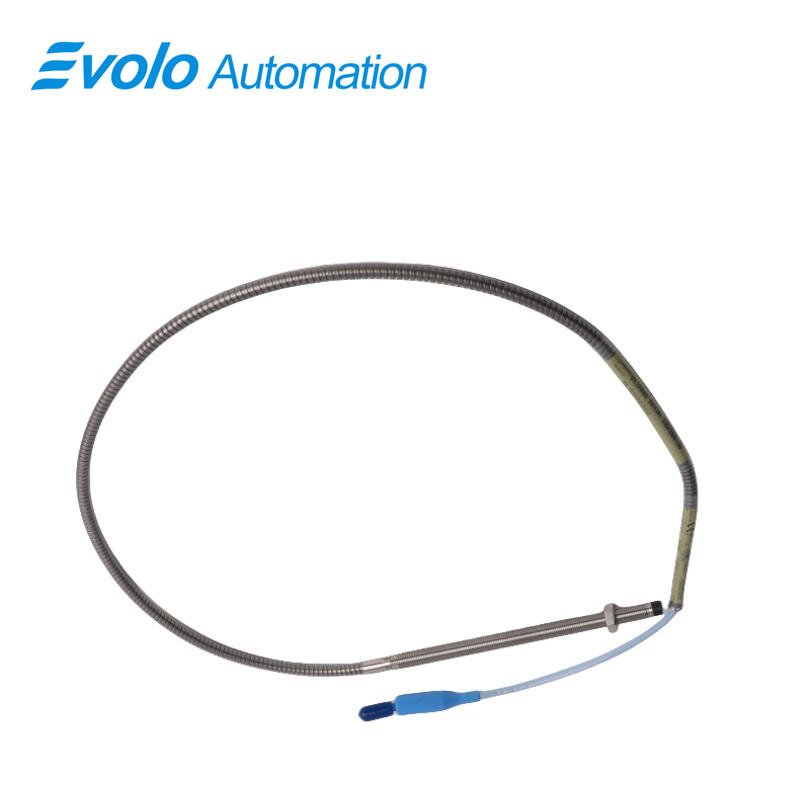

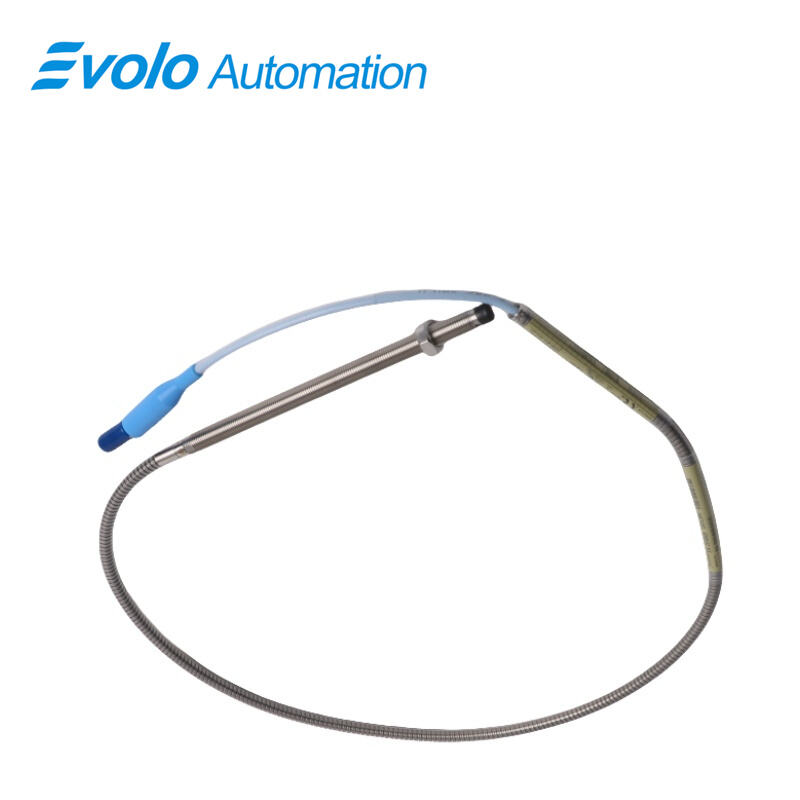

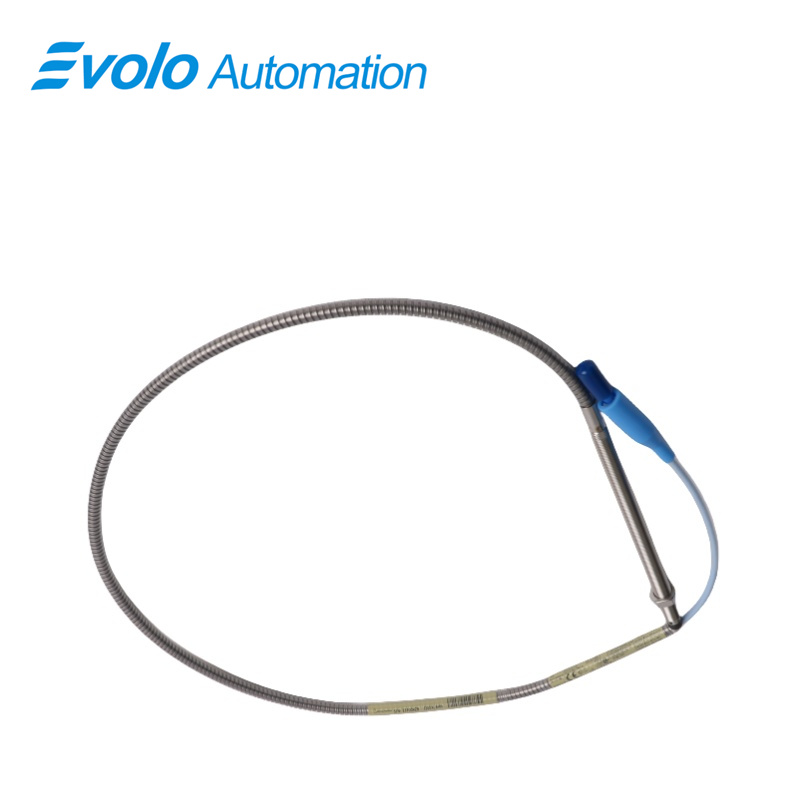

330102-00-64-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-64-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-64-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for advanced industrial automation and machine monitoring applications, including turbines, compressors, and pumps. This probe measures both static position and dynamic vibration with a 2 mm (80 mils) linear range and output resistance of 50 Ω, delivering highly reliable data for condition monitoring and predictive maintenance systems. Featuring a miniature coaxial ClickLoc connector and a 1.0-meter standard cable, the 330102-00-64-10-02-00 probe maintains signal stability with extension cable capacitance of 69.9 pF/m and supply sensitivity below 2 mV per volt. Its durable construction with 3/8-24 UNF thread and patented TipLoc/CableLoc methods ensures robust mechanical retention with 330 N (75 lbf) pull strength. Operating from -52°C to +177°C and fully backward compatible with non-XL 3300 series 5 mm and 8 mm components, this probe supports seamless integration into Proximitor Sensor systems and Keyphasor reference applications. Optional FluidLoc cable protection enhances reliability in oil-lubricated machinery, preventing fluid ingress and ensuring continuous operation in demanding industrial environments. The 330102-00-64-10-02-00 3300 XL 8 mm probe exemplifies precision, mechanical durability, and signal integrity essential for modern automation and machinery diagnostics.

Applications

Vibration and Rotor Displacement Monitoring
Used for radial vibration tracking on high-speed compressors and turbines; 2 mm linear range enables detection of sub-mil amplitude variations in fluid-film bearing machines.

Axial (Thrust) Position Measurement
Monitors thrust displacement on rotating machinery; provides accurate static feedback for machine alignment and API 670-compliant protection logic.

Keyphasor and Speed Reference Signals
Delivers phase reference and tachometer outputs for rotor speed synchronization; 50 Ω output ensures minimal signal loss across long panel or cabinet runs.

High-Temperature Machinery Diagnostics
Operates reliably from -52°C to +177°C, suitable for turbine and compressor bearing housings where standard sensors would fail due to extreme heat.

Predictive Maintenance Integration
Seamlessly integrates into condition monitoring and SCADA systems; ClickLoc connector and backward compatibility simplify retrofits and reduce downtime for plant upgrades.

Specifications

Competitive Advantage

Advantage 1 – Wide Temperature Capability
Operating and storage temperatures from −52°C to +177°C make the probe highly suitable for refineries, LNG plants, and power stations where thermal cycling and heat loads are severe.

Advantage 2 – High Signal Stability and Low Supply Sensitivity
With less than 2 mV variation per volt change, signal accuracy remains stable against power fluctuations, enhancing predictive maintenance algorithms and control loop reliability.

Advantage 3 – Optimized Cable and Connector System
Miniature coaxial ClickLoc connector and standard cable reduce installation time while improving field wiring performance (0.2 to 1.5 mm²). This supports modular upgrades and retrofits in automation architectures.

Advantage 4 – Mechanical Durability and Threaded Design
The 3/8-24 UNF thread and 0.563 in maximum engagement provide secure mechanical fixation, lowering probe slippage under continuous vibration, and reducing recalibration or maintenance downtime.

Advantage 5 – Compatibility with Vibration and Condition Monitoring Ecosystems
Integrates seamlessly with proximity transducers and monitoring racks used in turbomachinery protection systems. Enhances asset health diagnostics, enabling automation platforms to trigger alarms, shutdowns, and maintenance workflows.
