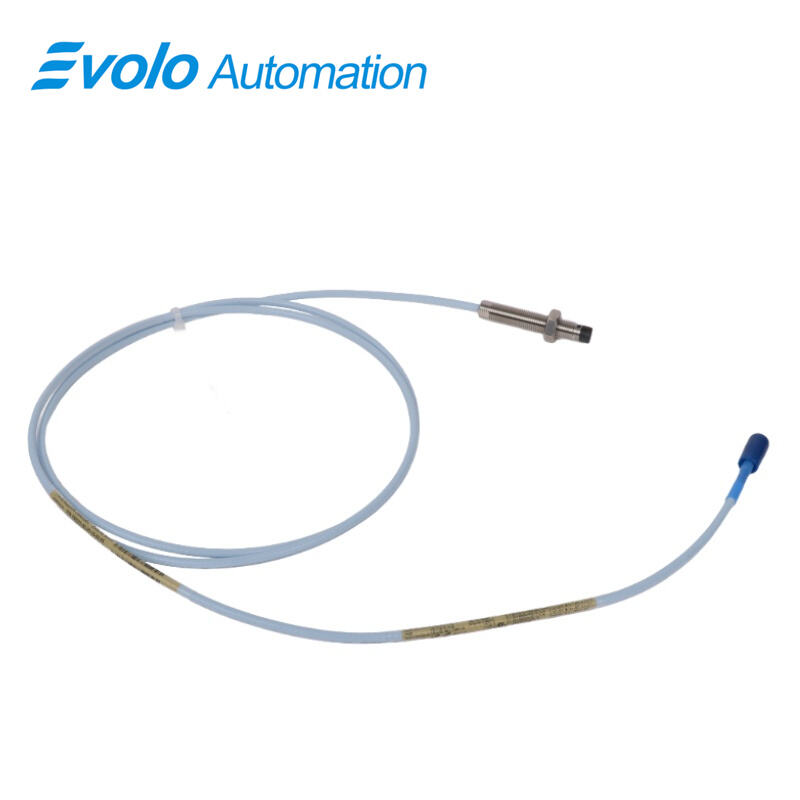

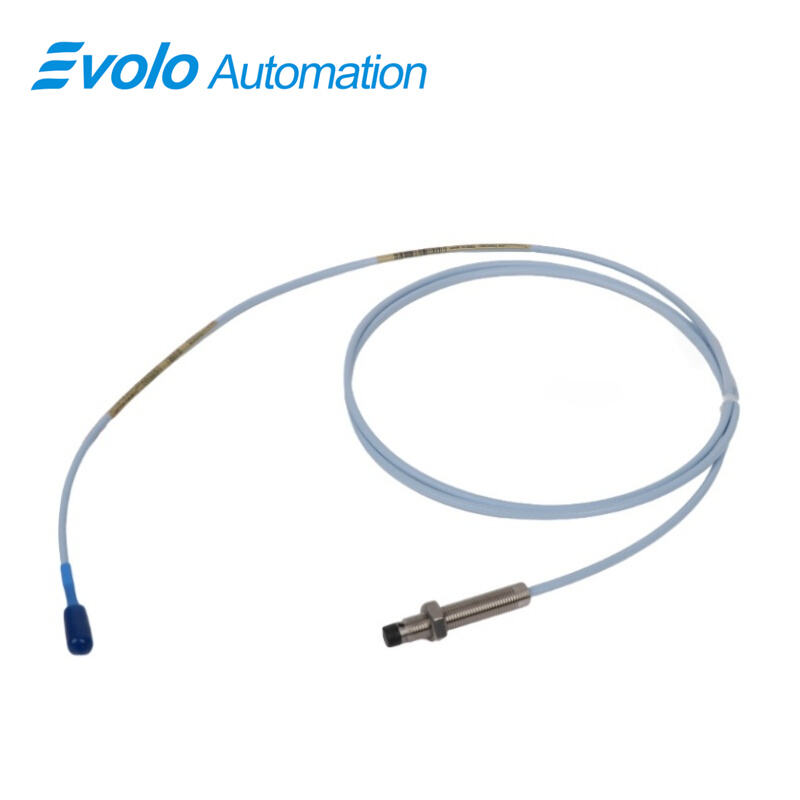

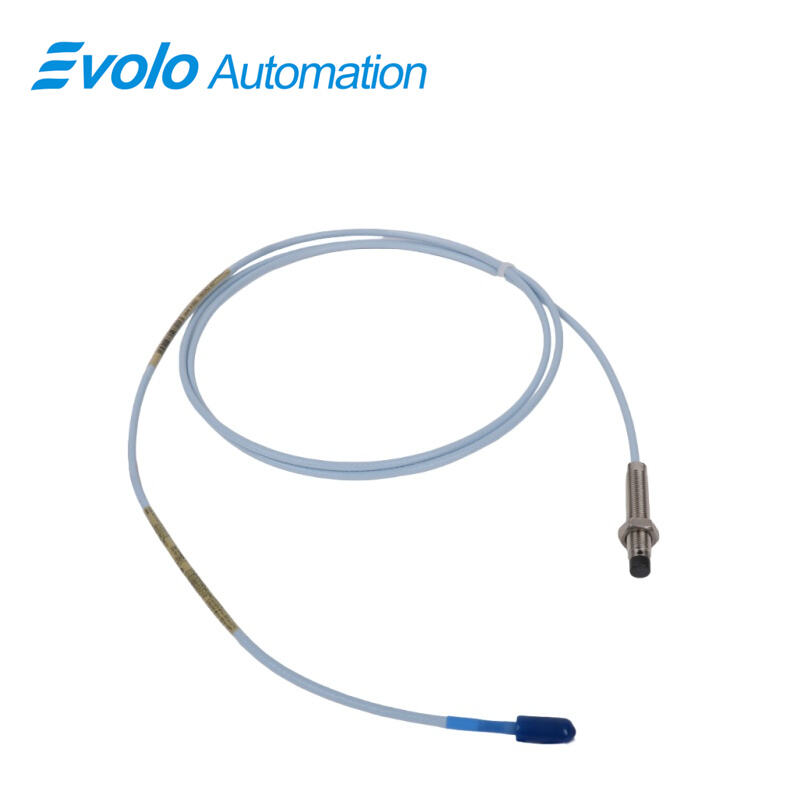

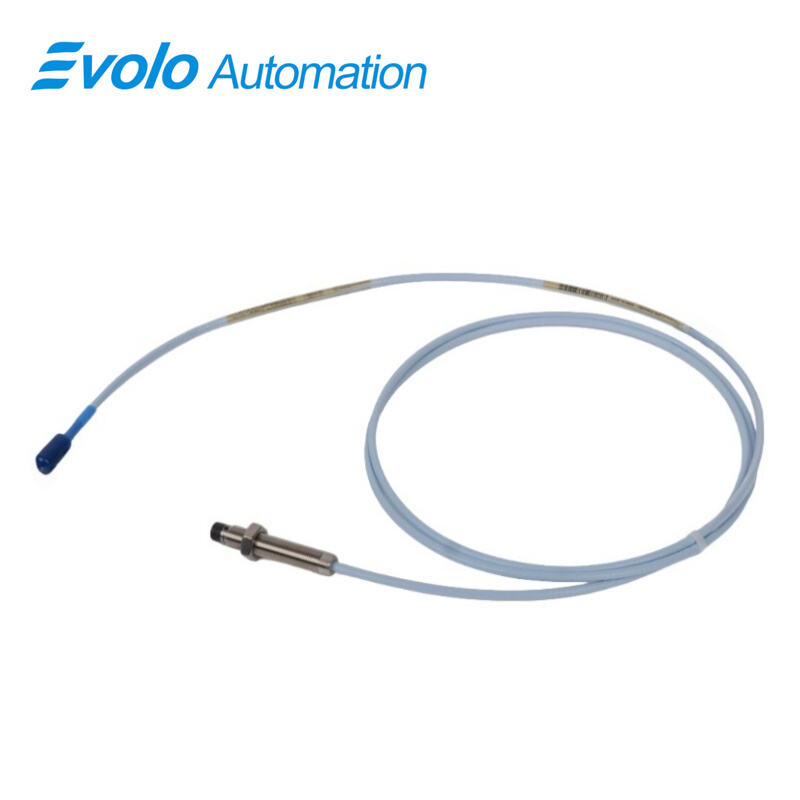

330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe features a 1.0-meter (3.3 feet) total length with a 3/8-24 UNF threaded probe case and 0.563 in maximum thread engagement. Designed for fluid-film bearing machines, the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe delivers an output voltage proportional to the gap between the probe tip and conductive surfaces, accurately measuring both static position and dynamic vibration. Its 2 mm (80 mils) linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity provide precise automation data. The 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe includes a Miniature coaxial ClickLoc connector with protector and optional FluidLoc cable to prevent fluid ingress. With 69.9 pF/m extension cable capacitance and field wiring support from 0.2 to 1.5 mm² (16–24 AWG), the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe integrates easily into existing monitoring systems, enabling accurate Keyphasor, speed, and position measurement. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), making the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe ideal for automation applications in challenging industrial environments.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe monitors radial vibration on shafts in fluid-film bearing machines. Its 2 mm (80 mils) linear range and 50 Ω output resistance ensure precise vibration data for automation systems.

Detect Axial Position on Flat Targets
Use the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe to measure axial (thrust) positions on flat surfaces smaller than 15 mm. The probe tip material (PPS) and 3/8-24 UNF thread allow accurate placement in tight spaces.

Generate Keyphasor Signals for Rotational Speed
The 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe provides Keyphasor reference outputs, enabling speed and phase detection for automated monitoring of compressors, turbines, and pumps.

Integration with FluidLoc Extension Cables
Combined with optional FluidLoc cables, the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe prevents fluid ingress while maintaining precise signal transmission in automated measurement systems.

Specifications

Competitive Advantage

Robust Probe-Cable Bonding
Patented TipLoc molding in the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe secures the probe tip to the body, preventing misalignment during installation or operation.

High Pull Strength Cable Connection
The CableLoc design provides 330 N (75 lbf) pull strength, keeping the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe securely connected in automated monitoring systems.

Interchangeable System Components
The 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe works with existing 3300 series probes, extension cables, and Proximitor sensors, simplifying system upgrades without recalibration.

Precision Output Across Temperature Range
Operating from -52°C to +177°C, the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe delivers consistent <2 mV/V supply sensitivity, ensuring reliable automation measurement in extreme industrial environments.

Compact Design for Tight Spaces
With 1.0-meter total length and 0.563 in maximum thread engagement, the 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe fits restricted areas where larger probes cannot be installed.
