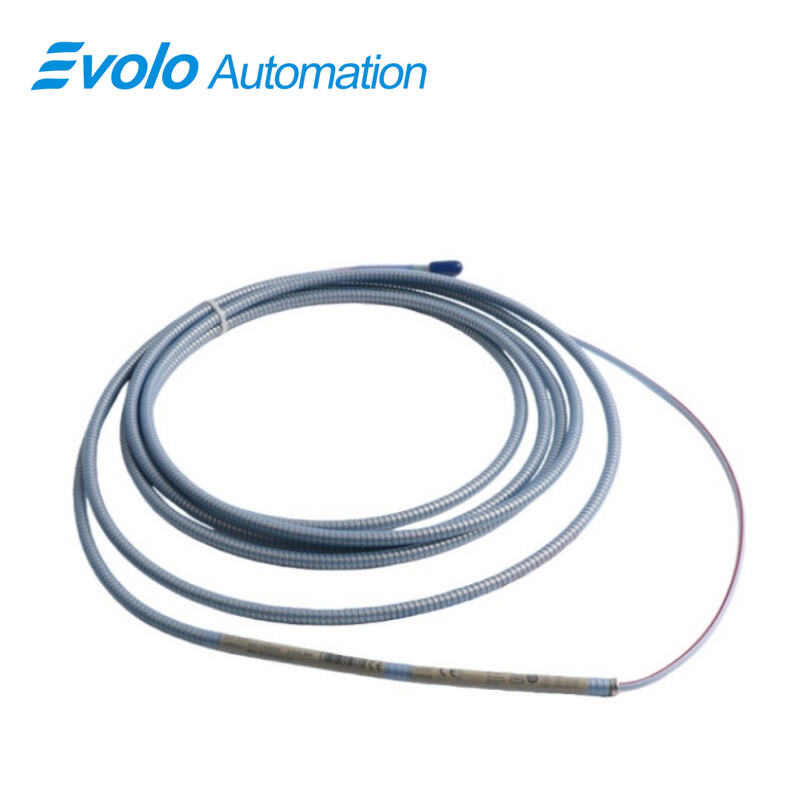

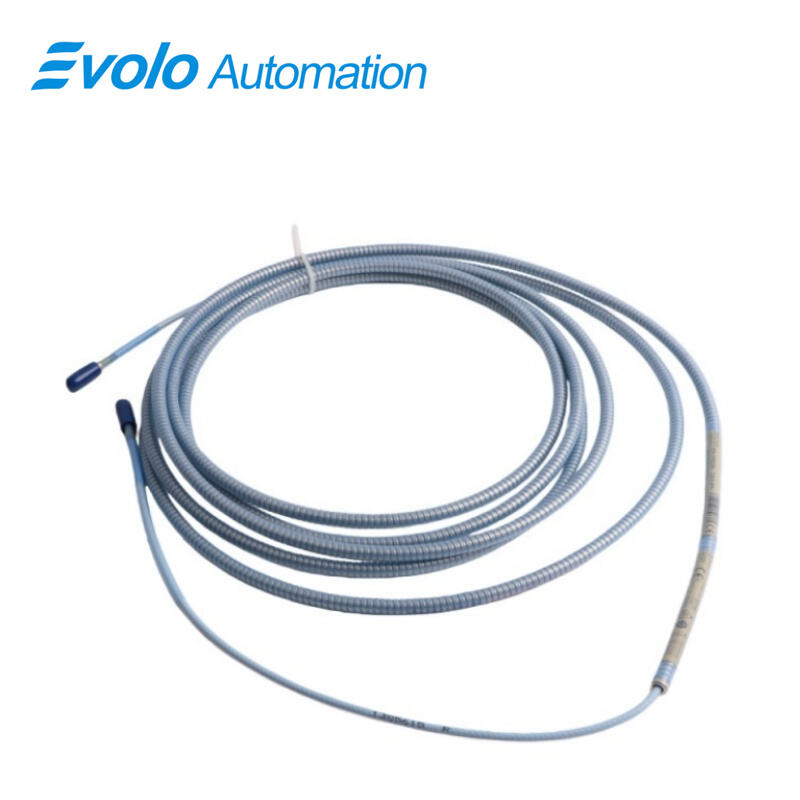

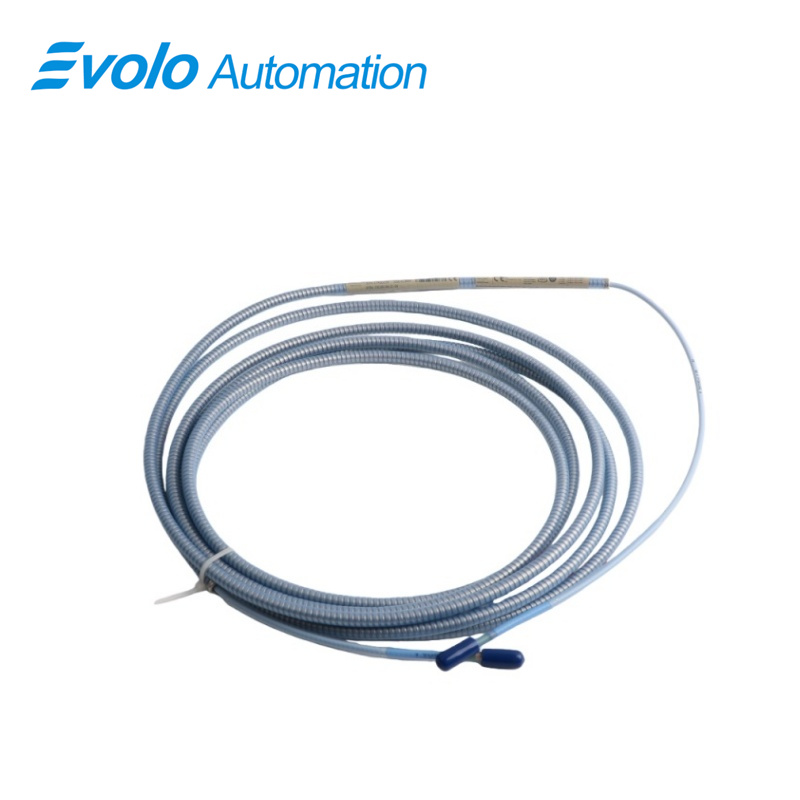

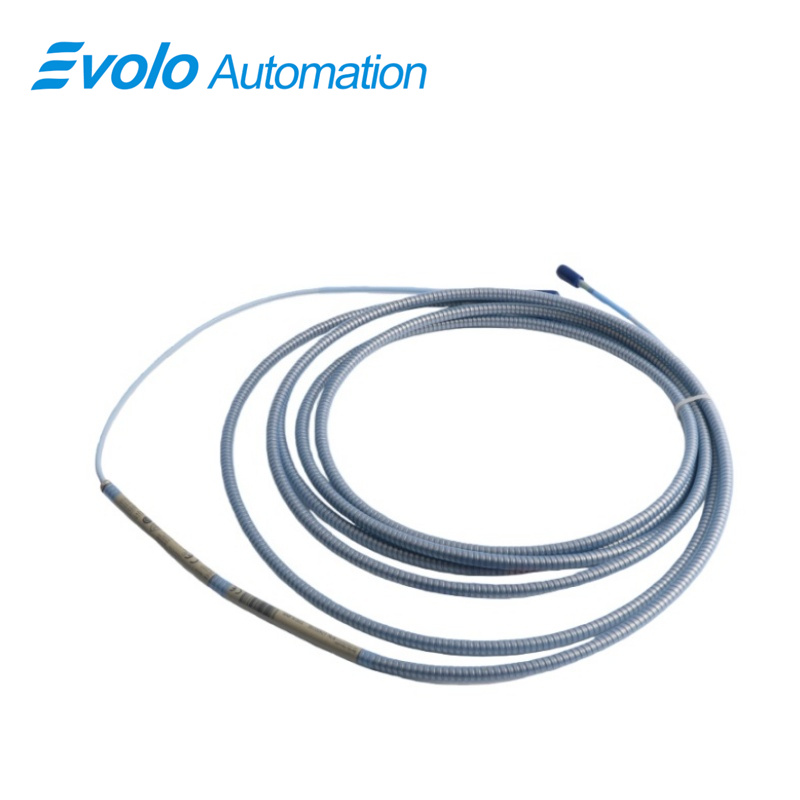

330190-045-00-00 3300 XL Extended Temperature Range (ETR) Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330190-045-00-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330190-045-00-00 3300 XL Extended Temperature Range (ETR) Extension Cable is a high-performance, industrial-grade extension cable designed for the 3300 XL 8 mm Proximity Transducer System, providing precise distance and vibration measurements for advanced machinery monitoring and automation applications. Constructed from 75 Ω triaxial cable with PFA insulation, this ETR cable ensures reliable operation across an extreme temperature range from -52°C to +260°C (-62°F to +500°F), making it ideal for high-temperature environments such as turbines, compressors, and pumps. With a length of 4.5 meters (14.8 feet), low output resistance of 50 Ω, and capacitance of 69.9 pF/m, the cable maintains signal integrity even with up to 305 meters (1,000 feet) of field wiring. Designed to integrate seamlessly with 3300 XL proximity probes, it delivers highly linear measurements up to 2 mm (80 mils) and supports frequency responses from 0 to 10 kHz, ensuring both static position and dynamic vibration data are accurately transmitted to control and monitoring systems. Its patented CableLoc and TipLoc designs guarantee secure mechanical connections, with a pull strength of 330 N (75 lbf), while optional FluidLoc configurations prevent oil or liquid ingress. Compatible with all 3300 XL system components, this extension cable ensures interchangeability, backward compatibility, and API 670 standard compliance for linearity, accuracy, and temperature stability, making it an essential component in automated machinery protection systems.

Applications

1. High-Temperature Turbine Monitoring
The ETR cable supports continuous vibration and position monitoring in turbines operating at temperatures up to +260°C, transmitting accurate 4–20 mA signals to control systems without degradation.

2. Centrifugal Compressor Vibration Control
Provides reliable dynamic measurement data for compressors in oil and gas applications, supporting field wiring distances up to 305 meters and ensuring precise machinery protection.

3. Pump and Motor Position Sensing
Accurate static and dynamic measurement of small pumps and motors, with a minimum target size of 15.2 mm, allowing integration into compact automation layouts.

4. Fluid-Film Bearing Monitoring
Supports advanced vibration and position monitoring in fluid-film bearing machinery, enhancing predictive maintenance strategies and reducing unexpected downtime.

5. API 670-Compliant Automation Systems
The cable ensures full compliance with API 670 standards for linearity and temperature stability, providing reliable integration into automated monitoring systems for rotating equipment.

Specifications

Competitive Advantage

1. Extended Temperature Range
Operates reliably from -52°C to +260°C, making it suitable for extreme industrial environments where standard cables fail.

2. Superior Signal Integrity
Low output resistance (50 Ω) and capacitance (69.9 pF/m) maintain precise measurement data over long distances, up to 305 meters of field wiring.

3. Patented Mechanical Security
CableLoc and TipLoc designs provide 330 N pull strength, preventing accidental disconnections and ensuring long-term reliability.

4. Fluid Protection Option
Optional FluidLoc cable prevents oil or liquid ingress, reducing maintenance requirements and safeguarding measurement accuracy.

5. Seamless System Compatibility
Fully interchangeable and backward compatible with all 3300 XL system components, supporting OEM flexibility and reducing inventory complexity.
