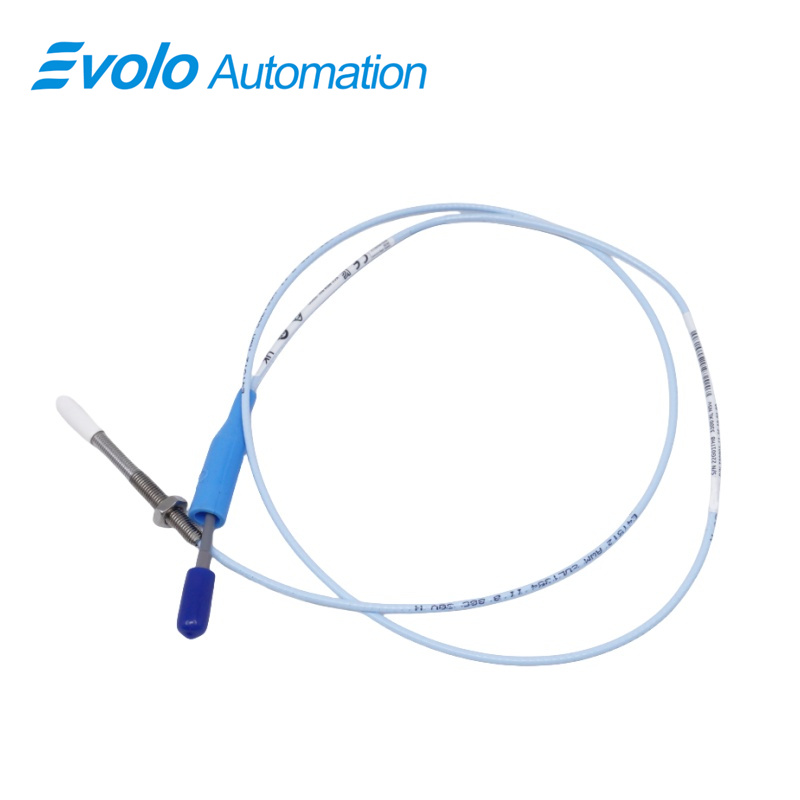

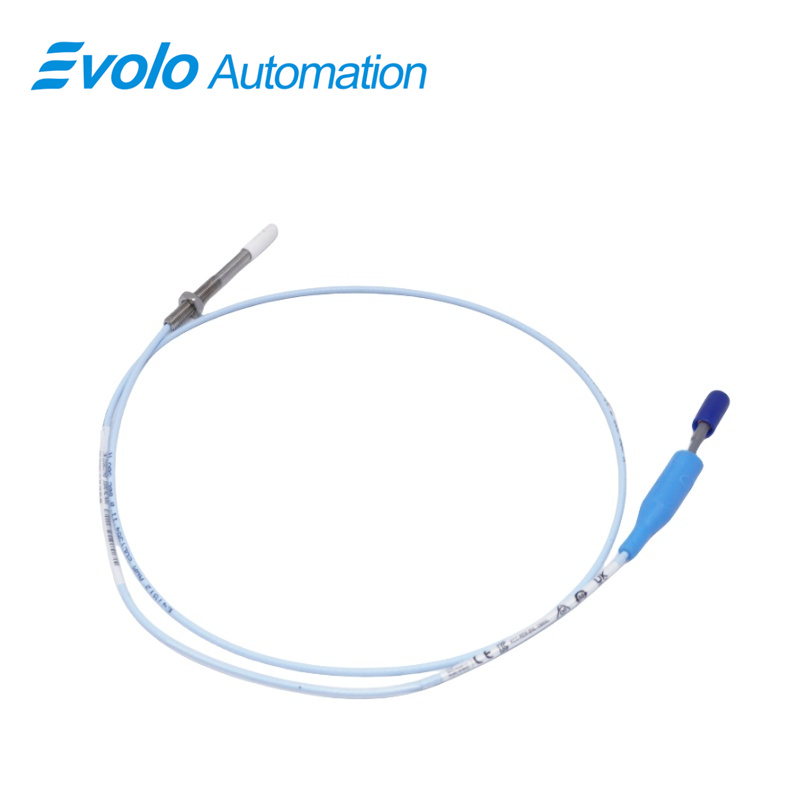

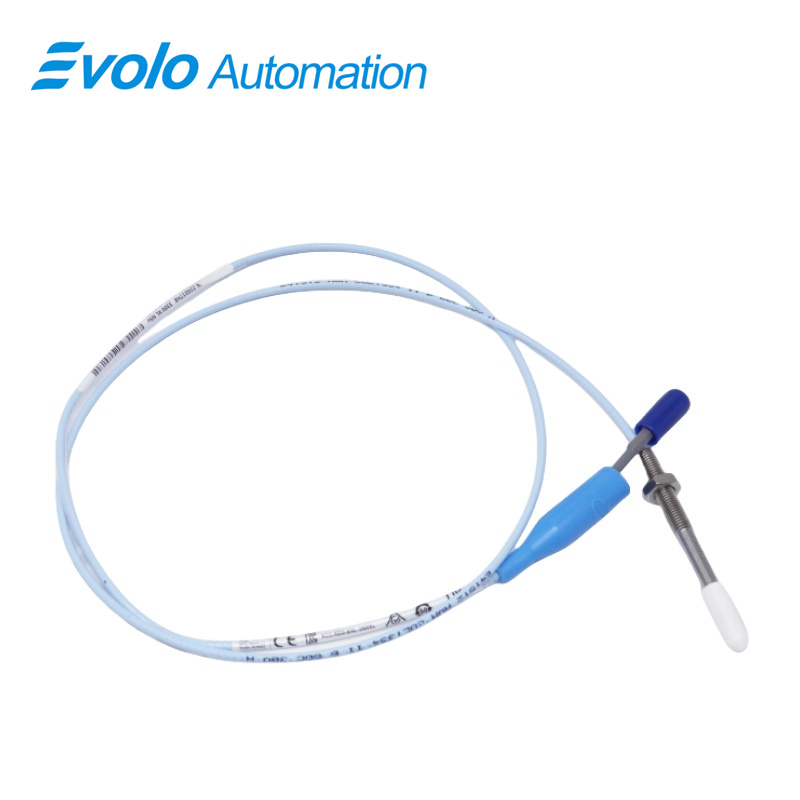

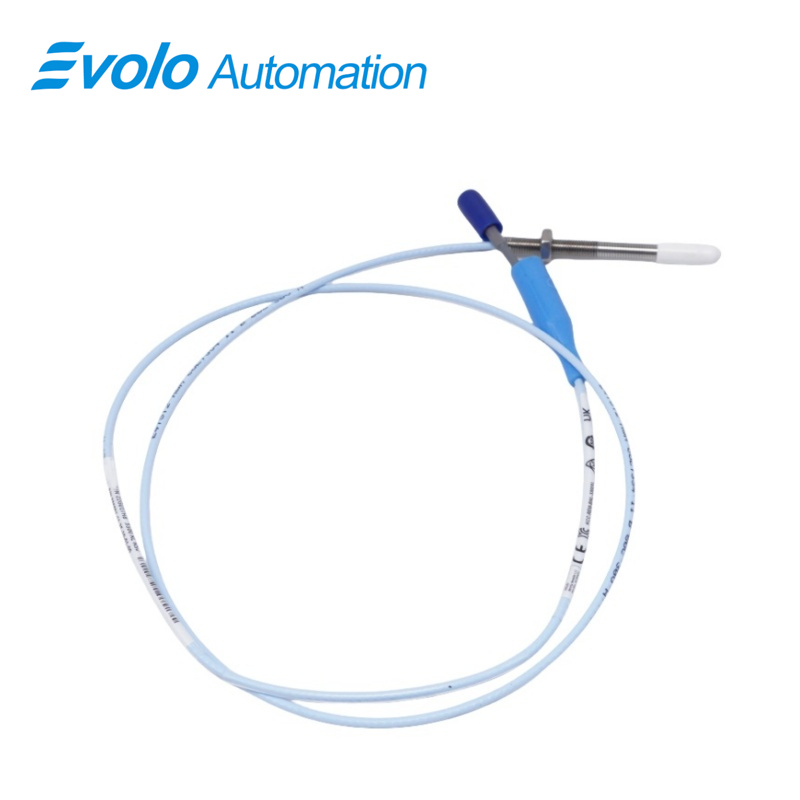

330901-16-24-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-16-24-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 330901-16-24-10-02-05 3300 NSv Proximity Probe is a high-performance proximity sensing solution designed for demanding industrial automation environments where compact installation, precision vibration detection, and machine condition monitoring are critical. As part of the 3300 NSv proximity transducer system, the 330901-16-24-10-02-05 probe provides highly accurate displacement, radial vibration, and shaft position data for automation assets such as centrifugal compressors, refrigeration compressors, and process gas machinery. With enhanced side-view characteristics, a 1.5 mm linear range, and support for small shaft and tight counter-bore configurations, this proximity probe is optimized for advanced monitoring applications in fluid-film bearing machines. Constructed with AISI 304 stainless steel and a PPS probe tip for long-term reliability, the probe integrates seamlessly with automation systems requiring stable signal output, low supply sensitivity, and robust calibration. The 3300 NSv proximity probe also features ClickLoc connector technology for secure field installation, superior mechanical robustness, and enhanced performance in vibration measurement and axial thrust monitoring tasks.

Applications

Application 1 Small-shaft radial vibration monitoring
Used for monitoring radial vibration on shafts <51 mm diameter, enabling accurate displacement tracking for high-speed turbomachinery in petrochemical and refining plants.

Application 2 Axial thrust and rotor position control
Suitable for axial position measurement on flat targets <15 mm, supporting thrust control loops for process gas compressors and compressors with fluid-film bearings.

Application 3 Tight counter-bore and limited side-view installations
Optimized for machines with limited installation clearance, reducing side-view error and increasing integration feasibility by up to 40% compared to standard 5 mm probes.

Application 4 Compressor condition-based maintenance
Provides stable vibration data enabling CBM programs, reducing unplanned downtime by 20-30% through early fault detection of rotor instability and bearing wear.

Application 5 Phase reference and speed measurement
Supports tachometer and Keyphasor signal acquisition for real-time rotational speed and phase analysis in automated drivetrain control systems.

Specifications

Competitive Advantage

Advantage 1 Enhanced small-target performance
Designed for shafts <51 mm and thrust surfaces <15 mm, delivering superior resolution over standard 3300 XL probe families in confined industrial installations.

Advantage 2 Improved side-view and gap stability
Provides shorter linear range (1.5 mm) with reduced side-view error, increasing measurement accuracy by approximately 10-15% in dense compressor layouts.

Advantage 3 Higher mechanical and chemical durability
Uses 304 SST and PPS materials with temperature capability up to +177°C, allowing operation in corrosive compressor gases and chemically aggressive environments.

Advantage 4 ClickLoc connector and CableLoc retention technology
Ensures up to 220 N mechanical pull strength, minimizing signal loss, connector slippage, and failure under continuous vibration exposure in industrial assets.

Advantage 5 Backward compatibility with RAM systems
Compatible with legacy 3300 RAM architecture, reducing retrofit cost by enabling reuse of extension cables and monitoring infrastructure, lowering upgrade CAPEX by 25-40%.
